Toyota HILUX Headlamp — Figure 8101

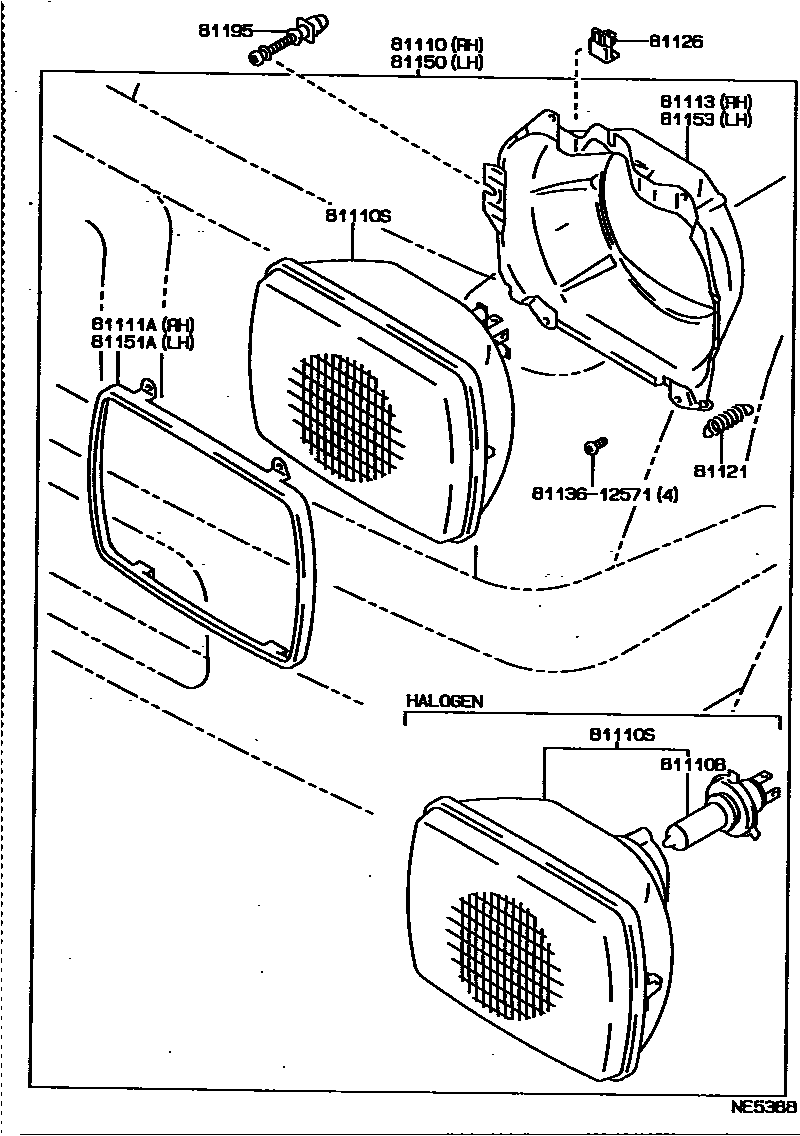

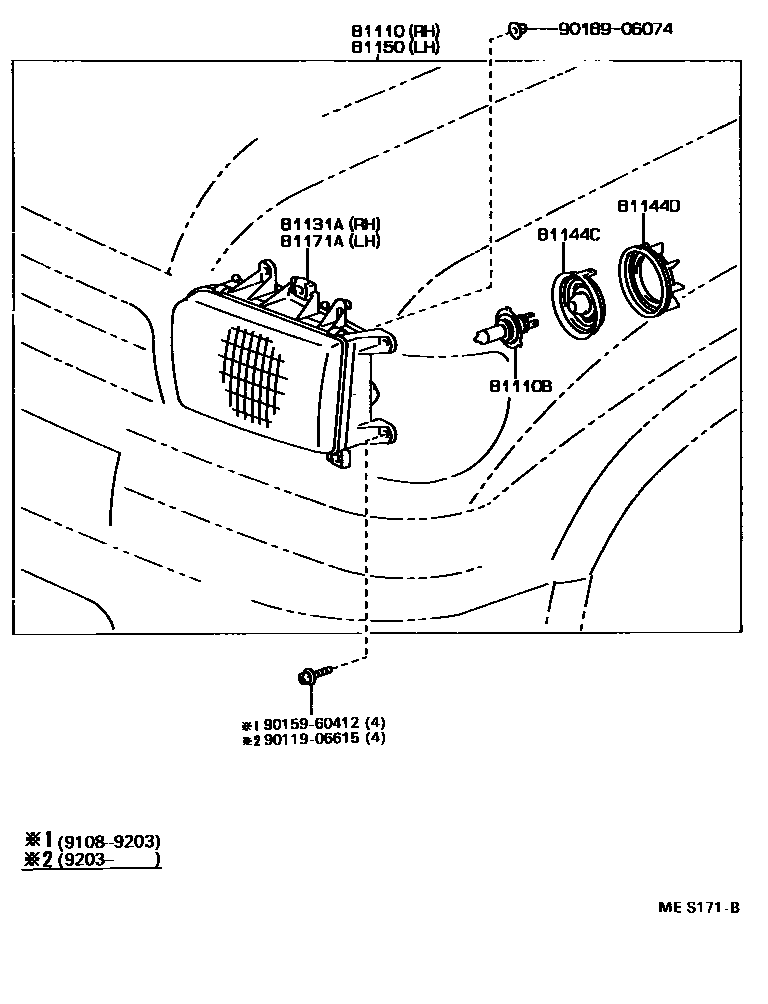

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-35090 · 81110-89149 · 81110-89157 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-22004 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04001 · 90981-04010 · 90981-04029 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-16020 |
| 81113 | Right No. 1 closed lamp seat | 81113-89149 |
| 81121 | headlight spring | 81121-14670 |
| 81126 | headlight panel | 81124-89101 |
| 81131A | Right headlight assembly assembly | 81130-35090 |
| 81144C | Headlight lamp holder cover | 90075-99075 |
| 81144D | headlight lock cover | 90075-99074 |
| 81150 | Left headlight assembly | 81150-35090 · 81150-89149 · 81150-89157 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-16020 |
| 81153 | No. 1 closed lamp seat on the left | 81153-89149 |
| 81171A | Left headlight assembly assembly | 81170-35090 |
| 81195 | headlight screw | 81195-35010 · 81195-89101 · 81195-89102 |
