Toyota HILUX 燃油箱和燃油管 — Figure 7751

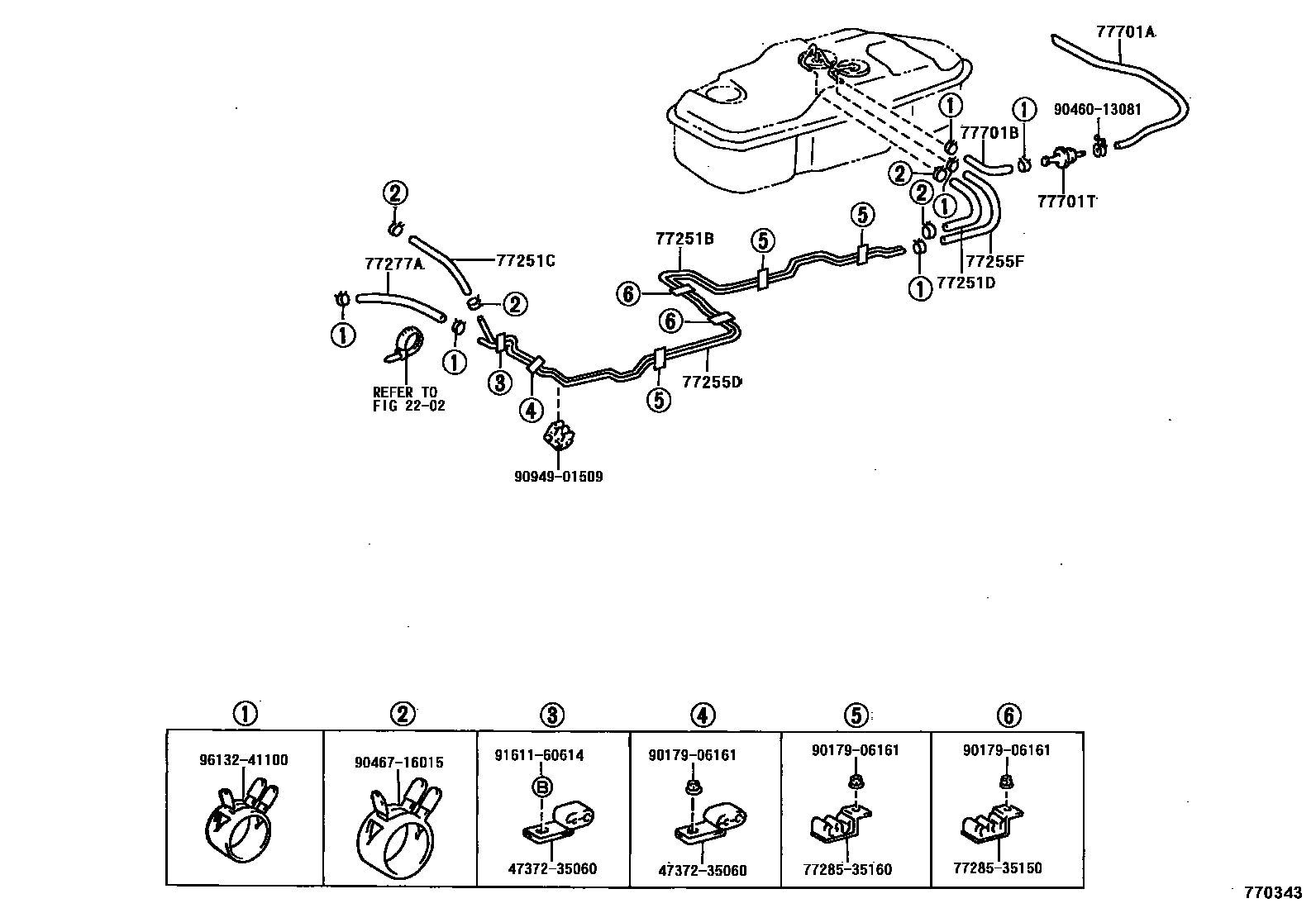

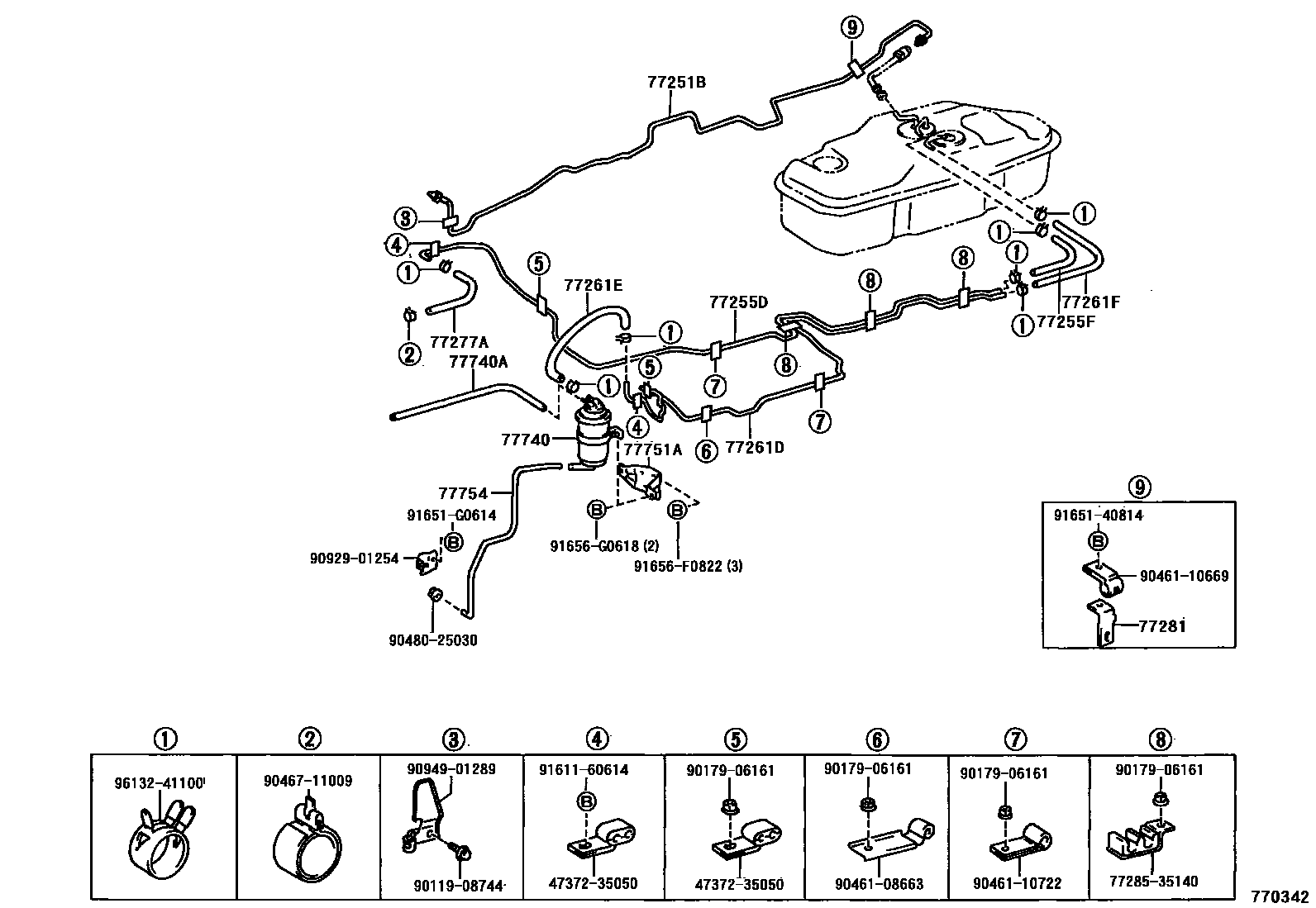

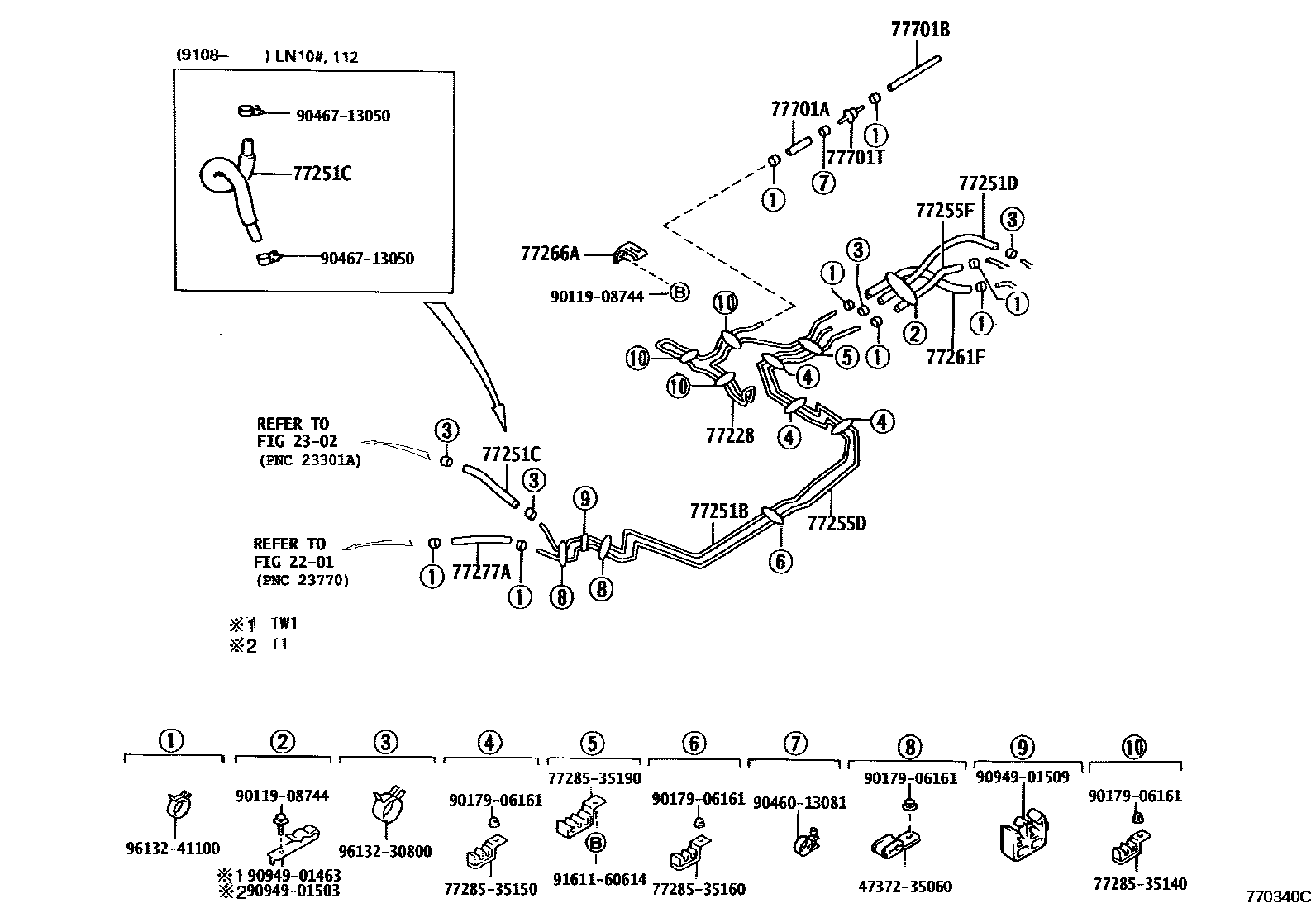

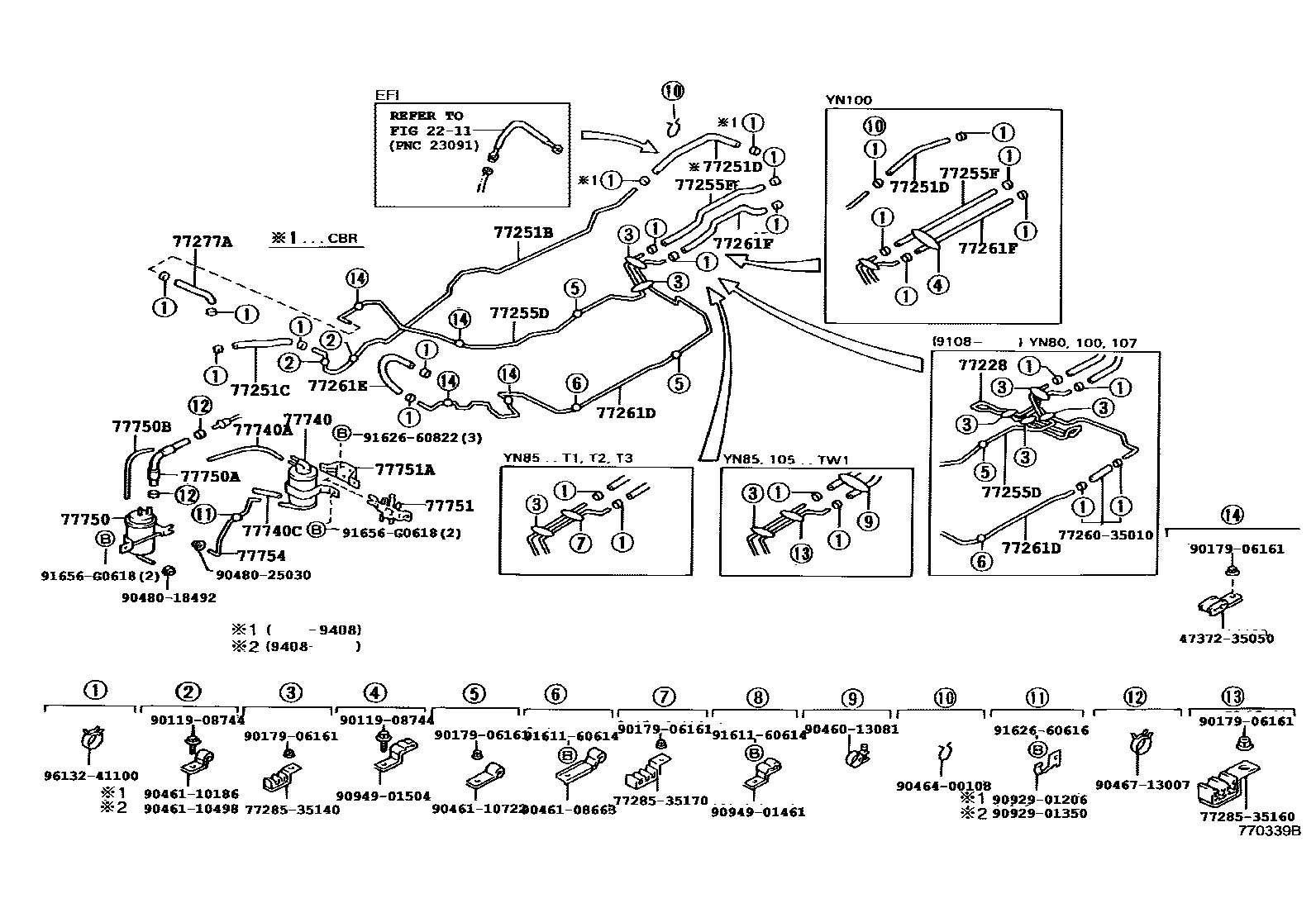

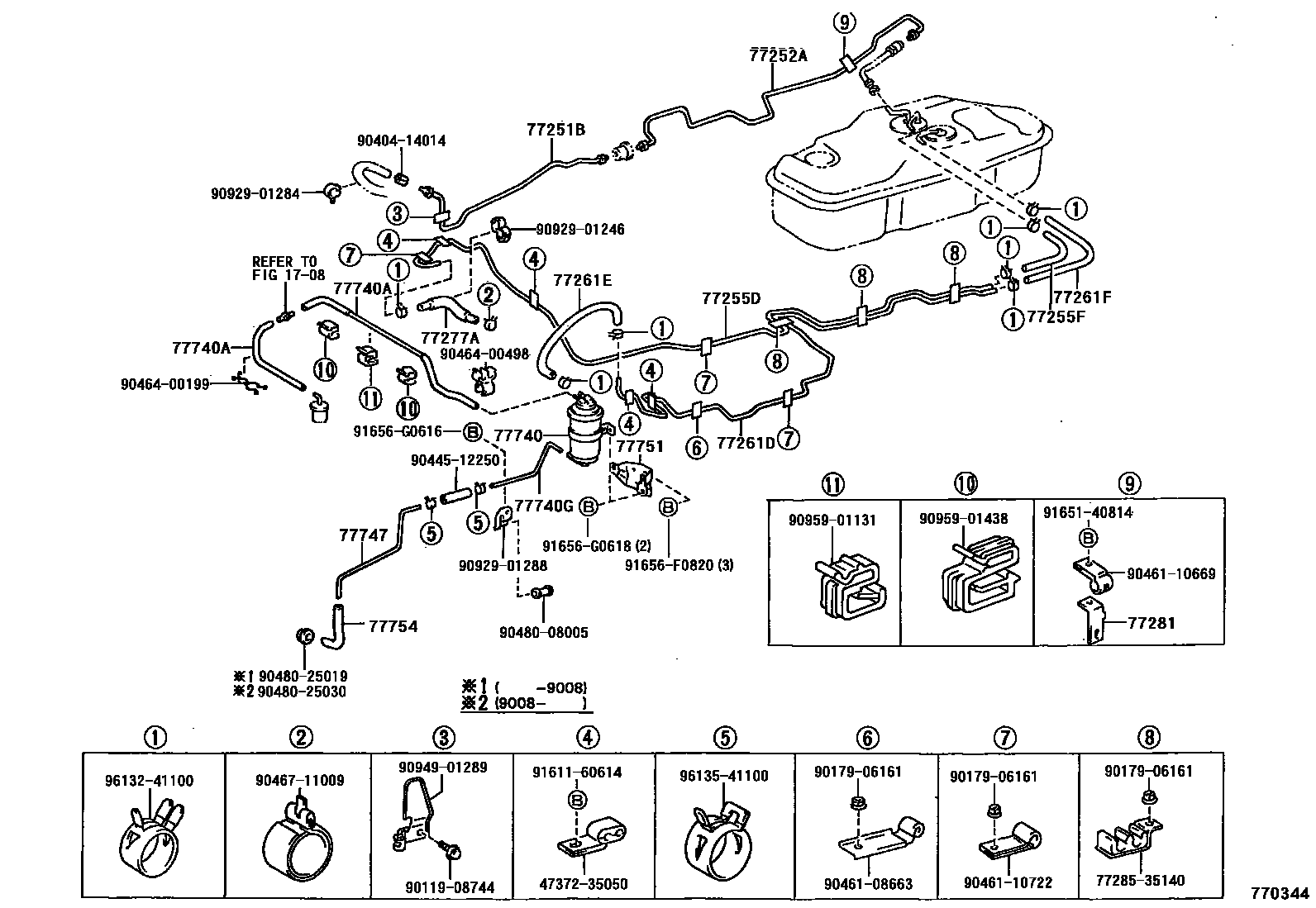

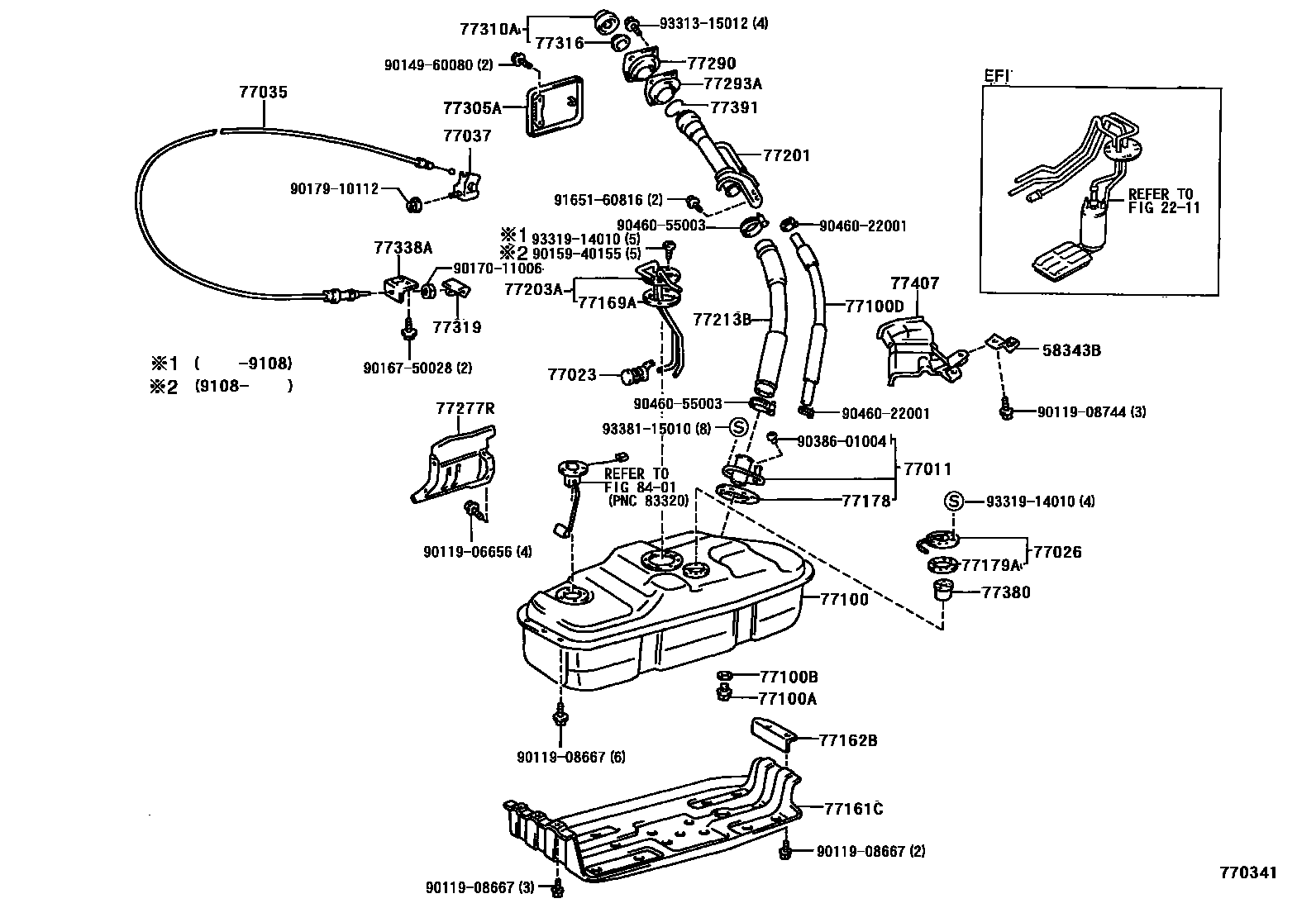

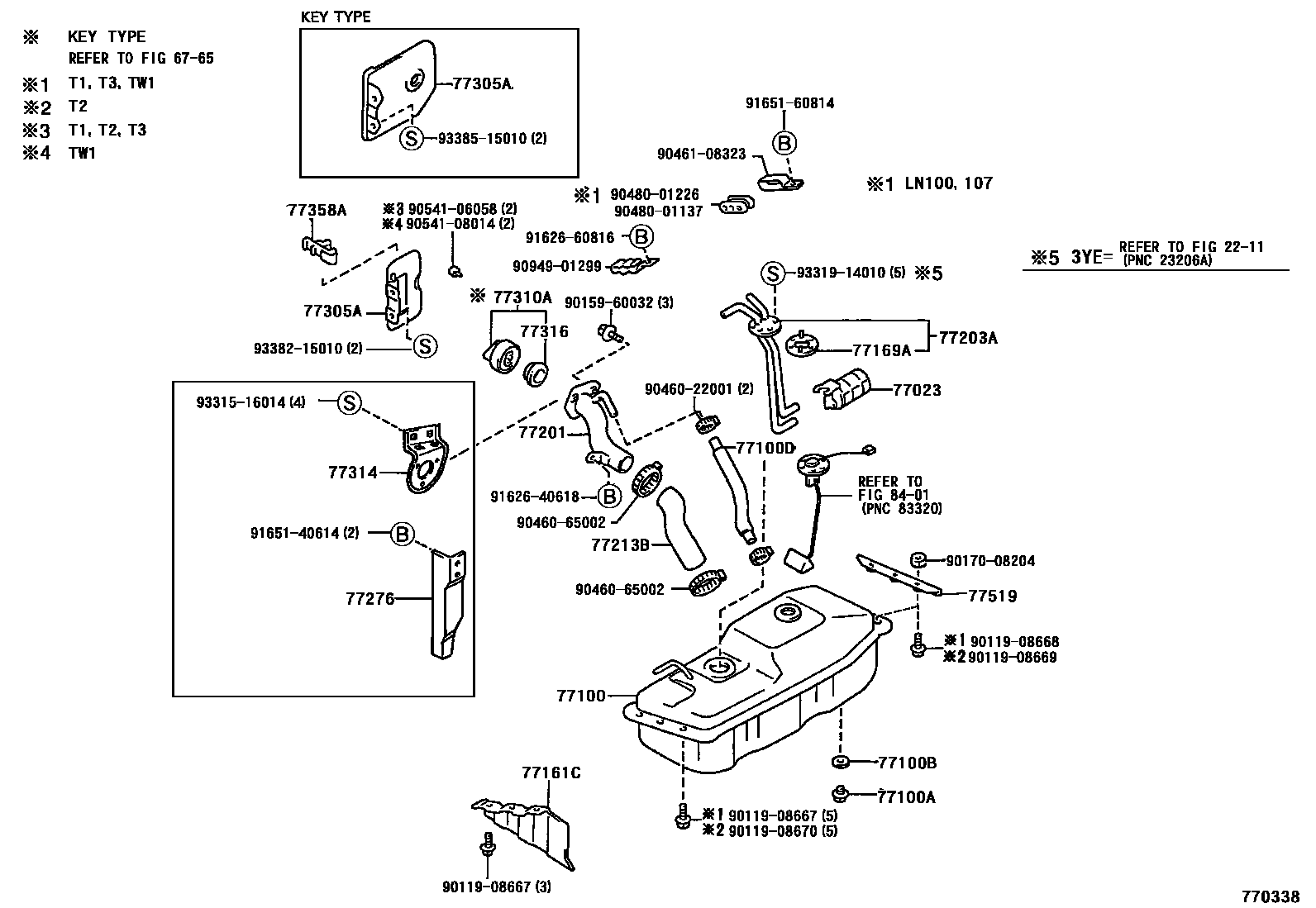

Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 7 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58343B | Fuel hose front guard bracket | 77778-35020 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-35140 · 77011-35150 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 · 77023-22040 · 77023-36010 |
| 77026 | Fuel gauge sensor cover sub-assembly | 77026-35060 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-89117 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-89103 |
| 77100 | fuel tank assembly | 77001-35964 · 77001-35969 · 77001-35971 · 77001-35977 · 77001-35978 · 77001-35981 · 77001-35983 · 77001-35984 · 77001-35986 · 77001-35987 · 77001-35988 · 77001-35995 · 77001-35996 · 77001-3D900 · 77001-3D901 · 77001-3D902 |
| 77100A | Screw plug (for fuel tank) | 90105-12018 |
| 77100B | Gasket (for fuel tank) | 90430-12245 |
| 77100D | No. 1 fuel hose (for fuel tank) | 77408-35020 · 77408-35040 · 90445-21883 · 90445-22029 |
| 77161C | Fuel tank lower protective shell | 77161-35050 · 77161-35051 · 77161-35070 · 77161-35090 · 77161-35110 |
| 77162B | Fuel tank rear protective shell bracket | 77162-35060 |
| 77169A | Fuel suction pipe fixed gasket | 77169-14020 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-35030 |
| 77179A | fuel tank breather gasket | 77179-16010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-35340 · 77201-35380 · 77201-35400 · 77201-35410 · 77201-35430 · 77201-35440 · 77201-35450 |
| 77203A | Fuel suction pipe sub-assembly | 77203-35220 · 77203-35240 · 77203-35261 · 77203-35330 · 77203-35361 · 77203-35380 · 77203-35390 · 77203-35400 · 77203-35430 · 77203-35440 |
| 77213B | Fuel tank to filler pipe hose | 77213-35120 · 77213-35190 · 77213-35200 · 77213-35210 · 77213-35230 · 77213-35240 · 77213-35280 |
| 77228 | No. 2 fuel evaporation vent pipe | 77228-35080 · 77228-35090 · 77228-35111 · 77228-35120 · 77228-35130 · 77228-35140 · 77228-35150 · 77228-35160 · 77228-35161 |
| 77251B | main fuel pipe | 77251-35580 · 77251-35600 · 77251-35610 · 77251-35660 · 77251-35700 · 77251-35710 · 77251-35720 · 77251-35730 · 77251-35750 · 77251-35770 · 77251-35850 · 77251-35880 · 77251-3D030 · 77251-3D040 · 77251-3D060 · 77251-3D080 · 77251-3D100 · 77251-3D110 · 77251-3D120 · 77251-3D130 |
| 77251C | No. 1 fuel hose (for main fuel line) | 77259-35180 · 77259-35190 · 77259-35230 · 77259-35240 · 77259-35250 · 77259-35270 |
| 77251D | No. 2 fuel hose (for main fuel line) | 77209-35270 · 77209-35320 · 77259-35160 · 77259-35170 · 90445-14115 · 90445-14123 · 90445-14146 · 95333-06030 |
| 77252A | No. 2 main fuel pipe | 77252-35250 |
| 77255D | fuel return pipe | 77255-35450 · 77255-35460 · 77255-35520 · 77255-35530 · 77255-35580 · 77255-35590 · 77255-35600 · 77255-35610 · 77255-35650 · 77255-35660 · 77255-35680 · 77255-35720 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 90445-12165 · 90445-12168 · 90445-12185 · 90445-12221 · 90445-12222 · 90445-12223 · 90445-12225 · 90445-12231 · 90445-12232 · 90445-12262 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-35360 · 77261-35410 · 77261-35420 · 77261-35430 · 77261-35480 · 77261-35490 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77260-35010 · 95333-06030 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 77209-35190 · 77209-35200 · 77209-35270 · 77209-35290 · 77209-35300 · 77209-35310 · 77259-35110 · 90445-12169 · 90445-12233 · 90445-20033 |
| 77266A | No. 1 fuel line protection device | 77266-35050 |
| 77276 | Fuel hose protector | 77276-89106 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90445-12238 · 90447-12110 · 90447-12112 · 90447-12121 · 90447-12128 · 95333-06040 |
| 77277R | Fuel tank filler pipe protection device | 77277-89101 |
| 77281 | No. 1 main fuel pipe bracket | 77281-35020 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-89102 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-89103 |
| 77305A | Fuel filler cap sub-assembly | 77305-89107 · 77305-89108 · 77305-89110 · 77350-35020 · 77350-89103 |
| 77310A | Fuel tank cap assembly | 77310-12100 · 77310-35061 · 77310-35070 · 77310-35110 |
| 77314 | Fuel tank cap fixing parts | 77314-89101 · 77314-89102 |
| 77316 | fuel tank cap gasket | 77316-12050 · 77316-16010 |
| 77338A | Fuel tank cap lock lever bracket | 77338-89105 |
| 77358A | Fuel filler cap stopper | 77358-24010 · 77358-89101 |
| 77380 | Fuel shut-off valve assembly | 77380-14020 |
| 77391 | fuel inlet ring | 77391-16010 |
| 77407 | Fuel hose protection device sub-assembly | 77407-35010 |
| 77519 | Fuel tank bracket spacer | 77519-35010 |
| 77701A | No. 1 fuel hose (for breather valve) | 90446-12006 · 90446-12007 · 90446-12031 |
| 77701B | No. 2 fuel hose (for breather valve) | 77249-35070 · 90446-12030 |
| 77701T | Check valve (for main fuel tank) | 90917-10054 · 90917-10078 |
| 77740 | Carbon canister assembly | 77704-35170 · 77740-35290 · 77740-35330 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04115 · 90447-04132 |
| 77740C | No. 3 fuel hose (for charcoal canister) | 90445-12119 |
| 77740G | No. 2 fuel pipe (for charcoal canister) | 77748-35010 |
| 77747 | No. 1 carbon canister tube | 77747-35010 |
| 77750 | Carbon canister assembly | 77740-35220 · 77740-35340 |
| 77750A | No. 1 fuel hose (for canister) | 90447-14039 · 90447-14073 |
| 77751 | Carbon canister base bracket | 77751-35051 · 77751-35071 · 77751-35090 |
| 77751A | Carbon canister base bracket | 77751-35070 · 77751-35071 |
| 77754 | No. 1 carbon canister outlet hose | 77754-35250 · 77754-35260 · 77754-35280 · 77754-35320 |
