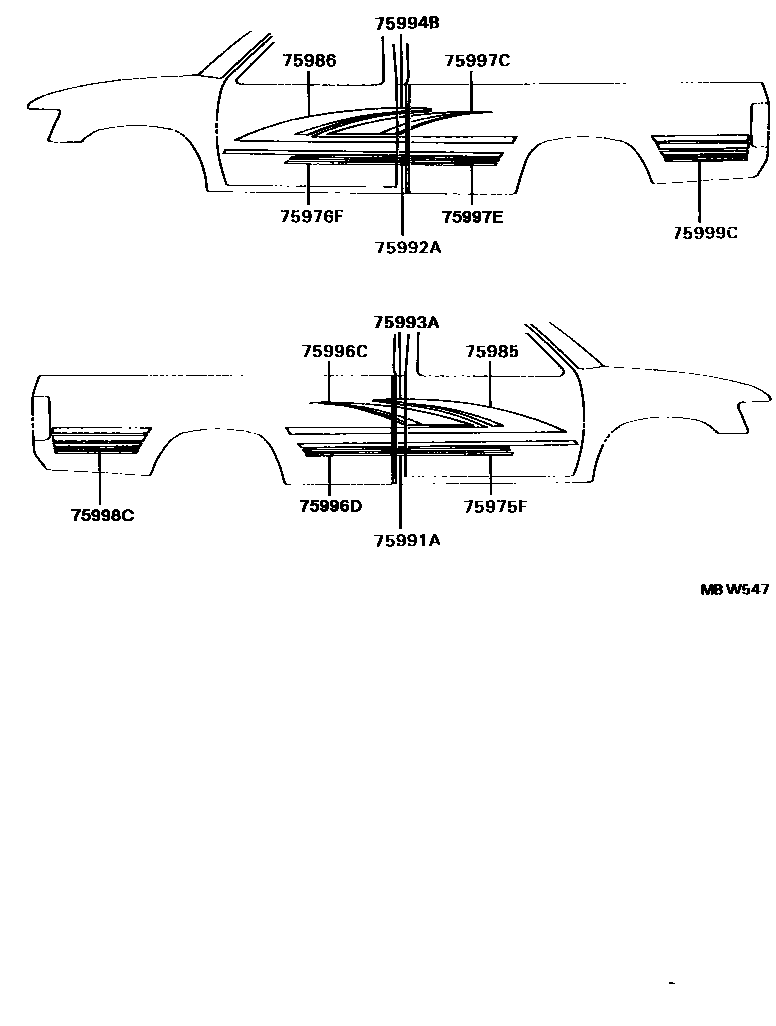

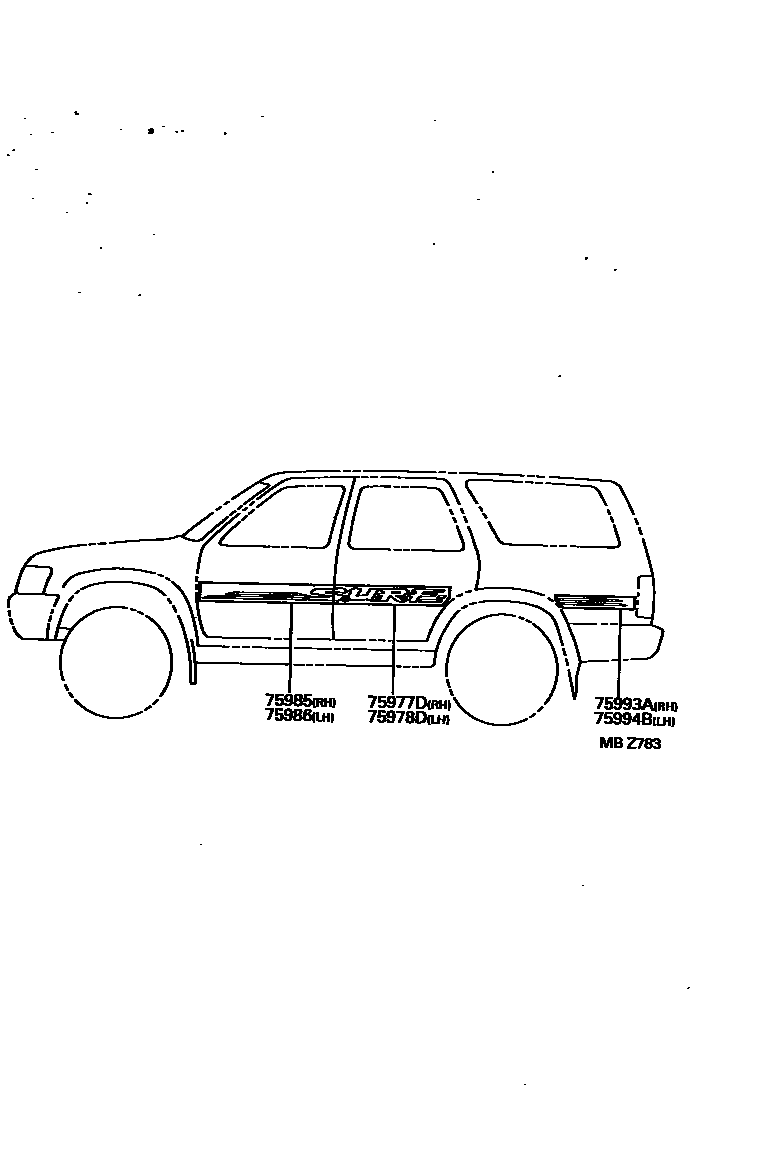

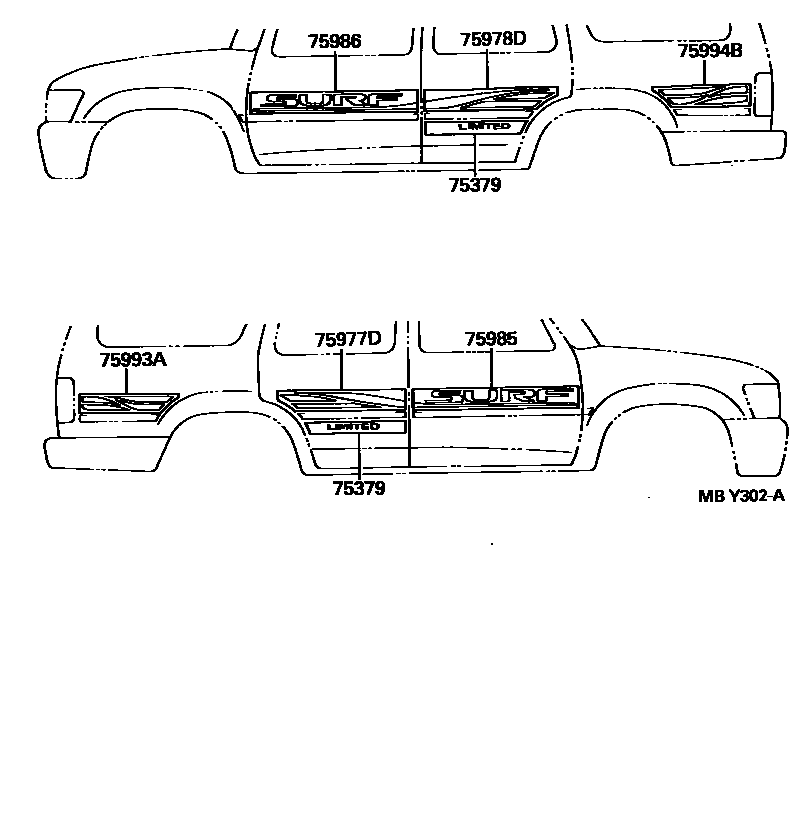

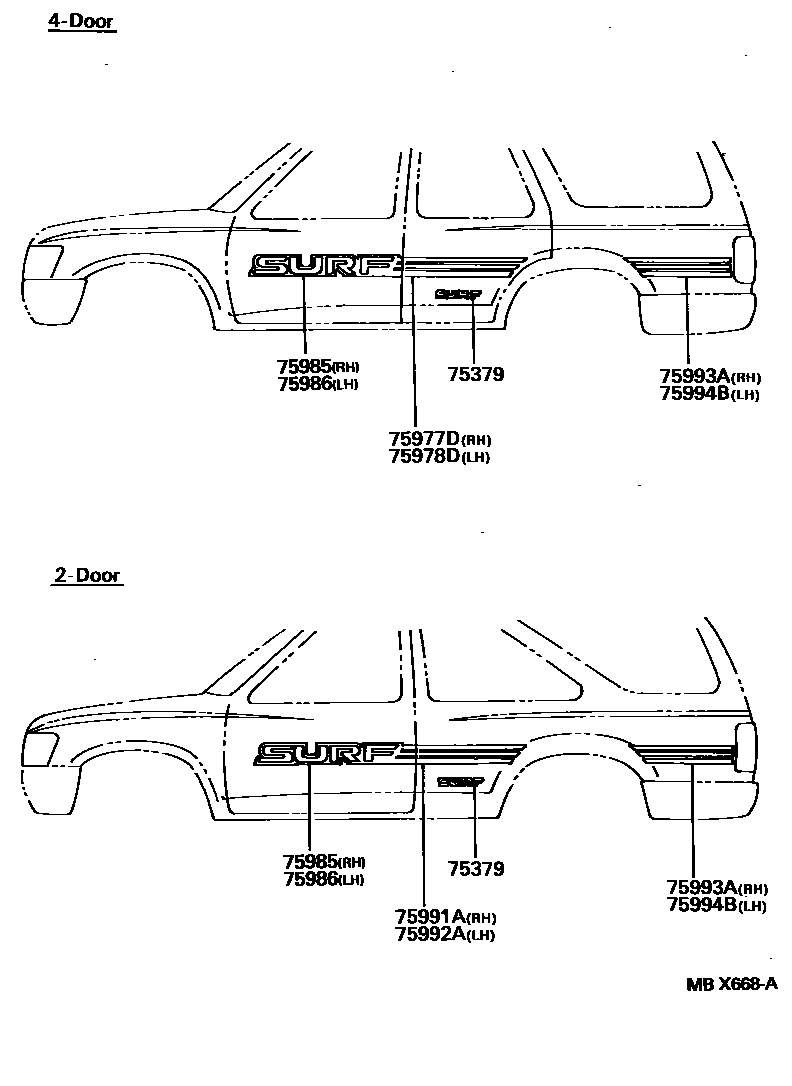

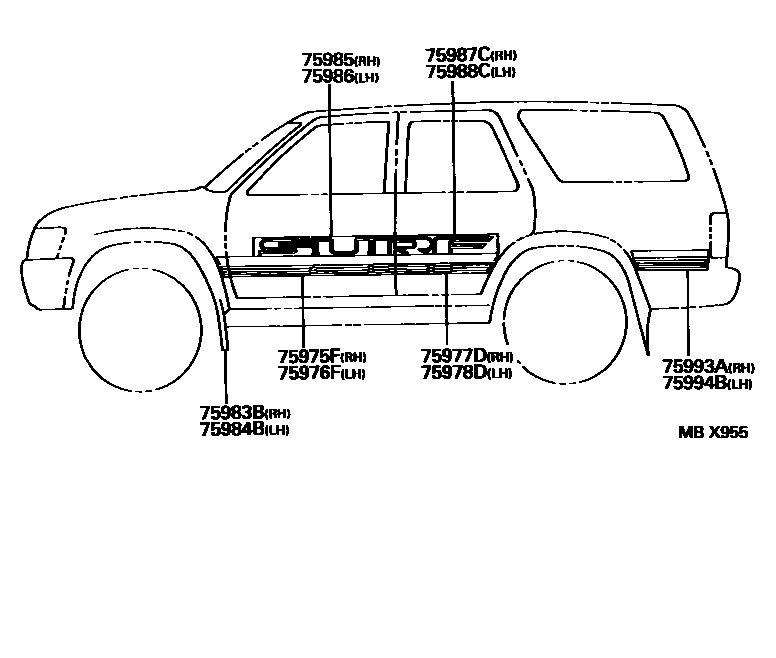

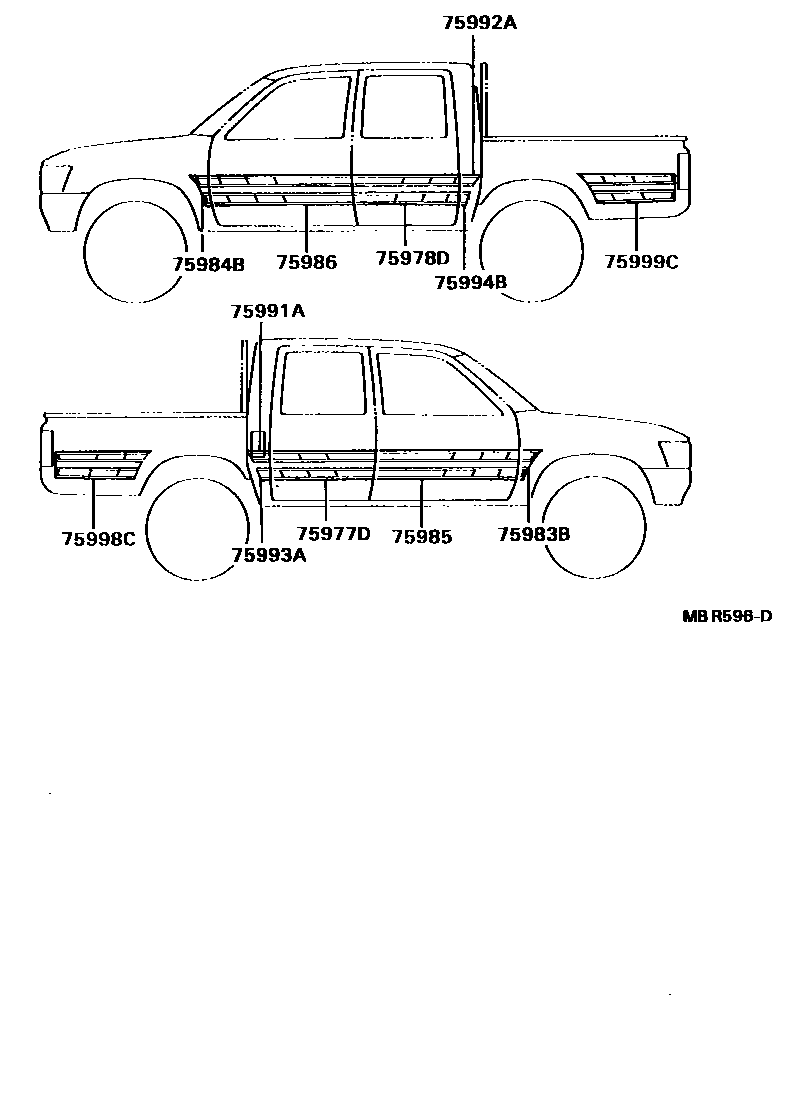

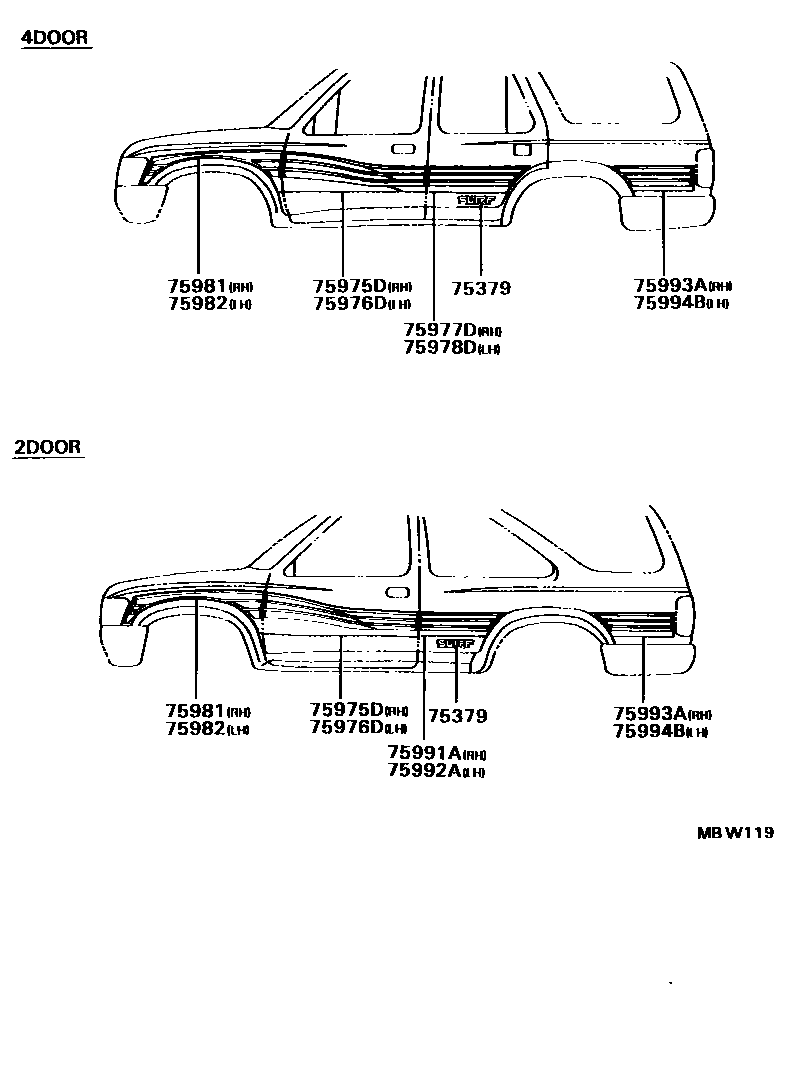

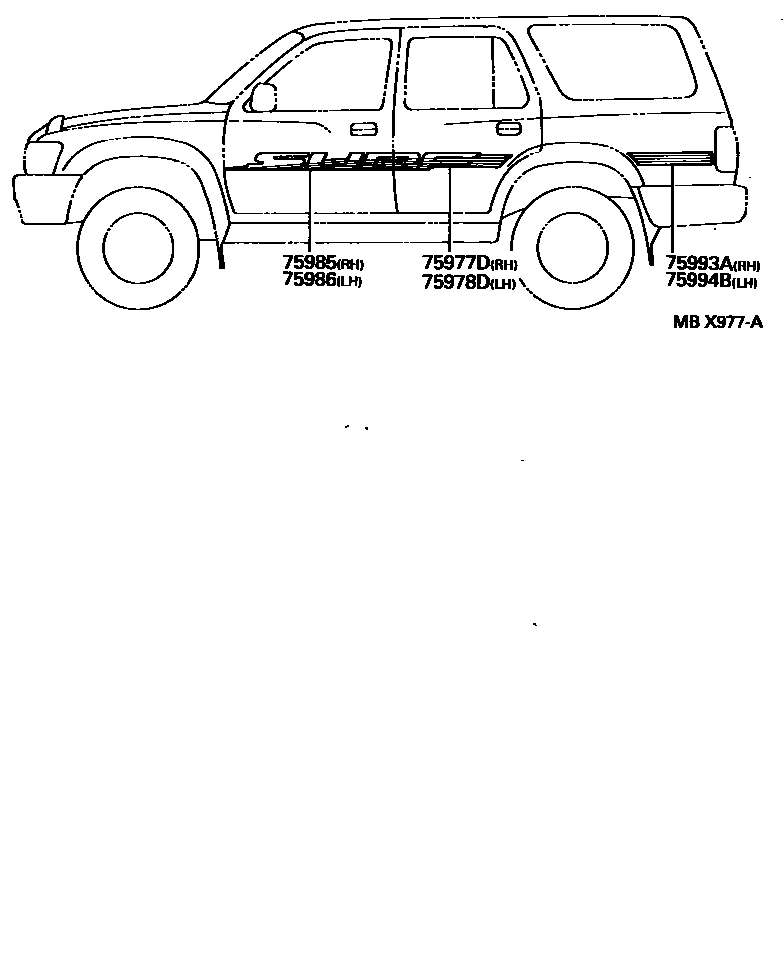

Toyota HILUX 车身镶条 — Figure 7553

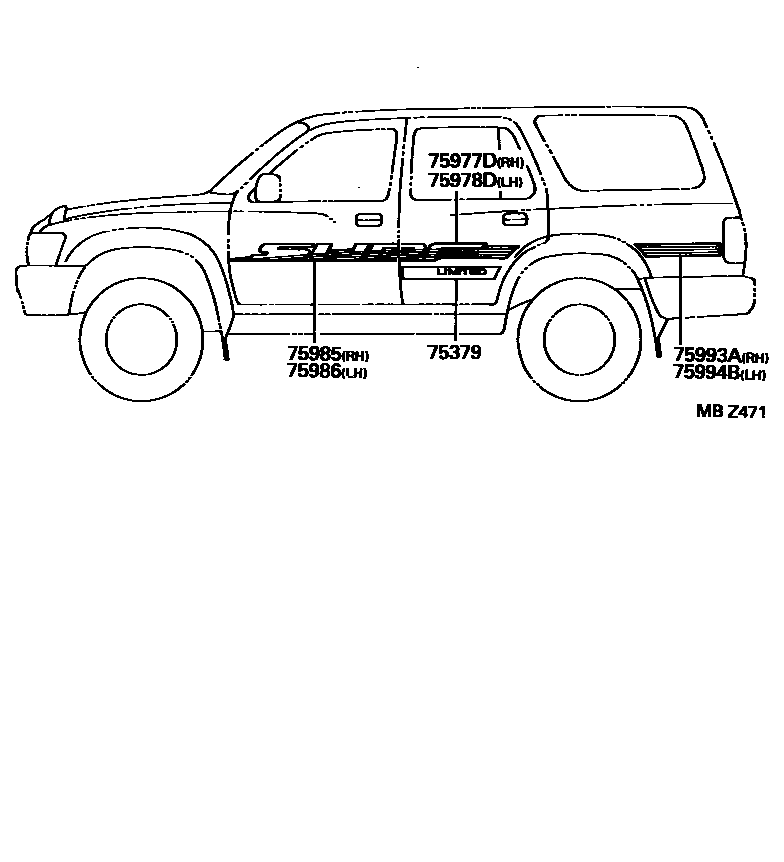

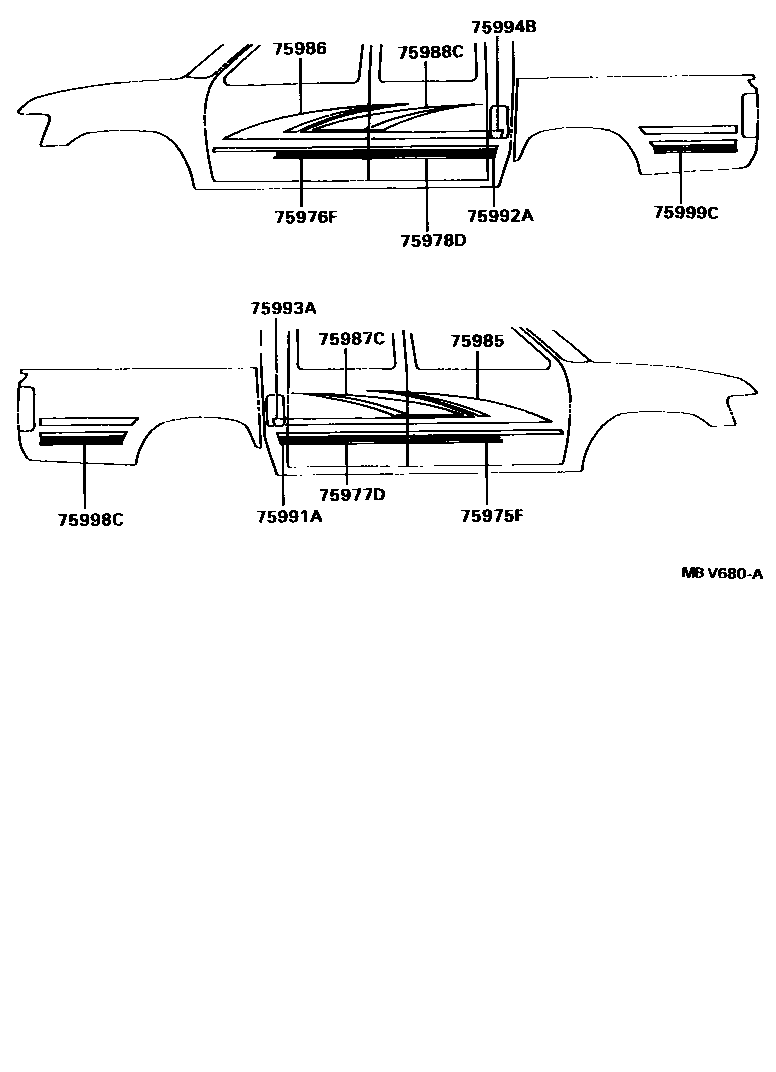

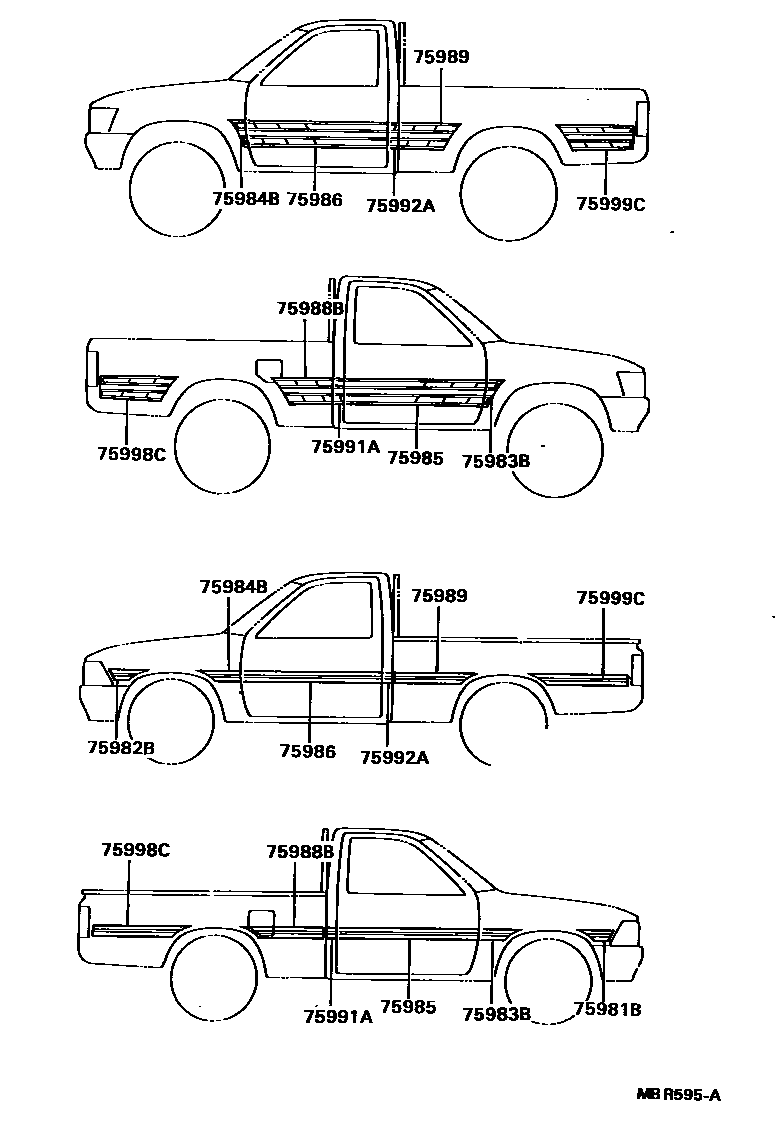

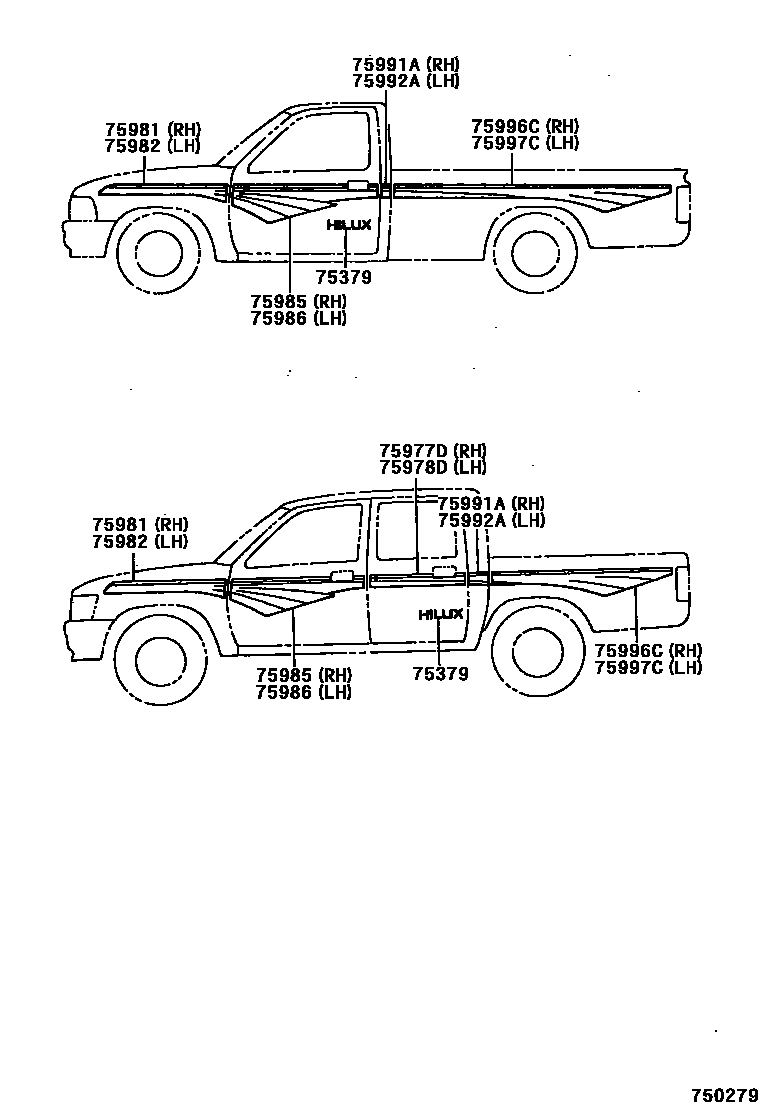

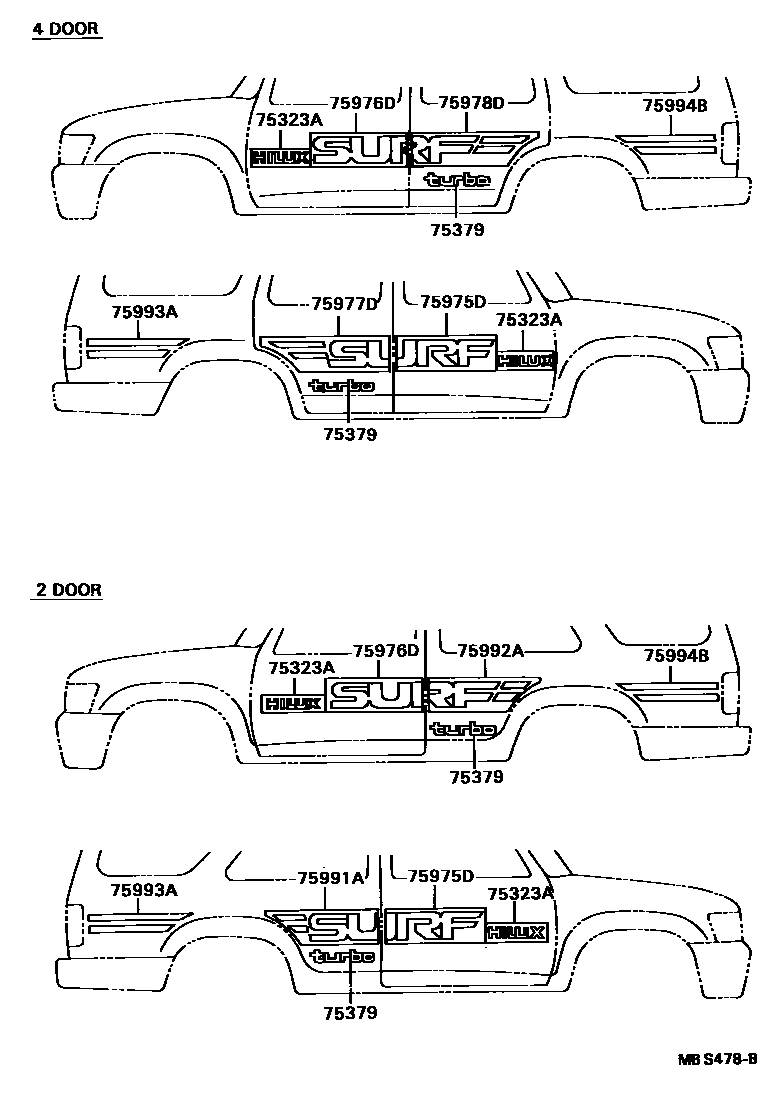

Toyota HILUX EPC diagram 7553, 车身镶条, with 19 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75323A | front door markings | 75323-89102 · 75985-35300 |
| 75379 | Side panel markings | 75357-35010 · 75357-35020 · 75379-35020 · 75379-35030 · 75379-35040 · 75379-35050 · 75379-35080 · 75379-89102 |
| 75975D | Right front door outer front trim | 75985-35090 · 75985-35100 |
| 75976D | Left front door outer front trim | 75986-35090 · 75986-35100 |
| 75977D | Right rear door trim | 75971-35010 · 75977-35030 · 75977-35050 · 75977-35070 · 75977-35080 · 75977-35090 · 75977-35100 · 75977-35110 · 75977-35120 · 75977-89104 · 75987-35080 · 75987-35150 · 75987-89103 |
| 75978D | Left rear door trim | 75379-35090 · 75978-35030 · 75978-35050 · 75978-35070 · 75978-35080 · 75978-35090 · 75978-35100 · 75978-35110 · 75978-35120 · 75978-89104 · 75988-35080 · 75988-35150 · 75988-89136 |
| 75981 | No. 1 right front fender panel | 75981-35030 · 75981-35140 · 75981-35170 |
| 75981B | Right fender panel | 75981-89117 |
| 75982 | No. 1 left front fender panel | 75982-35030 · 75982-35140 · 75982-35170 |
| 75982B | Left fender panel | 75982-89116 |
| 75983B | Right front fender rear trim | 75983-89103 · 75983-89105 |
| 75984B | Left front fender rear trim | 75984-89103 · 75984-89105 |
| 75985 | Right front door trim | 75379-35090 · 75975-35180 · 75975-35190 · 75975-89107 · 75985-35280 · 75985-35320 · 75985-35330 · 75985-35350 · 75985-35370 · 75985-35410 · 75985-35470 · 75985-35480 · 75985-35530 · 75985-89178 · 75985-89184 · 75985-89185 · 75985-89187 |
| 75986 | Left front door trim | 75971-35010 · 75976-35180 · 75976-35190 · 75976-89107 · 75986-35280 · 75986-35300 · 75986-35320 · 75986-35340 · 75986-35360 · 75986-35370 · 75986-35460 · 75986-35470 · 75986-35480 · 75986-89176 · 75986-89182 · 75986-89183 · 75986-89185 |
| 75988B | Right rear floor panel front trim strip | 75988-89132 · 75988-89133 · 75988-89134 · 75988-89135 |
| 75989 | Left rear floor panel front trim strip | 75989-89131 · 75989-89132 · 75989-89133 · 75989-89134 |
| 75991A | Right side surround strip | 75991-35040 · 75991-35160 · 75991-35170 · 75991-35270 · 75991-35290 · 75991-89104 · 75991-89108 · 75991-89109 · 75991-89111 |
| 75992A | Left side surround strip | 75992-35040 · 75992-35160 · 75992-35170 · 75992-35270 · 75992-35290 · 75992-89104 · 75992-89108 · 75992-89109 · 75992-89111 |
| 75993A | Right rear side panel trim | 75993-35020 · 75993-35060 · 75993-35080 · 75993-35090 · 75993-35100 · 75993-35110 · 75993-35120 · 75993-35130 · 75993-89105 |
| 75994B | Left rear side panel | 75994-35020 · 75994-35060 · 75994-35080 · 75994-35090 · 75994-35100 · 75994-35110 · 75994-35120 · 75994-35130 · 75994-89107 |
| 75996C | Right rear body trim | 75988-89132 · 75996-35300 · 75996-35610 · 75996-35630 |
| 75997C | Left rear body trim | 75989-89131 · 75997-35300 · 75997-35610 · 75997-35630 |
| 75998C | Right rear floor panel rear trim strip | 75996-89192 · 75998-89127 · 75998-89129 · 75998-89130 · 75998-89131 |
| 75999C | Left rear floor panel rear trim strip | 75997-89172 · 75999-89127 · 75999-89129 · 75999-89130 · 75999-89131 |
