Toyota HILUX 徽标和铭牌 — Figure 7551

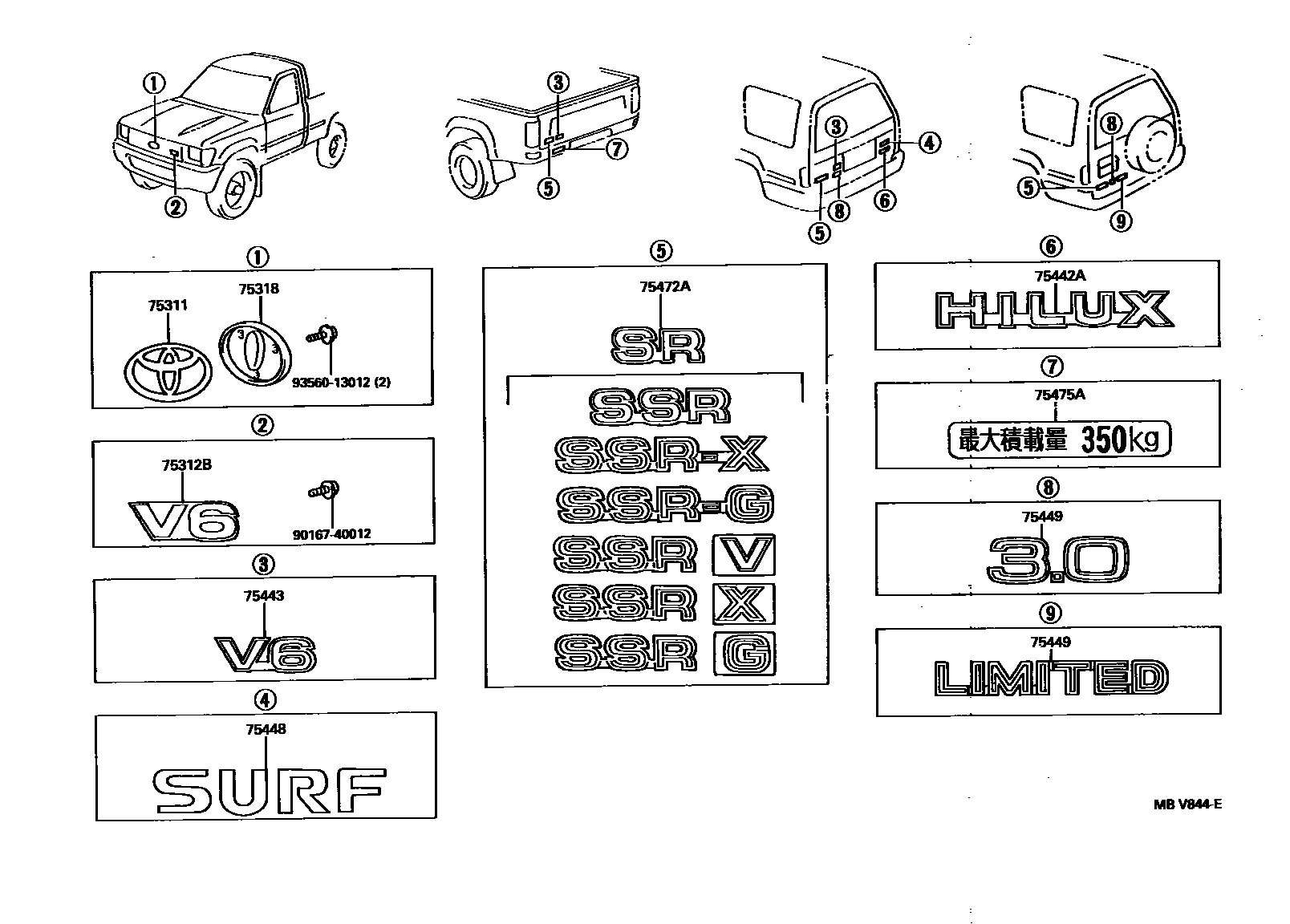

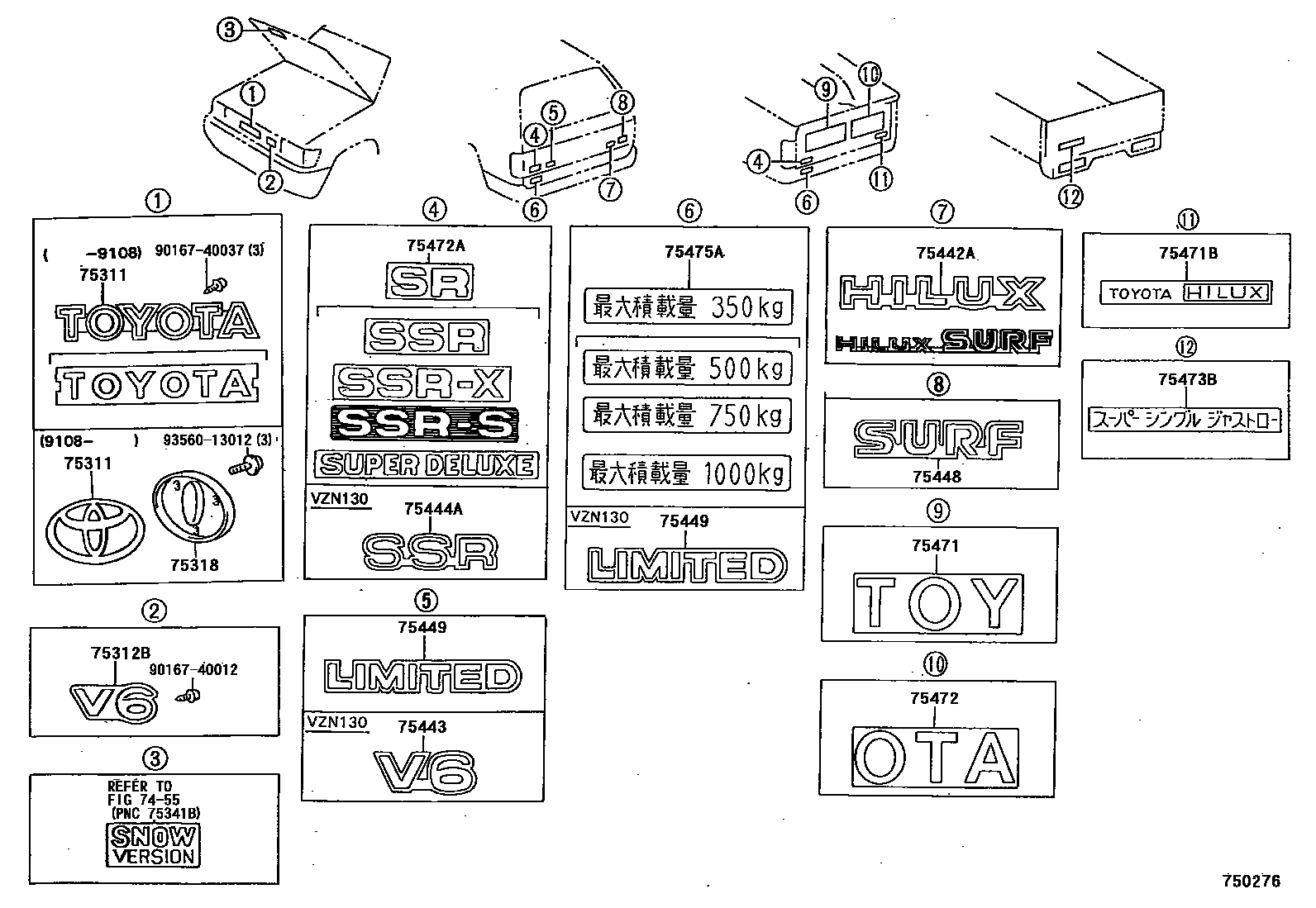

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-35050 · 75311-35090 · 75311-35180 · 75311-89117 · 75311-89118 · 75311-89119 · 75311-89123 |
| 75312B | Radiator grille number 2 plate | 75312-35030 · 75312-89106 |
| 75318 | Radiator grille plate fixings | 75318-35010 · 75318-35020 · 75318-35030 |
| 75442A | No. 2 nameplate on back door | 75442-35010 · 75442-89101 |
| 75443 | No. 3 nameplate on back door | 75443-89101 |
| 75444A | No. 4 nameplate on back door | 75444-89103 |
| 75448 | No. 8 nameplate on back door | 75448-89102 |
| 75449 | No. 9 nameplate on back door | 75444-33110 · 75447-35010 · 75449-89101 |
| 75471 | Rear body No. 1 nameplate (model mark) | 75471-89123 |
| 75471B | No. 1 nameplate on rear body | 75471-35010 · 75471-89120 |
| 75472 | Rear window nameplate | 75472-89132 |
| 75472A | No. 2 nameplate on rear body | 75444-35010 · 75444-35020 · 75444-89102 · 75444-89103 · 75445-35010 · 75445-35020 · 75445-35030 · 75445-35040 · 75472-35020 · 75472-35030 · 75472-89126 · 75472-89127 · 75472-89130 |
| 75473B | No. 3 nameplate on rear body | 75473-95701 |
| 75475A | No. 5 name plate on rear body | 75475-89111 · 75475-89112 · 75475-89113 · 75475-89114 |
