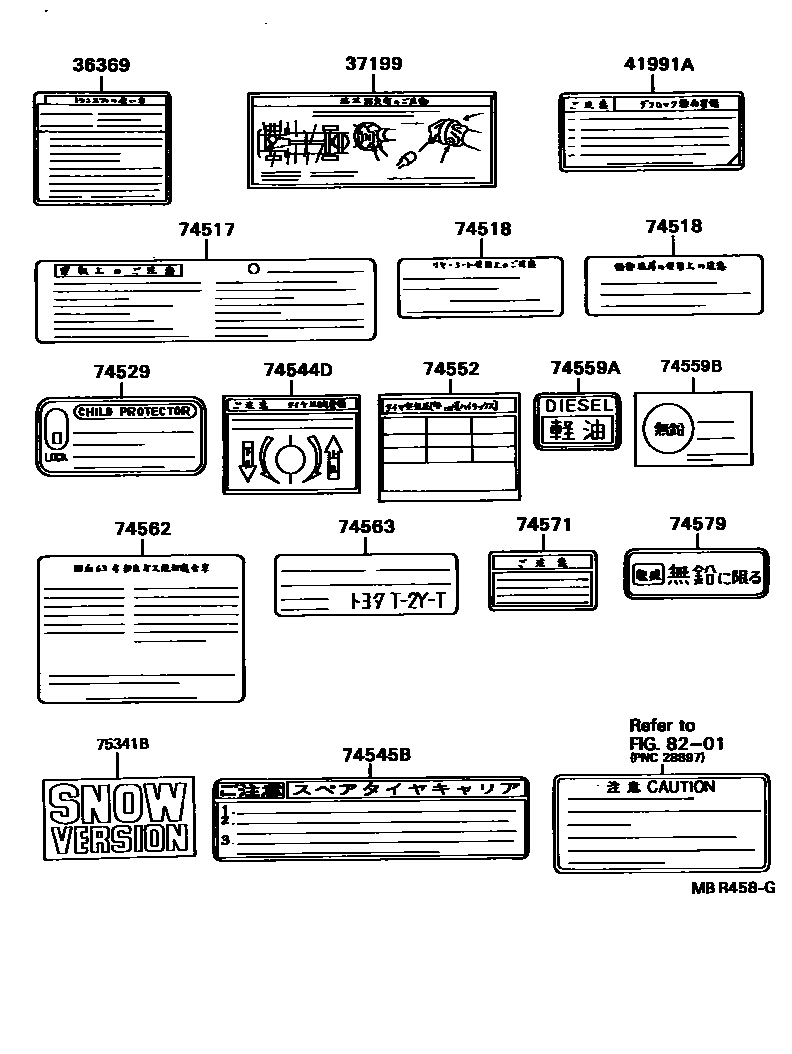

Toyota HILUX warning nameplate — Figure 7455
Toyota HILUX EPC diagram 7455, warning nameplate, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36369 | Transfer case information label | 35519-35090 · 35519-35120 · 36369-35130 · 36369-35131 · 36369-35160 · 36369-35161 · 36369-35200 · 36369-35201 · 36369-35250 · 36369-35270 · 36369-35310 · 36369-35360 · 36369-35361 |
| 37199 | Maintenance warning nameplate | 37199-35280 · 37199-35281 · 37199-35400 · 37199-35401 |
| 41991A | warning nameplate | 41991-60071 |
| 74517 | Exhaust temperature warning nameplate | 74517-20010 · 74517-26030 · 74517-32050 · 74517-35010 |
| 74518 | Maintenance warning nameplate | 74518-89103 · 74518-89104 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74544D | Tire carrier warning nameplate | 74544-35060 · 74544-35070 |
| 74545B | Tire Carrier No. 2 Caution Label | 74545-35010 |
| 74552 | Safety warning nameplate | 42661-35070 · 42661-35110 · 42661-35230 · 42661-35231 · 42661-35240 · 42661-35241 · 42661-35250 · 42661-35251 · 42661-35300 · 42661-35350 · 42661-35351 · 42661-35390 · 42661-35391 · 42661-35400 · 42661-35401 · 74552-35062 · 74552-35111 · 74552-35120 · 74552-35130 · 74552-35131 · 74552-35190 · 74552-35191 |
| 74559A | Fuel warning plate | 74559-14030 |
| 74559B | fuel information label | 74559-14010 |
| 74562 | Emission control system information plate | 74562-22410 · 74562-35140 · 74562-35150 · 74562-35160 · 74562-35161 · 74562-35170 · 74562-35180 · 74562-35200 · 74562-35210 · 74562-35220 · 74562-35230 · 74562-35240 · 74562-60210 · 74562-60230 · 74562-60250 |
| 74563 | Emission control equipment identification plate | 74563-35080 · 74563-35090 · 74563-35100 · 74563-35110 · 74563-35120 · 74563-35130 |
| 74571 | Brake fluid warning plate | 47288-32010 |
| 74579 | Unleaded fuel warning nameplate | 74579-30011 |
| 75341B | engine cover plate | 75341-20060 |
