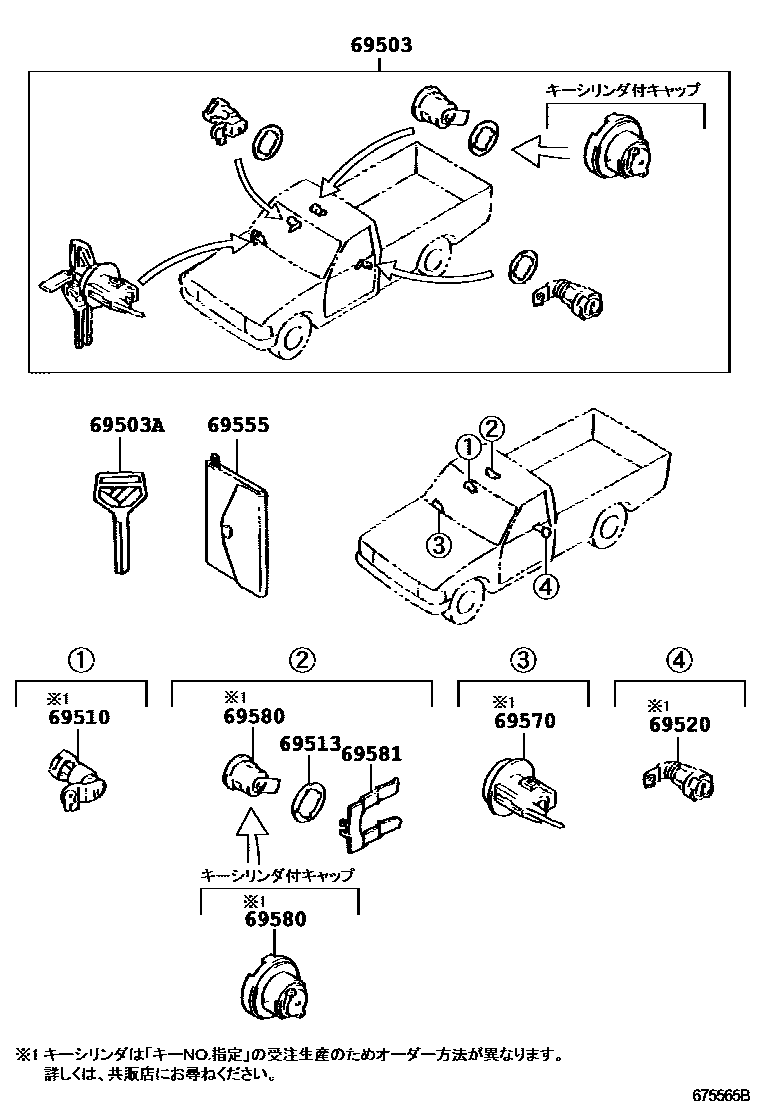

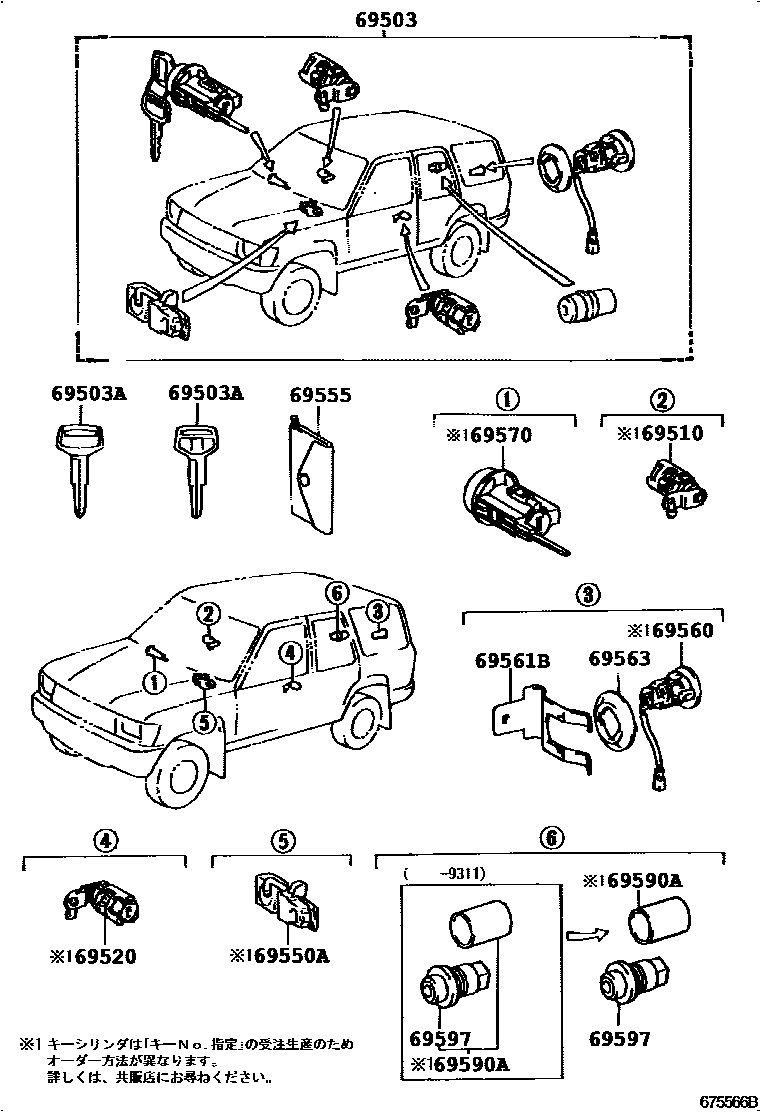

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-35040 · 69005-35080 · 69005-35110 · 69005-35170 · 69005-35180 · 69005-35350 · 69005-35380 · 69005-35381 · 69005-89214 · 69005-89225 |
| 69503A | external tooth key | 90999-00130 · 90999-00132 · 90999-00137 |
| 69510 | Right front door lock cylinder assembly | 69510-35050 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69520 | Left front door lock cylinder assembly | 69520-35020 |
| 69550A | Glove box cover lock cylinder assembly | 69550-89103 |
| 69555 | key cover | 84041-89102 |
| 69560 | Rear door lock cylinder assembly | 69560-35010 · 69560-35030 · 69560-35040 |
| 69561B | Rear door lock cylinder fixing parts | 69561-89101 |
| 69563 | Rear door lock cylinder gasket | 69563-20010 · 69563-32020 |
| 69570 | Ignition switch lock cylinder assembly | 69570-89110 |
| 69580 | Fuel filler cap lock cylinder assembly | 69580-35010 · 69580-35020 · 77310-35090 · 77310-35100 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
| 69590A | Spare tire lock cylinder assembly | 69590-35020 · 69590-35021 |
| 69597 | Spare tire lock nut | 69597-35010 |
