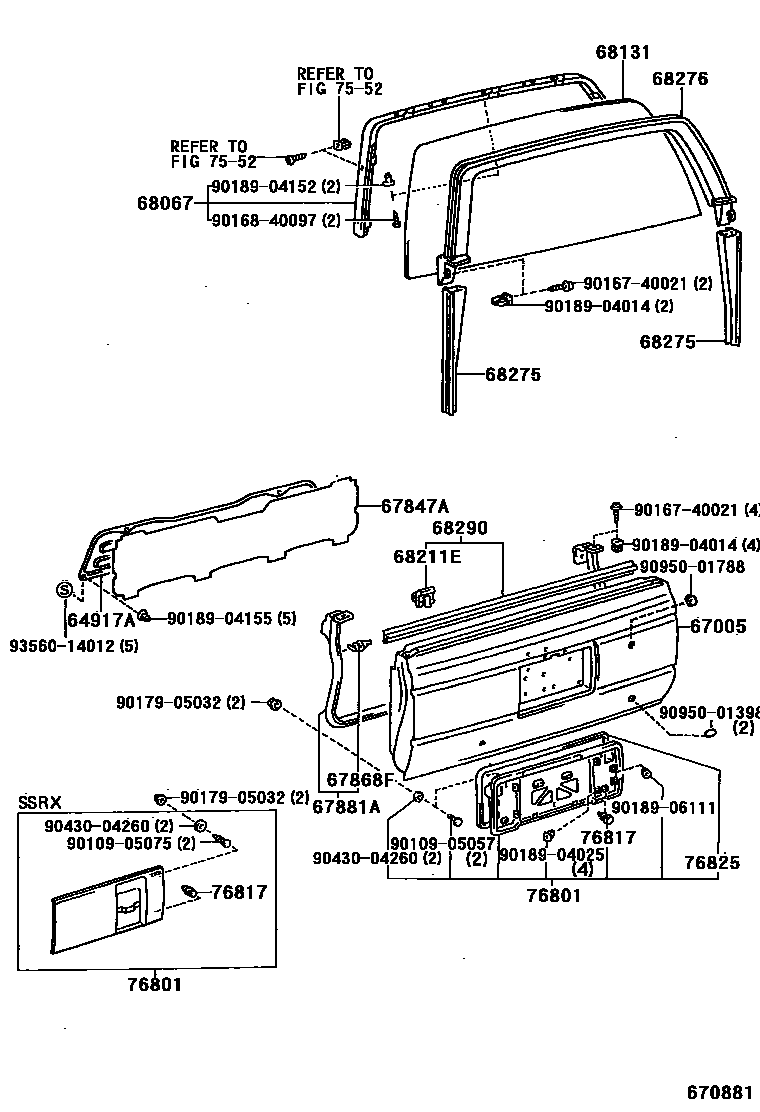

Toyota HILUX 背门板和背门玻璃 — Figure 6761
Toyota HILUX EPC diagram 6761, 背门板和背门玻璃, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64917A | Back door panel inner panel | 64917-89102 |
| 67005 | Rear door panel sub-assembly | 67005-35010 · 67005-35011 · 67005-89102 |
| 67847A | Rear door access hole cover | 67847-89103 |
| 67868F | Left door seal strip fixing | 67867-12150 · 67868-22020 |
| 67881A | Back door seal | 67881-89102 |
| 68067 | Rear door upper right window frame assembly | 68067-89102 · 68067-89103 |
| 68131 | back door glass | 68105-89106 · 68105-89107 · 68131-89108 |
| 68211E | Door glass seal strip clip | 68211-89113 |
| 68275 | Rear door glass lift chute | 68275-89102 |
| 68276 | Rear door glass lift chute | 68276-89102 |
| 68290 | Door glass outer hook assembly | 68290-35010 · 68290-35012 · 68290-89101 |
| 68291 | Rear door glass seal strip | 68291-89103 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-89101 · 76801-89102 |
| 76817 | Rear door exterior decorative strip clip | 76817-89101 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-89101 |
