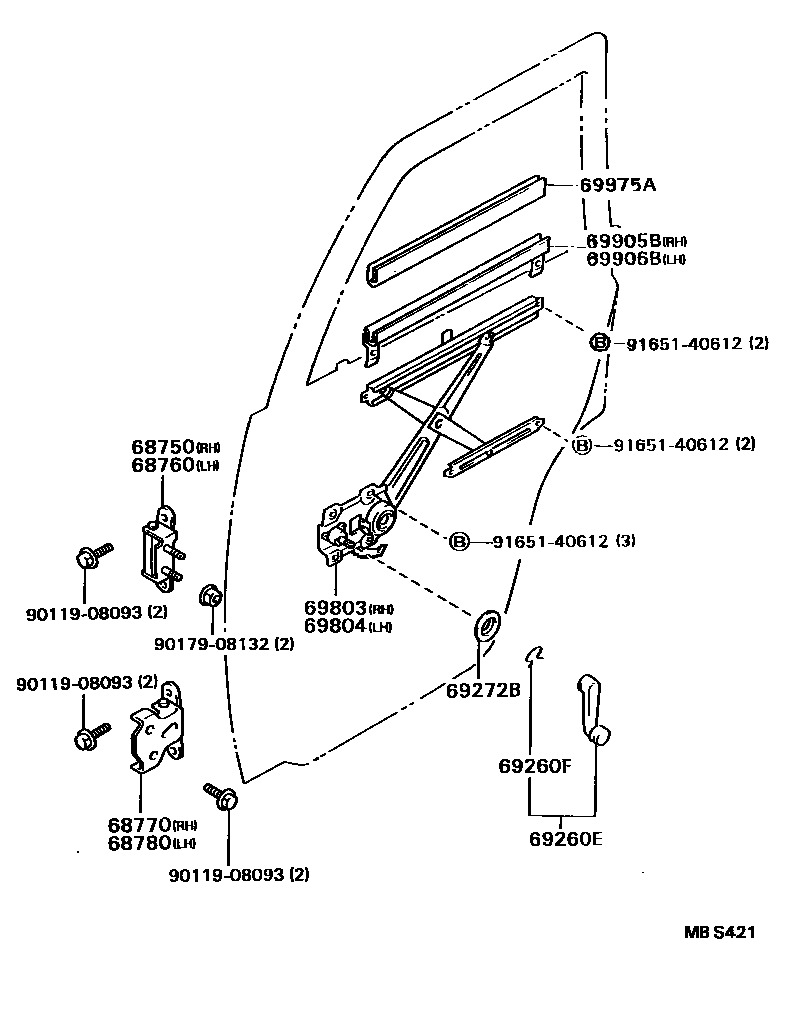

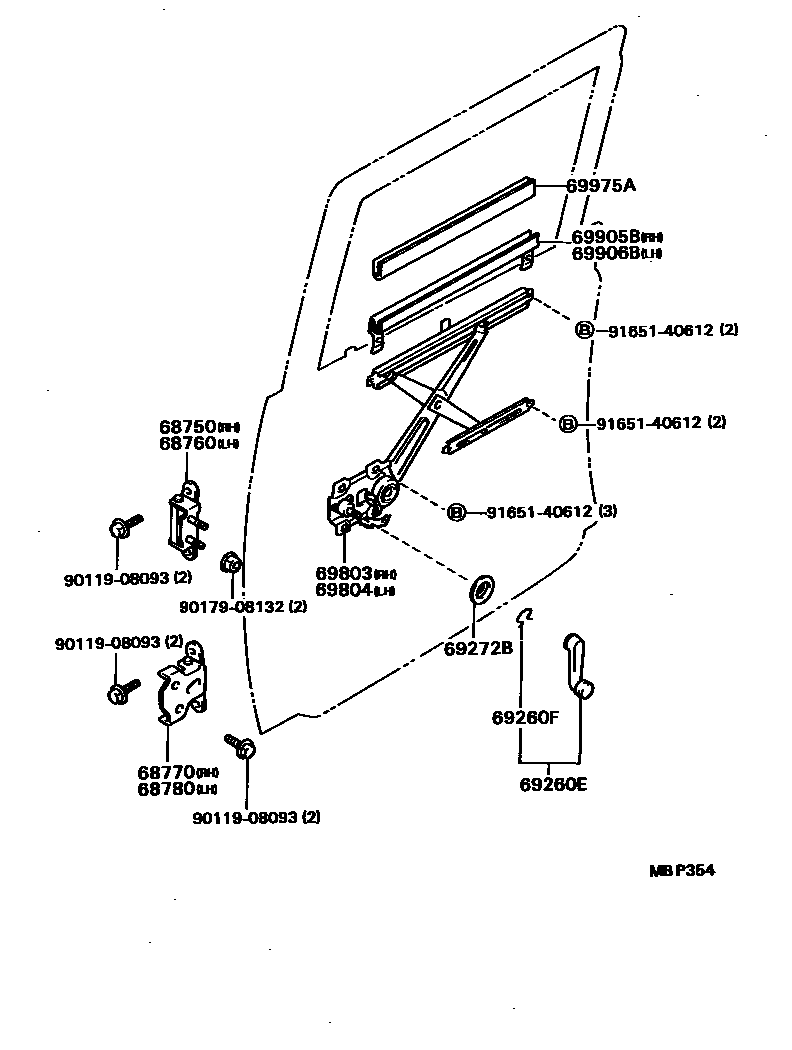

Toyota HILUX 后门车窗升降器和合页 — Figure 6757
Toyota HILUX EPC diagram 6757, 后门车窗升降器和合页, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-35010 · 68750-35011 · 68750-89102 |
| 68760 | Left rear door upper hinge assembly | 68760-35010 · 68760-35011 · 68760-89102 |
| 68770 | Right rear door lower hinge assembly | 68770-20040 · 68770-35010 |
| 68780 | Left rear door lower hinge assembly | 68780-20040 · 68780-35010 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90520-01002 |
| 69272B | Rear door window regulator inner handle plate | 69268-16010 · 69268-20020 |
| 69803 | Right rear door window lifter sub-assembly | 69803-35010 · 69803-89103 · 69803-89104 · 69803-89105 |
| 69804 | Left rear door window lifter sub-assembly | 69804-35010 · 69804-89103 · 69804-89104 · 69804-89105 |
| 69905B | Right rear door glass groove sub-assembly | 69905-89104 · 69905-89105 · 69905-89106 |
| 69906B | Left rear door glass groove sub-assembly | 69905-89104 · 69905-89105 · 69906-89104 |
| 69975A | Rear door glass channel filler | 69971-89108 · 69971-89110 · 69975-89102 |
