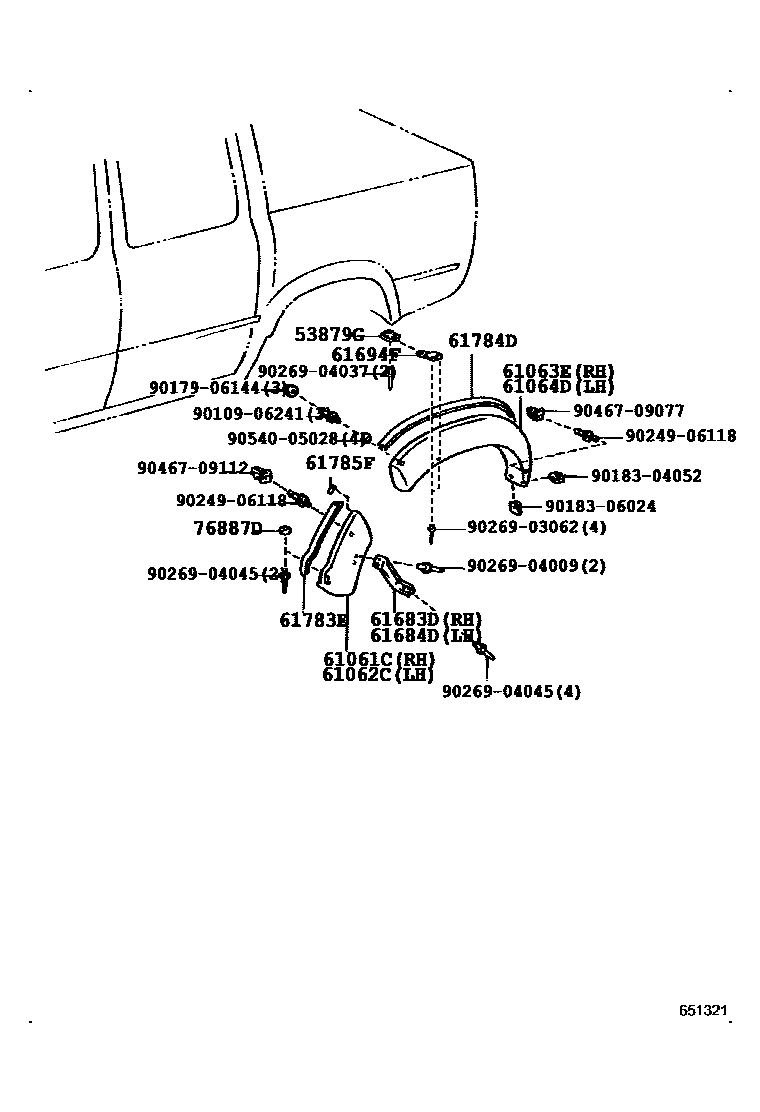

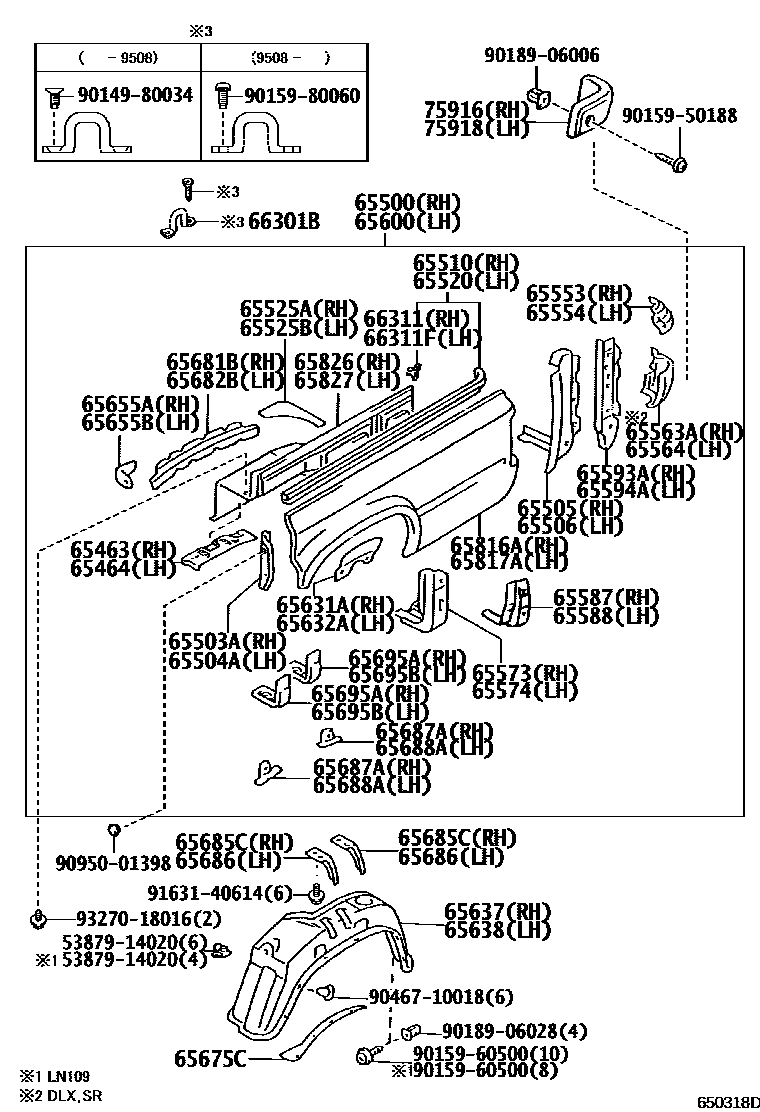

Toyota HILUX 后车身侧面板 — Figure 6554
Toyota HILUX EPC diagram 6554, 后车身侧面板, with 4 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53879G | Rear wheel well fixing parts | 53879-35020 |
| 61061C | Right rear No. 1 fender external panel sub-assembly | 61681-35905 |
| 61062C | Left rear No. 1 fender external panel sub-assembly | 61682-35905 |
| 61063E | Right rear No. 2 fender external panel sub-assembly | 61691-35900 |
| 61064D | Left rear No. 2 fender external panel sub-assembly | 61692-35900 |
| 61683D | No. 1 right rear fender external panel bracket | 61683-35030 |
| 61684D | No. 1 left rear fender external panel bracket | 61684-35030 |
| 61694F | No. 2 rear fender external panel bracket | 53862-35020 |
| 61725 | Fuel inlet | 61709-89108 · 61709-89109 · 61709-89110 |
| 61785F | No. 3 rear fender outer panel pad | 61785-35010 |
| 62613A | Right wheel cover | 62613-89107 |
| 62614A | Left side wheel cover | 62614-89107 |
| 65463 | Right guardrail frame beam bracket | 65407-35010 · 65407-35020 |
| 65464 | Left side guardrail frame beam bracket | 65408-35010 · 65408-35020 |
| 65500 | Right rear body side panel assembly | 65500-35070 · 65500-35110 · 65500-35130 · 65500-35290 · 65500-35380 · 65500-35440 · 65500-35460 · 65500-35490 · 65500-89342 · 65500-89344 · 65500-89347 · 65500-89350 · 65500-89355 · 65500-89357 · 65500-89362 · 65500-89364 · 65500-89373 |
| 65503A | Right side panel front end column sub-assembly | 65503-35010 · 65503-89101 · 65551-89115 · 65551-89116 |
| 65504A | Left side panel front end column sub-assembly | 65504-35010 · 65504-89101 · 65552-89115 · 65552-89116 |
| 65505 | Right side panel rear end column sub-assembly | 65505-89108 · 65505-89109 · 65505-89110 |
| 65506 | Left side panel rear end column sub-assembly | 65506-89108 · 65506-89109 · 65506-89110 |
| 65510 | Longitudinal beam assembly on right side panel | 65510-89144 · 65510-89145 · 65510-89146 |
| 65520 | Longitudinal beam assembly on left side panel | 65520-89144 · 65520-89145 · 65520-89146 |
| 65525A | No. 1 side panel frame panel | 65525-89101 |
| 65525B | No. 1 side panel frame panel | 65525-89101 |
| 65535 | Side rail protruding hinges | 65535-87401 |
| 65535A | Side rail protruding hinges | 65535-87401 |
| 65553 | Upper right side panel rear end pillar panel | 65553-89110 · 65553-89111 |
| 65554 | Upper left side panel rear end pillar panel | 65554-89110 · 65554-89111 |
| 65563A | Lower right side panel rear end pillar panel | 65563-89104 |
| 65564 | Left lower side panel rear end pillar panel | 65564-89103 |
| 65571 | Right front side panel frame | 65571-89101 |
| 65572 | Left front side panel frame | 65572-89101 |
| 65573 | Right rear side panel frame | 65547-35010 · 65573-89101 |
| 65574 | Left rear side panel frame | 65547-35010 · 65574-89101 |
| 65587 | Right rear side panel frame B | 65587-89101 |
| 65588 | Left rear side panel frame B | 65588-89101 |
| 65593A | Right side panel rear end column inner panel | 65593-89101 · 65593-89102 · 65593-89103 |
| 65594A | Left side panel rear end column inner panel | 65594-89101 · 65594-89102 · 65594-89103 |
| 65600 | Left rear body side panel assembly | 65600-35060 · 65600-35100 · 65600-35120 · 65600-35240 · 65600-35300 · 65600-35360 · 65600-35380 · 65600-35410 · 65600-89288 · 65600-89290 · 65600-89293 · 65600-89295 · 65600-89299 · 65600-89301 · 65600-89305 · 65600-89307 · 65600-89314 |
| 65613B | Rear body panel fixings | 65613-89104 |
| 65631A | Right rear wheel house front panel | 65631-89113 |
| 65632A | Left rear wheel house front panel | 65632-89112 |
| 65637 | Right rear wheel house lining | 65637-89101 · 65637-89102 · 65637-89103 |
| 65638 | Left rear wheel house lining | 65638-89101 · 65638-89102 · 65638-89103 |
| 65655A | Front wheel housing seal bracket | 65655-89103 |
| 65655B | Front wheel housing seal bracket | 65655-89103 |
| 65671D | Right front side panel skirt bracket | 65671-89106 · 65671-89107 |
| 65672F | Left front side panel skirt bracket | 65672-89101 · 65672-89102 |
| 65675C | wheel housing seal | 65675-89111 |
| 65679F | side rail protectors | 65679-89102 |
| 65681B | Right wheel housing seal bracket | 65681-89104 |
| 65682B | Left-hand wheel arch seal bracket | 65682-89104 |
| 65685C | Right wheel housing bracket | 65685-89101 · 65685-89102 |
| 65686 | Left wheel housing bracket | 65686-89101 · 65686-89102 |
| 65687A | Right wheel housing bracket | 65687-89101 |
| 65688A | Left wheel housing bracket | 65688-89101 |
| 65695A | No. 2 wheel housing bracket | 65695-89102 |
| 65695B | No. 2 wheel housing bracket | 65695-89102 |
| 65816A | Right rear body side panel | 65816-35010 · 65816-35040 · 65816-89134 · 65816-89136 · 65816-89138 · 65816-89139 · 65816-89141 |
| 65817A | Left rear body side panel | 65817-35010 · 65817-35040 · 65817-89132 · 65817-89134 · 65817-89136 · 65817-89137 · 65817-89139 |
| 65826 | Right rear body inner panel | 65826-35020 · 65826-89110 · 65826-89111 · 65826-89114 · 65826-89116 |
| 65827 | Left rear body inner panel | 65827-35020 · 65827-89110 · 65827-89111 · 65827-89114 · 65827-89116 |
| 66112B | Railing recessed hinges | 66112-95700 |
| 66112C | Railing recessed hinges | 66112-95700 |
| 66113A | Railing hinge pin | 66113-87402 · 66113-89105 |
| 66113B | Railing hinge pin | 66113-89105 |
| 66301B | Rope hook sub-assembly | 66301-89102 · 66312-34010 · 66312-35010 |
| 66311 | rope hook | 66311-89109 |
| 66311E | rope hook | 66311-87401 |
| 66311F | No. 2 rope hook | 66311-89109 |
| 66311G | rope hook | 66311-87401 |
| 66770 | Right side fence bracket sub-assembly | 66130-95700 |
| 66780 | Left side fence bracket sub-assembly | 66140-95700 |
| 75916 | Right rear lampshade gasket | 75916-89103 |
| 75918 | Left rear lampshade gasket | 75918-89103 |
| 76887D | Rear wheel well seal | 76887-21010 |
