Toyota HILUX 后车身防护架和背门 — Figure 6553

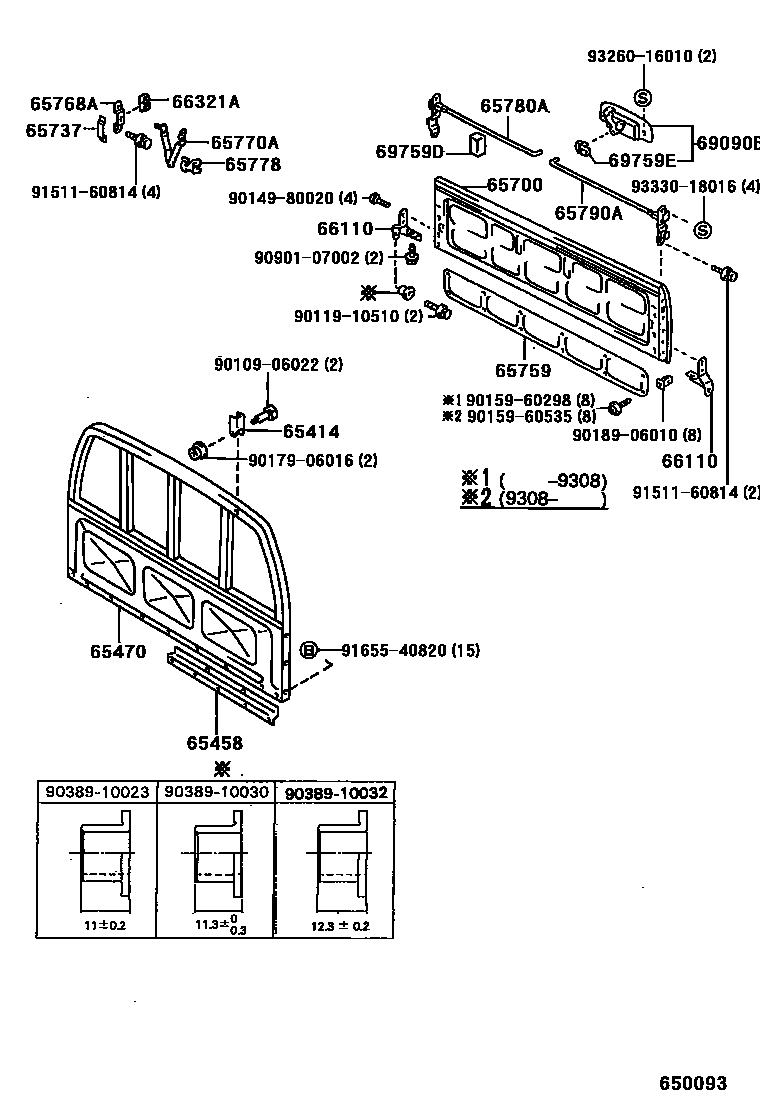

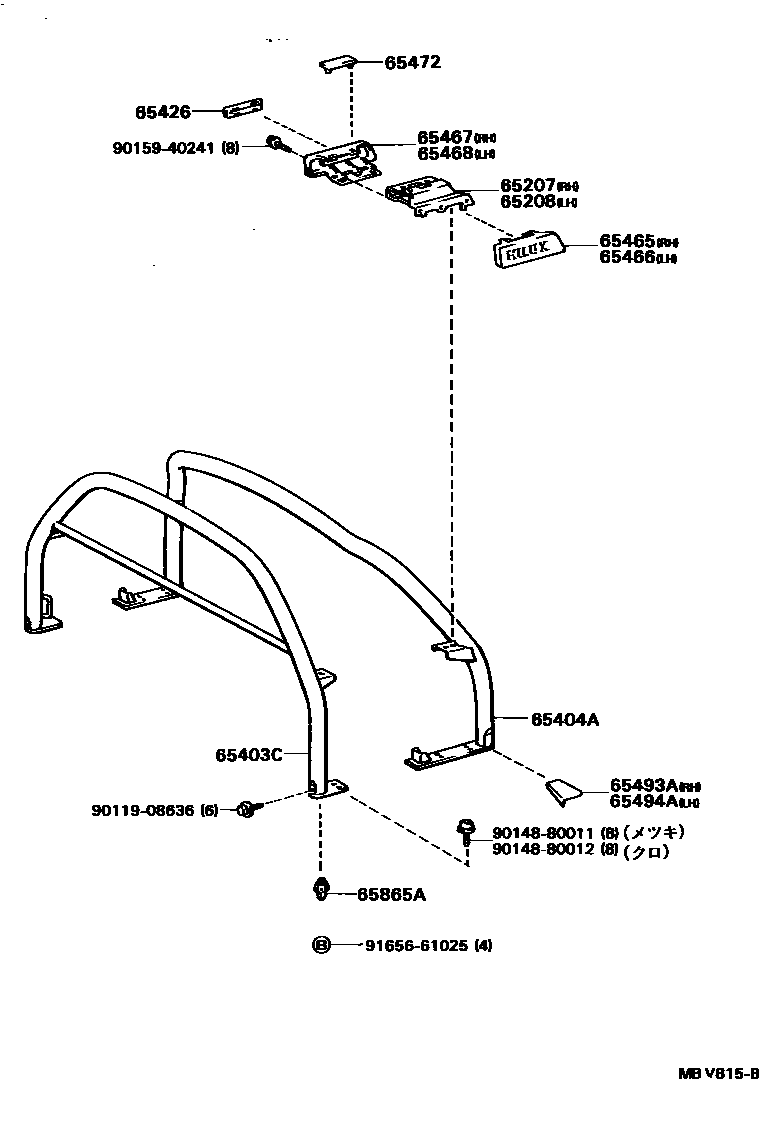

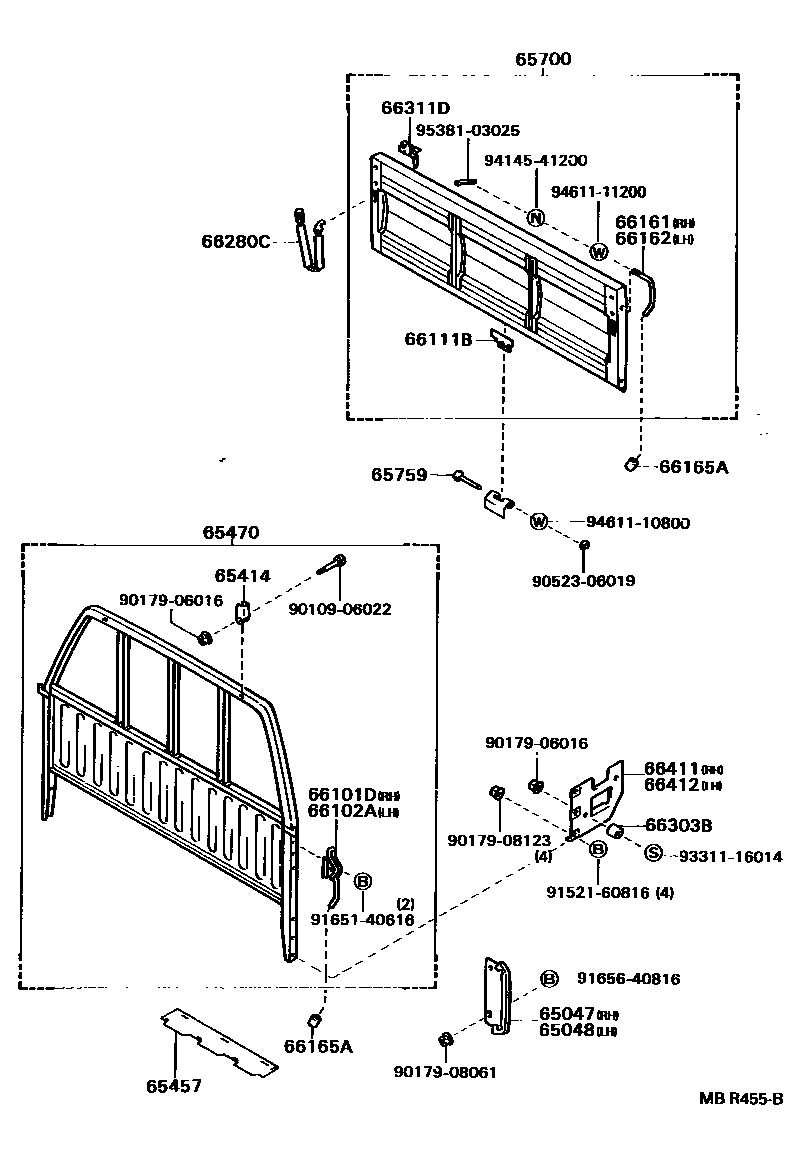

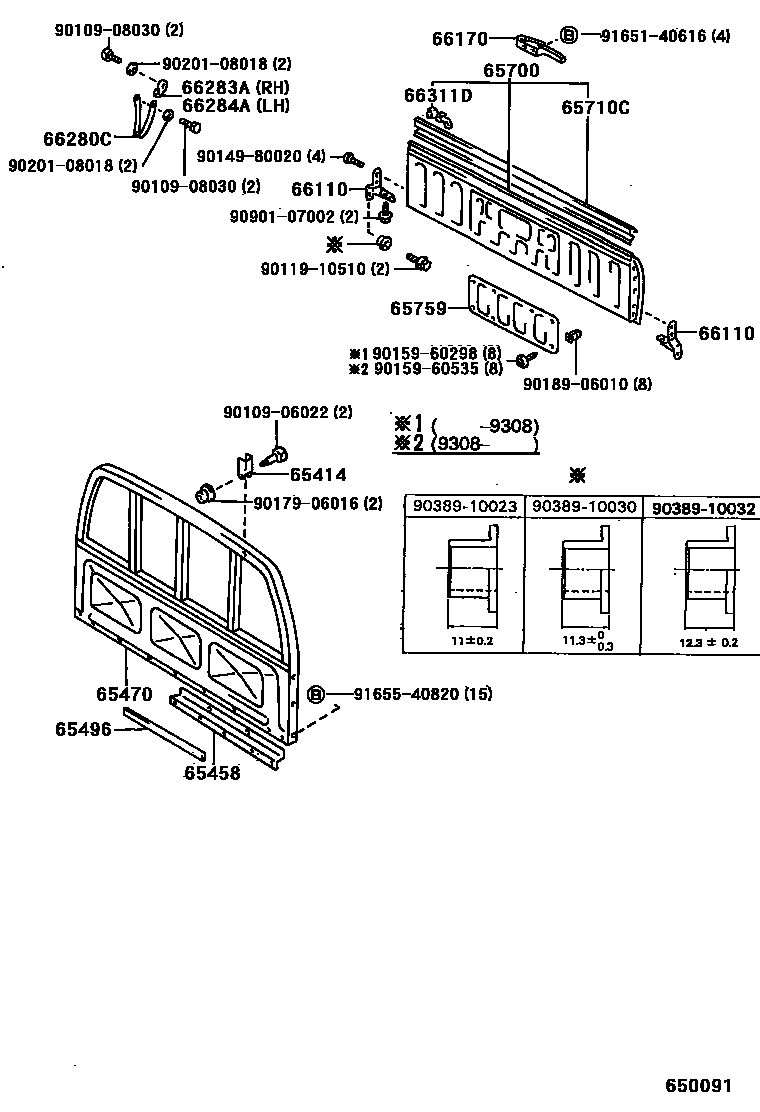

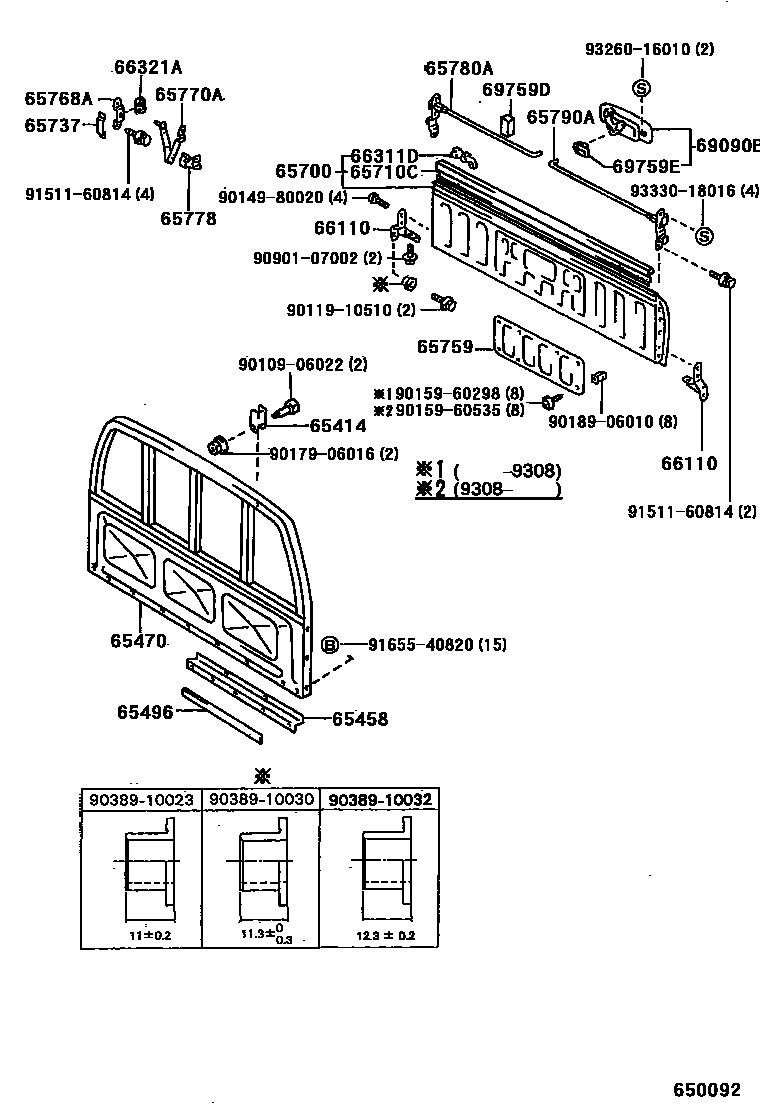

Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 5 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65047 | Right side guardrail frame protection sub-assembly | 65047-89101 |
| 65048 | Left side guardrail frame protection sub-assembly | 65048-89101 |
| 65207 | Right guardrail frame bracket sub-assembly | 65207-35010 |
| 65208 | Left side guardrail frame bracket sub-assembly | 65208-35010 |
| 65403C | Right rear body guardrail frame sub-assembly | 65403-35020 · 65403-35030 · 65403-35040 |
| 65404A | Left rear body guardrail frame sub-assembly | 65404-35010 · 65404-35020 |
| 65414 | guardrail frame stop | 65414-89102 |
| 65426 | Rear body guardrail | 65426-35020 |
| 65457 | Rear body dust baffle | 65457-89102 |
| 65458 | Rear body left dust baffle | 65458-89102 |
| 65465 | No. 1 right guardrail frame lower plate | 65465-35020 |
| 65466 | No. 1 left guardrail frame lower plate | 65466-35020 |
| 65467 | No. 2 right guardrail frame lower plate | 65467-35010 |
| 65468 | No. 2 left guardrail frame lower plate | 65468-35010 |
| 65470 | Top plate assembly | 65470-35010 · 65470-35020 · 65470-89137 · 65470-89139 · 65470-89144 · 65470-89145 |
| 65472 | Guardrail frame upper cover | 65472-35010 |
| 65493A | No. 1 rear body rack seal | 65493-35020 |
| 65494A | No. 2 rear body guardrail frame seal | 65494-35020 |
| 65496 | No. 4 rear body guardrail frame seal | 65496-35010 |
| 65700 | Rear body back door assembly | 65700-89146 · 65700-89147 · 65700-89149 · 65700-89151 · 65700-89152 |
| 65710C | Back door top slide rail assembly | 65710-89114 · 65710-89115 |
| 65737 | Back door stopper | 65737-35010 · 65737-35020 · 65737-89105 |
| 65759 | Rear door access hole cover | 65759-89102 · 65759-89105 · 66113-87402 · 66113-89105 |
| 65768A | Back door latch | 65768-35010 · 65768-89102 |
| 65770A | Back door support rod assembly | 65770-89103 |
| 65778 | Back door support rod stop | 65778-89104 · 65778-89105 |
| 65780A | Back door right lock assembly | 65780-35010 · 65780-89105 |
| 65790A | Back door left lock assembly | 65790-35010 · 65790-35020 · 65790-89106 · 65790-89107 |
| 65865A | Top cover guide pin | 65865-35010 |
| 66101D | Railing lock bolt sub-assembly | 66101-87401 |
| 66102A | Railing lock bolt sub-assembly | 66102-87401 |
| 66110 | Back door hinge assembly | 66110-89107 · 66110-89108 · 66120-89101 · 66120-89102 |
| 66111B | Rear door protruding hinge | 66111-87404 |
| 66161 | Right side rail latch handle | 66161-87403 |
| 66162 | Left side rail latch handle | 66162-87402 |
| 66165A | Railing latch handle cover | 66165-87402 |
| 66170 | Rear body back door lock bolt assembly | 66170-89106 |
| 66280C | Back door chain assembly | 66280-89106 · 66280-95700 |
| 66283A | Back door chain right hook | 66283-89102 |
| 66284A | Rear door chain left hook | 66284-89101 |
| 66303B | Rubber buffer pad sub-assembly | 52208-89101 · 66303-87403 |
| 66311D | rope hook | 66311-87401 · 66311-89109 |
| 66321A | Railing rubber buffer block | 66321-35010 · 66321-35020 · 66321-89109 |
| 66411 | Right guardrail frame bracket | 66411-95700 · 66411-95701 |
| 66412 | Left guardrail frame bracket | 66412-95700 · 66412-95701 |
| 69090B | Rear door handle assembly | 69090-89101 · 69090-89102 |
| 69759D | Rear door lock link silencer | 69759-89108 |
| 69759E | Rear door lock link buckle | 69759-20100 · 69759-20110 |
