Toyota HILUX 后车身地板和翼子板 — Figure 6552

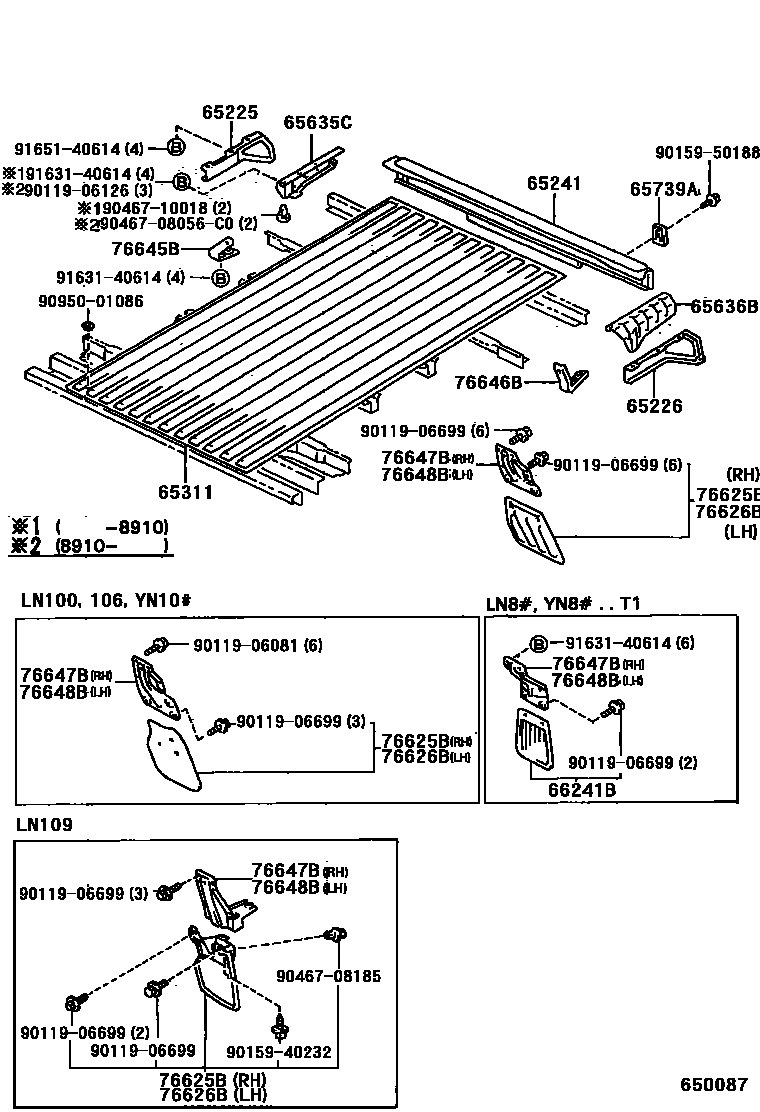

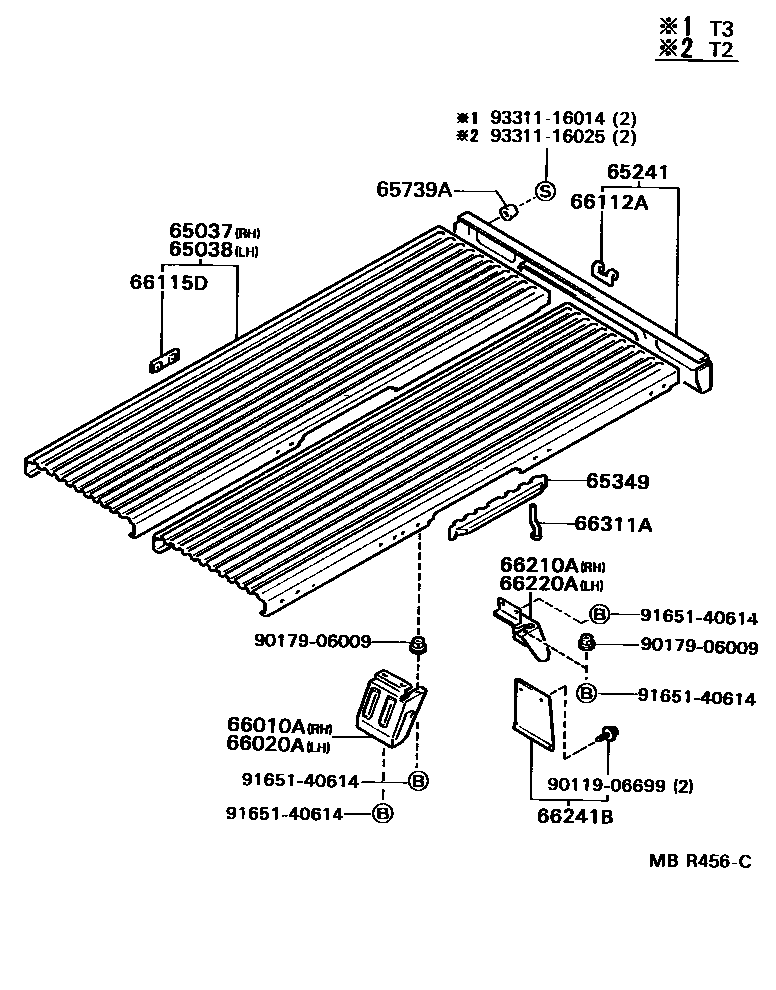

Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65037 | Floor right side panel sub-assembly | 65037-89101 · 65037-89103 |
| 65038 | Floor left panel sub-assembly | 65038-89101 · 65038-89102 |
| 65225 | Rear floor right reinforcement | 65225-89102 |
| 65226 | Rear floor left reinforcement | 65226-89101 |
| 65241 | rear cross member | 65240-89128 · 65240-89133 · 65240-95701 |
| 65311 | central floor | 65311-89127 · 65311-89128 · 65311-89129 |
| 65349 | Floor side fender | 65349-89101 · 65349-95701 |
| 65635C | Right rear wheel housing rear panel | 65635-89111 · 65635-89112 |
| 65636B | Left rear wheel housing rear panel | 65636-89110 · 65636-89111 |
| 65739A | Back door buffer block | 65739-89101 · 65739-89103 · 66303-87403 |
| 66010A | No. 2 right rear fender assembly | 66010-89101 · 66010-89102 |
| 66020A | No. 2 left rear fender assembly | 66020-89101 · 66020-89102 |
| 66112A | Railing recessed hinges | 66112-87402 |
| 66115D | Railing hinge fixings | 66115-95700 · 66115-95701 |
| 66210A | No. 1 right rear fender assembly | 66210-89101 · 66210-89102 |
| 66220A | No. 1 left rear fender assembly | 66220-89101 · 66220-89102 |
| 66241B | Rubber baffle | 66241-39016 |
| 66311A | No. 1 rope hook | 66311-95011 |
| 76625B | Right rear body fender | 76607-39055 · 76625-39085 · 76625-39205 · 76625-39206 |
| 76626B | Left rear body fender | 76608-39055 · 76626-39085 · 76626-39205 · 76626-39206 |
| 76645B | Right rear body fender bracket | 76645-89101 |
| 76646B | Left rear body fender bracket | 76646-89101 |
| 76647B | Right rear body fender bracket | 76647-35020 · 76647-89105 · 76647-89106 · 76647-89107 |
| 76648B | Left rear body fender bracket | 76648-35010 · 76648-89105 · 76648-89106 · 76648-89107 |
