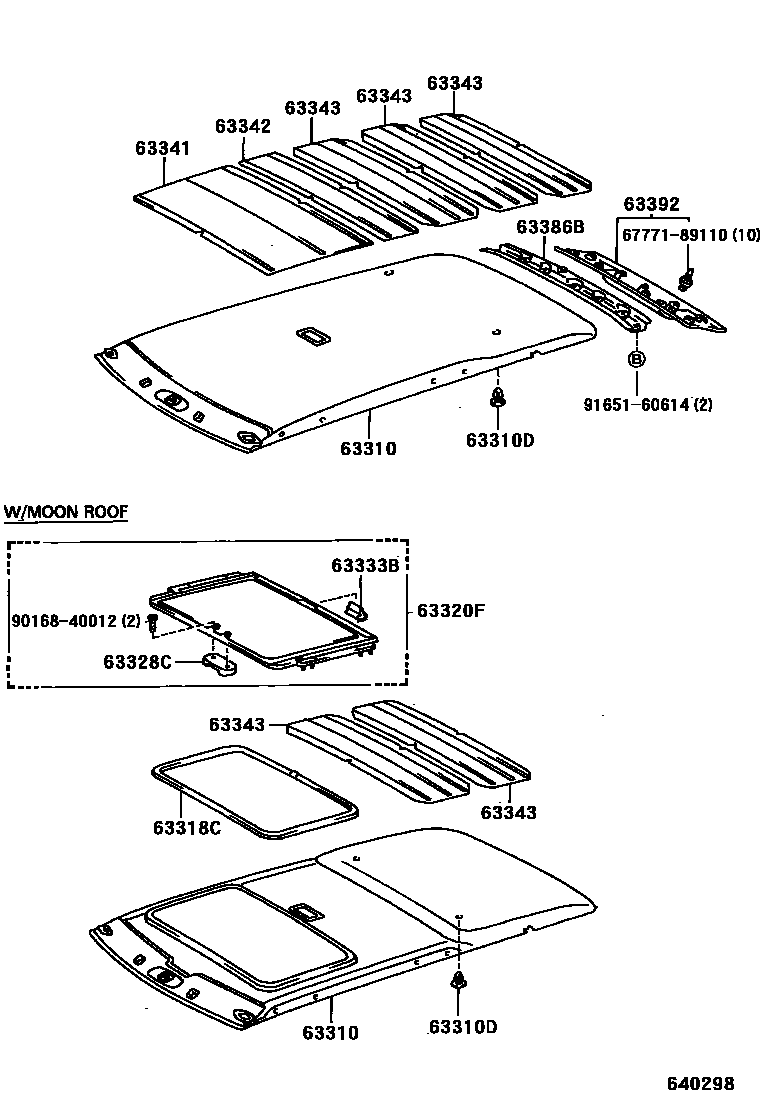

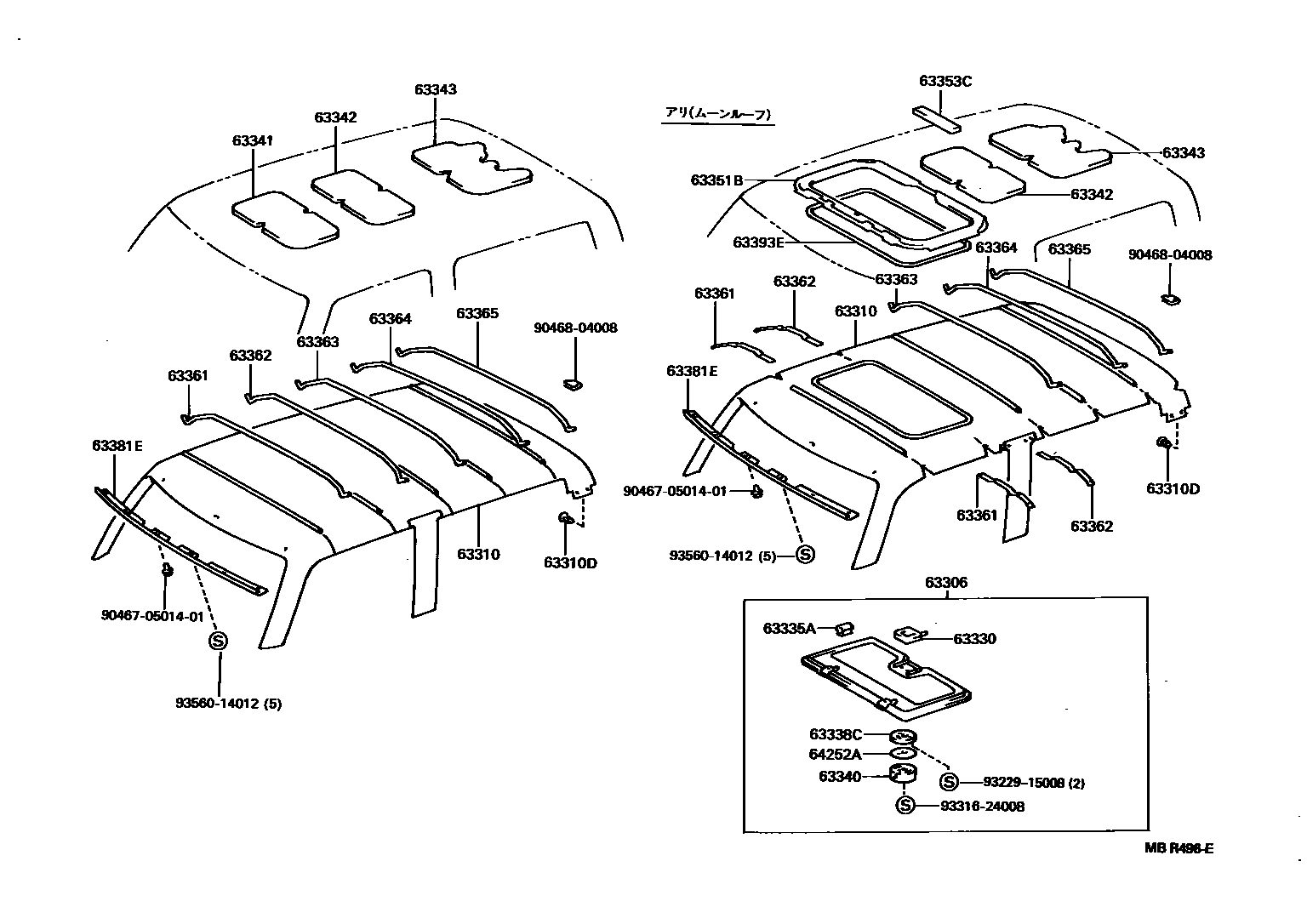

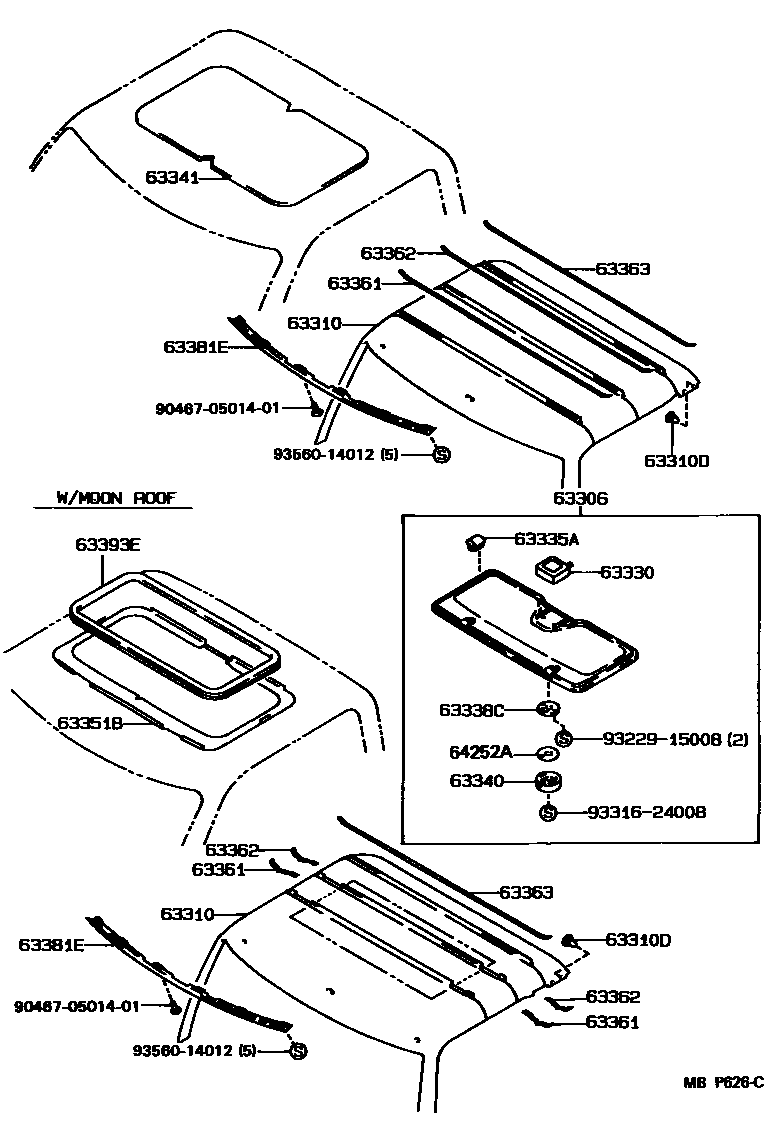

Toyota HILUX 车顶内衬和消声垫 — Figure 6452
Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310D | headliner clip | 90467-08122 |
| 63330 | Sunshade trim panel lock assembly | 63330-16010 · 63330-89101 |
| 63333B | Sunshade decorative panel protective parts | 63333-30010 |
| 63335A | No. 1 sunshade decorative panel cushion | 63335-35010 · 63335-35020 · 63335-89102 |
| 63338C | No. 2 sunshade lock stop | 63338-12010 |
| 63341 | No. 1 roof silencer mat | 63341-35050 · 63341-89110 · 63341-89116 · 63341-89122 |
| 63342 | No. 2 roof muffler pad | 63341-35070 · 63341-89119 · 63341-89123 |
| 63343 | No. 3 roof muffler pad | 63341-35080 · 63341-89120 · 63341-89124 |
| 63351B | roof lining pads | 63351-89107 |
| 63353C | Center roof lining lining | 63353-89101 |
| 63361 | Headlining bracket No. 1 | 63361-35010 · 63361-35011 · 63361-89113 · 63361-89116 · 63361-89118 |
| 63362 | Headlining bracket No. 2 | 63361-35010 · 63361-35011 · 63361-89113 · 63361-89120 · 63361-89123 |
| 63363 | No. 3 roof lining bracket | 63361-89120 · 63361-89123 |
| 63364 | No. 4 roof lining bracket | 63361-89120 |
| 63365 | No. 5 headliner bracket | 63361-89121 · 63361-89124 |
| 63381E | Front headliner trim fasteners | 63381-89104 |
| 63386B | Headlining trim reinforcement | 63386-89102 |
| 64252A | Sunshade decorative panel lock spacer | 64252-17010 |
