Toyota HILUX 车内装饰板 — Figure 6451

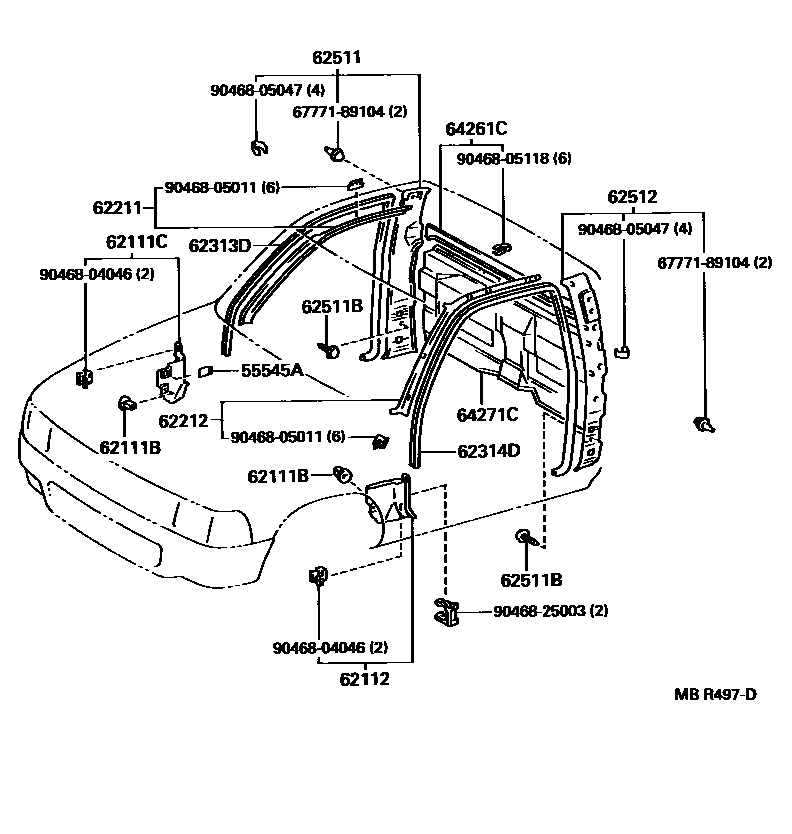

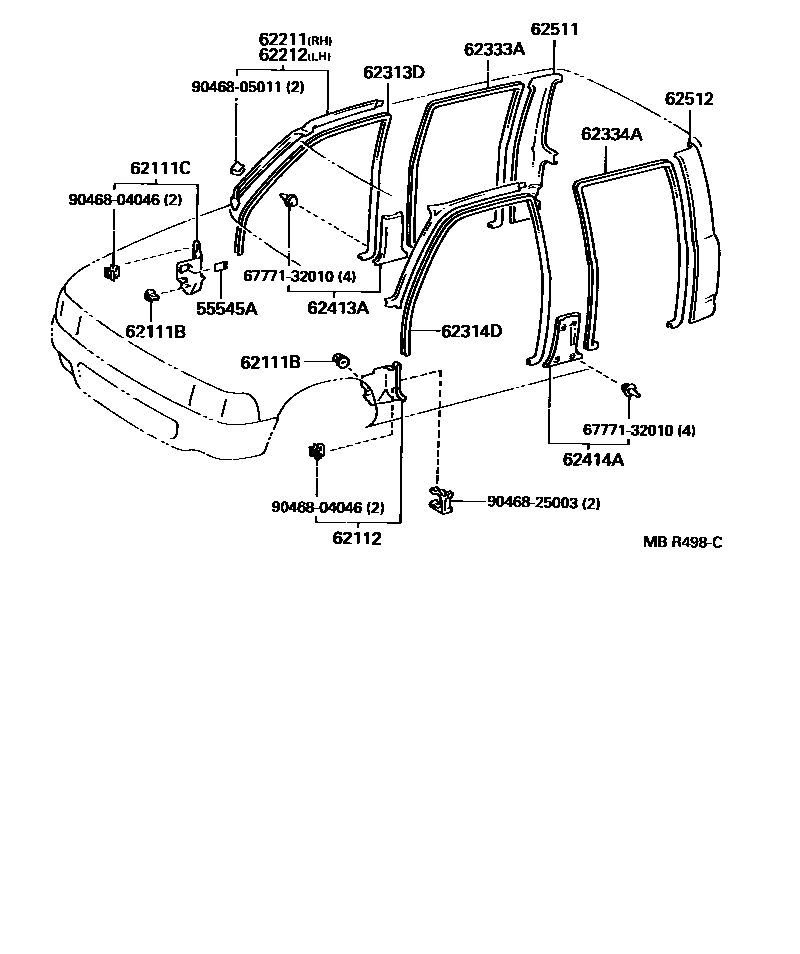

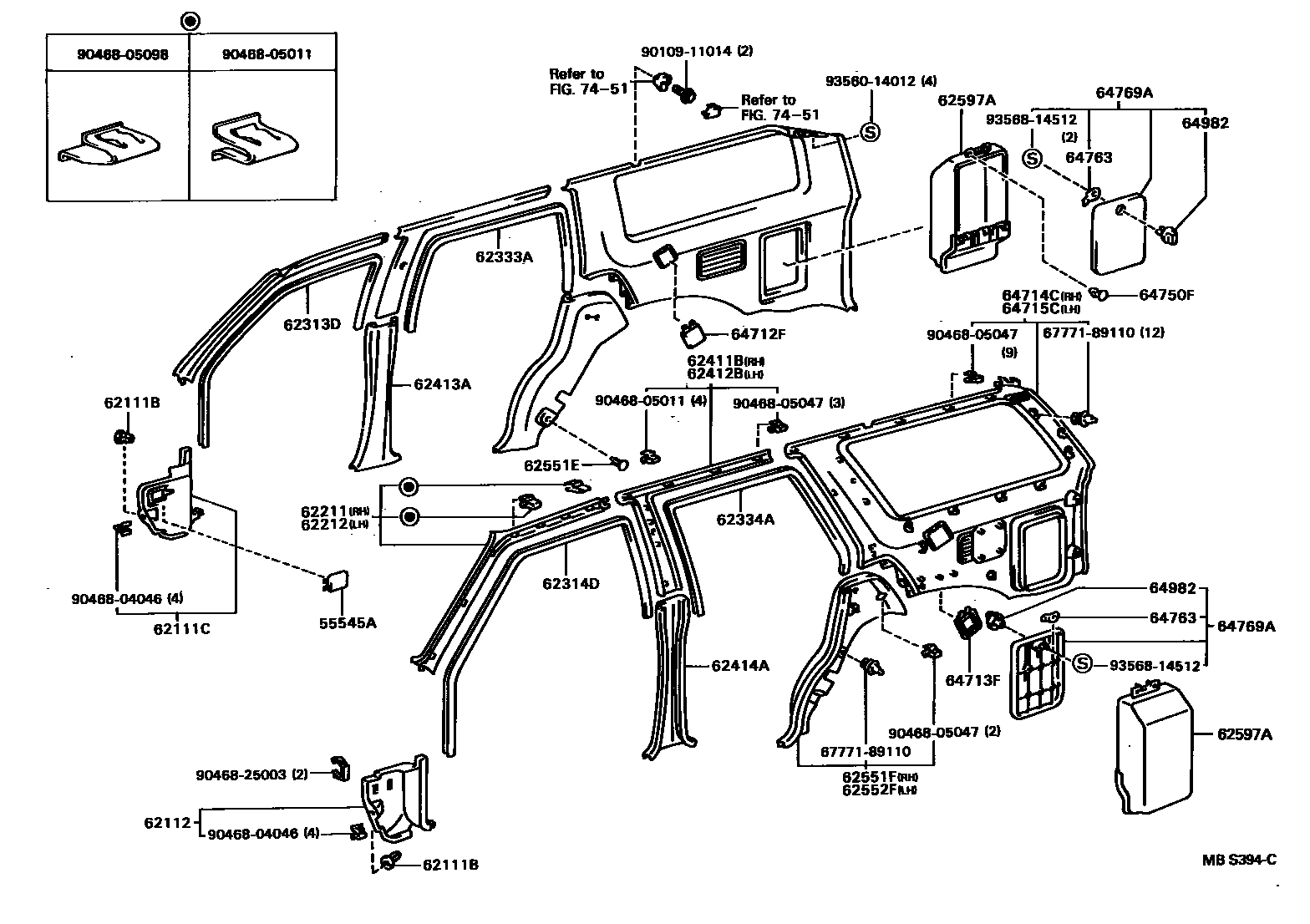

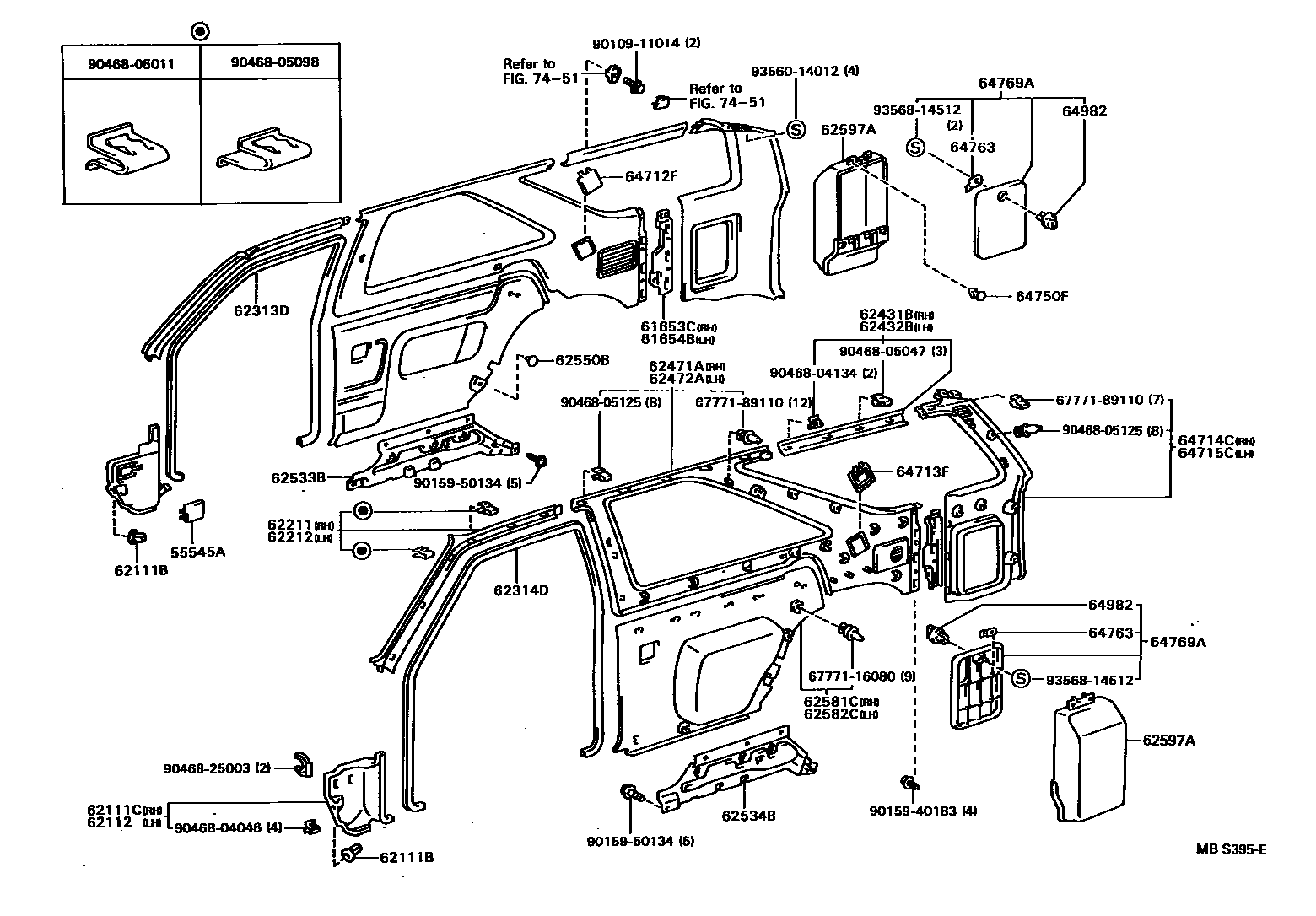

Toyota HILUX EPC diagram 6451, 车内装饰板, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61653C | Decoration bracket on the right side of the floor | 61653-89101 |
| 61654B | Decoration bracket on the left side of the floor | 61654-89101 |
| 62533B | Right side decorative panel bracket | 62533-89101 |
| 62534B | Left side decorative panel bracket | 62534-89101 |
| 62597A | Side decorative box | 62580-89101 · 62590-89101 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-07096 |
| 64763 | Tool cover stop | 64763-89102 |
