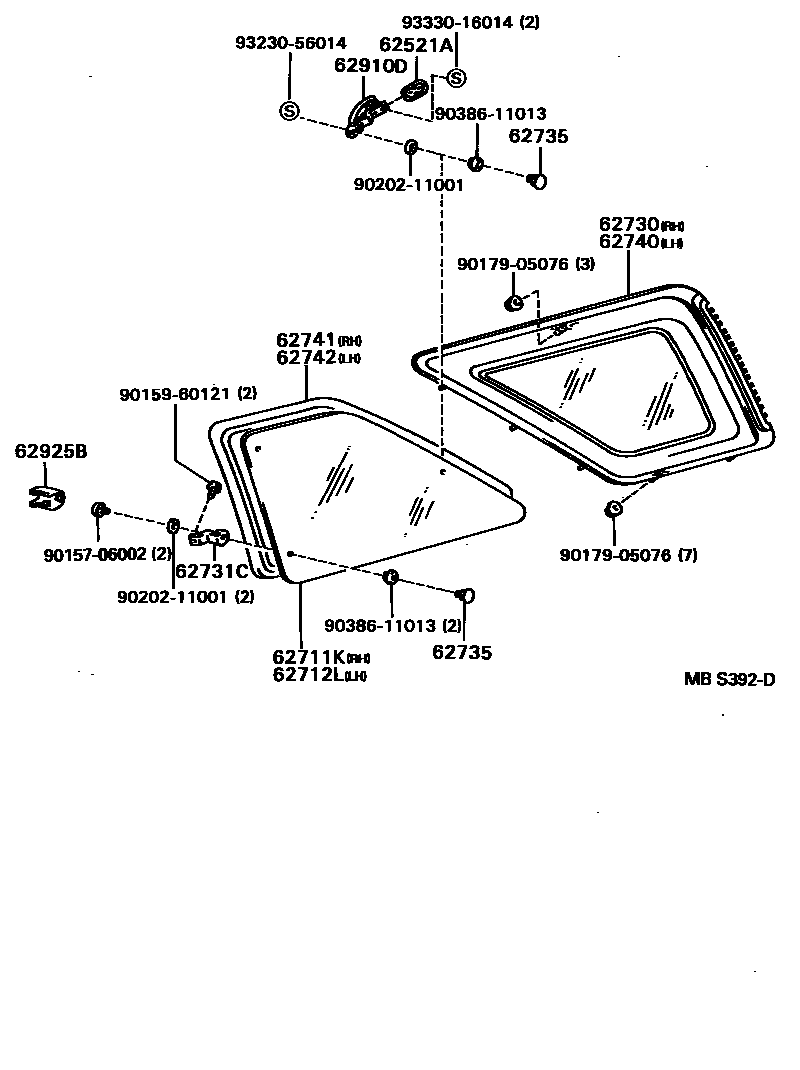

Toyota HILUX 侧窗 — Figure 6152
Toyota HILUX EPC diagram 6152, 侧窗, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711K | Right front corner window glass | 62711-89119 · 62711-89120 |
| 62712L | Left front corner window glass | 62712-89119 · 62712-89120 |
| 62730 | No. 3 side window panel assembly | 62730-89101 · 62730-89102 · 62730-89105 · 62730-89106 |
| 62731C | Right corner window hinge | 62731-89103 |
| 62735 | Corner window hinge fixings | 62735-89102 |
| 62740 | No. 4 side window panel assembly | 62740-89101 · 62740-89102 · 62740-89103 · 62740-89104 |
| 62741 | Right corner window sealing strip | 62741-89103 |
| 62742 | Left corner window sealing strip | 62742-89102 |
| 62884A | Right corner window guardrail | 62884-89102 |
| 62885A | Left corner window guardrail | 62885-89101 |
