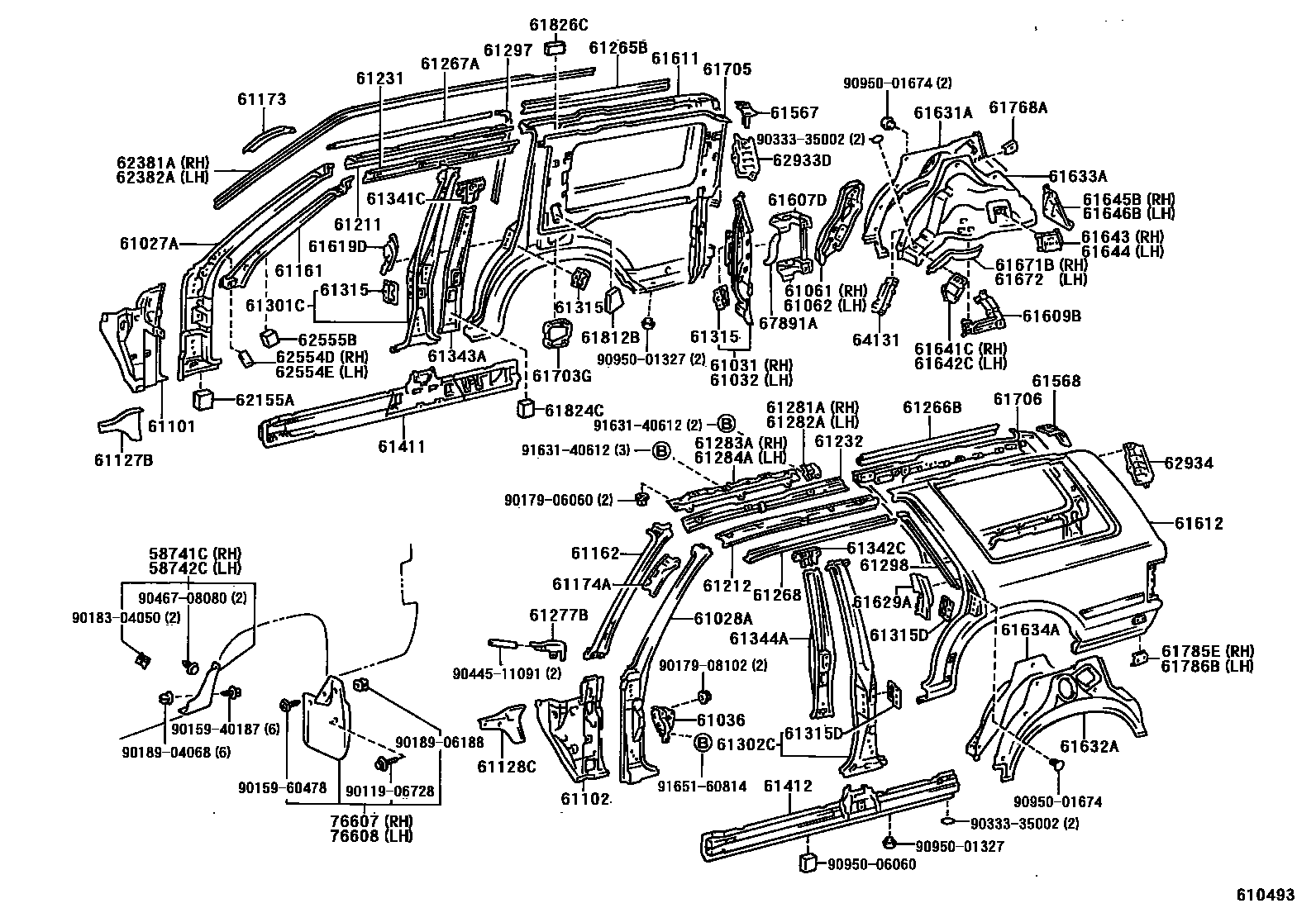

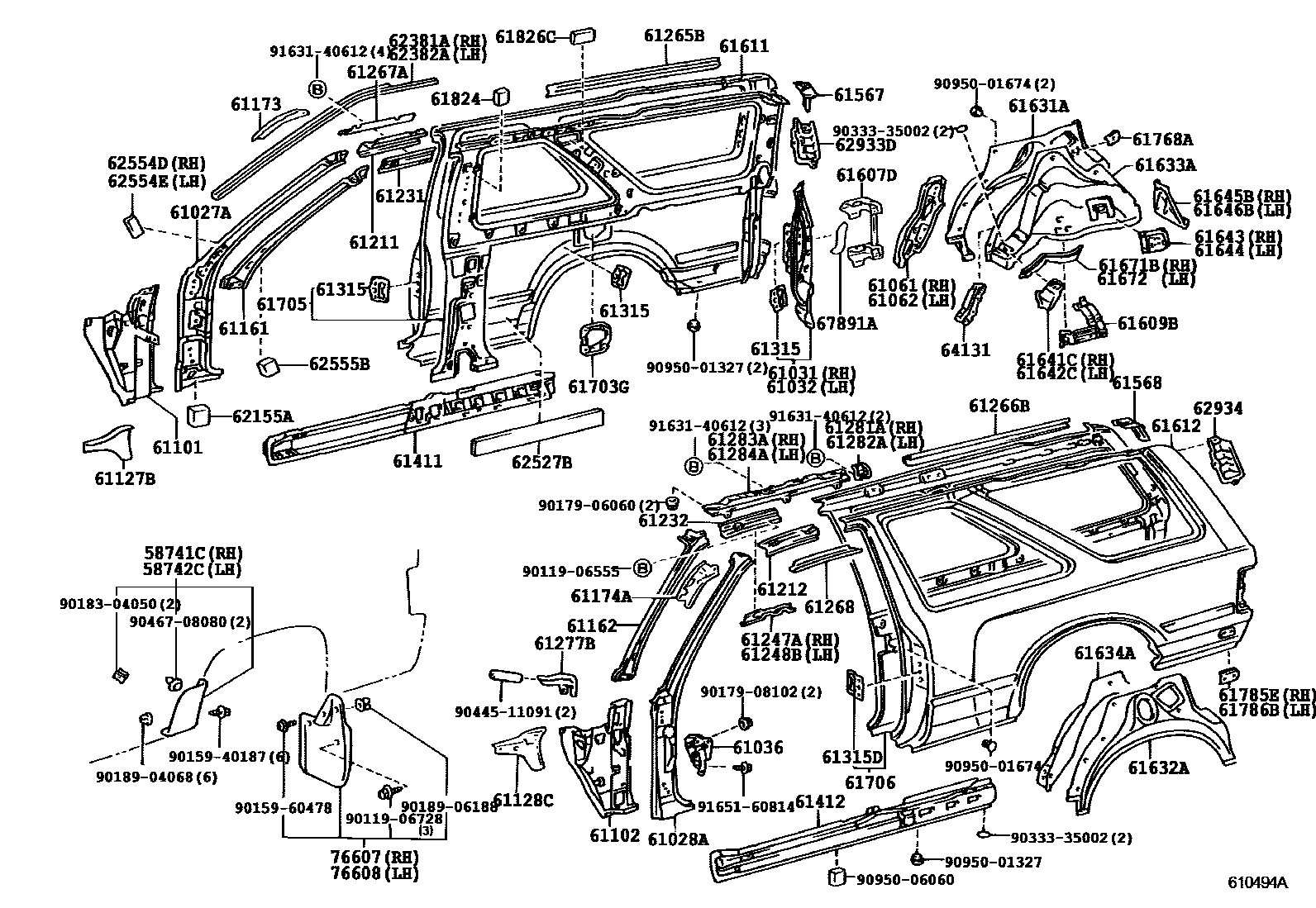

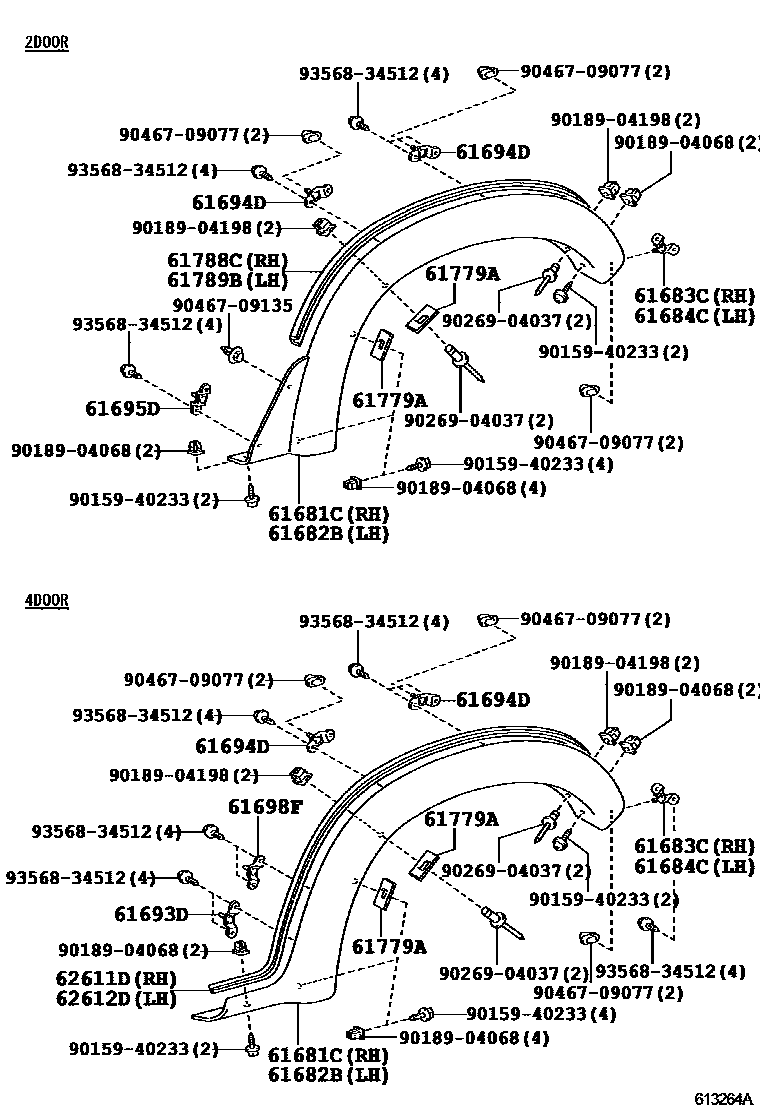

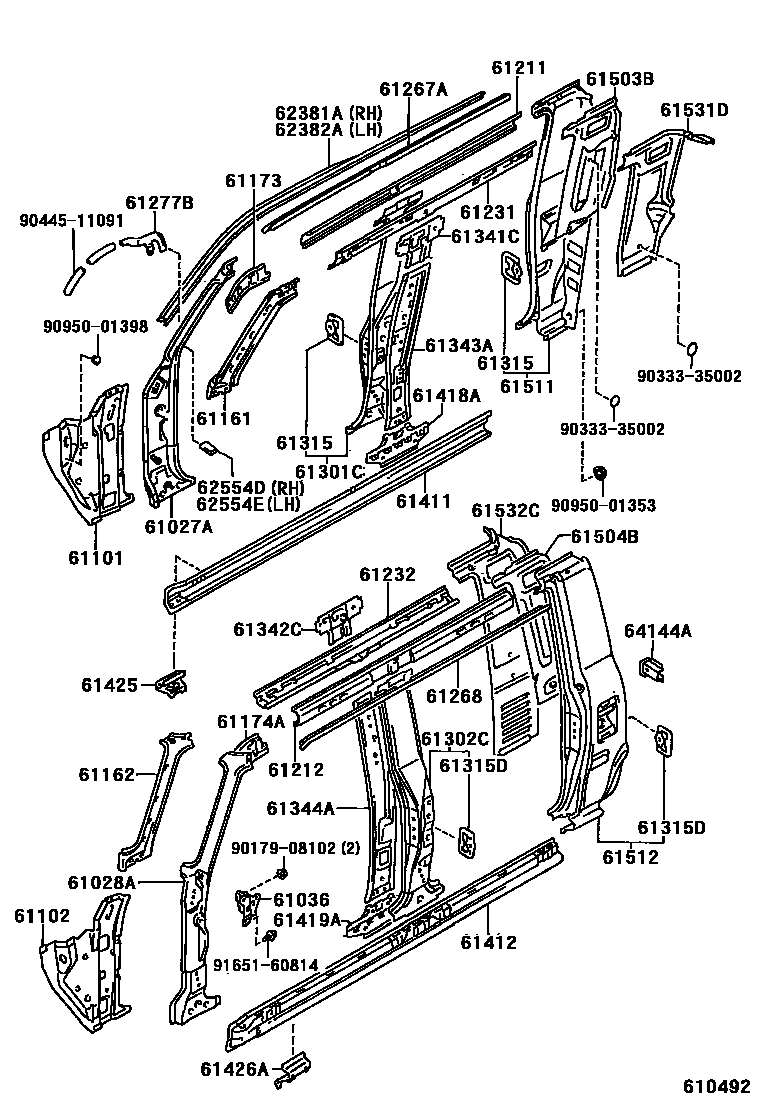

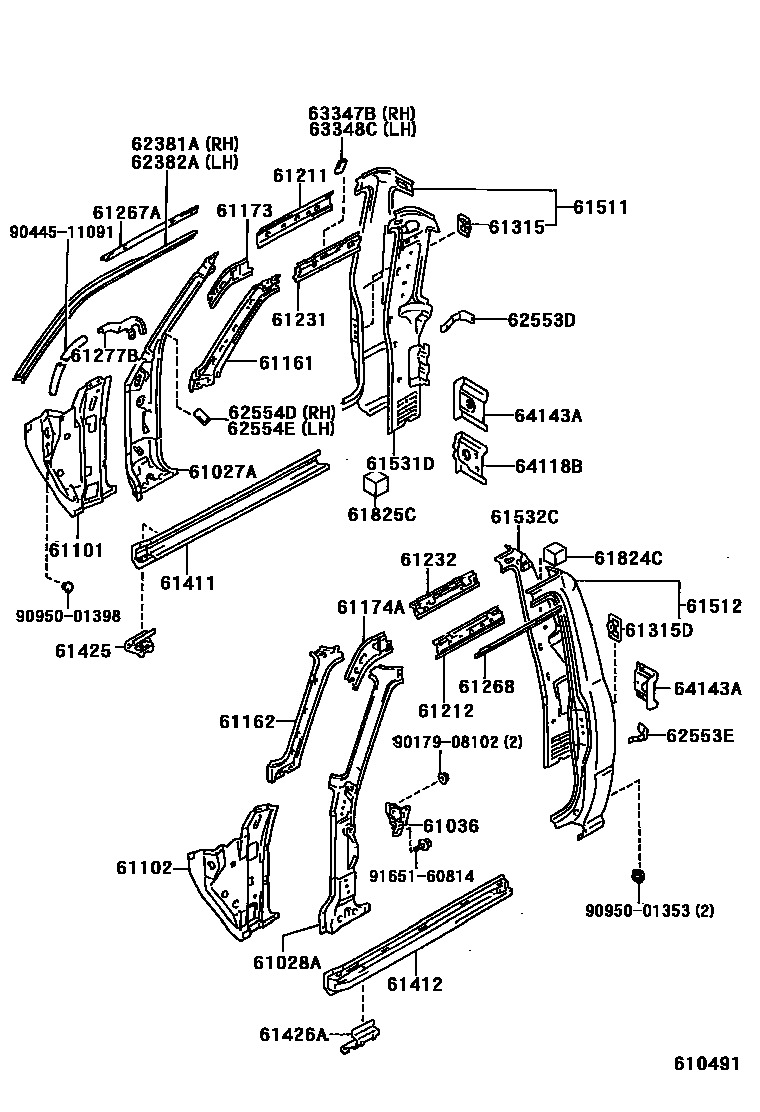

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 5 images and 112 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61027A | Right body outer front pillar sub-assembly | 61027-89115 · 61027-89901 |
| 61028A | Left body outer front pillar sub-assembly | 61028-89115 · 61028-89901 |
| 61031 | Right rear side panel lower extension sub-assembly | 61031-89101 · 61031-89102 |
| 61032 | Left rear side panel lower extension sub-assembly | 61032-89101 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-89101 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-89102 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-89102 |
| 61101 | Right front wall side panel sub-assembly | 61101-89135 · 61101-89900 |
| 61102 | Left front wall side panel sub-assembly | 61102-35020 · 61102-89130 · 61102-89900 · 61102-89901 |
| 61127B | No. 2 right front wall side panel reinforcement | 61127-89102 |
| 61128C | No. 2 left front wall side panel reinforcement | 61128-89101 |
| 61161 | Right upper body inner front pillar | 61023-35020 · 61161-89108 |
| 61162 | Left side inner front upper pillar | 61024-35020 · 61162-89108 |
| 61173 | Reinforcements on the front pillars inside the vehicle body | 61173-35020 · 61173-89103 · 61173-89104 |
| 61174A | Reinforcement member on the left inner front pillar of the body | 61174-35020 · 61174-89102 · 61174-89103 |
| 61211 | Roof right outer longitudinal beam | 61211-89107 · 61211-89108 · 61211-89109 |
| 61212 | Roof left outer longitudinal beam | 61212-89107 · 61212-89108 · 61212-89109 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-89113 · 61231-89114 · 61231-89115 · 61231-89117 |
| 61232 | Roof left inner longitudinal beam | 61232-89113 · 61232-89114 · 61232-89117 |
| 61247A | Roof inner longitudinal beam reinforcement | 61247-89101 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-89101 |
| 61265B | Drainage channel on the right rear corner of the roof | 61265-89102 · 61265-89103 |
| 61266B | Drainage channel on the left rear corner of the roof | 61265-89102 · 61266-89101 |
| 61267A | Roof right rear gutter | 61267-89101 · 61267-89102 · 61267-89103 |
| 61268 | Roof left rear gutter | 61268-89101 · 61268-89102 · 61268-89103 |
| 61277B | roof drainage channel connector | 61277-89101 · 61278-89101 |
| 61281A | Sliding sunroof frame No. 1 side mounting bracket | 61281-89101 |
| 61282A | Sliding sunroof frame No. 2 side mounting bracket | 61281-89101 |
| 61283A | Sliding sunroof frame No. 3 right side mounting bracket | 61283-89101 |
| 61284A | Sliding sunroof frame No. 3 left mounting bracket | 61284-89101 |
| 61297 | No. 2 roof right rear drain channel | 61297-89101 |
| 61298 | No. 2 roof left rear drain channel | 61298-89101 |
| 61301C | Right body outer center pillar sub-assembly | 61301-35010 · 61301-35020 · 61301-89105 · 61301-89107 |
| 61302C | Left body outer center pillar sub-assembly | 61302-35010 · 61302-35030 · 61302-89107 · 61302-89112 |
| 61315 | Door latch plate fixing parts | 61315-22020 |
| 61315D | Left door latch fastener | 61315-22020 |
| 61341C | Right inner middle pillar | 61341-89102 |
| 61342C | Left side inner center pillar | 61342-89102 |
| 61343A | Right body inner center pillar | 61307-35010 · 61307-35020 · 61307-89105 |
| 61344A | Left body inner center pillar | 61308-35010 · 61308-35020 · 61308-89105 |
| 61411 | Right door outer sill panel | 61401-89103 · 61401-89104 · 61411-35010 · 61411-35020 · 61411-89109 · 61411-89110 |
| 61412 | Left door outer sill panel | 61402-89103 · 61402-89104 · 61412-35010 · 61412-35020 · 61412-89109 · 61412-89110 |
| 61418A | Right side door sill panel reinforcement | 61418-35010 |
| 61419A | Left side rocker panel reinforcement | 61419-35010 |
| 61425 | Right side door sill panel No. 4 reinforcement | 61425-35010 |
| 61426A | Left side door sill panel No. 4 reinforcement | 61426-35010 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-89112 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-89113 |
| 61511 | Right side locking post | 61501-35010 · 61501-89122 · 61501-89125 |
| 61512 | Left side locking post | 61502-35010 · 61502-35020 · 61502-89127 · 61502-89129 |
| 61531D | Right inner rear pillar panel of cab | 61531-89124 · 61531-89125 · 61531-89126 · 61531-89127 |
| 61532C | Cab left inner rear pillar panel | 61532-89124 · 61532-89126 · 61532-89127 · 61532-89128 · 61532-89129 |
| 61567 | Right side hoarding end panel | 61567-89101 |
| 61568 | Left side hoarding end panel | 61568-89101 |
| 61607D | Spare tire carrier hinge fixation sub-assembly | 61607-89101 |
| 61609B | Side panel bracket sub-assembly | 61609-89101 |
| 61611 | Right side hoarding | 61611-35030 · 61611-35040 · 61611-89113 · 61611-89116 |
| 61612 | left side panel | 61612-35010 · 61612-35020 · 61612-89116 · 61612-89118 |
| 61619D | Right side panel reinforcement | 61619-89103 |
| 61629A | Left side panel reinforcement | 61629-89102 |
| 61631A | Right wheel cover outer panel | 61631-89102 |
| 61632A | Left side wheel cover outer panel | 61632-89102 |
| 61633A | Right wheel housing lining panel | 61633-89102 |
| 61634A | Left side wheel housing lining panel | 61634-89102 |
| 61641C | Right front side wheel housing corner panel | 61641-89101 |
| 61642C | Left front side wheel housing corner panel | 61642-89101 |
| 61643 | Right wheel housing center corner panel | 61643-89102 |
| 61644 | Left side wheel housing center corner panel | 61644-89102 |
| 61645B | Right rear side wheel housing corner panel | 61645-89102 |
| 61646B | Left rear side wheel housing corner panel | 61646-89101 |
| 61671B | Right wheel cover reinforcement | 61671-89101 |
| 61672 | Rear left seat back hinge bracket | 61672-89101 |
| 61681C | Right rear fender external panel | 61681-35903 · 61681-35904 |
| 61682B | Left rear fender external panel | 61682-35903 · 61682-35904 |
| 61683C | Rear right seat backrest hinge bracket | 61683-35020 |
| 61684C | Rear left seat back hinge bracket | 61684-35020 |
| 61693D | No. 1 rear fender external panel bracket | 61693-35010 |
| 61694D | No. 2 rear fender external panel bracket | 61694-35020 |
| 61695D | No. 3 rear fender external panel bracket | 61695-35020 |
| 61698F | No. 4 rear fender external panel bracket | 61698-35010 |
| 61703G | Right side enclosure inner panel sub-assembly | 61703-89110 |
| 61705 | Roof right inner panel sub-assembly | 61705-89104 · 61705-89108 |
| 61706 | Roof left inner panel sub-assembly | 61706-89104 · 61706-89108 |
| 61768A | Seat belt anchor reinforcement for seat No. 2, right | 61768-89103 |
| 61779A | Rear fender external panel buffer pad | 61779-35010 |
| 61785E | Rear bumper right side bracket | 61786-89101 |
| 61786B | Rear bumper left bracket | 61786-89101 |
| 61812B | Right noise control panel | 61812-89101 |
| 61824 | Noise Control Panel No. 1 | 61824-89106 · 61825-20100 |
| 61824C | No. 1 silencer panel gasket | 61824-89104 · 61824-89108 · 62151-20170 |
| 61825C | No. 2 silencer panel gasket | 61825-89102 · 62151-20170 |
| 61826C | No. 3 silencer panel gasket | 61826-89102 |
| 62155A | Front and lower side muffler pads | 62155-89101 |
| 62381A | Roof right side rail seal strip | 62381-89101 · 62381-89102 · 62381-89103 |
| 62382A | Roof left side rail seal strip | 62382-89101 · 62382-89102 · 62382-89103 |
| 62527B | Side decorative panel lining | 62527-89104 |
| 62553D | No. 3 column pad | 62553-89101 |
| 62553E | No. 3 column pad | 62553-89101 |
| 62554D | front pillar pad | 62554-89102 |
| 62554E | No. 4 column pad | 62554-89102 |
| 62555B | No. 5 column pad | 62555-89101 |
| 62933D | Side ventilation ducts | 62903-89103 · 62903-89104 |
| 62934 | Roof side ventilation hose seal | 62904-89101 · 62904-89102 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-89102 |
| 63348C | Roof left side rail silencer pad | 63347-89102 |
| 64118B | Cab right rear reinforcement | 64118-89103 |
| 64131 | Right side enclosure outer lower panel | 64131-89101 |
| 64143A | Right rear corner panel reinforcement | 64143-89104 · 64143-89106 · 64144-89104 |
| 64144A | Left rear quarter panel reinforcement | 64144-89103 |
| 67891A | Back door seal | 67891-35010 |
| 76607 | Right rear side fender sub-assembly | 76607-39015 · 76607-39035 |
| 76608 | Left rear side fender sub-assembly | 76608-39015 · 76608-39035 |
