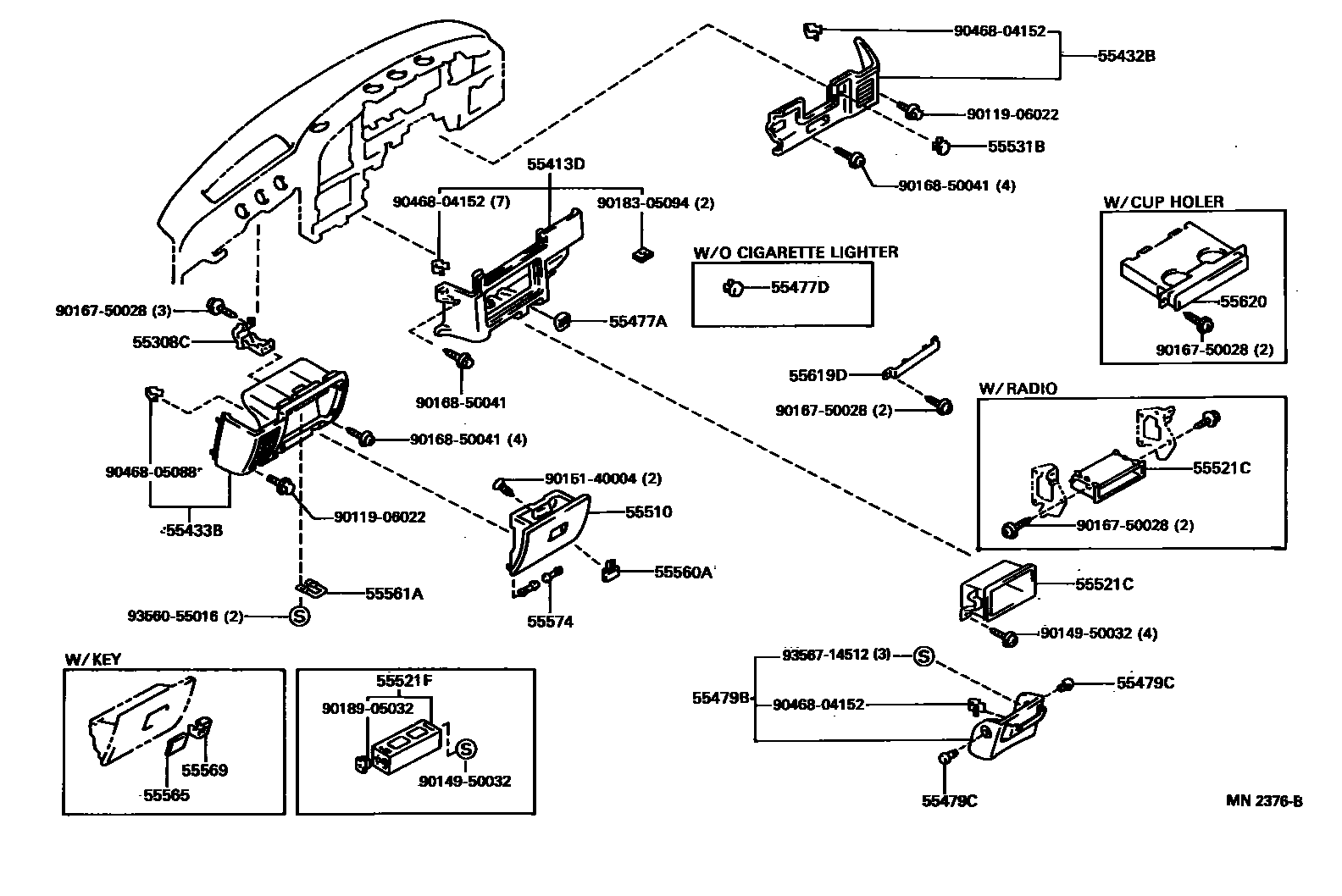

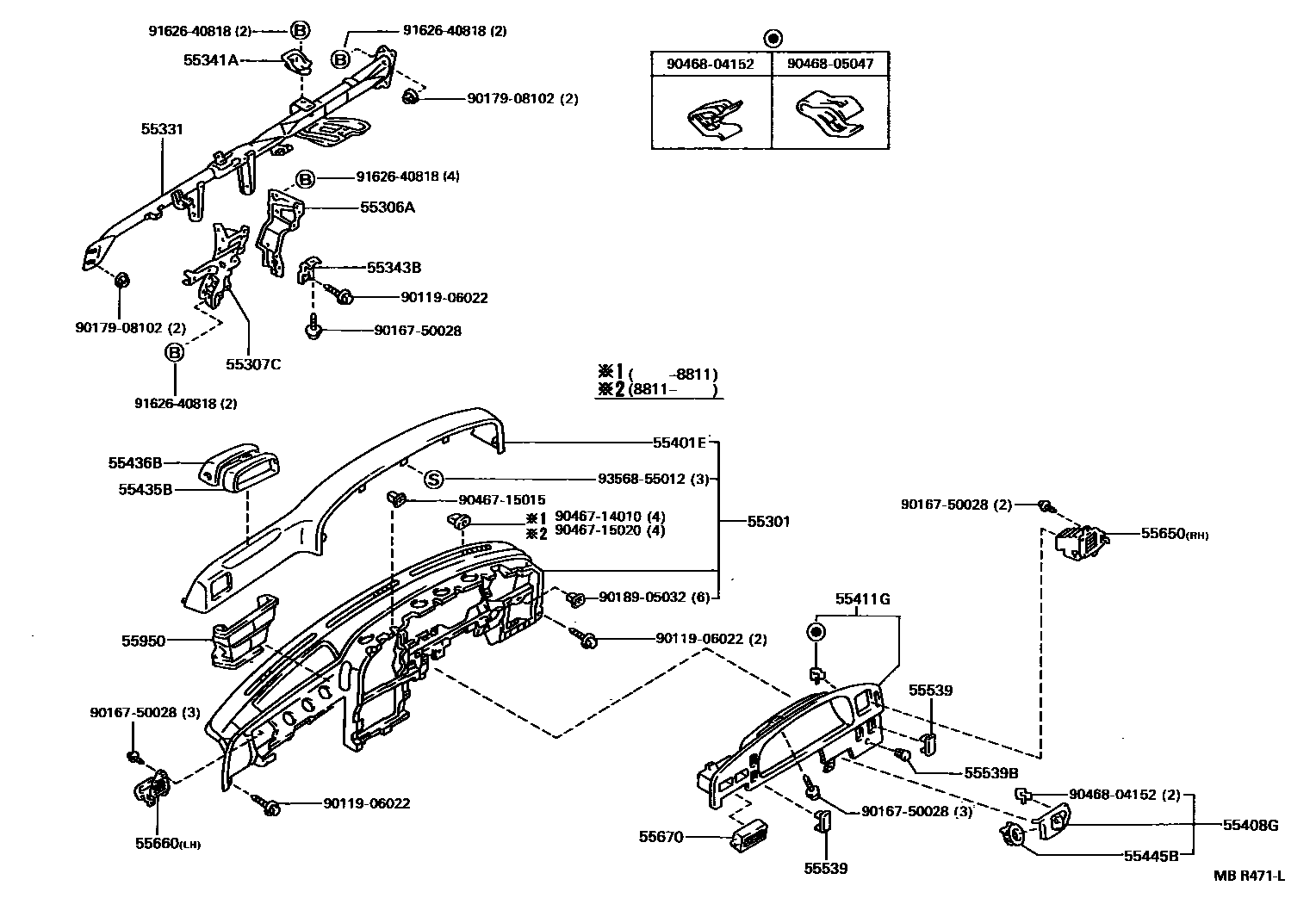

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-89106 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-89108 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-89109 |
| 55331 | Dashboard reinforcement | 55330-89118 |
| 55341A | Upper bracket (dashboard to front wall) | 55341-89104 |
| 55343B | Center bracket (dashboard to cowl) | 55343-89102 |
| 55408G | Starter switch frame sub-assembly | 55408-89104 · 55408-89105 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-89114 · 55411-89117 |
| 55445B | Dashboard decorative panel | 55445-89103 · 55445-89104 |
| 55477A | Cigarette lighter hole frame | 55477-89105 |
| 55521C | stereo system hole cover | 55521-89102 · 55521-89103 |
| 55521F | Stereo system hole cover No. 2 | 55521-89102 · 55521-89104 |
| 55539 | Spare switch hole cover | 55539-89105 |
| 55539B | No. 2 spare switch hole cover | 55539-89104 |
| 55561A | Glove box lid lock | 55561-89104 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55619D | Coaster hole cover | 55619-89101 |
| 55620 | Dashboard cup holder assembly | 55620-89103 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-89113 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-89116 |
| 55950 | Defroster nozzle assembly | 55950-89109 |
