Toyota HILUX 发动机盖锁和铰链 — Figure 5354

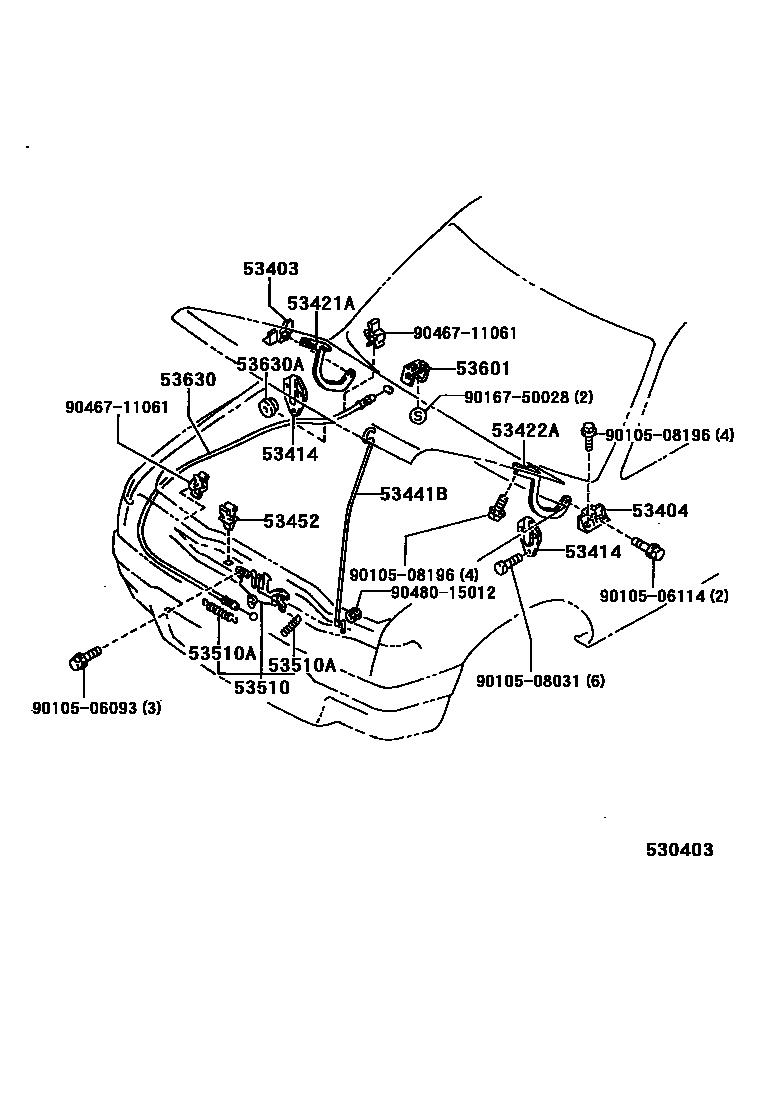

Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53403 | Hinge bracket sub-assembly on the right side of the engine cover | 53403-89102 · 53403-89103 |
| 53404 | Engine cover left hinge bracket sub-assembly | 53404-89102 · 53404-89103 |
| 53414 | Engine cover hinge seal | 53414-89103 |
| 53421A | Engine cover right hinge arm | 53421-89103 · 53421-89104 |
| 53422A | Engine cover left hinge arm | 53422-89102 · 53422-89103 |
| 53441B | Engine cover support rod | 53441-89105 |
| 53452 | Engine cover stay rod fixing | 53452-90351 |
| 53510 | Engine cover lock assembly | 53510-35030 · 53510-89118 |
| 53510A | Tension spring (for hood lock) | 90506-07021 · 90506-09039 · 90506-20008 |
| 53630 | Engine hood lock control cable assembly | 53630-89112 · 53630-89114 |
| 53630A | Gasket (for hood lock control cable) | 90480-40008 |
