Toyota HILUX 后保险杠及附件 — Figure 5253

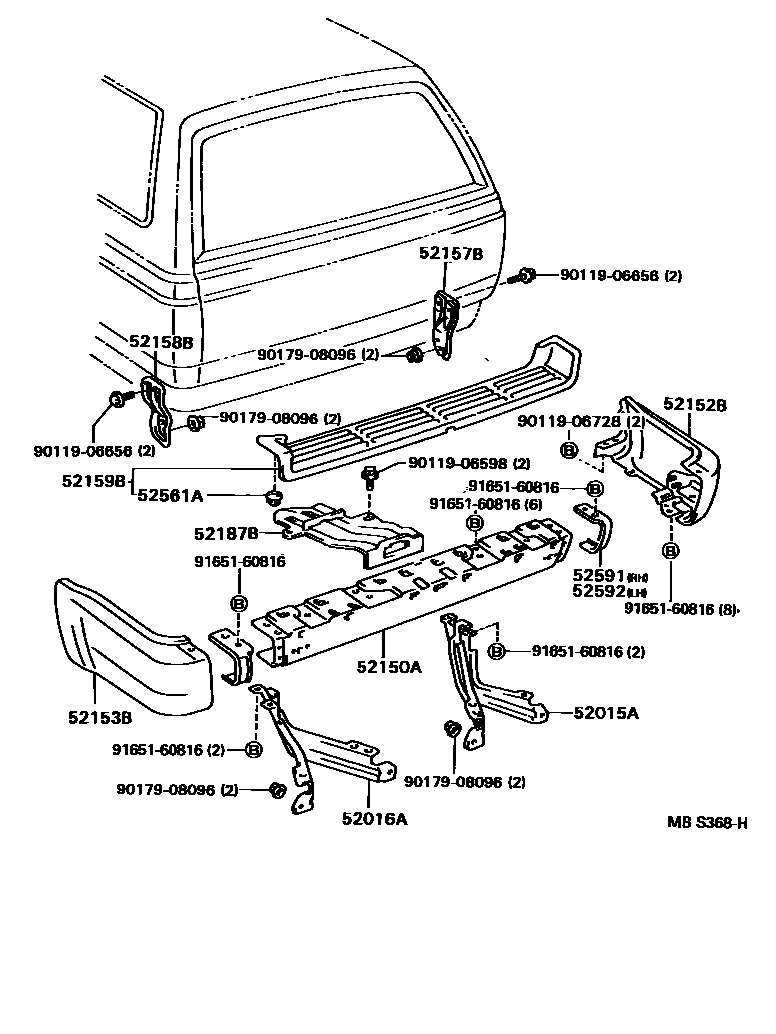

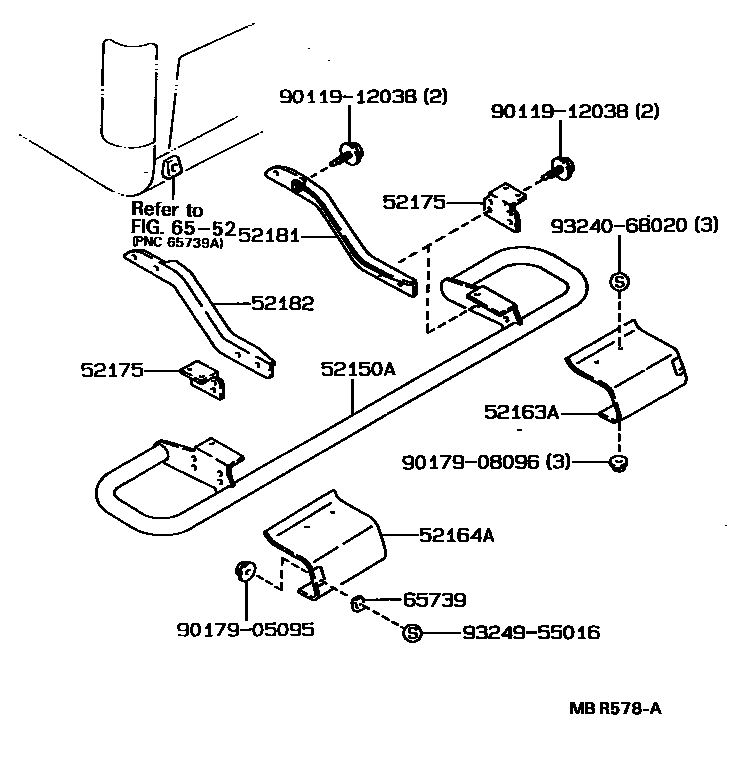

Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-89109 |
| 52016A | Rear bumper left arm sub-assembly | 52016-89109 |
| 52150A | Rear bumper assembly | 52105-35030 · 52105-35090 · 52105-35150 · 52105-89116 · 52105-89117 · 52105-95111 |
| 52152B | Rear bumper right extension | 52106-35020 · 52106-89105 · 52106-89106 |
| 52153B | Rear bumper left extension | 52107-35010 · 52107-89103 · 52107-89104 |
| 52157B | Rear bumper No. 2 right side stay | 52157-89103 |
| 52158B | Rear bumper No. 2 left side stay | 52158-89101 |
| 52159B | rear bumper bezel | 52159-89106 |
| 52163A | Rear bumper right side fender | 52163-89103 |
| 52164A | Rear bumper left fender | 52164-89102 |
| 52175 | Rear bumper arm mounting bracket | 52175-95110 |
| 52181 | Rear bumper right arm | 52181-89119 · 52181-89120 |
| 52182 | Rear bumper left arm | 52182-89116 · 52182-89117 |
| 52187B | Rear bumper positioning guide rod | 52187-35010 |
| 52561A | Clip (for rear bumper mount) | 90467-11059 |
| 52591 | Rear bumper right seal | 52591-89101 |
| 52592 | Rear bumper left seal | 52592-89101 |
| 65739 | Back door buffer block | 65739-89101 |
