Toyota HILUX 前保险杠及附件 — Figure 5252

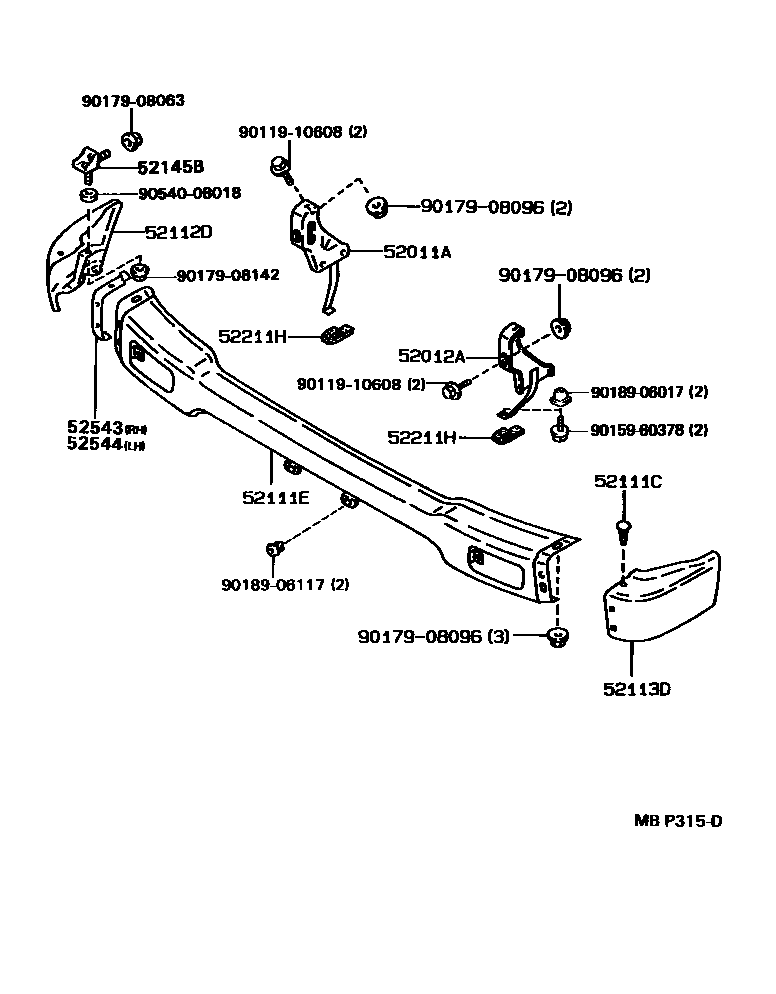

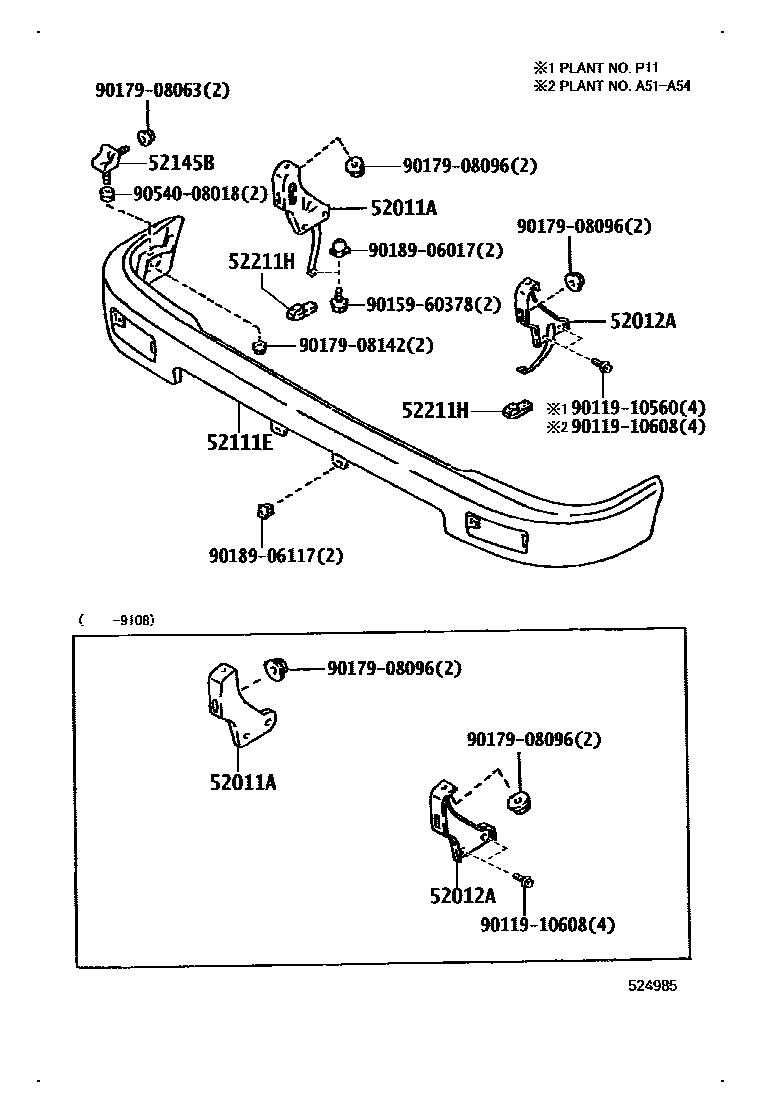

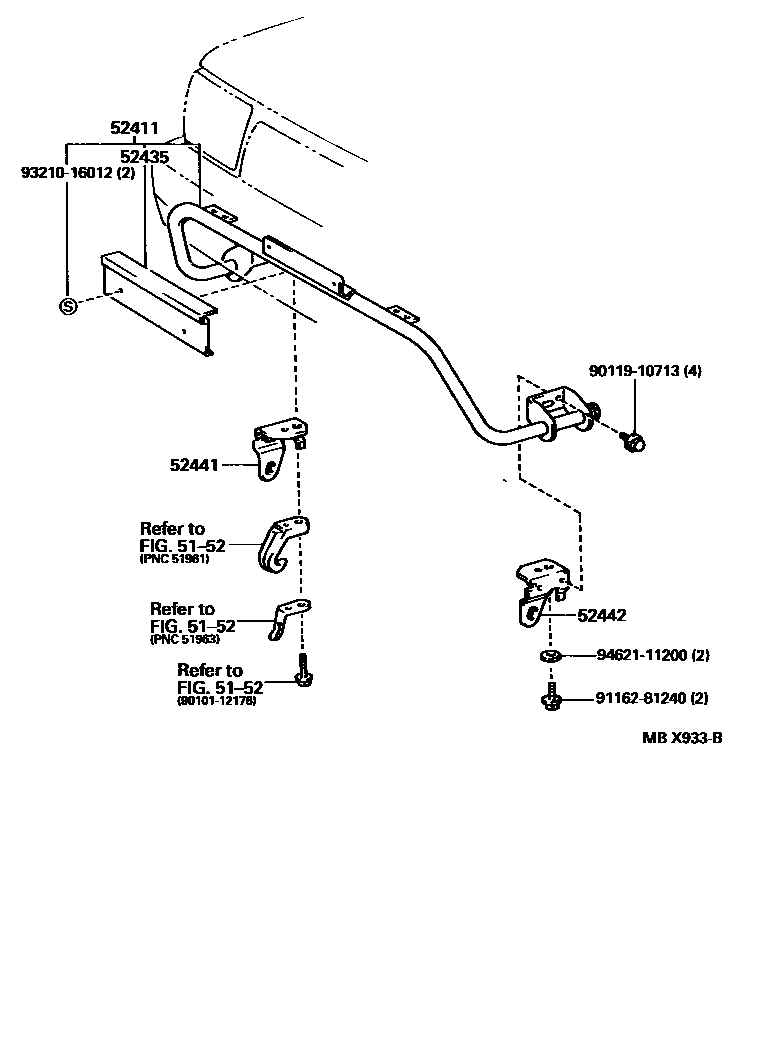

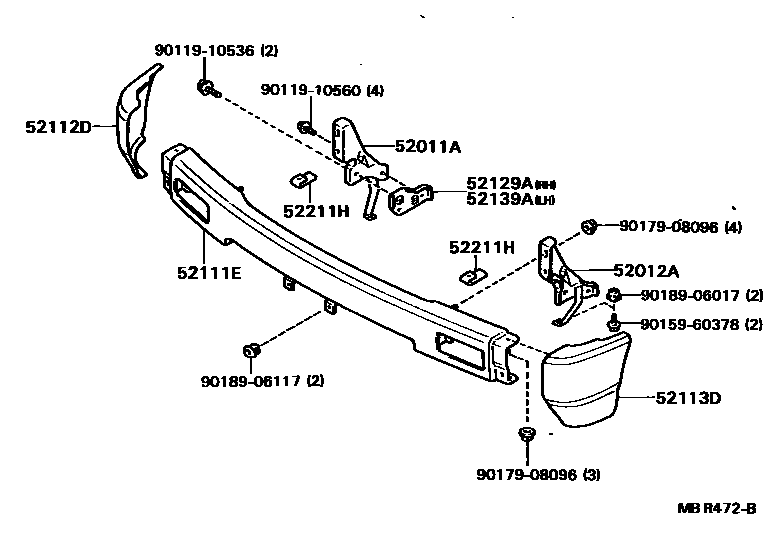

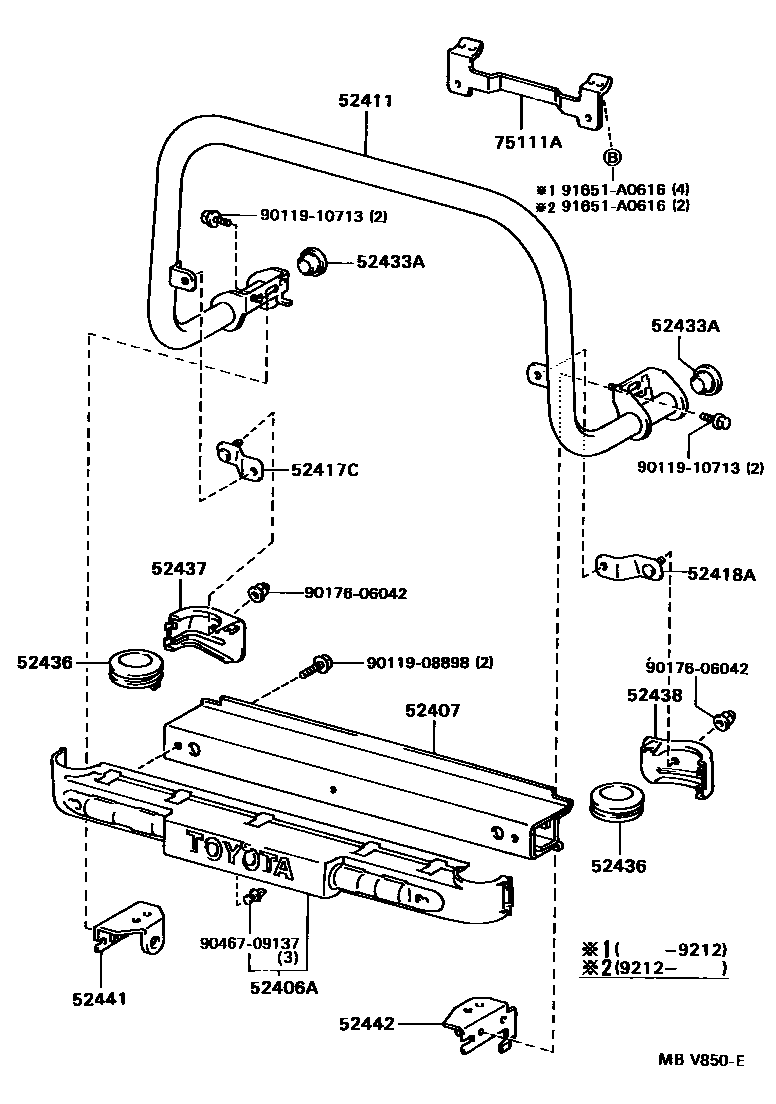

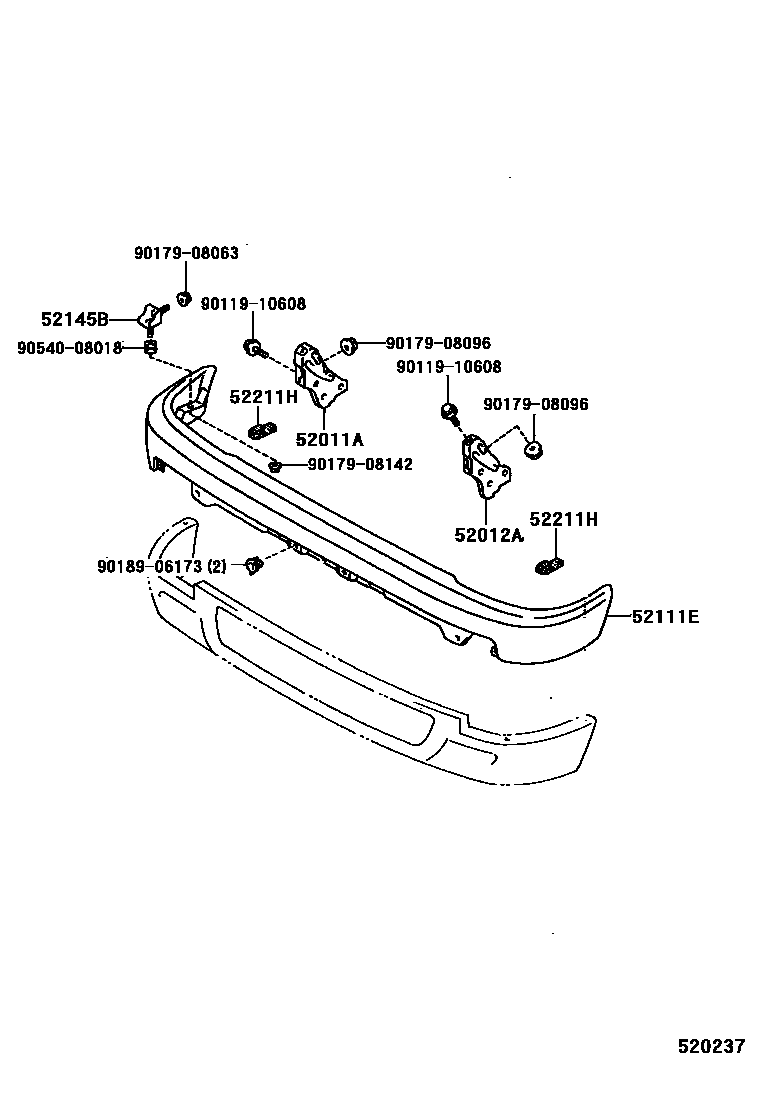

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-35030 · 52011-35040 · 52011-35050 · 52011-35060 · 52011-89114 · 52011-89115 · 52011-89116 · 52011-89117 |
| 52012A | Front bumper left arm sub-assembly | 52012-35030 · 52012-35040 · 52012-35050 · 52012-35060 · 52012-89114 · 52012-89115 · 52012-89116 · 52012-89117 |
| 52111C | Round head square neck bolt (for front bumper) | 90112-08069 · 90112-08070 |
| 52111E | front bumper stay | 52101-35060 · 52101-35070 · 52101-35080 · 52101-35090 · 52101-35110 · 52101-35120 · 52101-35130 · 52101-35170 · 52101-35180 · 52101-35250 · 52101-89107 · 52101-89109 · 52101-89111 · 52101-89112 · 52101-89113 · 52101-89114 |
| 52112D | Front bumper right extension | 52102-35020 · 52102-89110 · 52102-89111 · 52102-89112 · 52102-89113 · 52102-89114 · 52102-89115 |
| 52113D | Front bumper left extension | 52103-35030 · 52103-89110 · 52103-89111 · 52103-89112 · 52103-89113 · 52103-89114 · 52103-89115 |
| 52129A | Front bumper No. 2 upper right arm | 52129-89101 |
| 52139A | Front bumper No. 2 left upper arm | 52139-89101 · 52139-89102 |
| 52145B | Front bumper side mounting bracket | 52145-89102 |
| 52211H | Bumper pad (for front bumper arm) | 52211-89101 |
| 52406A | Front bumper anti-collision bar decorative part sub-assembly | 52406-35010 |
| 52407 | Front bumper No. 2 anti-collision bar sub-assembly | 52407-35010 |
| 52411 | Front bumper anti-collision bar | 52401-35010 · 52410-35020 |
| 52417C | Front bumper anti-collision bar lower right insert | 52417-35010 |
| 52418A | Front bumper anti-collision bar lower left insert | 52418-35010 |
| 52433A | Front bumper cover hole plug | 52433-35010 |
| 52435 | Front bumper anti-collision bar decorative parts | 52435-35020 |
| 52436 | Front bumper anti-collision bar protection parts | 52436-35010 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-35010 |
| 52438 | Front bumper left anti-collision bar cover | 52438-35010 |
| 52441 | Front bumper No. 1 right anti-collision bar base | 52441-35010 · 52441-35020 |
| 52442 | Front bumper No. 1 left anti-collision bar base | 52442-35010 · 52442-35020 |
| 52543 | Front bumper right seal | 52543-89101 |
| 52544 | Front bumper left seal | 52544-89101 |
| 75111A | front license plate bracket | 75111-35030 |
