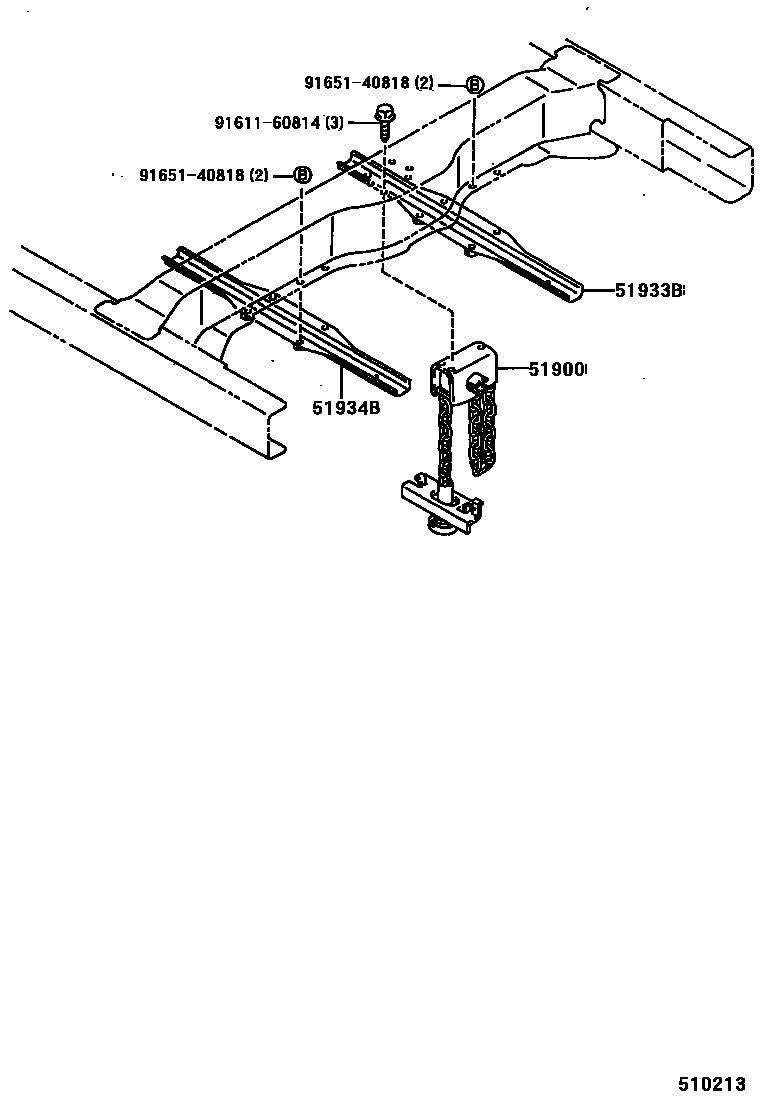

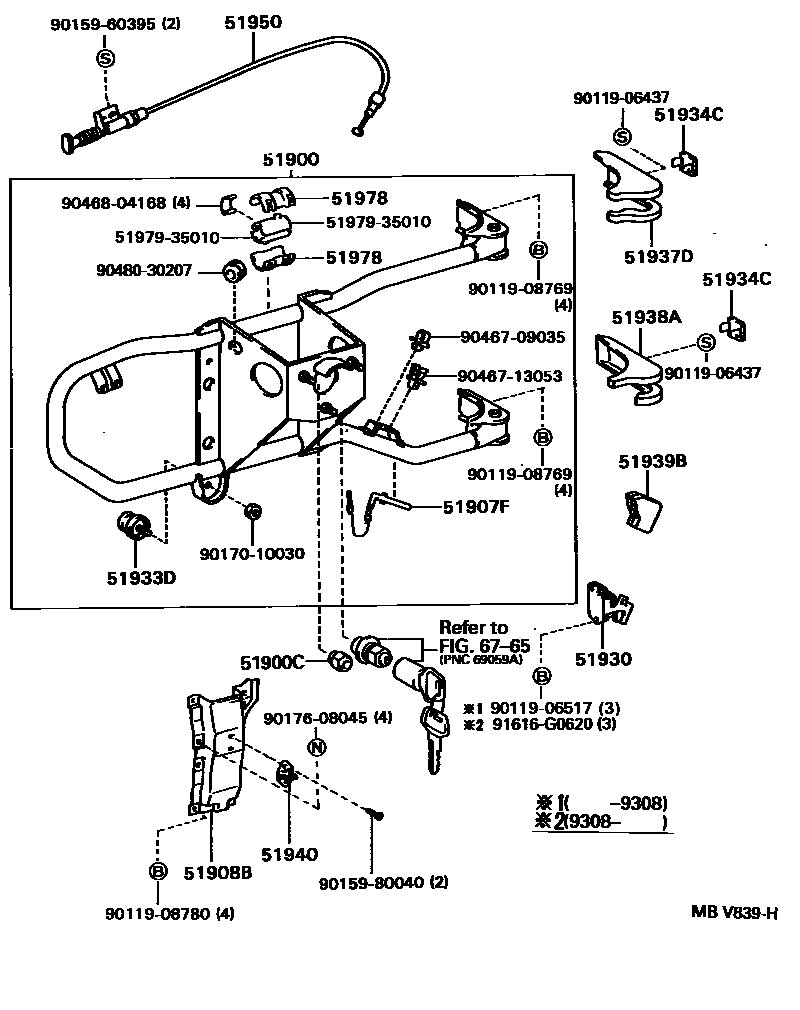

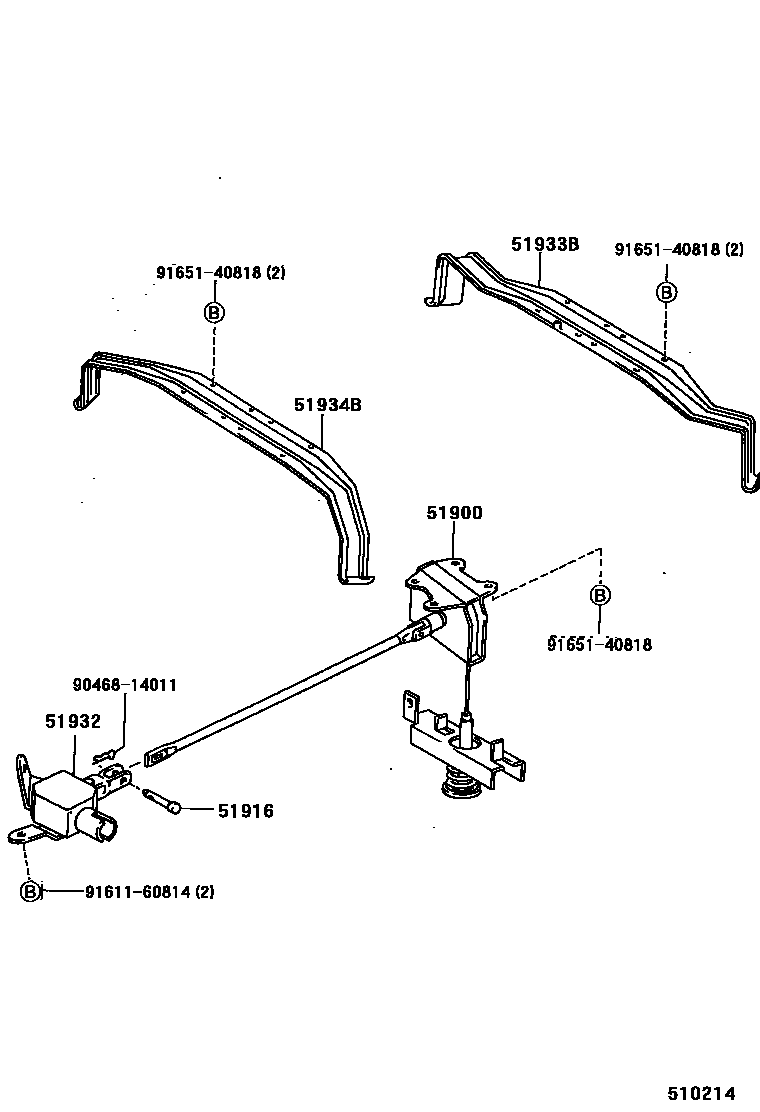

Toyota HILUX Spare tire rack — Figure 5153
Toyota HILUX EPC diagram 5153, Spare tire rack, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-35101 · 51900-35121 · 51900-35160 · 51900-35200 · 51900-35210 · 51900-35240 · 51900-35241 · 51900-35250 |
| 51900C | Spare wheel hub nut | 90942-01075 |
| 51907F | Spare tire rack block sub-assembly | 51907-89101 |
| 51908B | Spare tire rack lock fixing component sub-assembly | 51908-35010 · 51908-35011 |
| 51916 | Spare tire rack pin | 51916-35030 |
| 51930 | Spare tire rack lock assembly | 51930-89101 |
| 51932 | No. 2 spare tire rack | 51932-35030 |
| 51933B | Spare tire rack right block | 51933-34010 · 51933-35040 · 51933-35050 · 51933-35070 · 51933-35080 · 51933-35090 · 51933-35110 |
| 51933D | Spare tire rack block | 51933-89101 |
| 51934B | Spare tire rack left block | 51933-34010 · 51933-35040 · 51933-35050 · 51933-35070 · 51933-35110 · 51934-35030 · 51934-35040 |
| 51934C | No. 1 spare tire rack fixing piece | 51934-89102 |
| 51937D | Spare tire rack upper hinge cover | 51937-35030 |
| 51938A | Spare tire rack lock spring hanger | 51938-35040 |
| 51939B | Spare tire rack lock cover | 51939-89102 |
| 51940 | Spare tire rack lock assembly | 51940-89101 |
| 51950 | Spare tire rack lock control cable assembly | 51950-89101 |
| 51978 | Spare tire rack protective cover | 51978-35010 |
