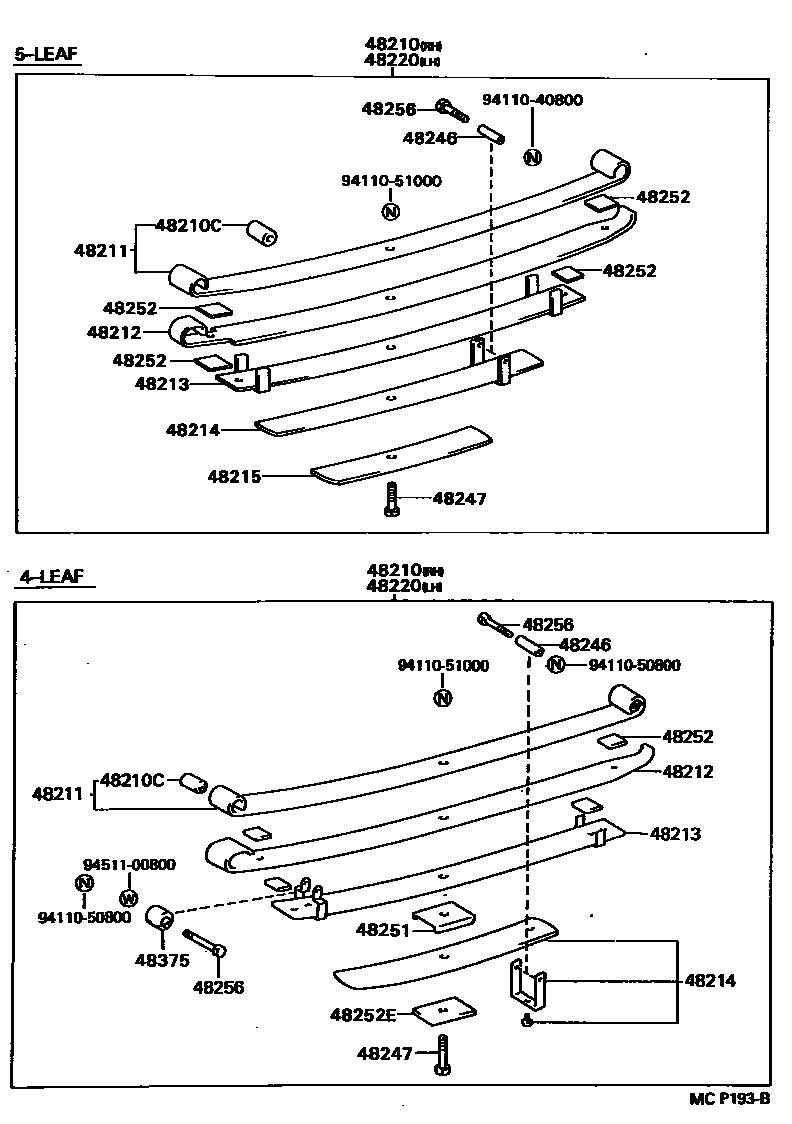

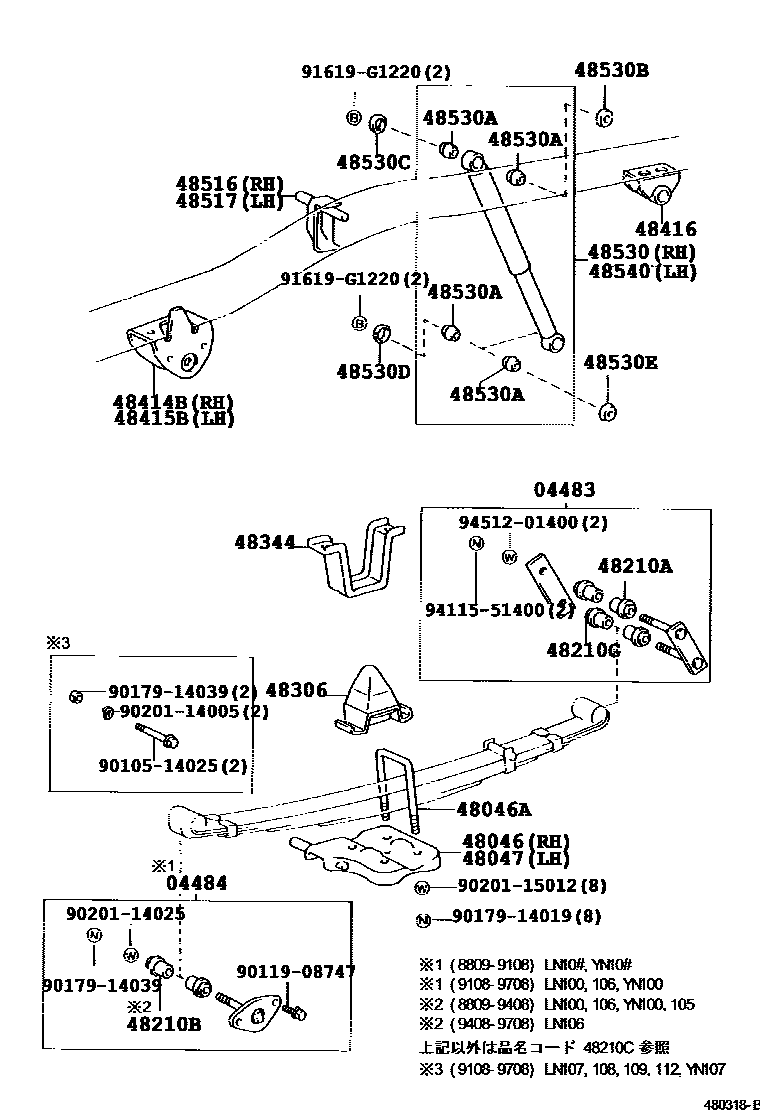

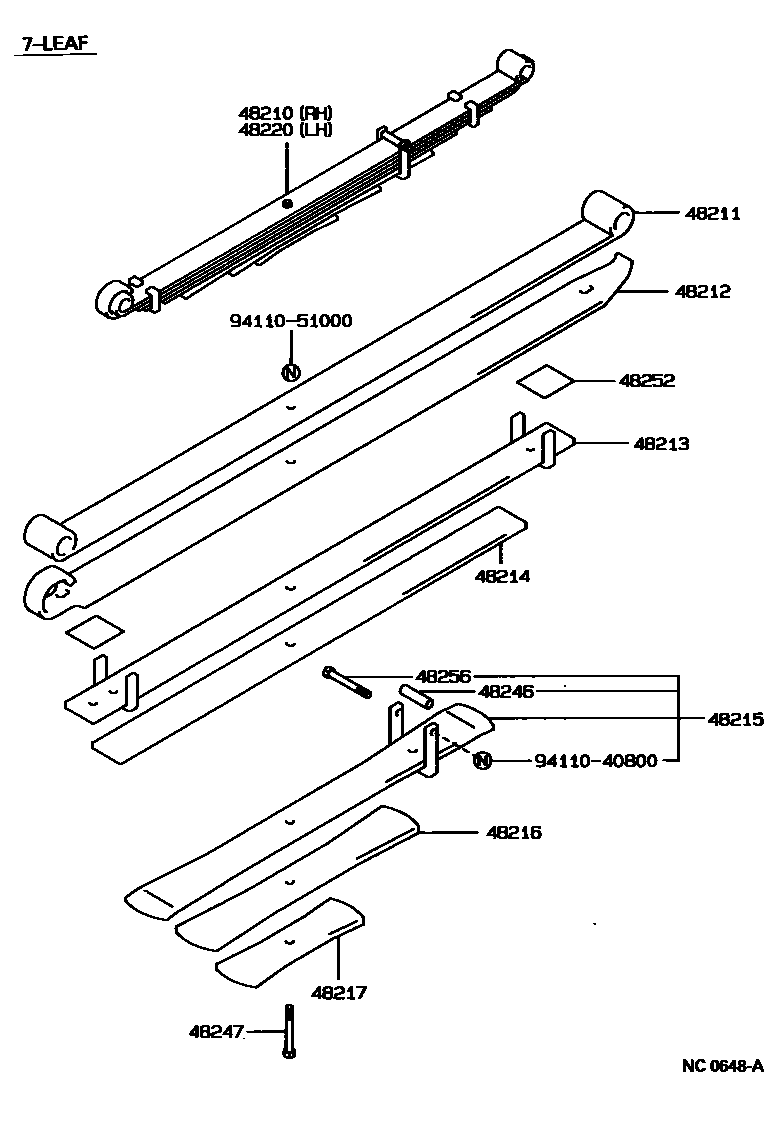

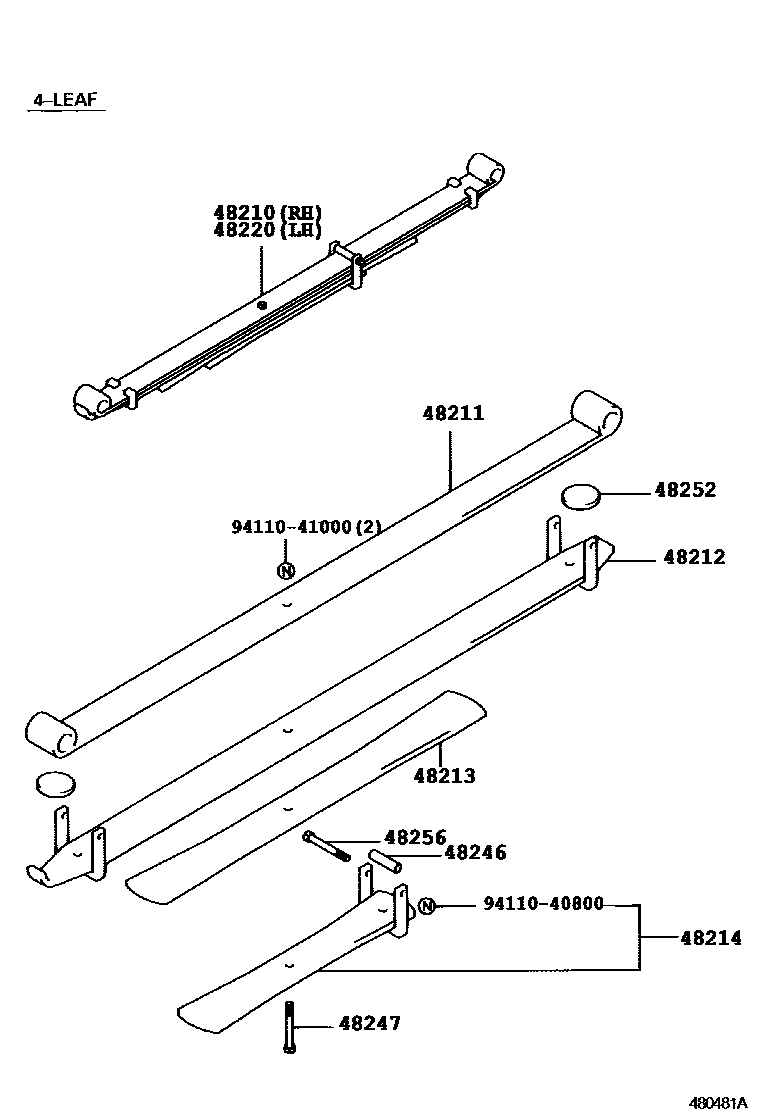

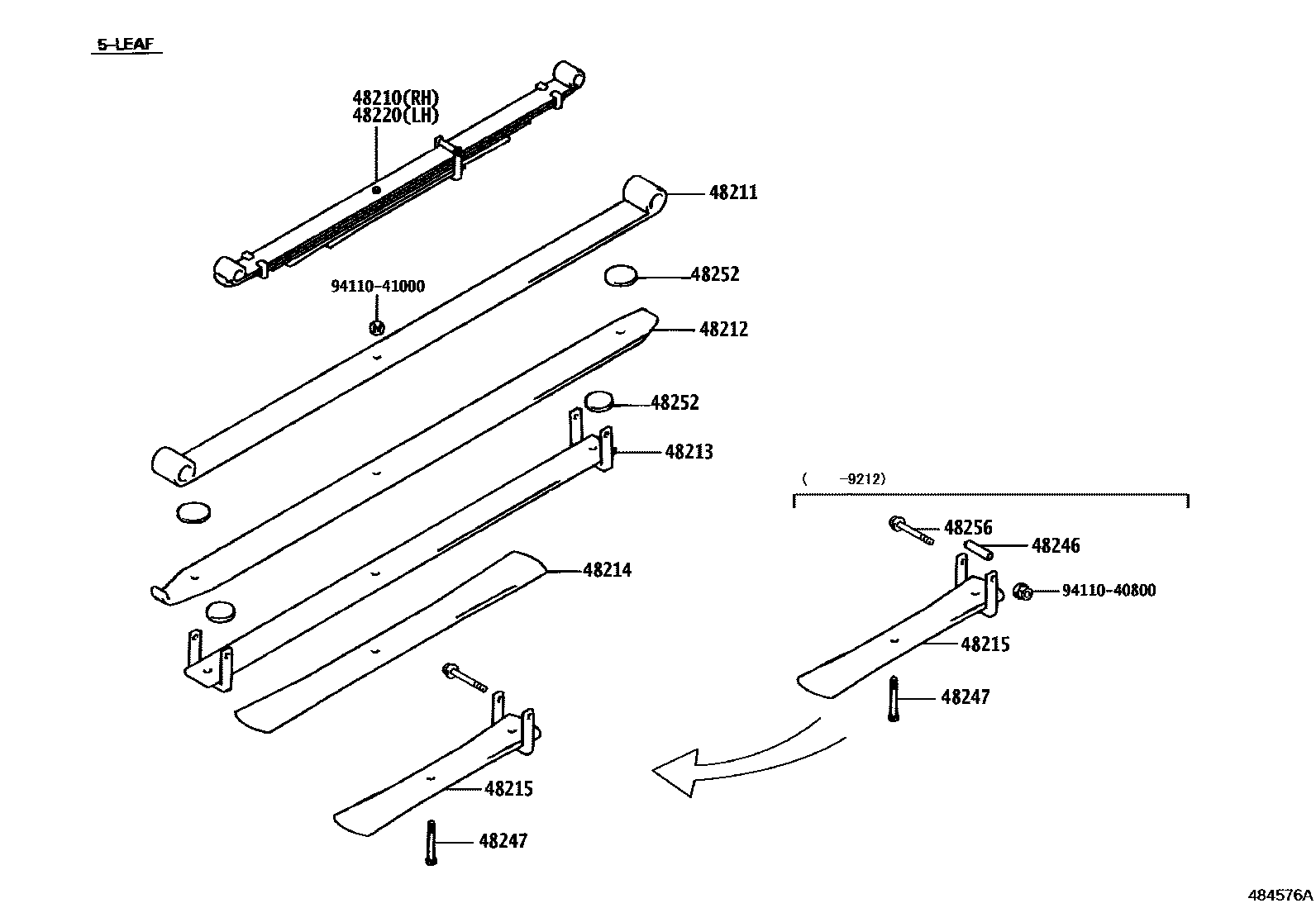

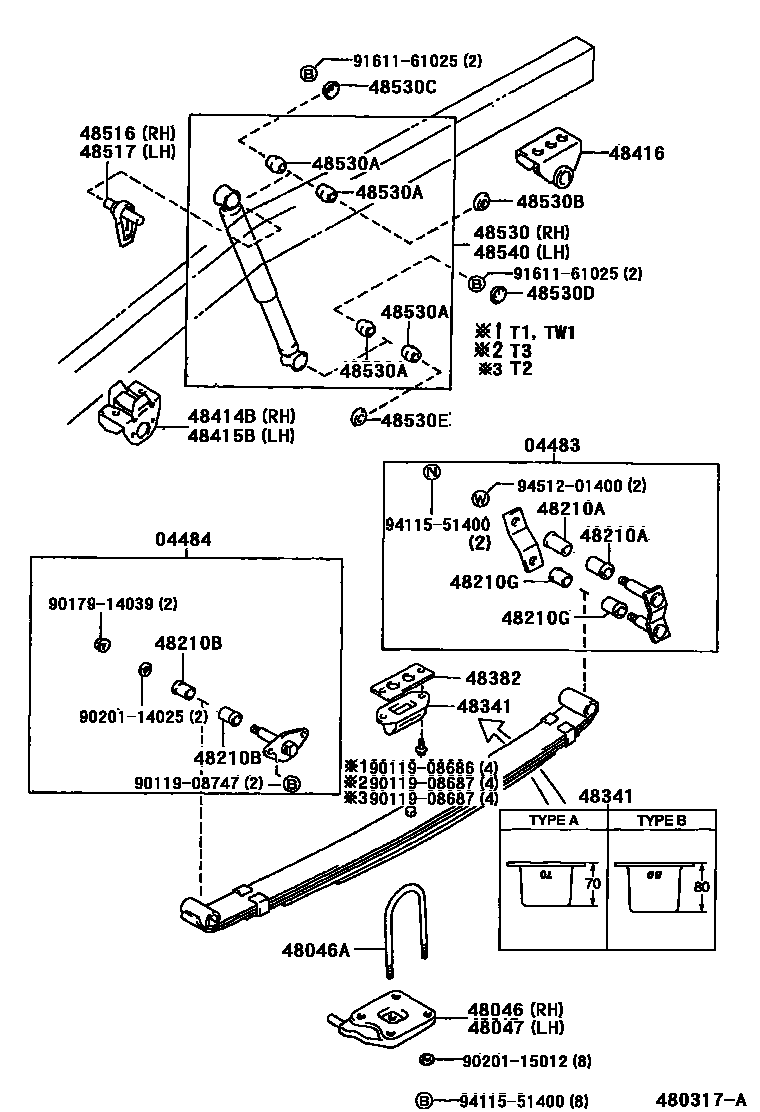

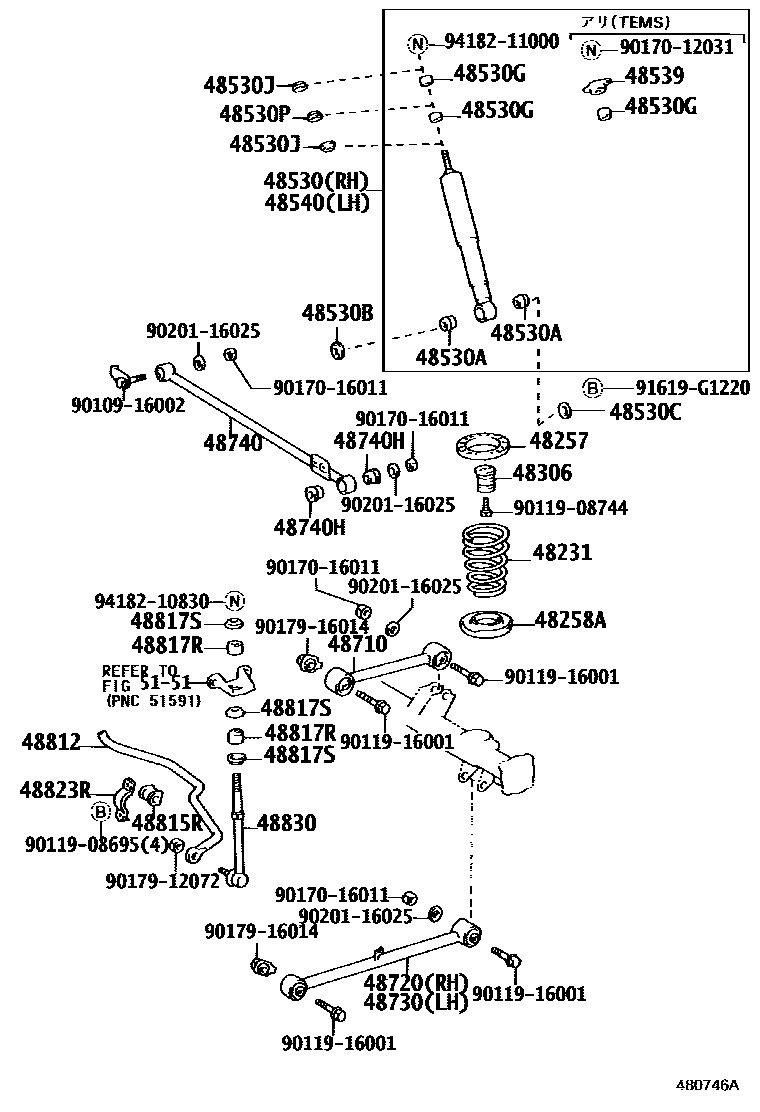

Toyota HILUX Rear Spring & Shock Absorber — Figure 4804
Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 7 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483 | Rear spring lifting lug assembly | 04483-35040 · 04483-35051 · 04483-35070 · 04483-35080 |
| 04484 | Rear spring pin assembly | 04482-35030 · 04484-35060 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-35140 · 48046-35160 · 48046-35170 |
| 48046A | U-bolt (for rear spring) | 90117-14008 · 90117-14029 · 90117-14040 · 90117-14044 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-35140 · 48046-35160 · 48046-35170 |
| 48210 | Right rear spring assembly | 48210-35630 · 48210-35640 · 48210-35670 · 48210-35720 · 48210-35730 · 48210-35740 · 48210-35750 · 48210-35760 · 48210-35830 · 48210-35840 |
| 48210A | Upper bushing (for rear spring lug) | 90385-18012 · 90385-18013 · 90385-18046 |
| 48210B | Bushing (for rear spring pin) | 90385-18046 |
| 48210C | Bushing (for rear leaf spring) | 90389-14004 |
| 48210G | Lower bushing (for rear spring lug) | 90385-18046 |
| 48211 | No. 1 rear leaf spring | 48201-35830 · 48201-35840 · 48211-35630 · 48211-35640 · 48211-35670 · 48211-35720 · 48211-35730 · 48211-35740 · 48211-35750 · 48211-35760 |
| 48212 | No. 2 rear leaf spring | 48202-35720 · 48202-35730 · 48202-35740 · 48212-35630 · 48212-35640 · 48212-35670 · 48212-35730 · 48212-35750 · 48212-35760 · 48212-35830 · 48212-35840 |
| 48213 | No. 3 rear leaf spring | 48202-35630 · 48202-35640 · 48202-35670 · 48202-35730 · 48202-35750 · 48202-35760 · 48202-35830 · 48202-35840 · 48213-35720 · 48213-35740 |
| 48214 | No. 4 rear leaf spring | 48203-35720 · 48203-35740 · 48203-35830 · 48203-35840 · 48214-35630 · 48214-35640 · 48214-35670 · 48214-35730 · 48214-35750 · 48214-35760 |
| 48215 | No. 5 rear leaf spring | 48203-35630 · 48203-35640 · 48203-35670 · 48203-35730 · 48203-35750 · 48203-35760 · 48215-35830 |
| 48216 | No. 6 rear leaf spring | 48216-35670 |
| 48217 | No. 7 rear leaf spring | 48217-35670 |
| 48220 | Left rear spring assembly | 48210-35630 · 48210-35640 · 48210-35670 · 48210-35720 · 48210-35730 · 48210-35740 · 48210-35750 · 48210-35760 · 48210-35830 · 48210-35840 |
| 48231 | rear coil spring | 48231-35020 · 48231-35090 · 48231-35100 |
| 48246 | rear spring clamp bolt housing | 48146-60010 · 48146-60070 · 48246-26020 · 48246-35160 |
| 48247 | rear spring center bolt | 48247-25170 · 48247-35630 · 48247-36450 · 48247-36530 |
| 48251 | rear leaf spring spacer | 48251-35350 |
| 48252 | rear spring muffler | 48252-26070 · 48252-35270 · 48252-35630 |
| 48252E | Rear spring caster angle adjustment wedge | 48252-35470 |
| 48256 | Hex bolt (for rear spring clamp assembly) | 48256-26070 · 48256-35160 · 48256-35170 · 48256-35360 · 48256-36570 |
| 48257 | Rear coil spring vibration isolation pad | 48257-35010 |
| 48258A | Rear coil spring lower vibration isolation pad | 48258-35010 |
| 48306 | Rear spring buffer block sub-assembly | 48306-35110 · 48306-35140 |
| 48341 | Rear spring buffer block | 48341-35050 · 48341-35060 |
| 48344 | Rear buffer block | 48344-35020 |
| 48375 | Leaf spring dynamic damper | 48375-35011 |
| 48382 | Buffer block spacer | 48382-35021 · 48382-35030 |
| 48414B | Right No. 3 spring bracket | 48414-35120 · 48414-35160 · 48414-35170 |
| 48415B | No. 3 spring bracket on the left | 48414-35160 · 48414-35170 · 48415-35050 |
| 48416 | No. 4 spring bracket | 48416-35051 · 48416-35070 · 48416-35080 |
| 48516 | Right rear shock absorber upper bracket | 48505-35030 · 48505-35040 |
| 48517 | Left rear shock absorber upper bracket | 48506-35010 · 48506-35030 |
| 48530 | Right rear shock absorber assembly | 48531-39925 · 48531-80059 · 48531-80082 · 48531-80086 · 48531-80102 · 48531-80108 · 48531-80112 · 48531-80114 · 48531-80411 · 48531-80434 · 48531-80512 · 48531-80515 · 48531-80518 · 48531-80520 · 48531-80523 |
| 48530A | Bushing (for rear shock absorber) | 90385-16007 · 90385-19002 · 90385-19004 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 · 90948-03011 · 90948-03015 · 90948-03020 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03011 · 90948-03012 · 90948-03020 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-03011 · 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 · 90948-03015 · 90948-03020 |
| 48530G | Rear shock absorber No. 1 cushion | 90948-01003 · 90948-01026 · 90948-01044 · 90948-01045 |
| 48530J | No. 1 cushion block (for rear shock absorber) | 90948-02070 · 90948-02130 · 90948-02131 |
| 48530P | No. 2 buffer pad block (for rear shock absorber) | 90948-02119 · 90948-02130 |
| 48539 | Rear actuator bracket | 48539-35010 |
| 48540 | Left rear shock absorber assembly | 48531-39925 · 48531-80082 · 48531-80086 · 48531-80102 · 48531-80411 · 48531-80512 · 48541-39085 · 48541-39185 · 48541-39186 · 48541-39215 · 48541-39216 · 48541-39235 · 48541-39236 · 48541-39255 · 48541-39256 |
| 48710 | Upper control arm assembly | 48710-35010 |
| 48720 | Right lower control arm assembly | 48720-35010 |
| 48730 | Left lower control arm assembly | 48730-35010 |
| 48740 | Rear transverse control rod assembly | 48740-35010 · 48740-35011 |
| 48740H | Bushing No. 1 (for rear transverse control rod) | 90385-24002 · 90385-24003 |
| 48812 | rear stabilizer bar | 48812-35040 · 48812-35080 · 48812-35090 |
| 48815R | Rear stabilizer bar bushing | 48815-10090 · 48815-14140 · 48815-20200 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-30010 · 48817-30020 |
| 48817S | Crash pad block No. 1 (for rear stabilizer bar) | 90948-02126 · 90948-02127 |
| 48823R | Stabilizer bar linkage cover (for rear) | 48823-35060 |
| 48830 | Rear stabilizer link assembly | 48830-35010 |
