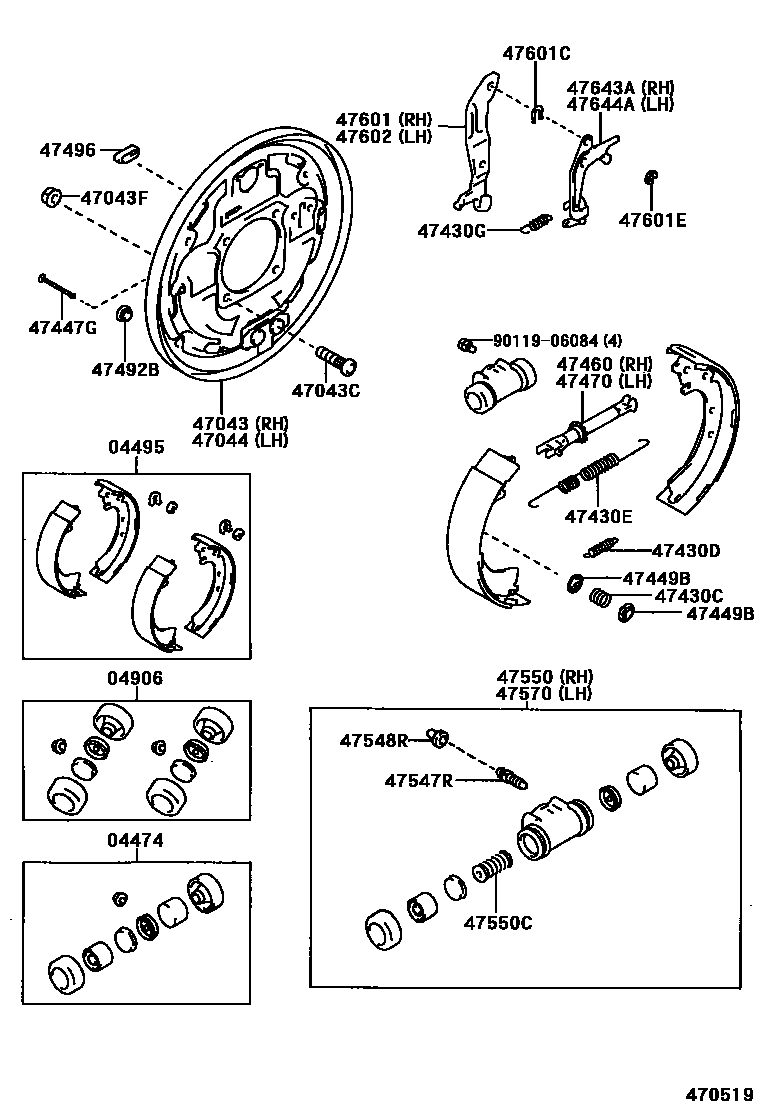

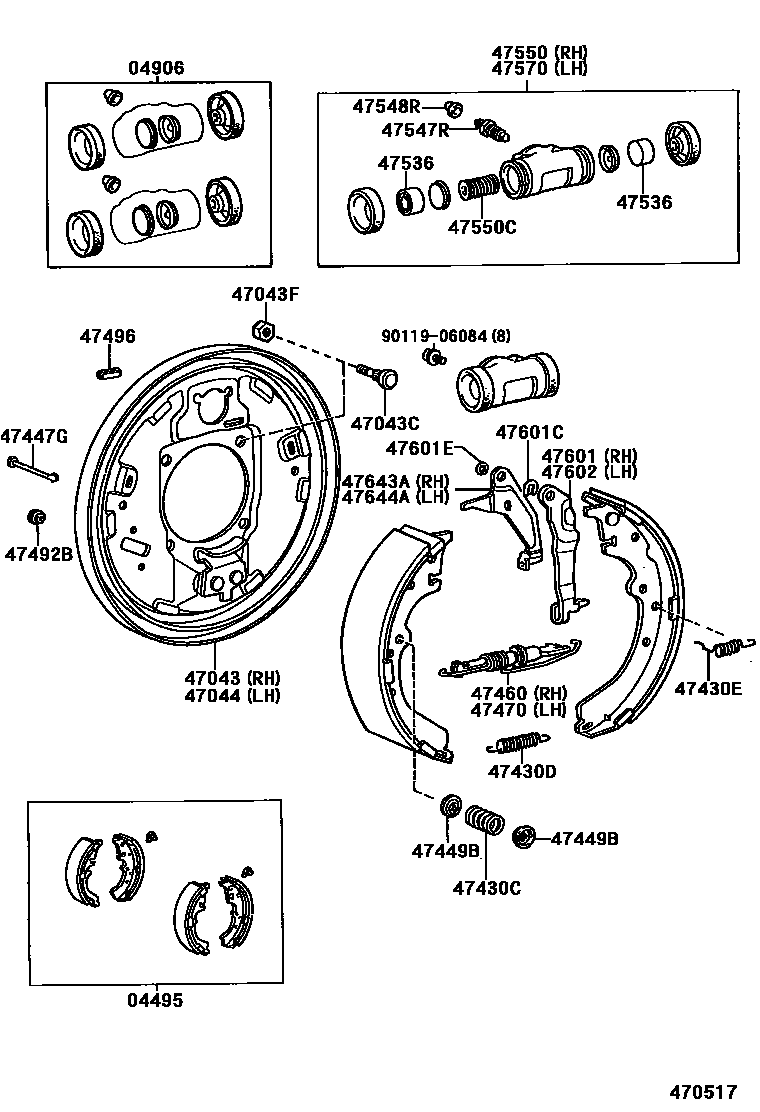

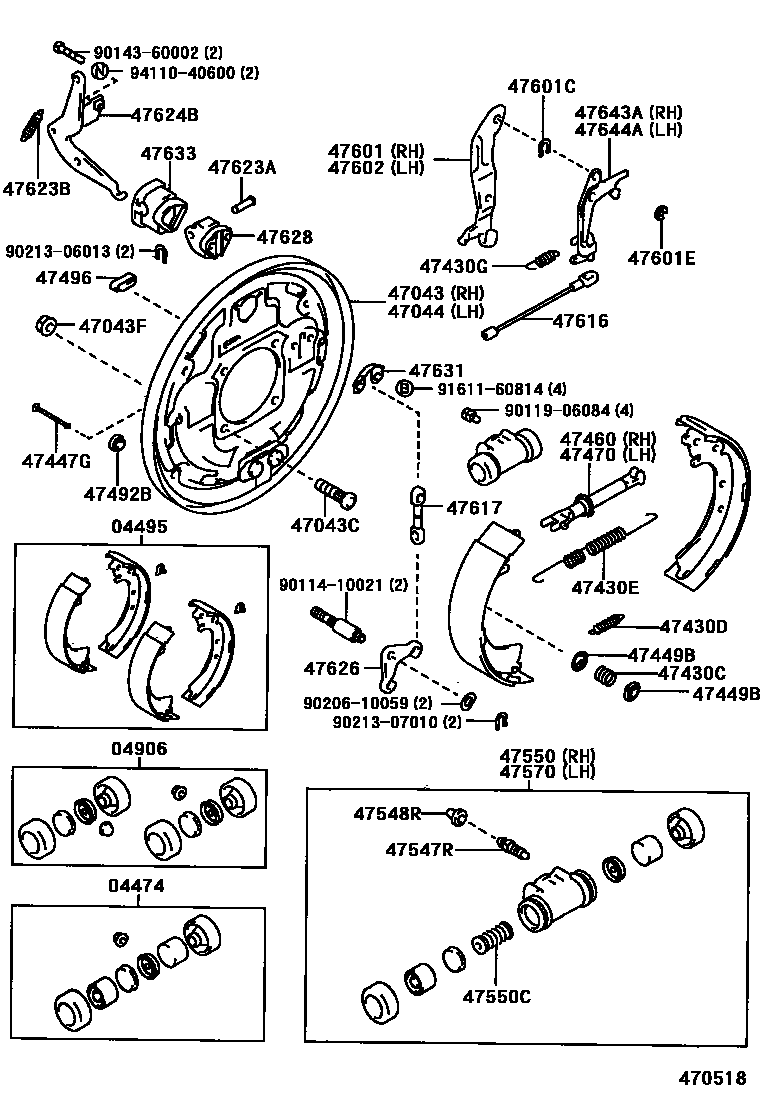

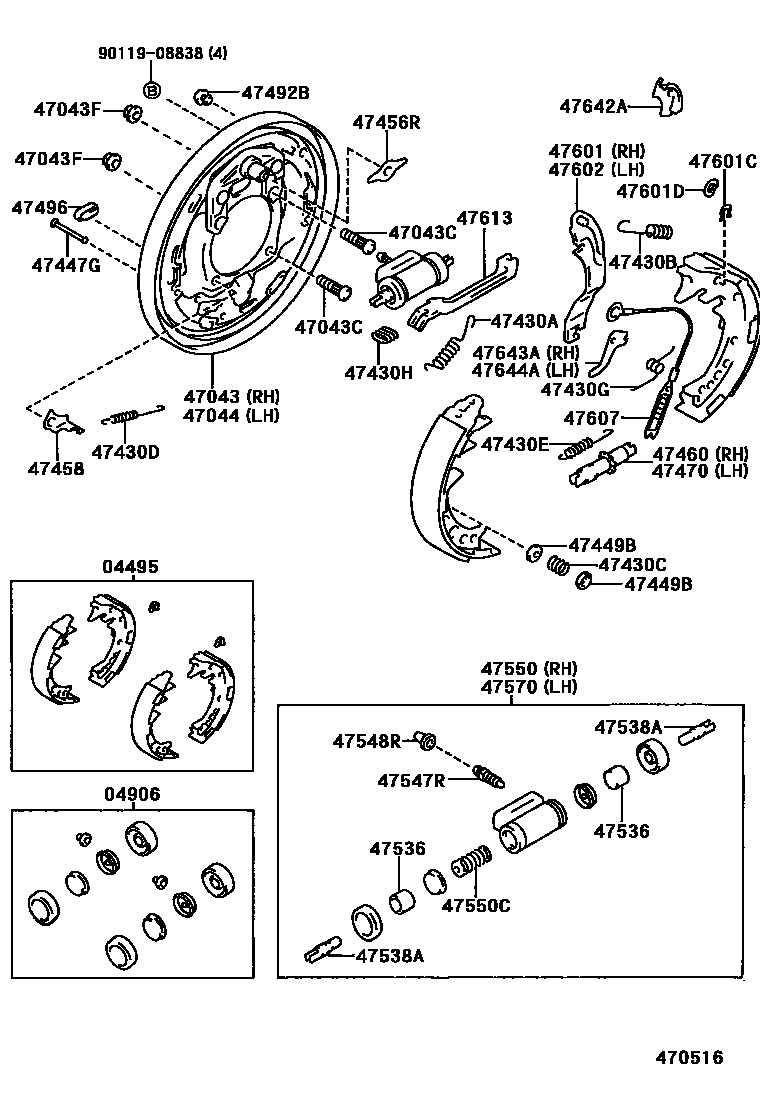

Toyota HILUX 后鼓式制动器分泵和底板 — Figure 4706
Toyota HILUX EPC diagram 4706, 后鼓式制动器分泵和底板, with 4 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-26030 · 04474-35060 · 04474-35080 |
| 04495 | Rear brake shoe assembly | 04495-35101 · 04495-35122 · 04495-35151 · 04495-35200 · 04497-26090 · 04497-35070 |
| 04906 | Rear wheel pump cup assembly | 04906-26050 · 04906-30120 · 04906-31010 · 04906-35080 · 04906-35100 |
| 47043 | Right rear brake base plate sub-assembly | 47043-26120 · 47043-35130 · 47043-35150 · 47043-35160 |
| 47043C | Bolts (used to secure the base plate to the rear axle housing) | 90114-10002 · 90114-10016 |
| 47043F | Nut (used to fix the base plate to the rear axle housing) | 90179-10067 |
| 47044 | Left rear brake base plate sub-assembly | 47044-26120 · 47044-35120 · 47044-35140 · 47044-35150 |
| 47430A | Tension spring (for rear brake shoe return) | 90506-26331 |
| 47430B | Tension spring (for rear brake shoe return) | 90506-26331 |
| 47430C | Limit spring (for rear brake shoe) | 90501-20012 · 90501-20604 |
| 47430D | Tension spring (for rear brake shoe return) | 90506-12412 · 90506-18031 · 90506-18299 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-16343 · 90506-26011 · 90506-26014 · 90507-12036 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90506-12031 · 90508-20261 · 90508-20262 |
| 47430H | Compression spring (for parking brake shoe push rod) | 90504-18012 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-20010 · 47447-30020 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-30020 |
| 47456R | Rear brake shoe guide | 47456-20010 |
| 47458 | Rear brake shoe return spring bracket | 47457-35020 · 47458-35020 |
| 47460 | Right brake shoe adjuster assembly (for rear wheel brake) | 47061-35020 · 47061-60011 · 47062-60011 · 47405-30020 |
| 47470 | Left brake shoe adjuster assembly (for rear wheel brake) | 47061-60011 · 47062-35020 · 47062-60011 · 47406-30020 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-28010 |
| 47496 | Hole plug (for rear brake) | 47491-20011 · 47491-35040 |
| 47536 | Wheel brake cylinder piston (for rear wheel brake) | 47051-30040 · 47531-26070 · 47531-26080 |
| 47538A | Cylinder connecting rod | 47538-35010 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20030 · 47547-26010 · 47547-60020 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-26090 · 47550-26100 · 47550-26110 · 47550-30140 · 47550-35170 · 47550-35190 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 47509-20010 · 47509-22010 · 47509-30010 · 47509-60010 · 90029-60011 · 90501-09079 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-26090 · 47550-26100 · 47550-26110 · 47550-30140 · 47550-35170 · 47550-35190 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-35011 · 47611-26050 · 47611-35040 · 47612-35040 |
| 47601C | C-shaped washer (for rear brake) | 90213-07010 |
| 47601D | Wave washer (for rear brake) | 90206-10059 |
| 47601E | E-ring (for rear brake) | 96160-00500 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-35011 · 47611-35040 · 47612-26050 · 47612-35040 |
| 47607 | Rear wheel brake automatic adjustment cable sub-assembly | 47607-30010 |
| 47613 | Parking brake shoe push rod (for rear wheel brake) | 47613-35011 · 47614-35011 |
| 47616 | Right parking brake cable | 47616-35020 |
| 47617 | No. 2 parking brake cable | 47617-35010 |
| 47623A | Pin (for parking brake right angle lever) | 90249-08068 |
| 47623B | Tension spring (for parking brake right angle lever return) | 90506-20019 |
| 47624B | No. 1 Parking Brake Right Angle Lever | 47603-35010 · 47604-35010 · 47624-35020 · 47625-35020 |
| 47626 | No. 3 parking brake right angle lever | 47626-35010 |
| 47628 | Rear brake right angle lever bracket | 47628-35020 |
| 47631 | Rear brake right angle lever dust cover | 47631-35010 |
| 47633 | Parking brake right angle lever dust boot | 47633-35020 |
| 47642A | Rear wheel brake automatic adjustment cable guide | 47642-20010 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-20011 · 47643-26010 · 47643-60010 · 47644-60010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47643-20011 · 47643-60010 · 47644-26010 · 47644-60010 |
