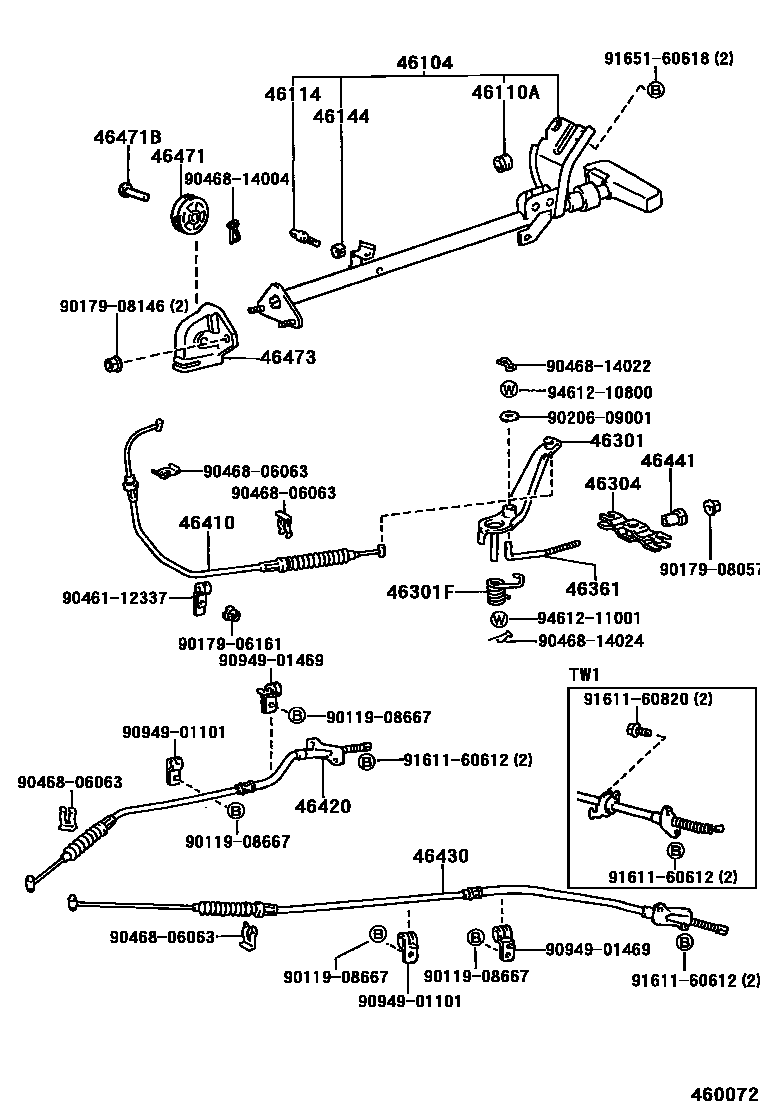

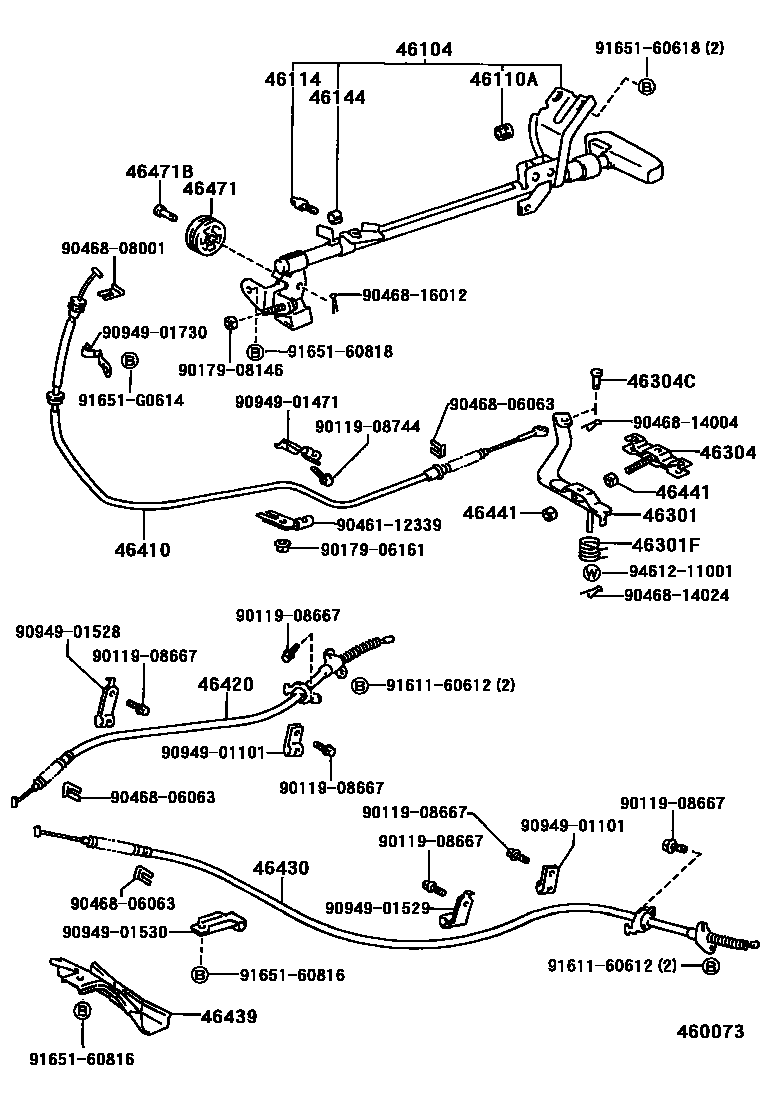

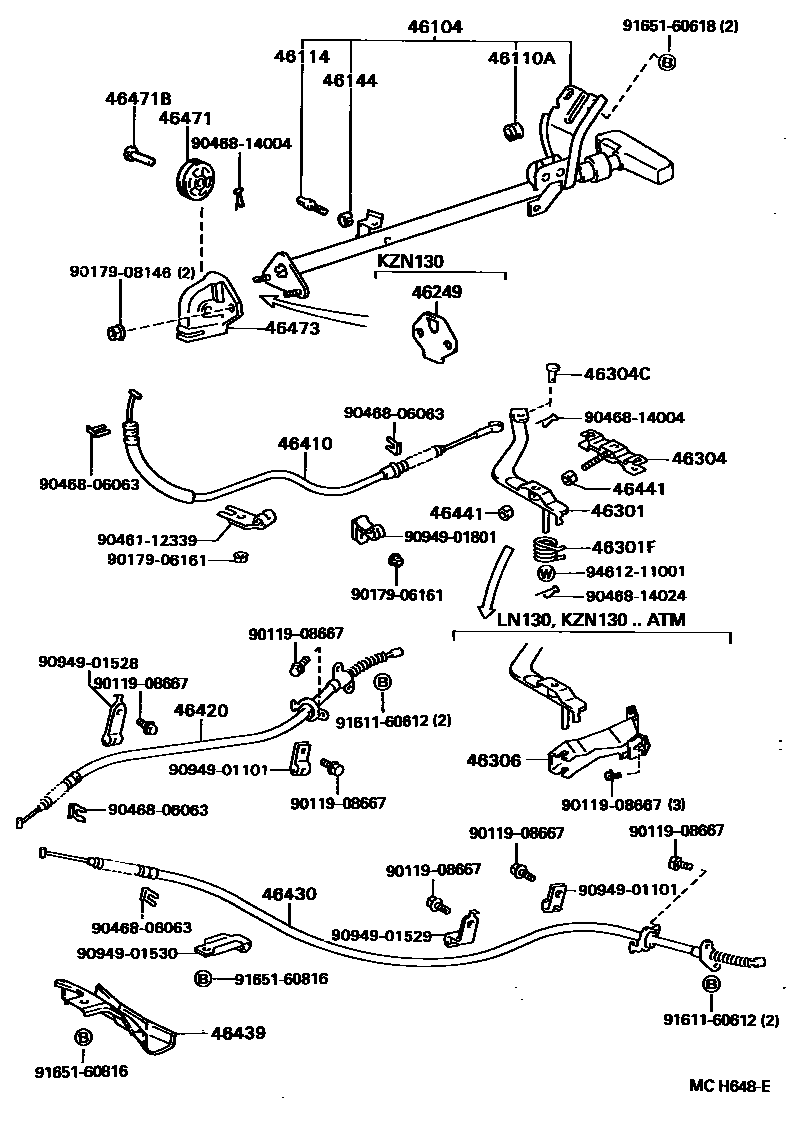

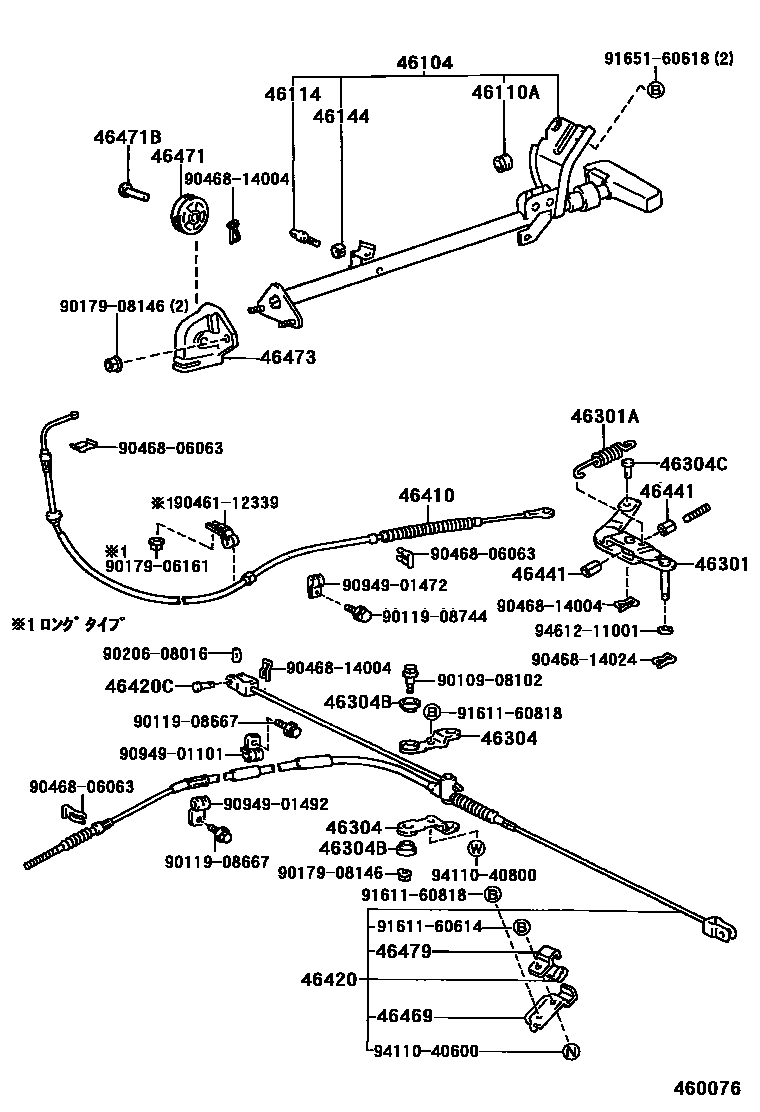

Toyota HILUX Parking Brake & Cable — Figure 4601
Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46104 | Parking brake control handle sub-assembly | 46104-35020 · 46110-35230 |
| 46110A | Bushing or O-ring (for parking brake plunger) | 90386-11195 |
| 46114 | Parking brake plunger pin | 46114-20010 |
| 46144 | Parking brake plunger vibration isolator | 46144-30020 |
| 46249 | Parking brake hole cover | 46249-35010 |
| 46301 | Parking brake intermediate lever sub-assembly | 46301-35160 · 46301-35190 · 46301-35200 · 46301-35210 · 46301-35220 · 46301-35250 |
| 46301A | Tension spring (for middle lever) | 90506-25003 · 90507-20011 |
| 46301F | Torsion spring (for parking brake intermediate lever) | 90508-32008 · 90508-35033 · 90508-35037 · 90508-38002 |
| 46304 | Parking brake balancer sub-assembly | 46304-22020 · 46304-35010 · 46341-35030 |
| 46304B | Bushing (for parking brake balancer) | 90385-12029 |
| 46304C | pin (for parking brake balancer) | 90240-08040 |
| 46306 | Intermediate lever bracket sub-assembly (for parking brake) | 46306-35010 |
| 46361 | Parking brake lever | 46361-35070 |
| 46410 | Parking brake cable assembly No. 1 | 46410-35410 · 46410-35420 · 46410-35430 · 46410-35440 · 46410-35450 · 46410-35460 · 46410-35590 · 46410-35600 · 46410-35670 · 46410-35690 · 46410-35700 · 46410-35730 |
| 46420 | Parking brake No. 2 cable assembly | 46420-35430 · 46420-35460 · 46420-35470 · 46420-35480 · 46420-35490 · 46420-35500 · 46420-35520 · 46420-35570 · 46420-35580 · 46420-35590 |
| 46420C | Pin with hole (for parking brake cable) | 90240-08059 |
| 46430 | Parking brake No. 3 cable assembly | 46430-35340 · 46430-35370 · 46430-35380 · 46430-35390 · 46430-35400 · 46430-35430 · 46430-35440 · 46430-35450 |
| 46439 | Parking brake cable insulation pad | 46439-35031 |
| 46441 | No. 1 cable adjustment nut | 46441-30030 · 46441-35010 |
| 46469 | Cable conduit support rod | 46469-35020 |
| 46471 | Wiring harness pulley | 46471-20010 |
| 46471B | Holed pin (for harness pulley assembly) | 90240-08017 · 90240-08070 |
| 46473 | pulley bracket | 46473-35020 |
| 46479 | No. 2 cable guide support rod | 46479-35010 |
