Toyota HILUX 动力转向配管 — Figure 4503

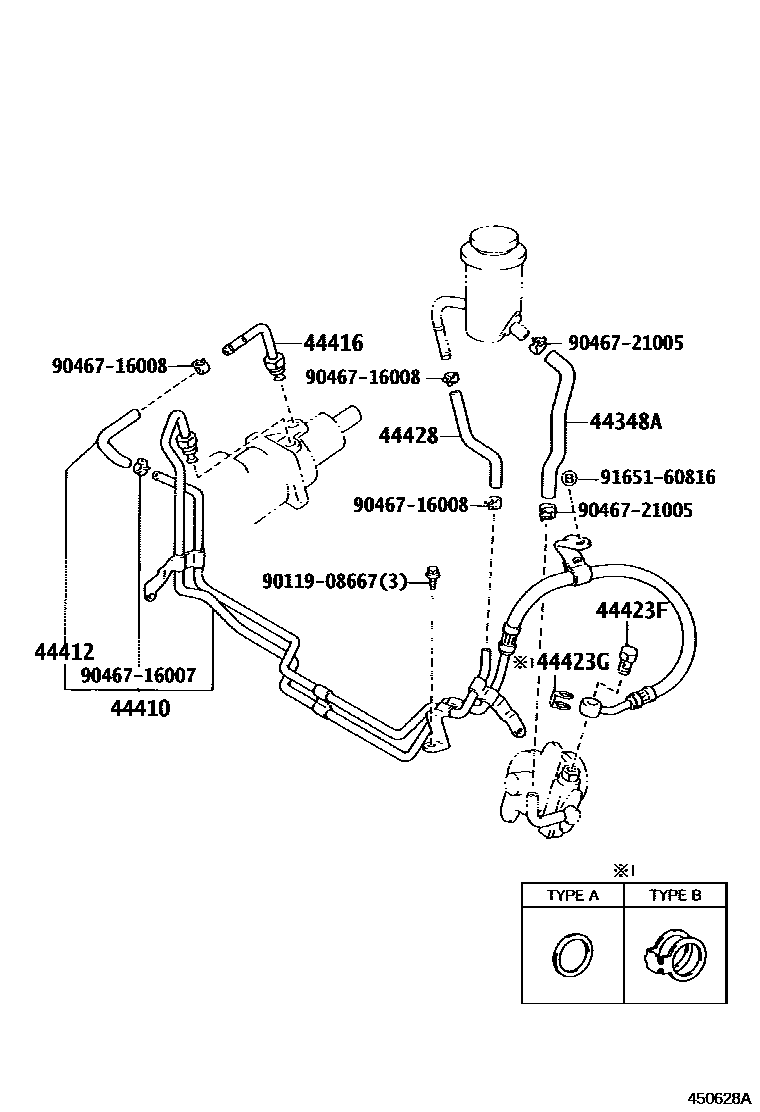

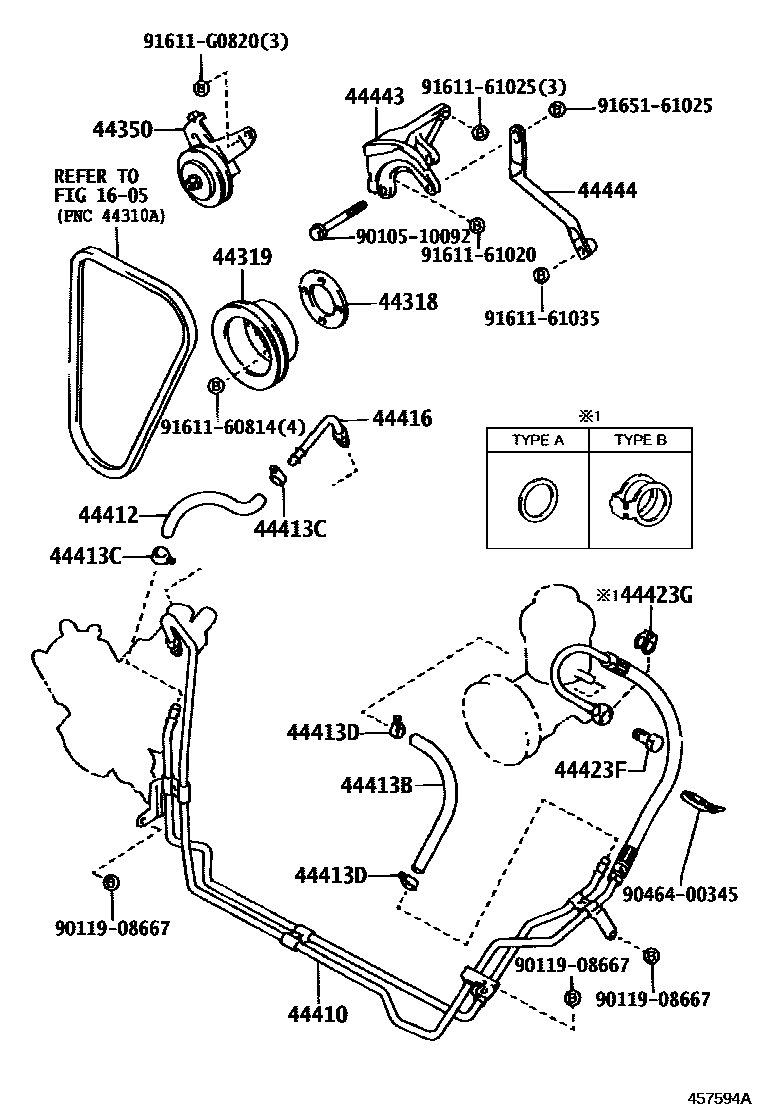

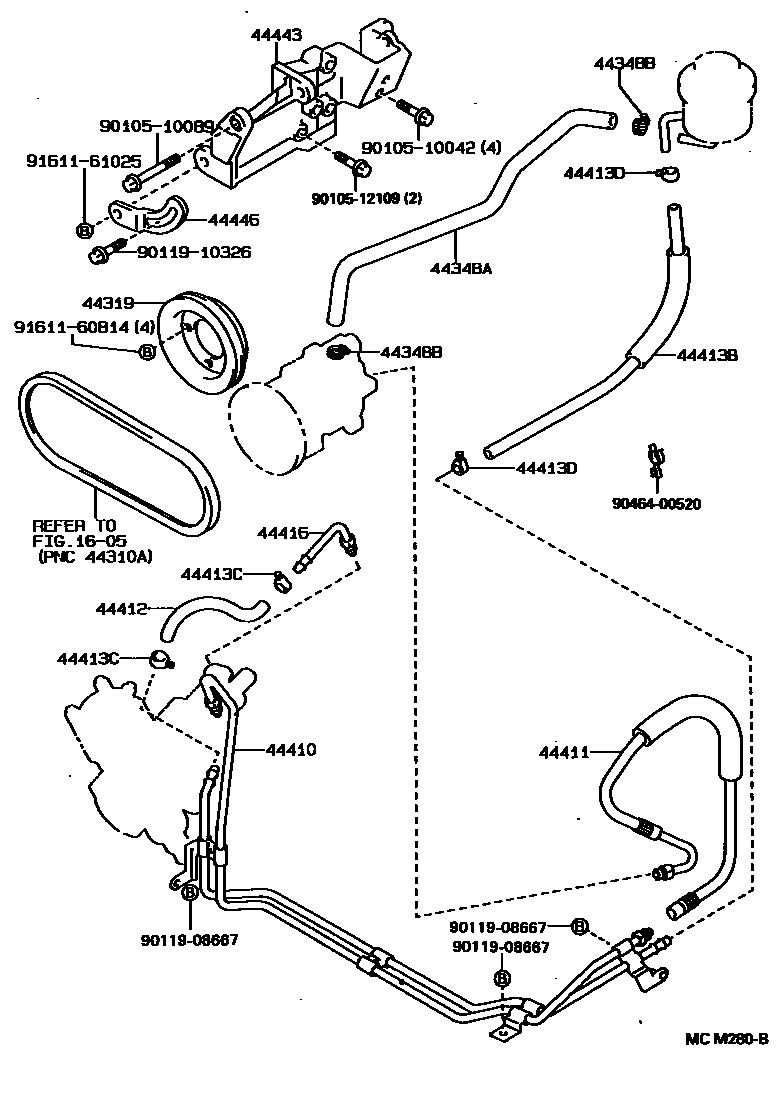

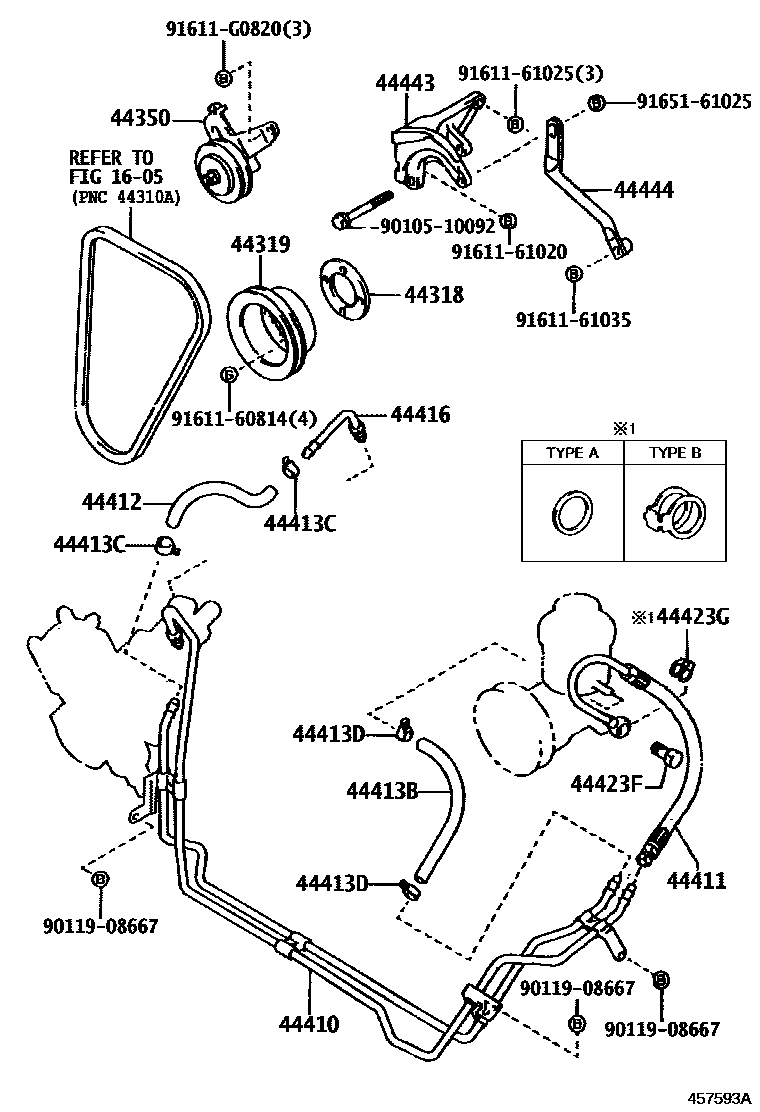

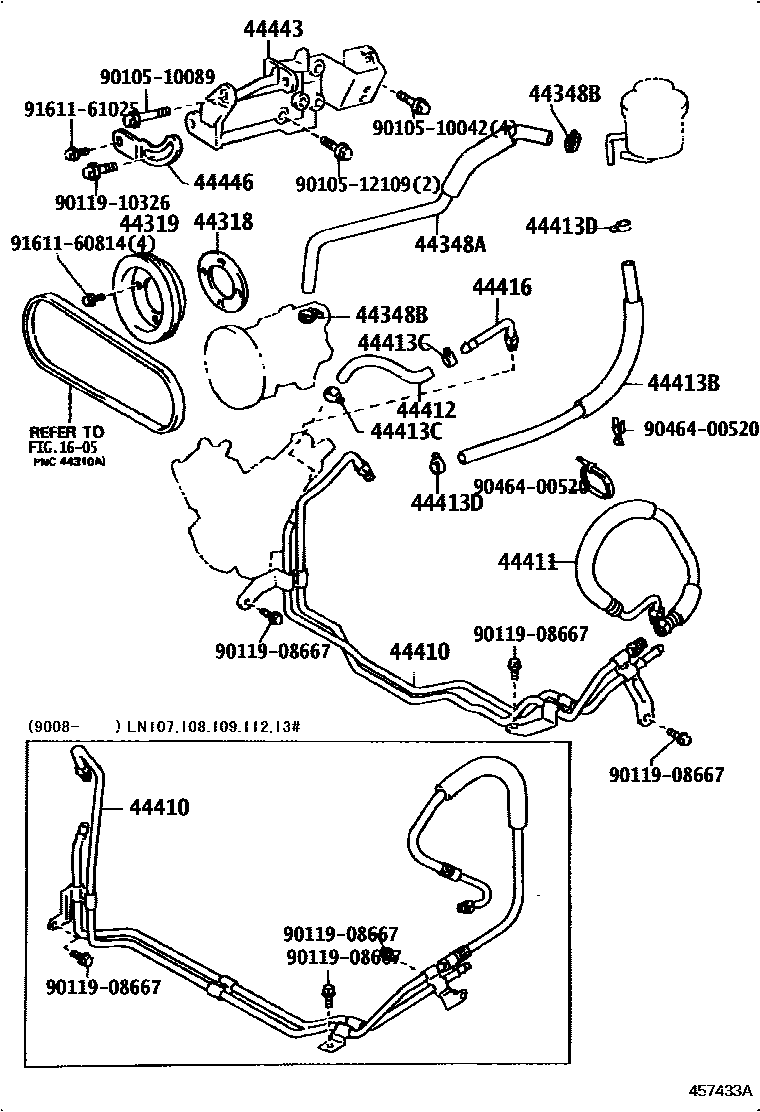

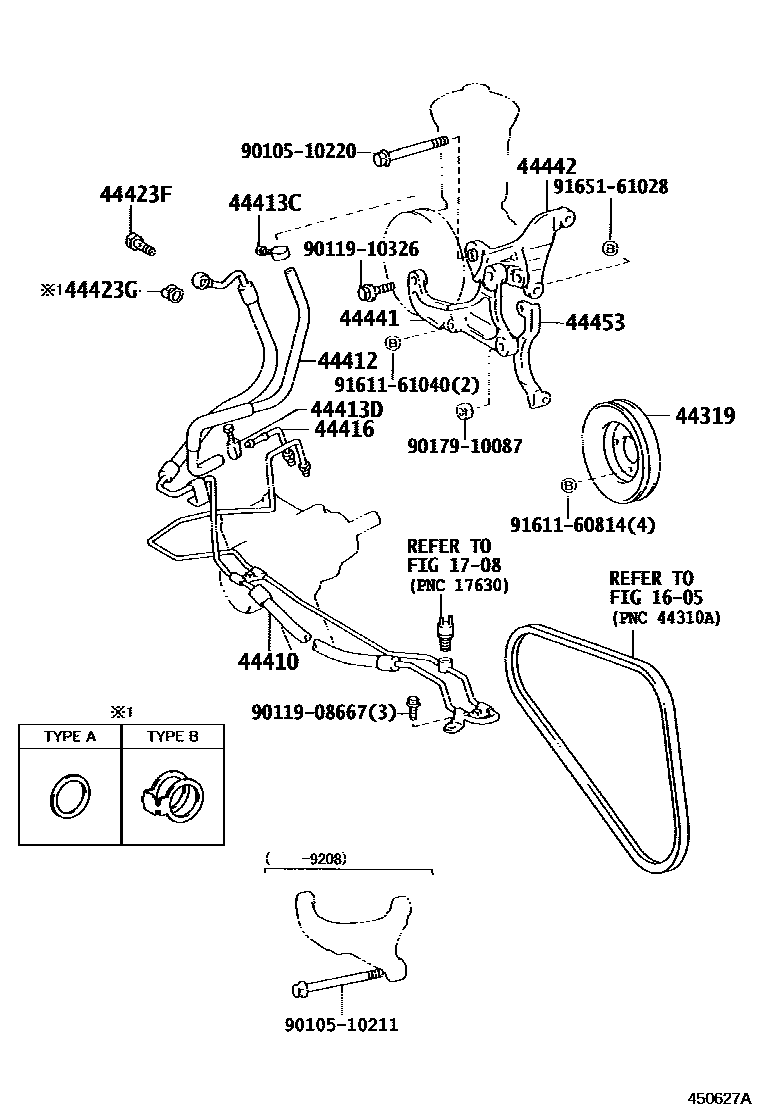

Toyota HILUX EPC diagram 4503, 动力转向配管, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44318 | Vane pump drive pulley spacer | 44318-28012 · 44318-35010 |
| 44319 | Vane pump drive pulley | 44319-22010 · 44319-28013 · 44319-35020 |
| 44348A | No. 1 hose (tank to pump) | 44348-35130 · 44348-35150 · 44348-35160 |
| 44348B | Clamp (for reservoir to pump hose) | 90460-26001 · 90467-21005 |
| 44350 | Power steering idler assembly | 44350-28011 |
| 44410 | Pressure supply pipe assembly | 44410-35170 · 44410-35180 · 44410-35220 · 44410-35230 · 44410-35320 · 44410-35330 · 44410-35340 · 44410-35360 · 44410-35370 |
| 44411 | pressure supply hose | 44411-35320 · 44411-35330 · 44411-35370 |
| 44412 | Oil return hose | 44412-35080 · 44412-35110 · 44412-35120 · 44412-35170 · 44412-35250 · 90445-18079 · 90445-18138 |
| 44413B | Hoses (for storage tank inlet) | 90447-18025 · 90447-18033 · 90447-18036 · 90447-18044 |
| 44413C | Clamp (for oil return pipe outlet hose) | 90460-01001 · 90467-16008 |
| 44413D | Clamp (for oil storage tank inlet hose) | 90460-01001 · 90467-16008 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-35040 · 44416-35090 · 44416-35100 |
| 44423F | Joint bolts | 90401-16008 · 96341-41603 |
| 44423G | Joint bolt gasket | 44327-12010 · 90430-16242 |
| 44428 | No. 2 oil return hose | 44428-35060 |
| 44441 | Pump front bracket | 44441-35020 |
| 44442 | Pump rear bracket | 44442-35010 |
| 44443 | pump bracket | 44443-28011 · 44443-28021 · 44443-30080 |
| 44444 | Pump back stay | 44444-27010 |
| 44446 | Adjust the stand | 44446-30070 |
| 44453 | Pump front stay | 44453-35040 |
