Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

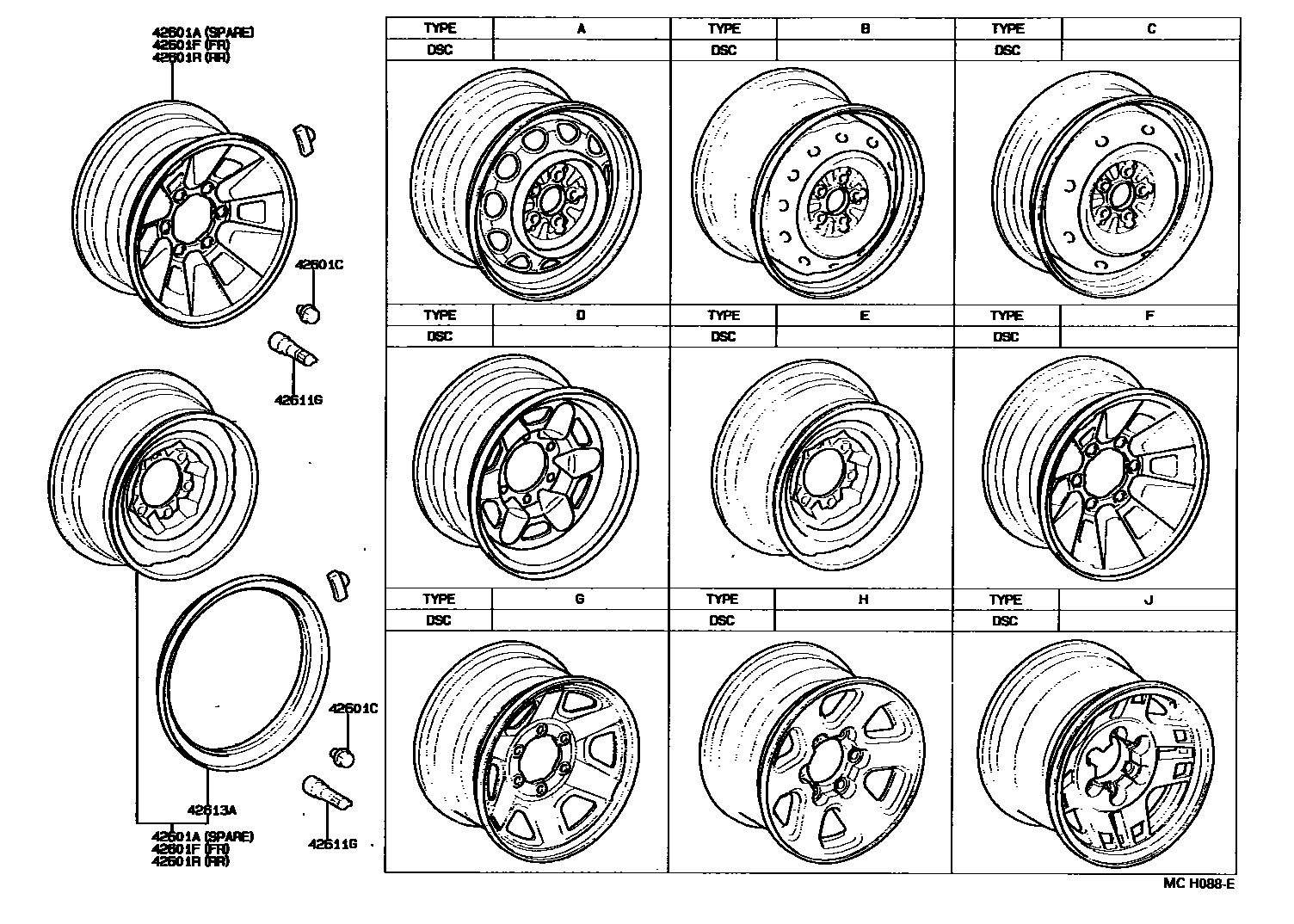

| 42601A | Spoke wheel (for spare tire) | 42601-04020 · 42601-26250 · 42601-35520 · 42601-35620 · 42601-35630 · 42601-35700 · 42601-60221 · 42611-34010 · 42611-35060 · 42611-35070 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01048 · 90942-01058 · 90942-01061 · 90942-01075 · 90942-01077 · 90942-01082 |
| 42601F | Spoke wheels (for front tires) | 42601-04020 · 42601-26250 · 42601-35520 · 42601-35620 · 42601-35630 · 42601-35700 · 42601-60221 · 42611-34010 · 42611-35060 · 42611-35070 |
| 42601R | Spoke wheels (for rear tires) | 42601-04020 · 42601-26250 · 42601-35520 · 42601-35620 · 42601-35630 · 42601-35700 · 42601-60221 · 42611-34010 · 42611-35060 · 42611-35070 |

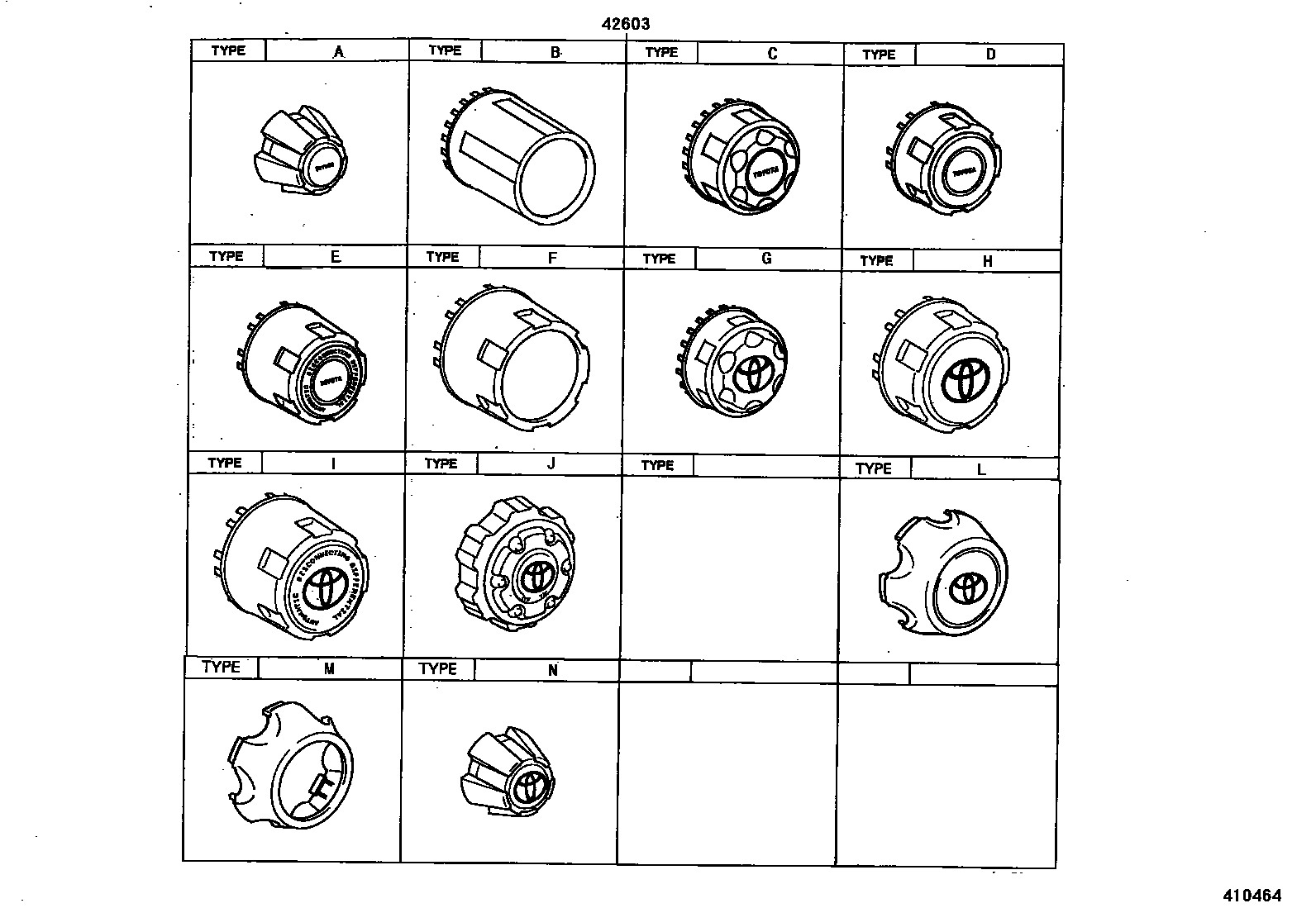

| 42603 | Wheel hub decorative parts sub-assembly | 42603-35061 · 42603-35062 · 42603-35080 · 42603-35090 · 42603-35120 · 42603-35130 · 42603-35240 · 42603-35241 · 42603-35260 · 42603-35261 · 42603-35310 · 42603-35320 · 42603-35330 · 42603-35340 · 42603-35350 · 42603-35380 · 42603-35500 · 42603-35510 · 42603-35520 · 42603-35530 · 42603-35540 · 42603-35550 · 42603-35560 · 42603-35570 · 42603-35580 · 42603-35590 · 42603-35640 |
| 42611G | Valve (for tubeless tires) | 90942-05009 · 90942-05023 |
| 42613A | Spoke wheel retaining ring | 42613-35010 |
