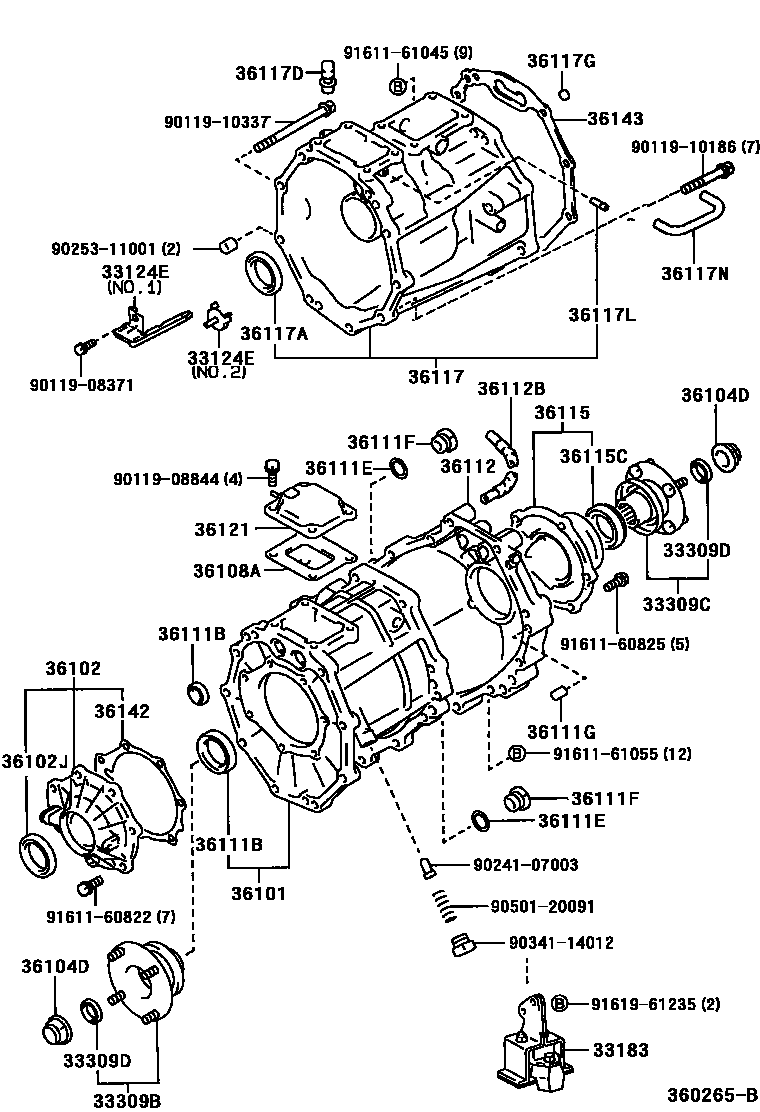

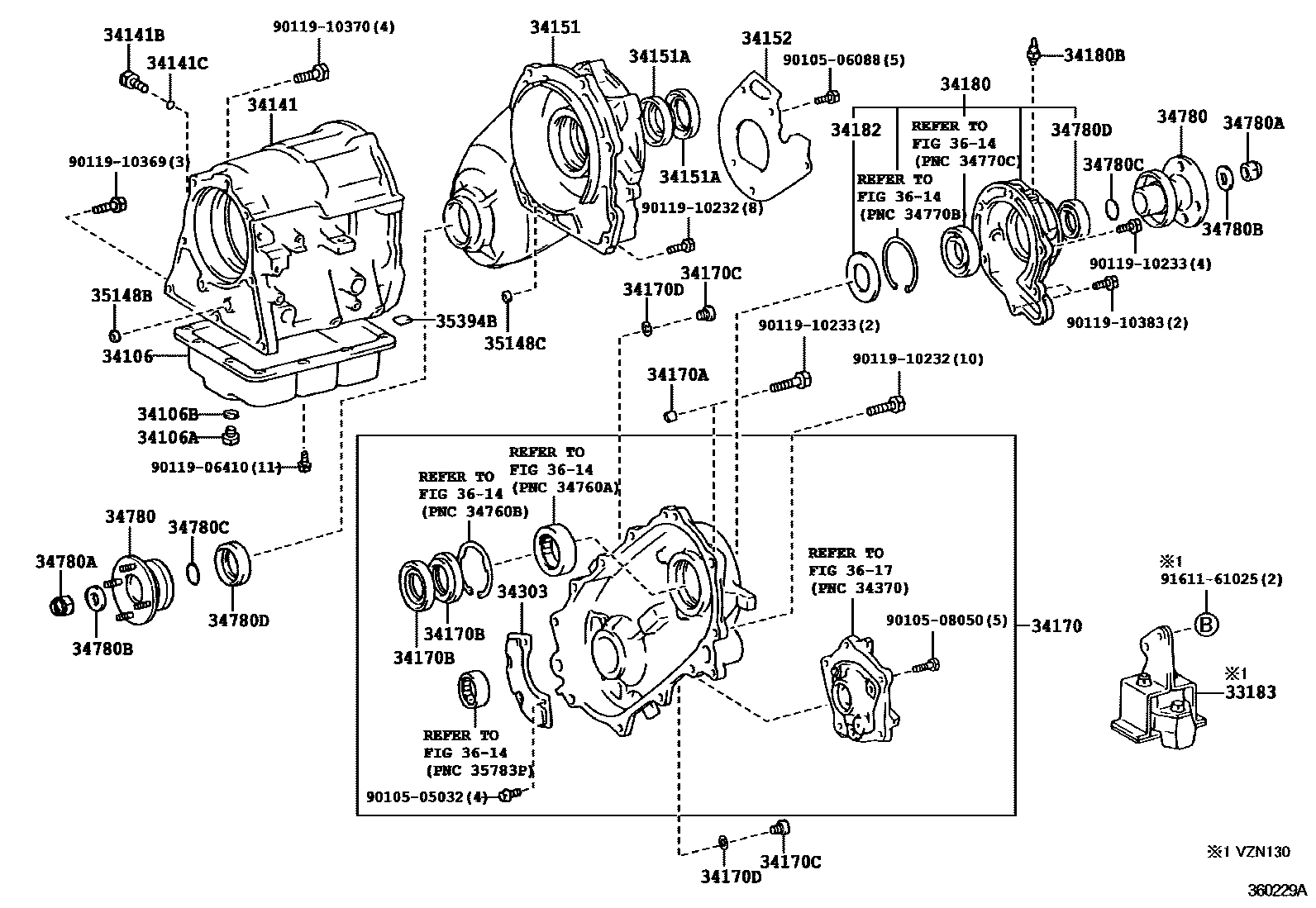

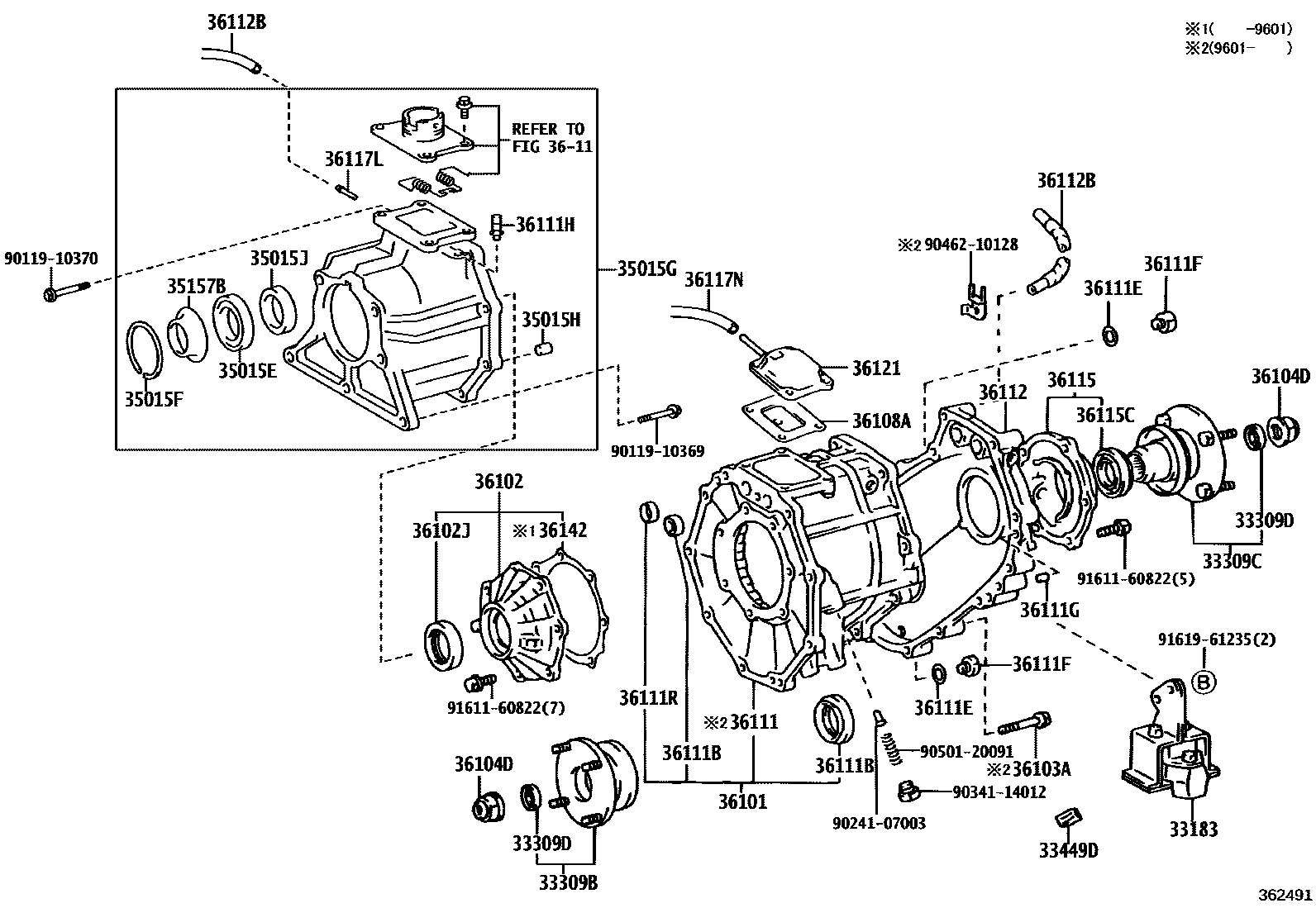

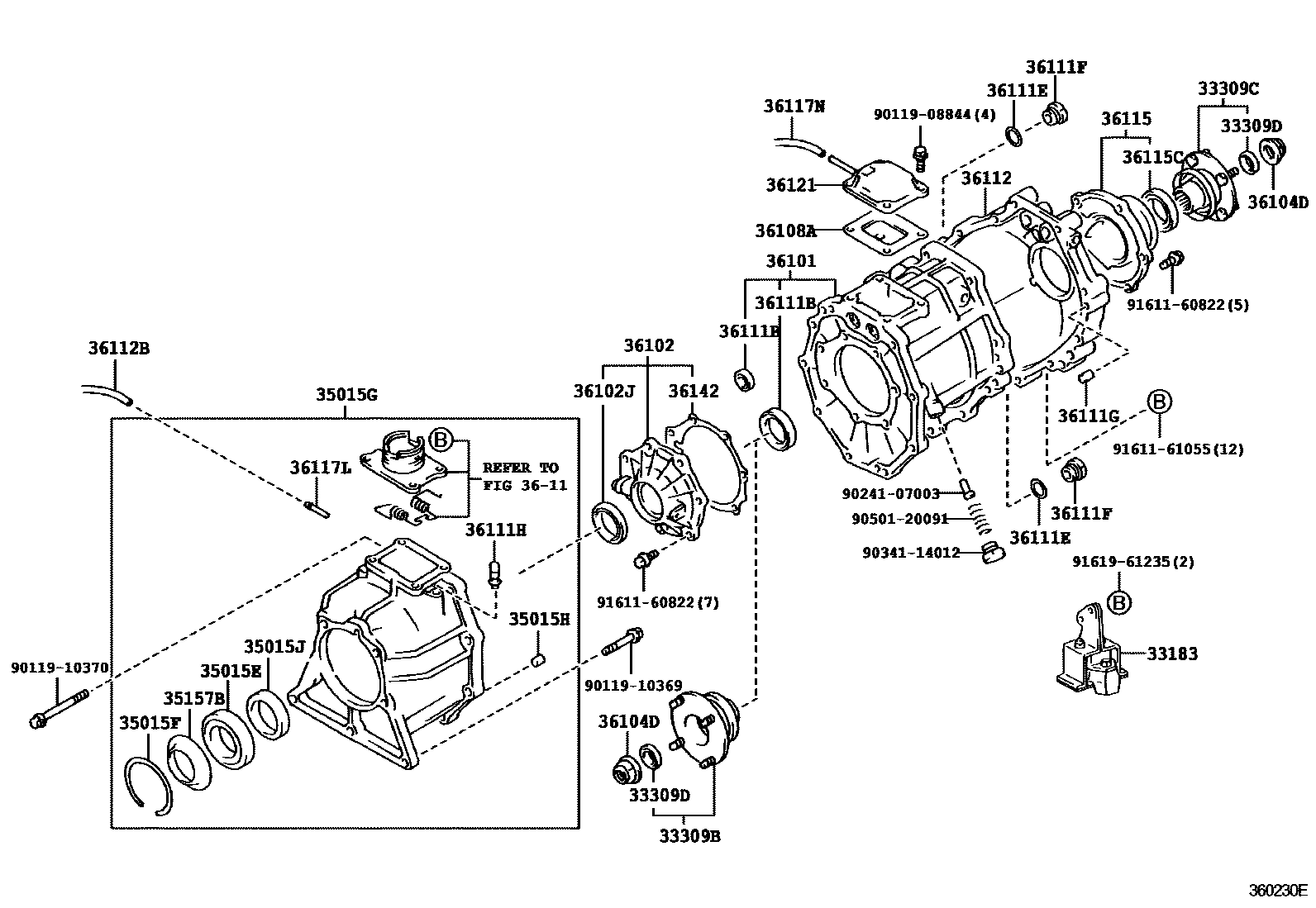

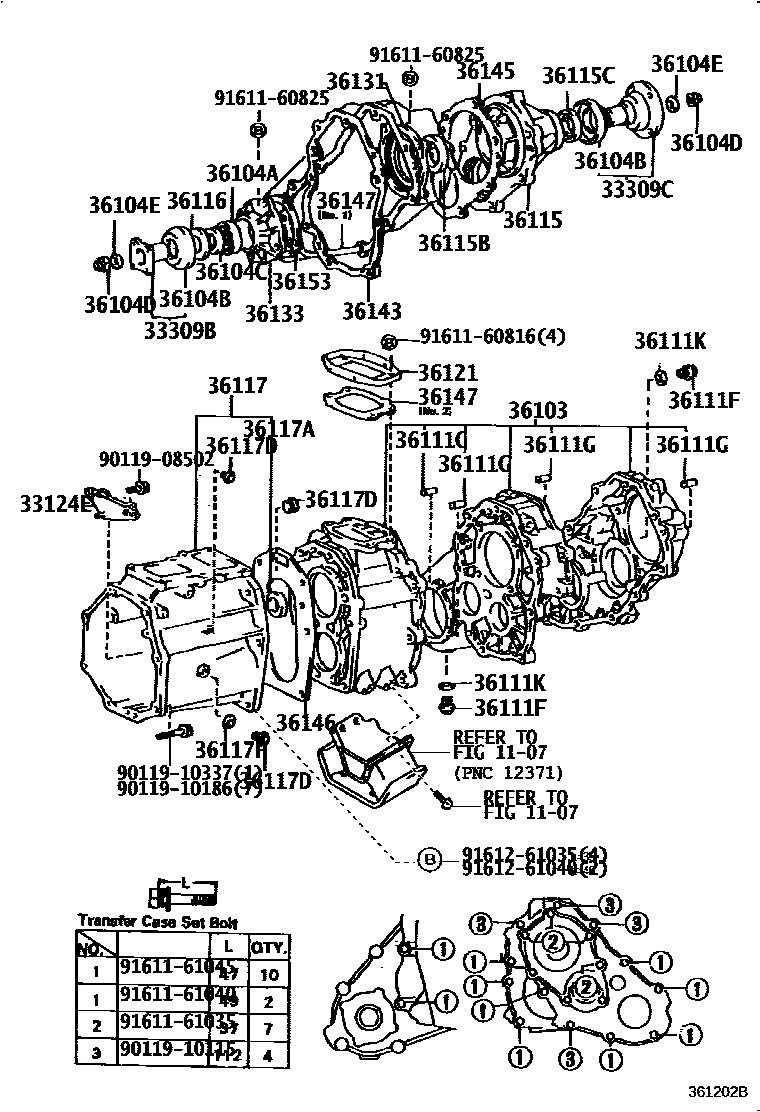

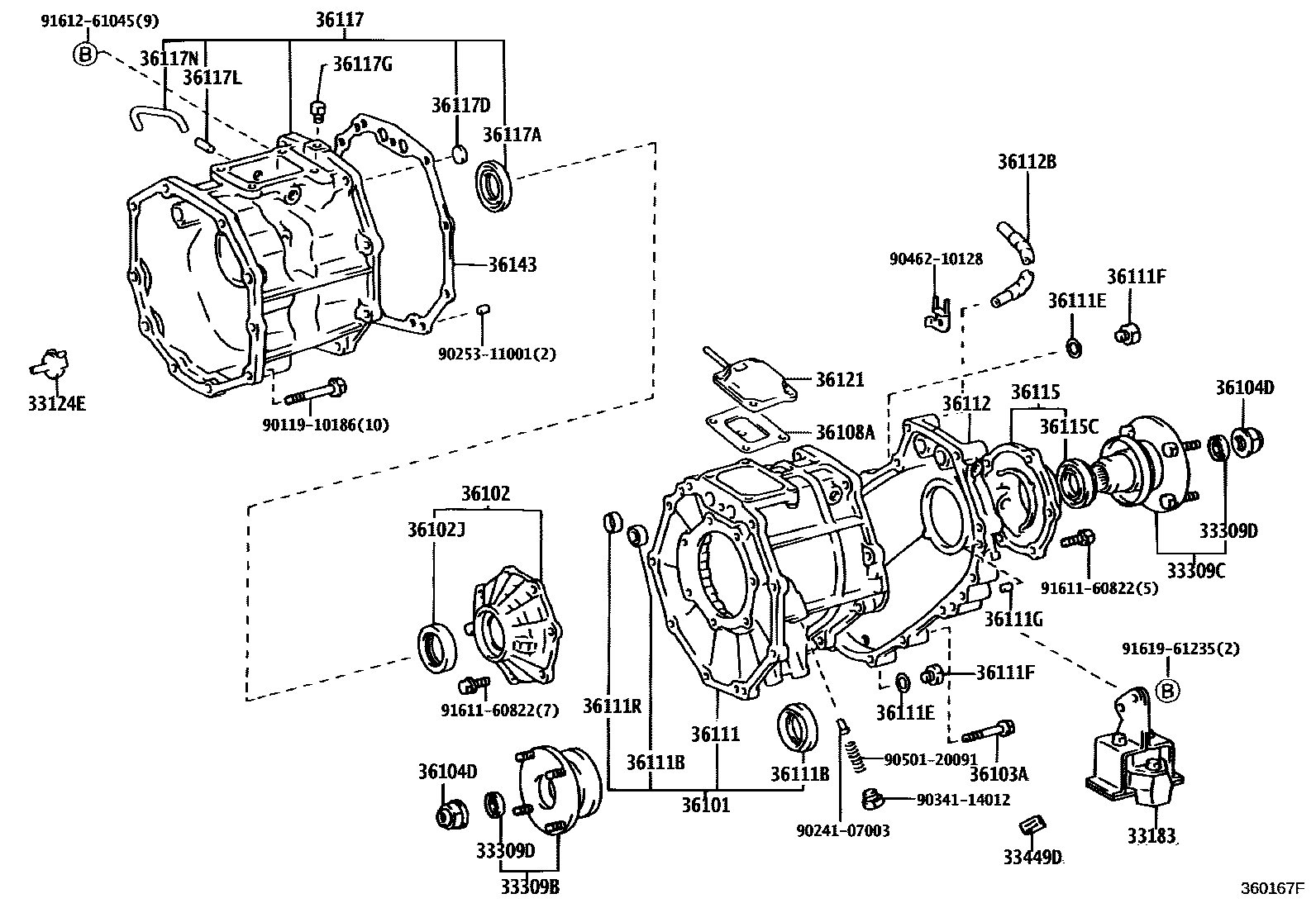

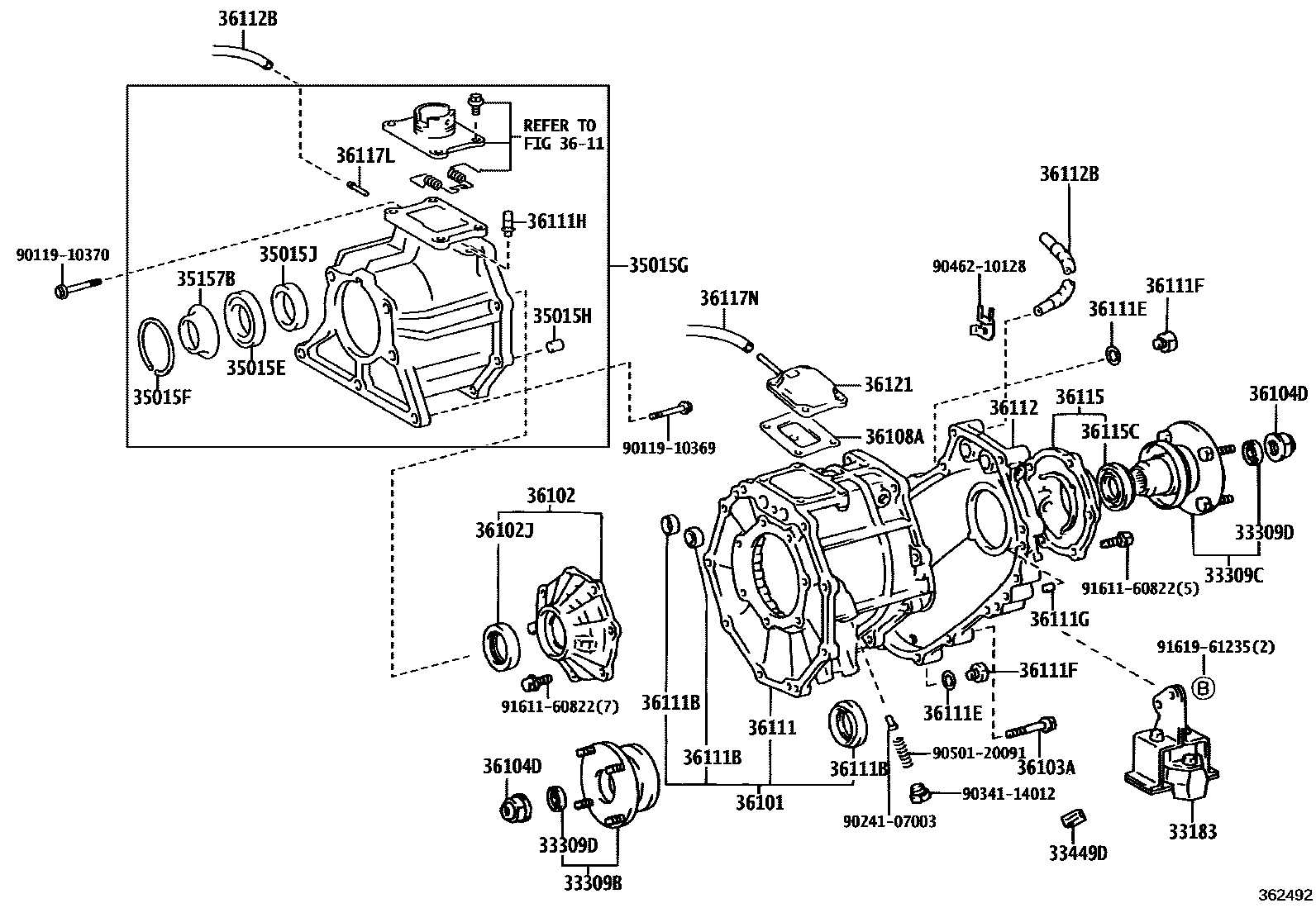

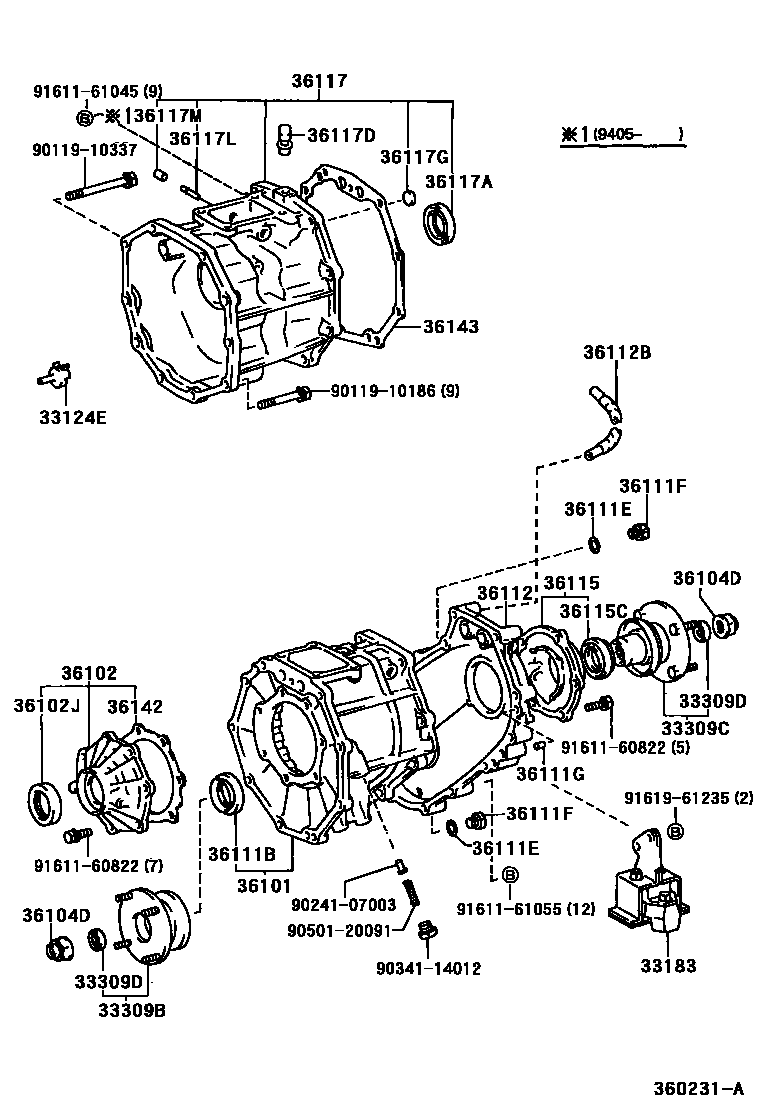

Toyota HILUX Transfer Case & Extension Housing — Figure 3609
Toyota HILUX EPC diagram 3609, Transfer Case & Extension Housing, with 8 images and 80 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33124E | Oil collector pipe (for transfer case) | 33124-35020 · 33124-35070 · 33124-35100 · 33124-36010 |
| 33183 | Transfer case dynamic damper | 33183-35010 · 33183-35020 · 33183-35032 |
| 33309B | Output shaft combined with flange sub-assembly | 33309-35030 · 33309-35061 |
| 33309C | Output shaft combined with flange sub-assembly | 33309-35040 · 33309-35080 · 33309-35100 |
| 33309D | Oil seal (for transfer case output shaft coupling flange) | 90312-23001 |
| 33449D | Magnet (for transfer case) | 33449-32020 |
| 34106 | Transfer case oil pan sub-assembly | 34106-35020 · 34106-35021 |
| 34106A | Screw plug (for transfer case oil pan) | 90341-10006 |
| 34106B | Gasket (for transfer case oil pan) | 35178-30010 |
| 34141 | automatic transfer case | 34141-35030 |
| 34141B | Screw plug (for automatic transfer case) | 90341-08001 |
| 34141C | O-ring (for automatic transfer case) | 90301-06196 |
| 34151 | Transfer case front chain box | 34151-35041 |
| 34151A | Oil seal (for transfer case chain case) | 90310-58001 · 90310-77001 |
| 34152 | Transfer case chain oil sump | 34152-35020 |
| 34170 | Transfer case rear chain box assembly | 34170-35031 |
| 34170A | Direct sales (for transfer case chain box) | 90250-13003 |
| 34170B | Oil seal (for transfer case chain case) | 90310-58001 · 90310-77001 |
| 34170C | Screw plug (for transfer case chain case) | 90341-18021 · 90341-18049 |
| 34170D | Gasket (for transfer case chain case) | 90430-18008 |
| 34180 | Transfer case extension housing assembly | 34180-35010 |
| 34180B | Breather plug (for transfer case extension housing) | 90930-03031 |
| 34182 | Transfer case extension case oil sump | 34182-35011 |
| 34303 | Transfer case oil filter sub-assembly | 34303-35010 |
| 34780 | Flange fork assembly | 34780-35020 · 34780-35030 |
| 34780A | Nut (for flange fork) | 90179-20001 |
| 34780B | Flat washer (for flange fork) | 90201-20005 |
| 34780C | O-ring (for flange fork) | 90301-26190 |
| 34780D | Oil seal (for flange fork) | 90316-40001 |
| 35015E | Radial ball bearing (for transfer case adapter) | 90363-37001 |
| 35015F | Hole snap ring (for transfer case adapter) | 90521-72001 |
| 35015G | transfer case rear clutch | 35015-35011 · 35015-35020 · 35015-35021 |
| 35015H | Ring pin (for transfer case) | 90253-11001 |
| 35015J | Oil seal (for rear transfer case adapter) | 90311-40007 |
| 35148B | Governor oil supply pipe gasket (for automatic transmission transfer case) | 35148-16010 |
| 35148C | Governor oil supply pipe gasket (for automatic transmission transfer chain case) | 35148-16010 |
| 35157B | Rear transfer case adapter oil collection tank | 35157-35010 |
| 35394B | Oil filter magnet (for transfer case) | 35394-30011 |
| 36101 | Transfer case sub-assembly | 36101-35021 · 36101-35022 · 36101-35040 · 36101-35041 · 36101-35050 · 36101-35060 · 36101-35070 · 36101-35120 · 36101-35130 |
| 36102 | Transfer Case Cover Sub-Assembly | 36102-35011 · 36102-35012 · 36102-35050 |
| 36102J | T-type oil seal (for transfer case cover) | 90311-40007 · 90311-40021 |
| 36103 | Transfer case sub-assembly | 36103-35031 |
| 36103A | Bolt (for transfer case) | 90119-08A28 |
| 36104A | T-type oil seal (for transfer case output shaft) | 90311-38016 |
| 36104B | Dust cover (for transfer case output shaft) | 33325-35020 |
| 36104C | Dust seal (for transfer case output shaft) | 90303-38010 |
| 36104D | Nut (for transfer case output shaft) | 90179-20001 · 90179-22016 |
| 36104E | Flat washer (for transfer case output shaft) | 90201-20005 |
| 36108A | Air vent oil baffle sub-assembly | 36108-35030 · 36108-35040 |
| 36111 | transfer case | 36111-35080 |
| 36111B | Oil seal (for transfer case) | 90311-15008 · 90311-41006 · 90311-41008 |
| 36111E | Gasket (for transfer case) | 90430-18008 |
| 36111F | Screw plug (for transfer case) | 90341-18006 · 90341-18057 |
| 36111G | Direct sales (for transfer case) | 90250-10214 · 90250-10232 |
| 36111H | Breather plug (for transfer case) | 90930-03085 |
| 36111K | Gasket (for transfer case) | 90430-18008 |
| 36111R | Sealing plug (for transfer case) | 90331-25005 |
| 36112 | Rear transfer case | 36112-35020 · 36112-35030 · 36112-35070 · 36112-35080 |
| 36112B | No. 1 hose (for rear transfer case) | 90445-08268 |
| 36115 | Transfer case extension housing | 36105-35020 · 36115-35010 |
| 36115B | V-shaped oil seal (for transfer case extension case) | 90312-48001 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-38140 · 90311-41005 · 90311-41007 |
| 36116 | Transfer case extension housing dust seal retainer | 33145-30010 |
| 36117 | Transfer case clutch | 36107-35071 · 36107-35072 · 36107-35091 · 36107-35092 · 36107-35110 · 36107-35111 · 36107-35120 · 36107-35150 · 36107-35180 · 36107-35190 |
| 36117A | Oil seal (for transfer case clutch) | 90311-32009 · 90311-40007 |
| 36117D | Thread plug (for transfer case adapter) | 90341-18006 · 90341-30003 · 90930-03075 · 90930-03085 · 90930-03114 |
| 36117F | Gasket (for transfer case adapter plug) | 90430-18008 |
| 36117G | Headed straight thread plug (for transfer case adapter) | 90331-21003 · 90341-20010 · 90341-22004 · 90341-24006 · 96411-41800 |
| 36117L | Tube (for transfer case adapter) | 90441-05001 |
| 36117M | Cover (for transfer case clutch) | 90339-04024 |
| 36117N | Hoses (for transfer case adapter) | 90445-08265 |
| 36121 | No. 1 transfer case cover | 36102-35020 · 36121-35010 |
| 36131 | Transfer case output shaft front bearing retainer | 36131-35010 |
| 36133 | Transfer case front drive gear bearing retainer | 36133-35010 |
| 36142 | Transfer case cover gasket | 36142-35010 |
| 36143 | Front transfer case gasket | 36143-35010 · 36143-35030 |
| 36145 | Transfer case extension housing gasket | 36145-35010 |
| 36146 | Transfer gearbox gasket | 36146-35021 |
| 36147 | Transfer case gasket | 36141-35010 · 36147-35010 |
| 36153 | Front driving gear bearing retainer gasket | 36153-35010 |
