Toyota HILUX Transfer Assembly & Gasket Kit — Figure 3608
Toyota HILUX EPC diagram 3608, Transfer Assembly & Gasket Kit, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

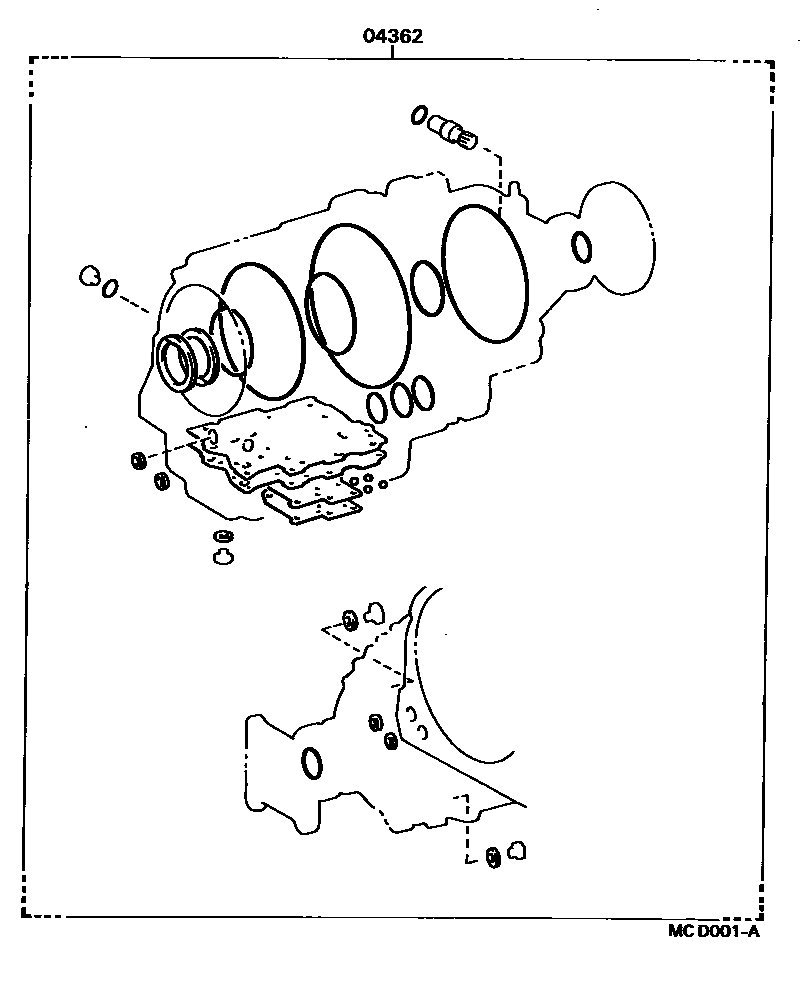

| 04362 | Transfer case overhaul gasket assembly | 04362-35020 · 04362-35030 · 04362-35040 · 04362-35041 · 04362-35050 · 04362-35060 |

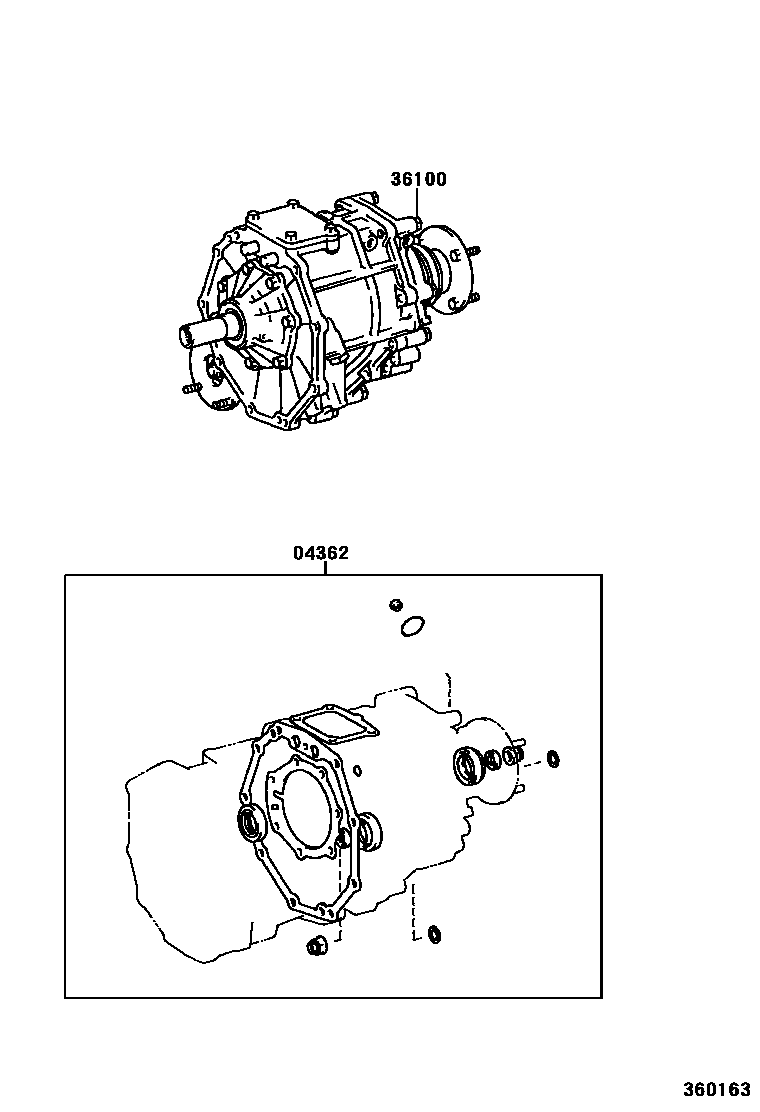

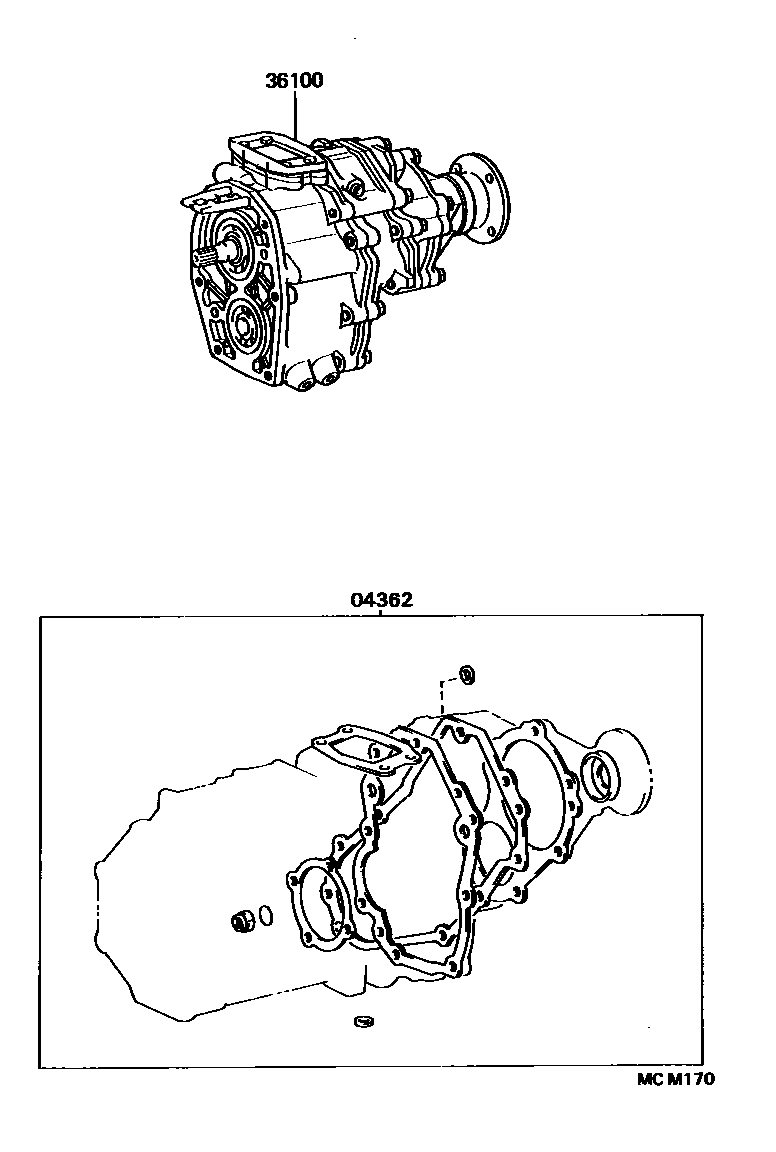

| 36100 | Transfer case assembly | 36100-34050 · 36100-35320 · 36100-35321 · 36100-35400 · 36100-35401 · 36100-35420 · 36100-35421 · 36100-35500 · 36100-35520 · 36100-35590 · 36100-35610 · 36100-35650 · 36100-35730 · 36100-35740 · 36100-35780 · 36100-35790 · 36100-35830 · 36100-35840 · 36100-35850 · 36100-35860 · 36100-35880 · 36100-35890 |
