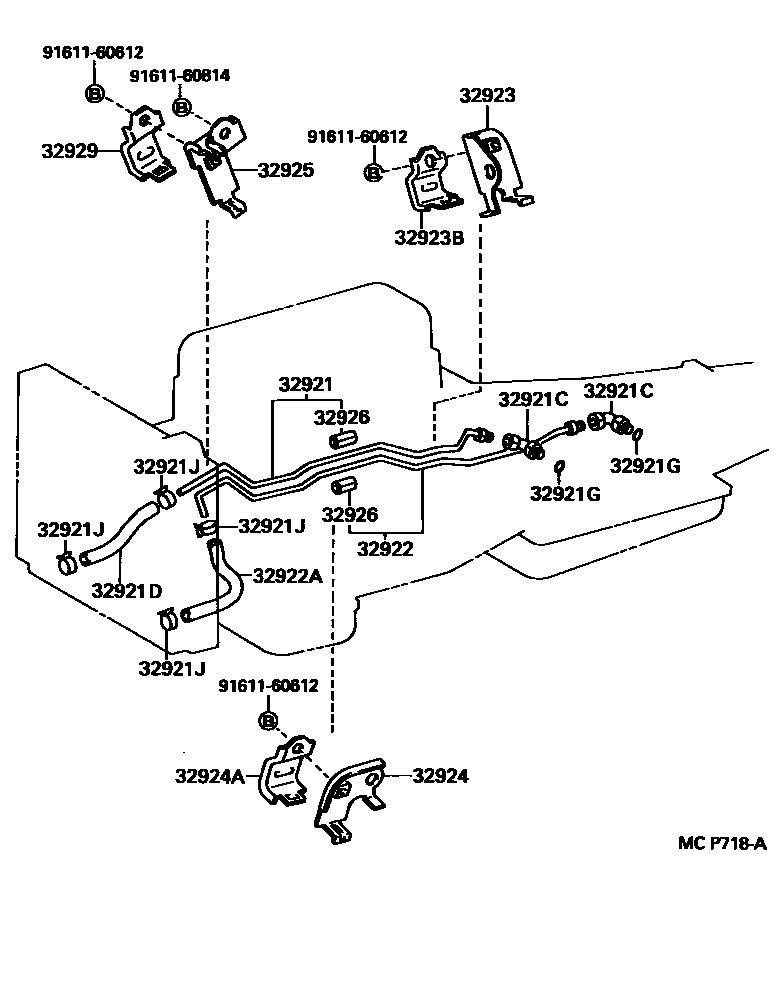

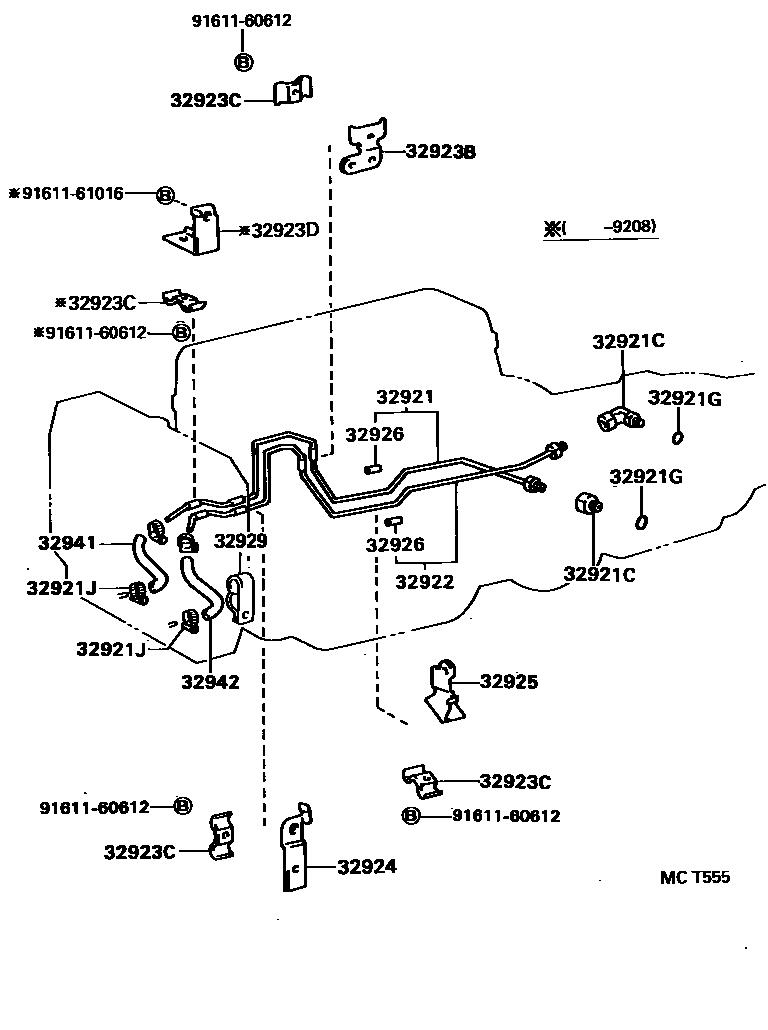

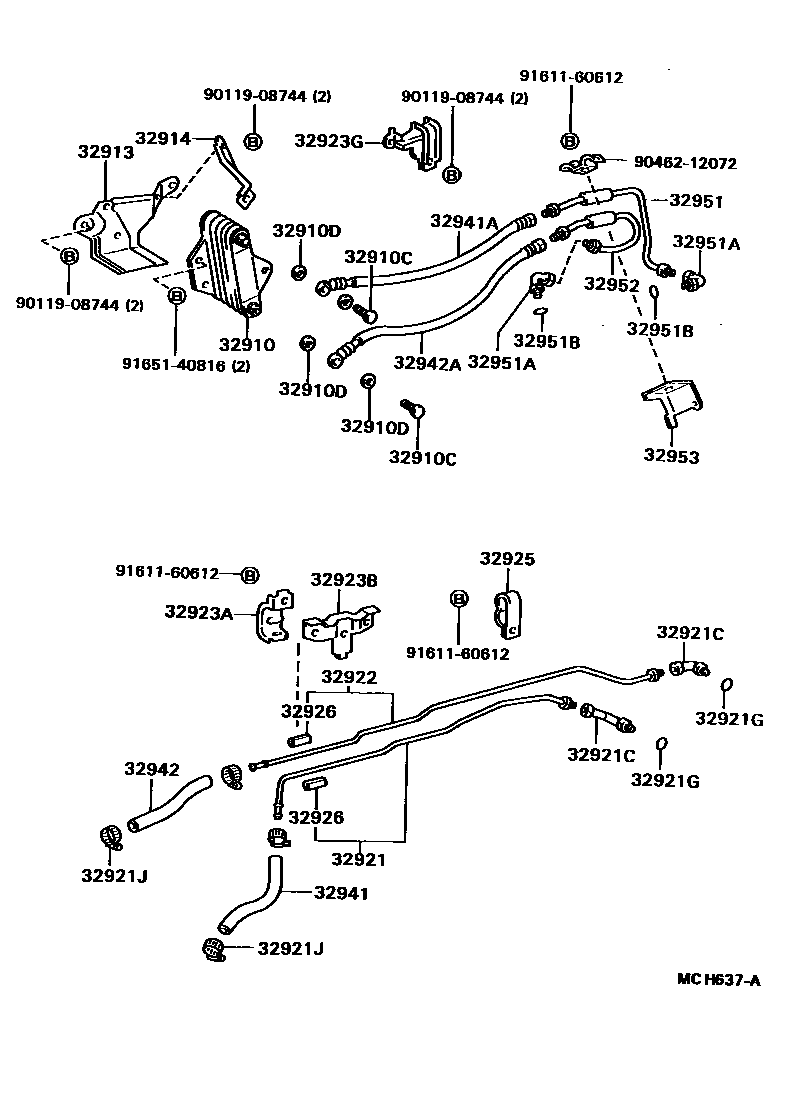

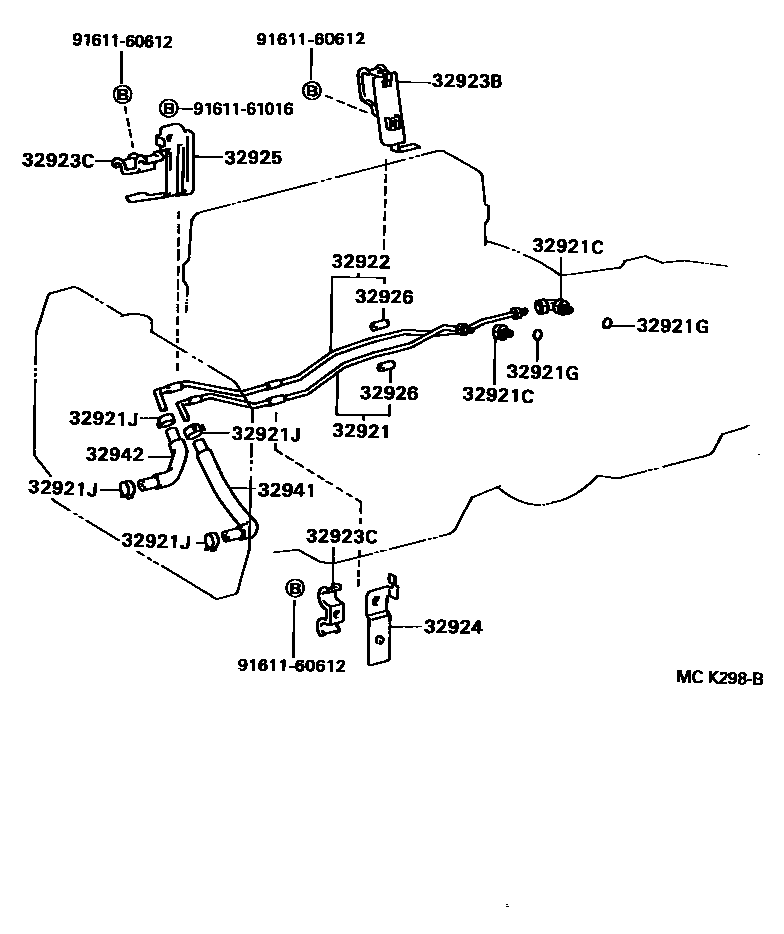

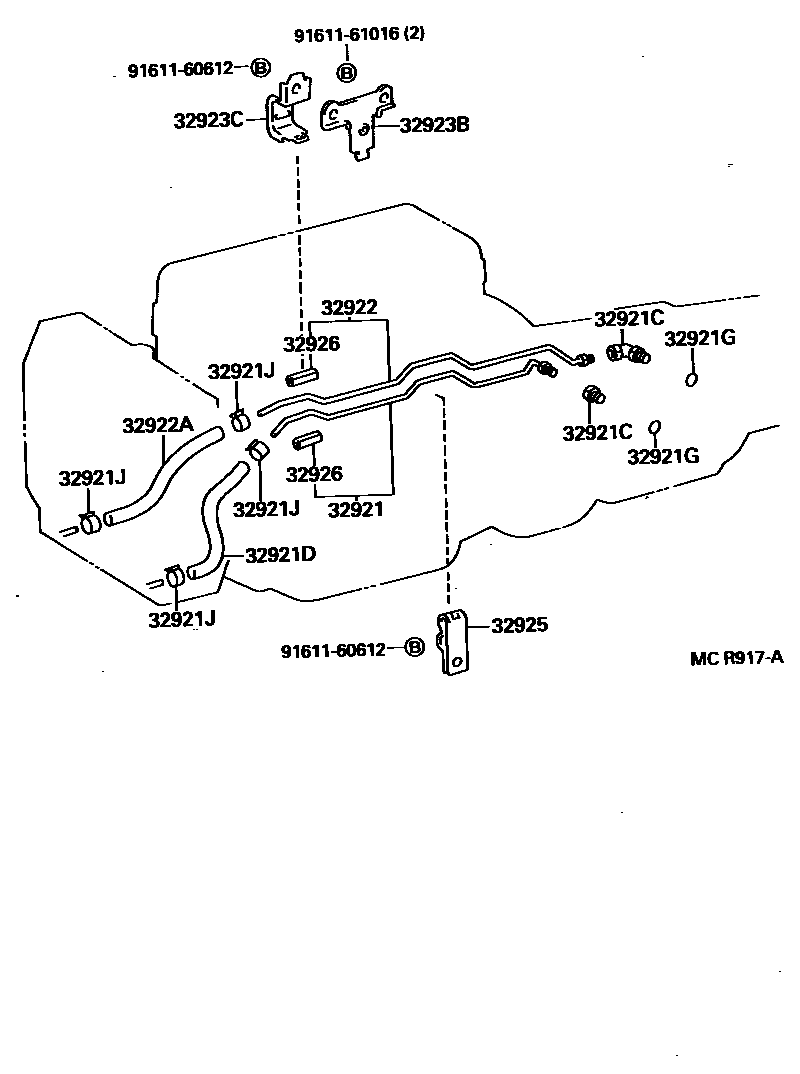

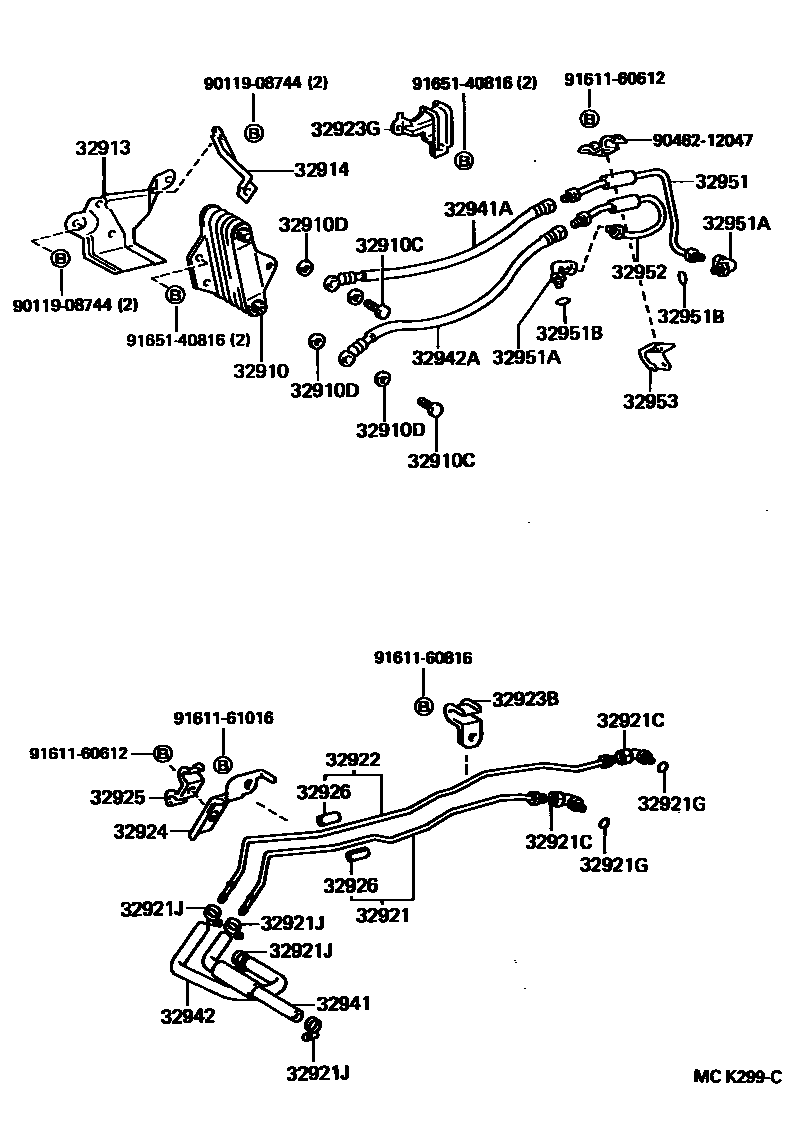

Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514
Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 6 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32910 | Oil cooler assembly | 32910-35010 |
| 32910C | Connector bolt (for oil cooler) | 90401-14003 |
| 32910D | Gasket (for oil cooler) | 90430-14235 |
| 32913 | Transmission oil cooler bracket | 32913-35010 |
| 32914 | Transmission oil cooler stay | 32914-35010 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-35160 · 32921-35161 · 32921-35171 · 32921-35191 · 32921-35210 · 32921-35220 · 32921-35230 · 32921-35240 · 32921-35250 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-16021 · 90407-14024 · 90407-16008 · 90407-16009 · 90407-16010 · 90407-16012 · 90407-16023 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-17097 · 90445-17103 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-35150 · 32922-35170 · 32922-35171 · 32922-35210 · 32922-35221 · 32922-35230 · 32922-35260 · 32922-35270 · 32922-35280 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-17105 · 90445-17137 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-35050 |
| 32923A | Automatic transmission oil cooler pipe clamp | 32929-28010 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32909-35070 · 32923-30110 · 32923-35020 · 32923-35030 · 32923-35040 · 32929-30110 |
| 32923C | No. 4 automatic transmission oil cooler pipe clamp | 32929-28010 · 90462-12044 |
| 32923D | No. 5 automatic transmission oil cooler pipe clamp | 32928-35020 · 32928-35021 |
| 32923G | No. 8 automatic transmission oil cooler pipe clamp | 32908-35010 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-30090 · 32924-35030 · 32924-35090 · 32924-35101 |
| 32924A | Clamp (for No. 2 transmission oil cooler tube) | 32929-30110 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 32925-35010 · 32928-35050 · 32929-35010 · 90461-08628 · 90462-12044 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32929 | No. 2 Flexible Hose Clamp | 32929-30110 · 32929-35060 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-35041 · 32941-35180 · 32941-35200 · 32941-35220 · 32941-35240 · 32942-35070 · 32943-36050 · 90445-17073 · 90445-17097 · 90445-17100 |
| 32941A | No. 2 transmission oil cooler oil inlet hose | 32941-35010 · 32941-35030 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32941-28190 · 32942-35011 · 32942-35070 · 32942-35090 · 90445-17075 · 90445-17076 · 90445-17103 · 90445-17105 · 90445-17106 |
| 32942A | No. 2 transmission oil cooler oil outlet hose | 32942-35020 · 32942-35030 |
| 32951 | Transfer case oil cooler oil inlet pipe | 32951-35010 |
| 32951A | Bend pipe (for transfer case oil cooler pipe) | 90407-16010 |
| 32951B | O-ring (for transfer case oil cooler pipe) | 90301-10189 |
| 32952 | Transfer case oil cooler oil outlet pipe | 32952-35010 |
| 32953 | Transfer case oil cooler clip | 32953-35010 |
