Toyota HILUX 阀体和滤油网(ATM) — Figure 3512

Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 15 images and 178 PNC and OE references.

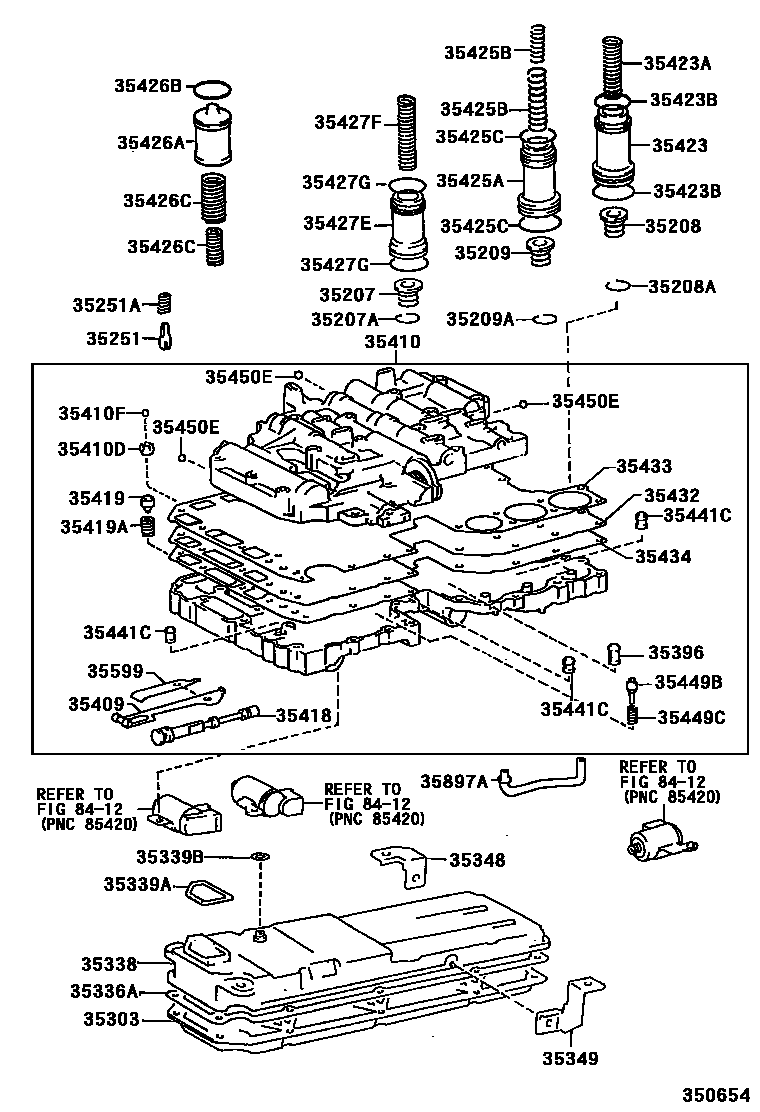

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — 350654
阀体和滤油网(ATM) — 350654 (199612 – 999999)

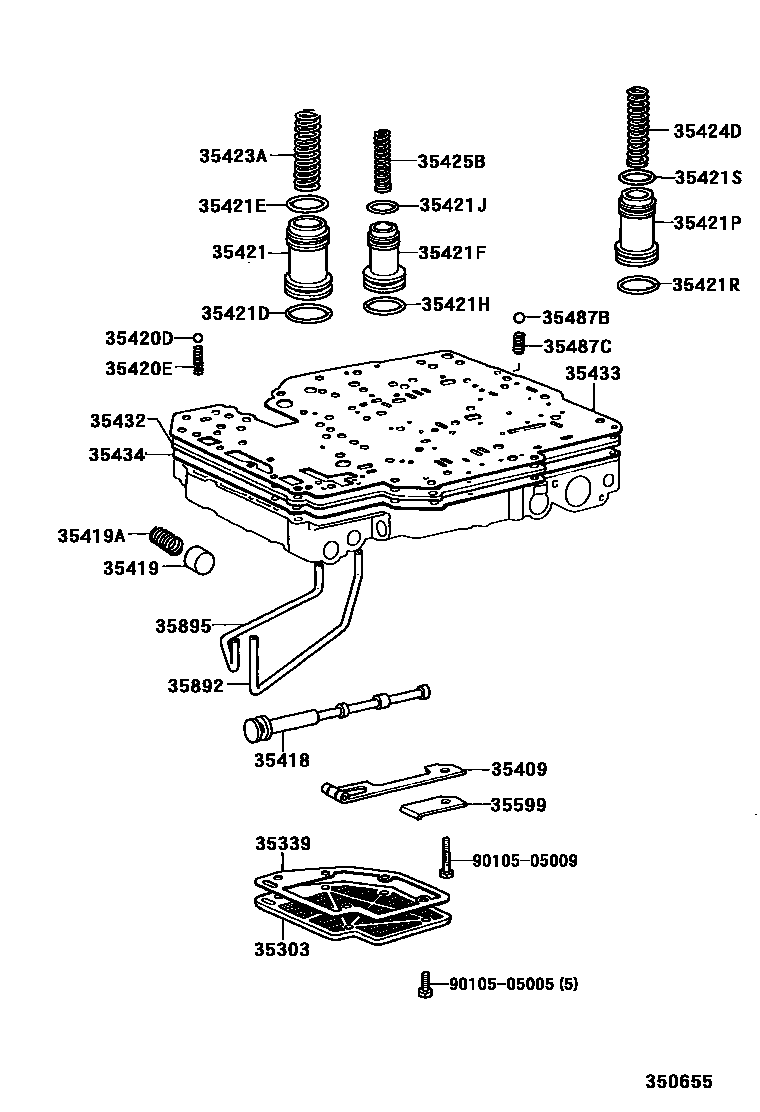

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — 350655
阀体和滤油网(ATM) — 350655 (198809 – 999999)

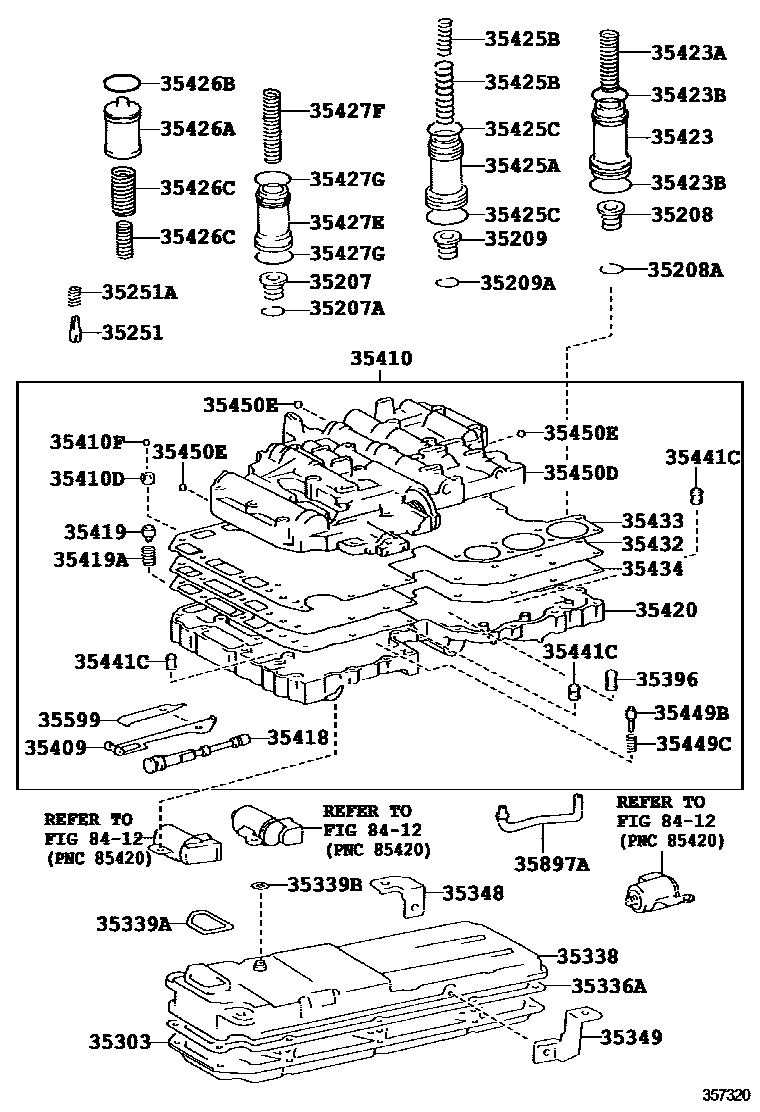

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — 357320
阀体和滤油网(ATM) — 357320 (199308 – 199511)

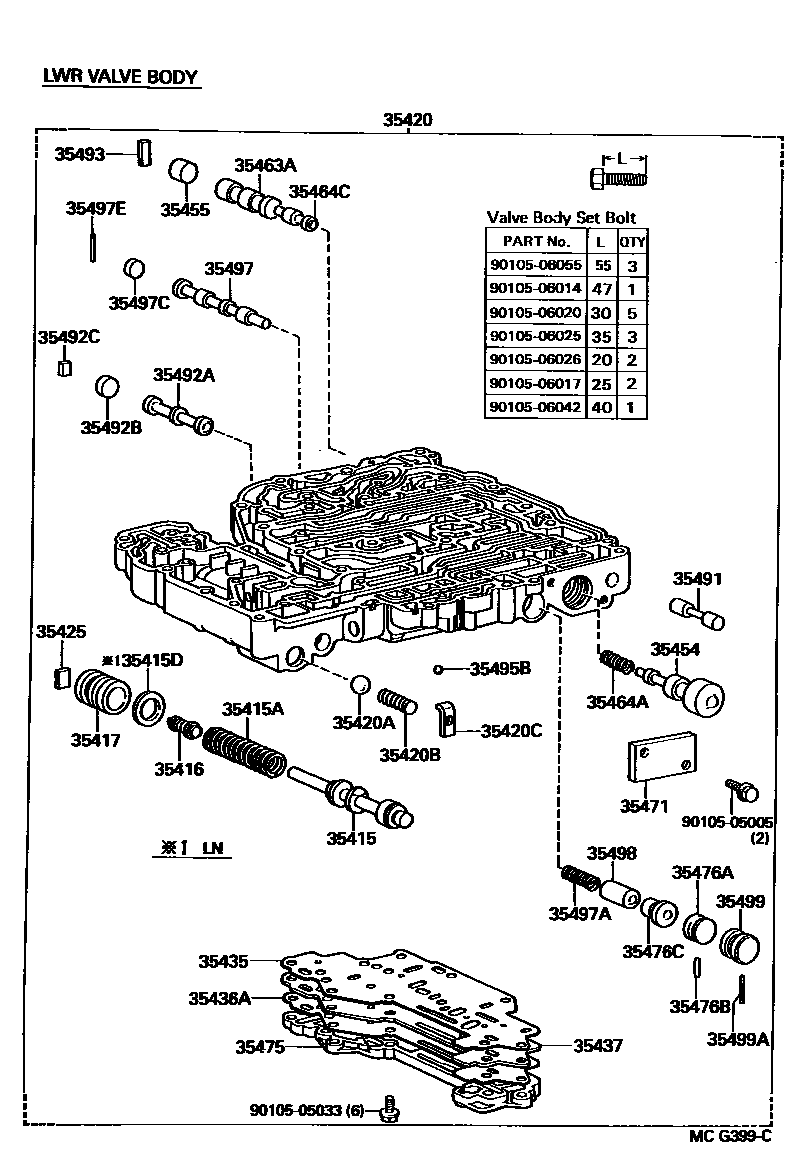

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCG399C
阀体和滤油网(ATM) — MCG399C (198809 – 999999)

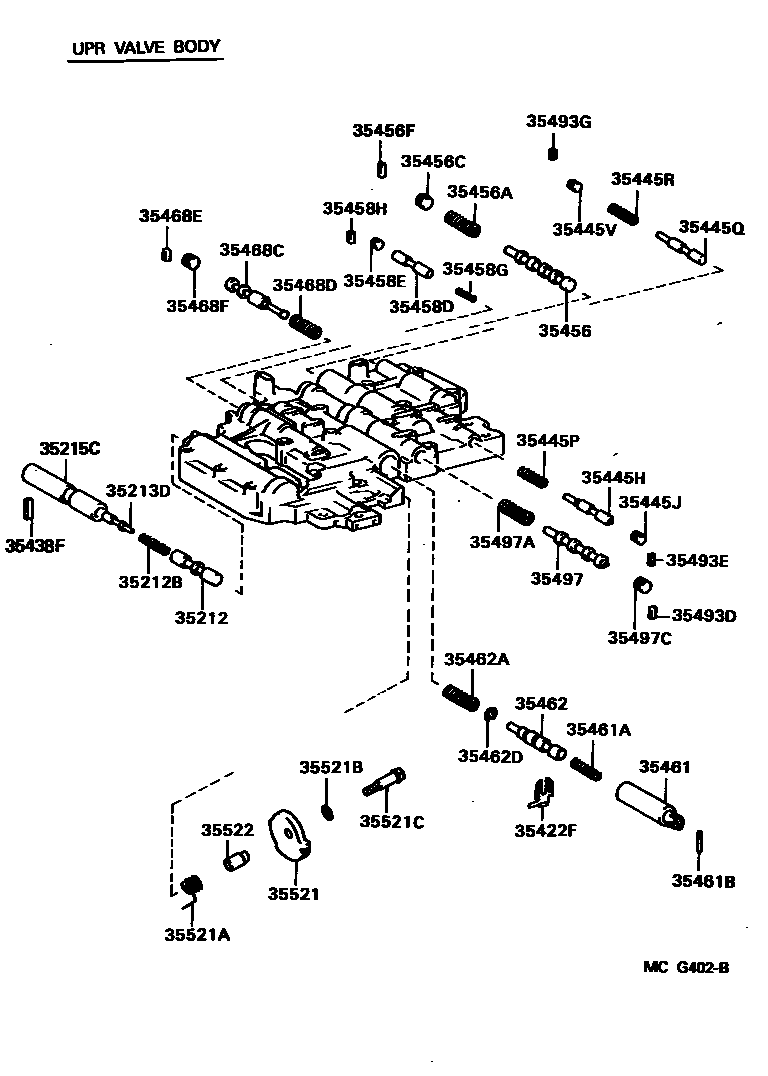

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCG402B
阀体和滤油网(ATM) — MCG402B (198904 – 999999)

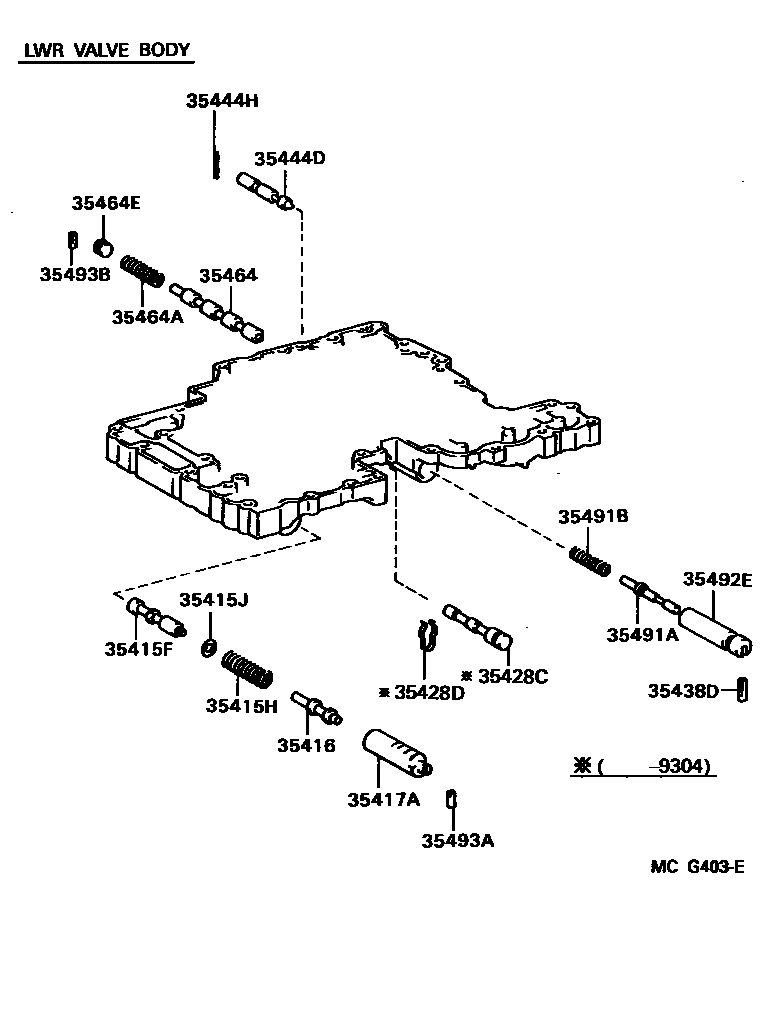

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCG403E
阀体和滤油网(ATM) — MCG403E (198904 – 999999)

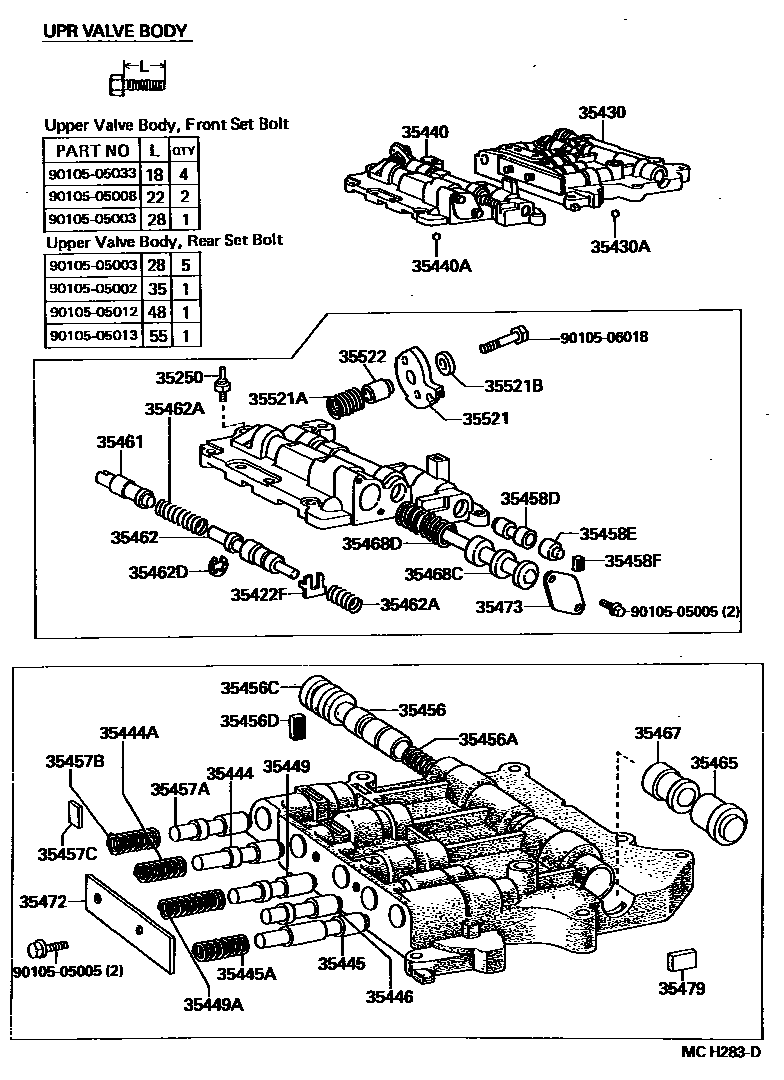

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCH283D
阀体和滤油网(ATM) — MCH283D (198809 – 999999)

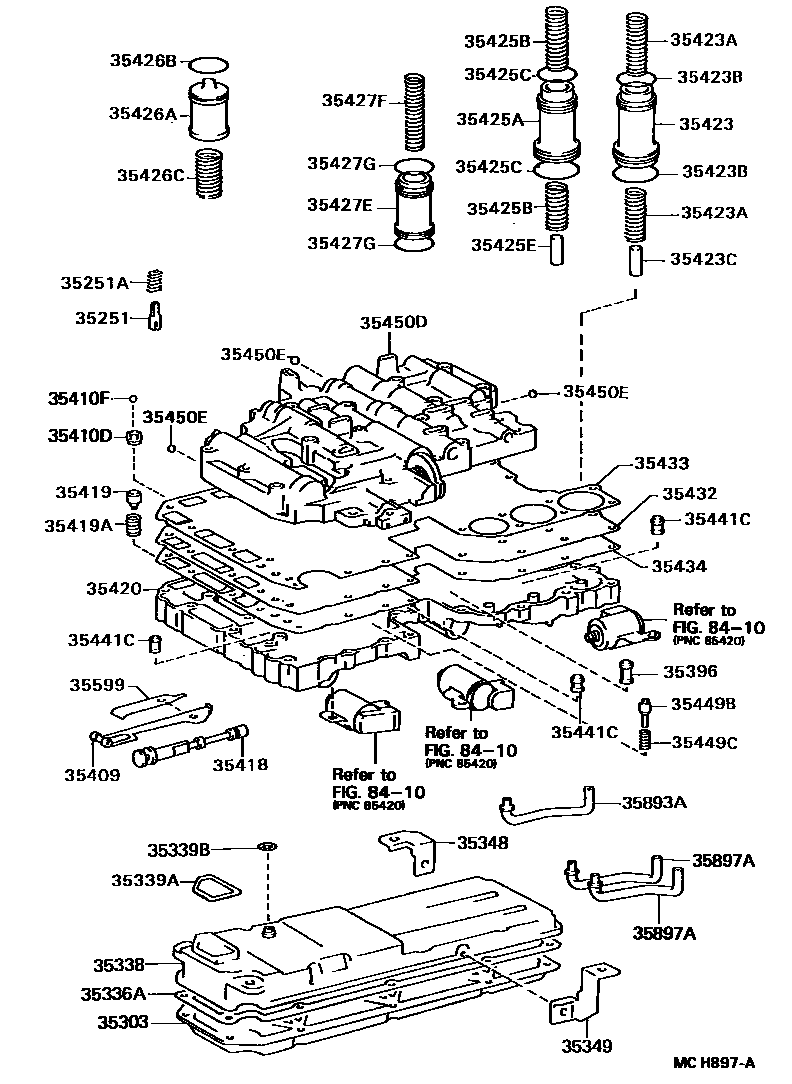

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCH897A
阀体和滤油网(ATM) — MCH897A (198904 – 199008)

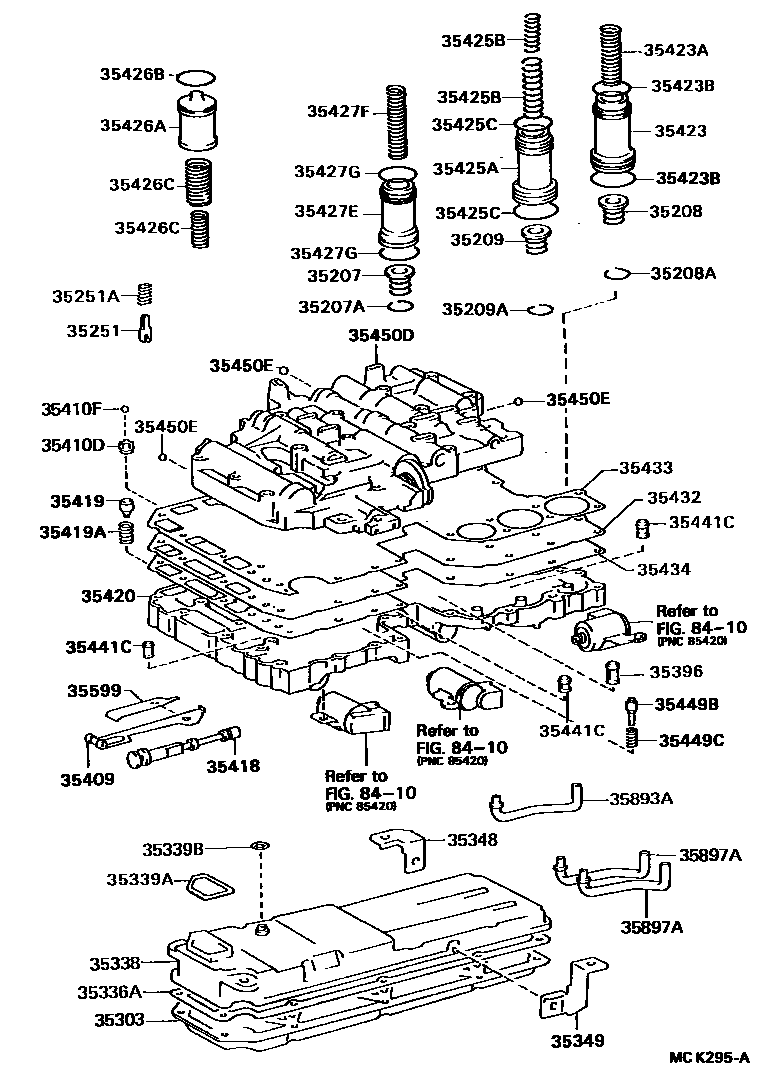

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCK295A
阀体和滤油网(ATM) — MCK295A (199008 – 999999)

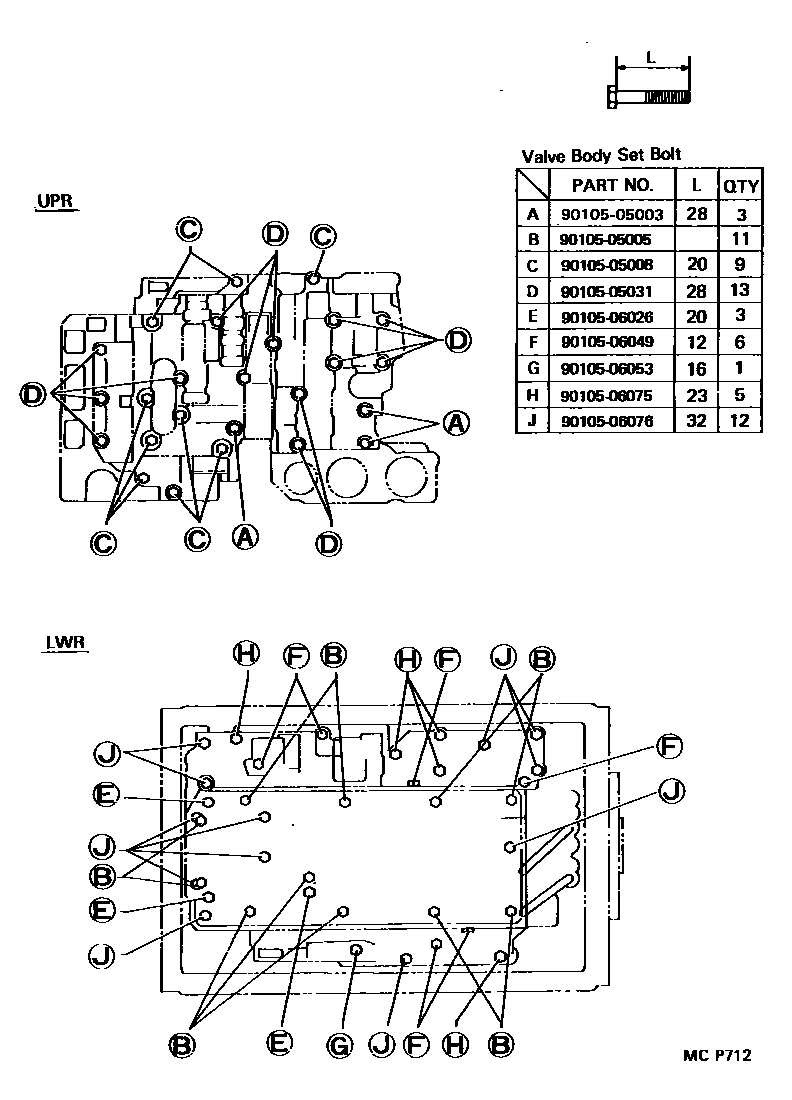

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCP712
阀体和滤油网(ATM) — MCP712 (198904 – 999999)

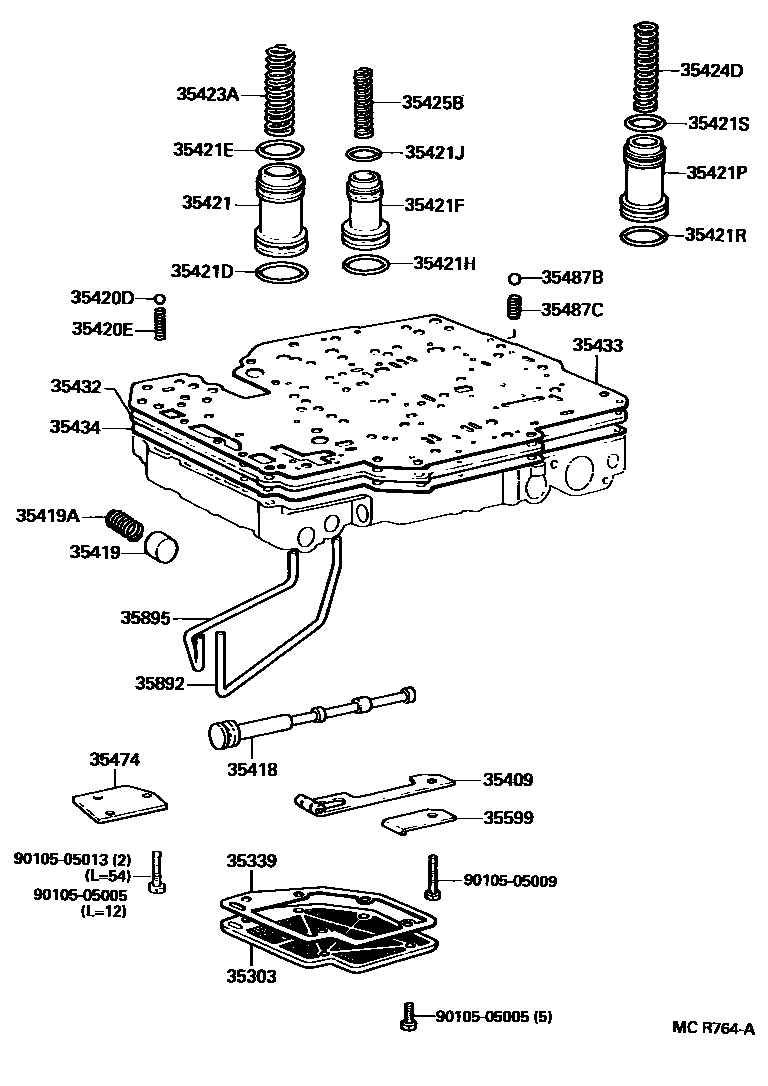

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCR764A
阀体和滤油网(ATM) — MCR764A (199408 – 999999)

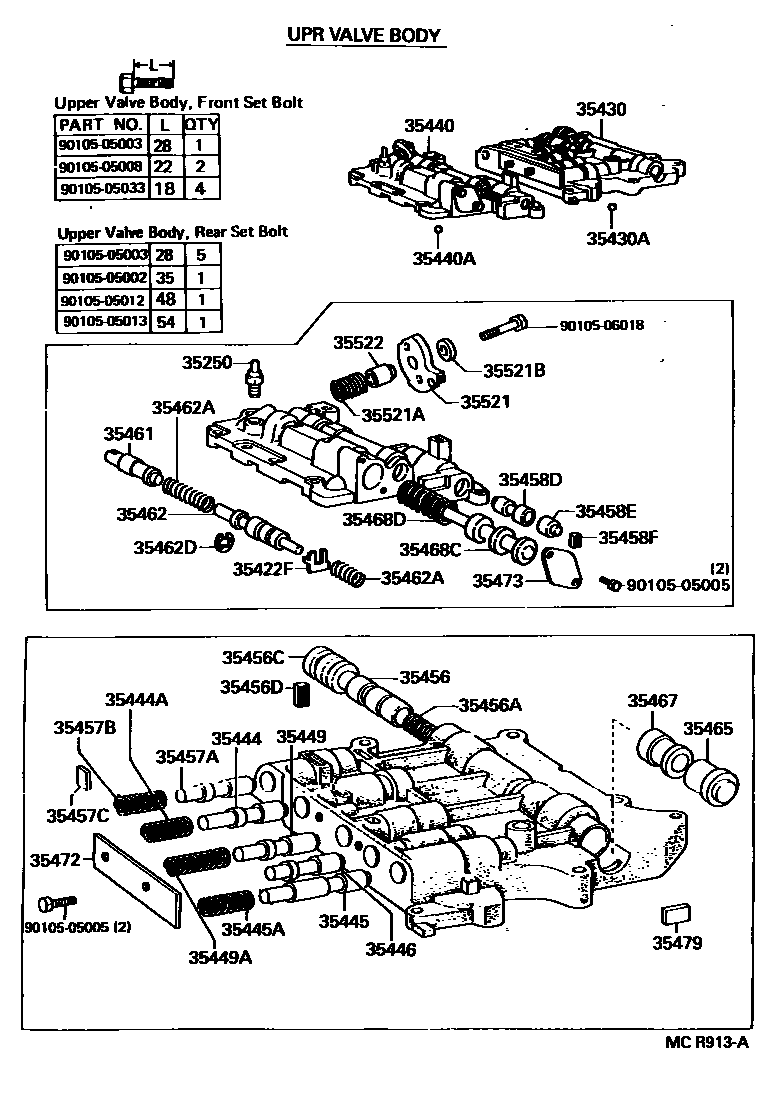

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCR913A
阀体和滤油网(ATM) — MCR913A (199408 – 999999)

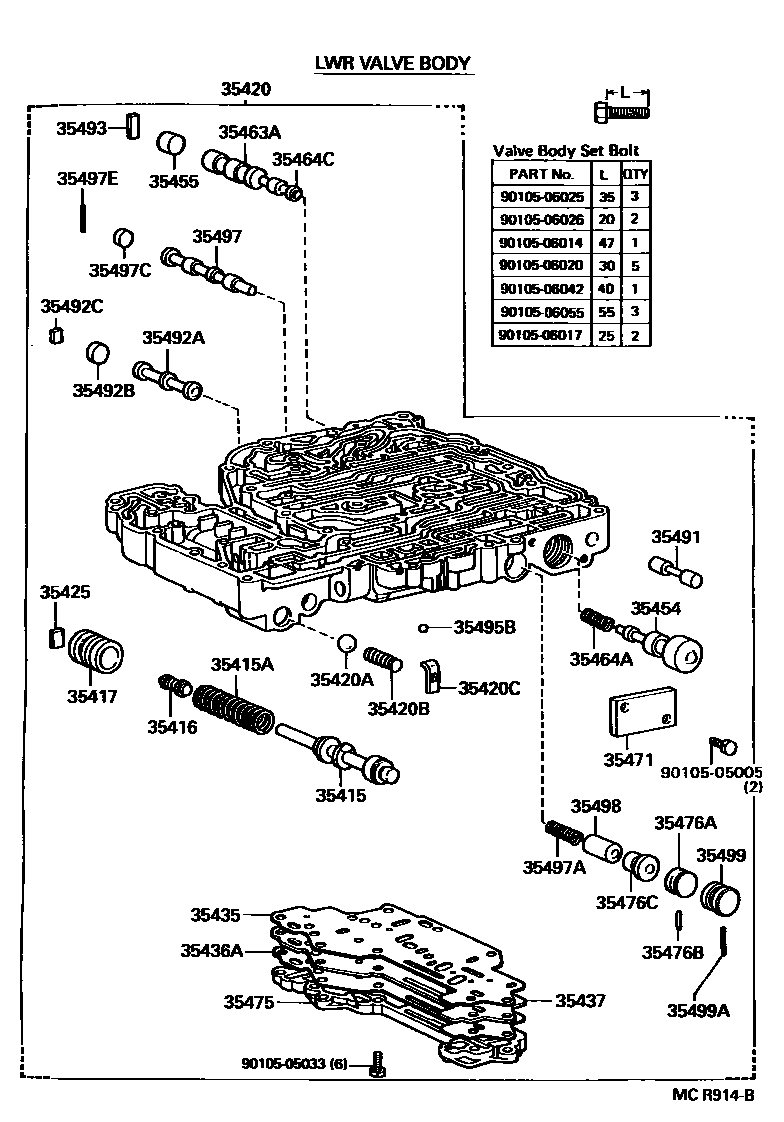

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCR914B
阀体和滤油网(ATM) — MCR914B (199408 – 999999)

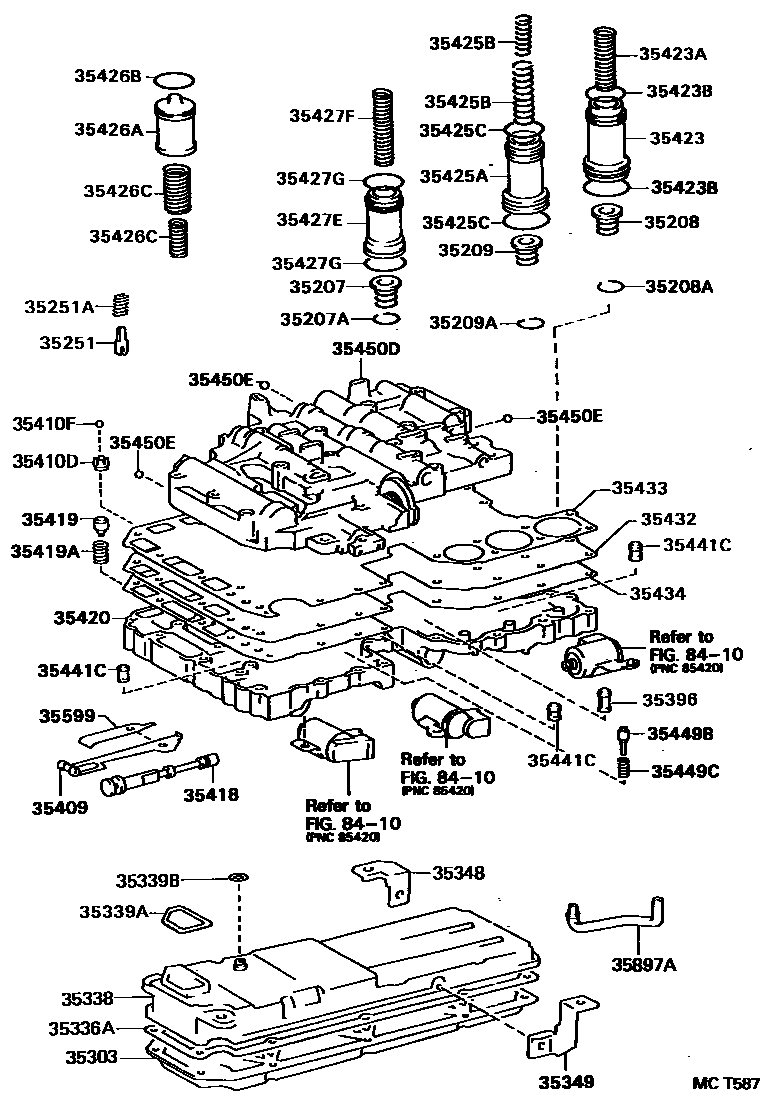

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCT587
阀体和滤油网(ATM) — MCT587 (199308 – 199612)

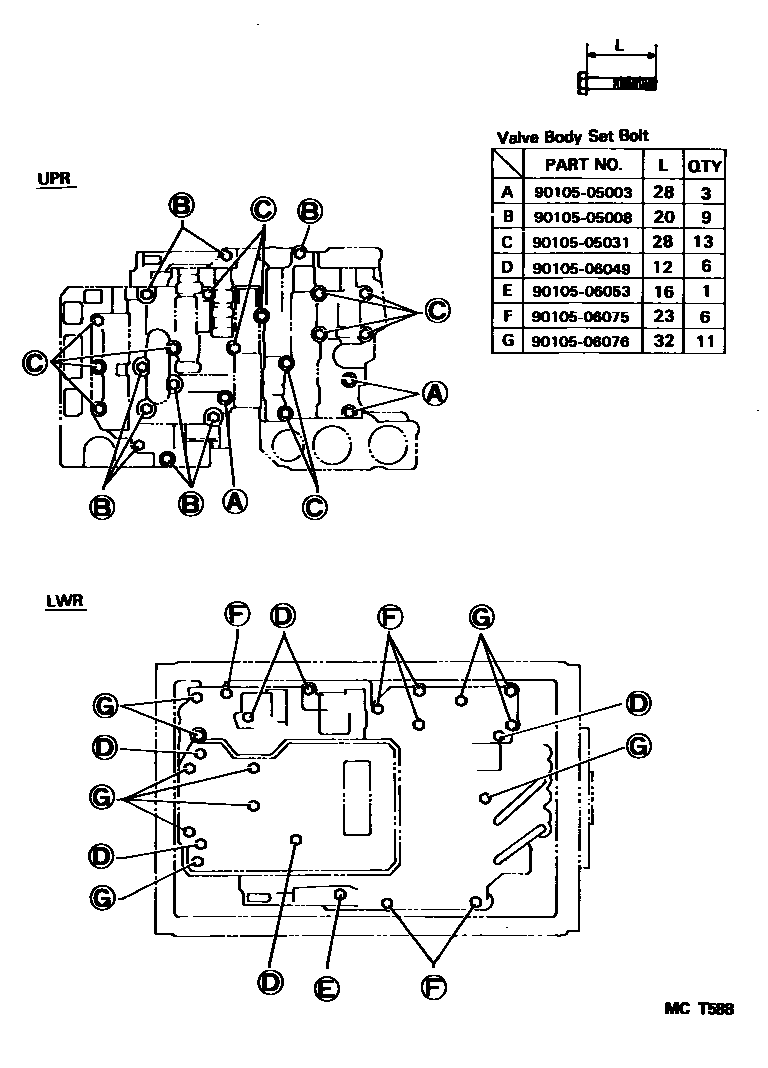

Toyota HILUX 阀体和滤油网(ATM) EPC diagram — MCT588
阀体和滤油网(ATM) — MCT588 (198904 – 999999)

PNC and OE references

PNCPart nameOE numbers
35207B-0 accumulator spring sub-assembly35207-22010 · 35207-50010
35207AHole snap ring (for B-0 accumulator spring)90521-22004
35208B-2 Accumulator Spring Sub-Assembly35208-22010 · 35208-30010 · 35208-35010
35208AHole snap ring (for B-2 accumulator spring)90521-22004
35209C-2 Accumulator spring sub-assembly35209-22020 · 35209-30010
35209AHole snap ring (for C-2 accumulator spring)90521-22004
35212lock relay valve35212-12010
35212BCompression spring (for locking relay valve)90501-06037
35213DLock relay valve plunger35213-30020
35215CNo. 1 locking relay valve sleeve35215-30020
35250Ball check valve body assembly35250-30010
35251Ball check valve body35251-30020
35251ACompression spring (for ball check valve body)90501-03005
35303Oil filter sub-assembly35303-30050 · 35303-35010
35336AOil filter separator gasket35336-35010 · 35336-60010
35338Oil filter septum35338-35010
35339Oil filter gasket35339-28010 · 35339-30050
35339ANo. 1 oil filter gasket35339-30070
35339BNo. 2 oil filter gasket90430-10010
35348No. 1 oil filter bracket35348-35010
35349No. 2 oil filter bracket35349-35010
35396Throttle valve oil filter35396-30010
35409Manual lock spring sub-assembly35409-30010 · 35409-30020
35410Transmission valve body assembly35410-35300 · 35410-35371
35410DOne-way valve90917-10073
35410FBall (for one-way valve)90360-06004
35415pressure regulator valve35415-22020 · 35415-22021
35415ACompression spring (for pressure regulator valve)90501-15017 · 90501-16682
35415DGasket (for pressure regulator valve)90564-12004
35415FMain regulator valve35415-30030
35415HCompression spring (for main regulator valve)90501-16077 · 90501-17013
35415JGasket (for main regulator valve)90201-08021
35416No. 1 main regulator valve plunger35416-22010 · 35416-30030 · 35416-30040 · 35416-30050 · 35416-35010
35417pressure regulator valve sleeve35417-22020 · 35417-30050
35417AMain regulator valve sleeve35417-30060 · 35417-30070 · 35417-35010
35418Manual valve35418-30050 · 35418-30070
35419No. 1 one-way valve35419-12030 · 35419-22010
35419ACompression spring (for one-way valve)90501-11039 · 90501-16083
35420Lower valve body assembly35420-22221 · 35420-30111 · 35420-30144 · 35420-35033 · 35420-35041 · 35420-35060 · 35420-35080
35420ABall (for pressure reducing valve)90360-13024
35420BSpring (for pressure reducing valve)90501-18677
35420CSeat (for pressure reducing valve)35427-22011
35420DBall (for lower valve body)35495-22020 · 35496-22030
35420ESpring (for lower valve body)90501-04727
35421No. 1 accumulator piston35421-30020
35421DRing (for accumulator piston No. 1)90301-29187
35421ERing (for accumulator piston No. 1)90301-23194
35421FNo. 2 accumulator piston35441-30010
35421HRing (for accumulator piston No. 2)90301-26190
35421JRing (for accumulator piston No. 2)90301-18186
35421PNo. 3 accumulator piston35421-22030
35421RRing (for No. 3 accumulator piston)90301-26190
35421SRing (for No. 3 accumulator piston)90301-22185
35422FValve damping stop35422-22010 · 35422-30010
35423B-2 Accumulator Piston35423-30020 · 35423-30030
35423ACompression spring (for B-2 accumulator piston)90501-24009 · 90501-25026 · 90501-27019 · 90501-28002 · 90501-28011 · 90501-28025 · 90501-32017
35423BO-ring (for B-2 accumulator piston)90301-23194 · 90301-31002
35423CDirect sales (for B-2 accumulator piston)90250-12004
35424DCompression spring (for C-1 accumulator piston)90501-20016 · 90501-20063
35425Pressure regulator valve sleeve seat35425-14010
35425AC-2 Accumulator Piston35425-30010 · 35425-30020
35425BCompression spring (for C-2 accumulator piston)90501-21008 · 90501-22010 · 90501-22015 · 90501-22016 · 90501-25002 · 90501-25027 · 90501-27016 · 90501-32018
35425CO-ring (for C-2 accumulator piston)90301-25003 · 90301-31002
35425EDirect sales (for C-2 accumulator piston)90250-14002
35426AC-0 Accumulator Piston35426-30010 · 35426-40010
35426BO-ring (for C-0 accumulator piston)90301-24001
35426CCompression spring (for C-0 accumulator piston)90501-22008 · 90501-23062 · 90501-23073
35427EB-0 accumulator piston35427-30030 · 35427-30040
35427FCompression spring (for B-0 accumulator piston)90501-20087 · 90501-21006 · 90501-22007 · 90501-23095
35427GO-ring (for B-0 accumulator piston)90301-20002 · 90301-26002
35428Cpressure relief plug35428-30010
35428DClip (for pressure relief plug)90468-05068
35430Rear upper valve body assembly35430-26020 · 35430-28020
35430ABall (for rear upper valve body)35495-22020 · 90360-06023
35432No. 1 valve body plate35432-22071 · 35432-30071 · 35432-35032 · 35432-35080 · 35432-35090 · 35432-35100 · 35432-35130
35433No. 1 valve body gasket35433-14012 · 35433-30052 · 35433-30064
35434No. 2 valve body gasket35434-14012 · 35434-30052 · 35434-30076
35435No. 3 valve body plate gasket35435-30030
35436ANo. 4 valve body plate gasket35436-30040
354373rd-4th gear shift valve separation plate35437-22040 · 35437-30020
35438DAccumulator control valve spring seat35438-22020
35438FLock spring seat35438-22020
35440Front upper valve body assembly35440-30051 · 35440-30081
35440ABall (for front upper valve body)35495-22020
35441CSolenoid valve oil filter35441-30020 · 35441-30030 · 35441-30031
35444intermediate regulator valve35444-22010
35444ACompression spring (for intermediate regulator valve)90501-09686 · 90501-11009
35444Drelease control valve35444-30020
35444HDirect pin (for intermediate regulator valve plunger)90250-03045
35445Low speed regulator valve35445-22010
35445ACompression spring (for low speed regulator valve)90501-08725
35445HSecond gear slide regulator valve35445-30011
35445JPlunger (for second gear slide regulator valve)90339-04002
35445PCompression spring (for second gear coast regulator valve)90501-10081 · 90501-10140 · 90501-11026
35445QLow gear coast regulator valve35445-30011
35445RCompression spring (for low range coast regulator valve)90501-08066 · 90501-08088 · 90501-08168
35445VPlunger (for low range coast regulator valve)90339-04002
35446governor regulator valve35446-20010
35449sequence valve35447-22010
35449ACompression spring (for sequence valve)90501-12726
35449BPressure reducing valve35449-32010
35449CCompression spring (for pressure reducing valve)90501-09032
35450DUpper valve body assembly35450-35031 · 35450-35040 · 35450-60020
35450EBall (for upper valve body)35495-22020 · 35496-22030 · 90360-06004
35454Low gear coast shift valve35454-30010
354551-2 gear low gear shift valve plunger35455-22010
354562nd-3rd gear shift valve35456-22010 · 35456-30060
35456ACompression spring (for 2-3 gear shift valve)90501-08724 · 90501-09053
35456CPlunger (for 2-3 gear shift valve)35452-22010 · 90339-05014
35456DSeat (for 2-3 gear shift valve)35493-22020
35456FStraight key (for 2-3 gear shift valve)35493-22020
35457Alock regulator valve35457-22010
35457BCompression spring (for locking regulator valve)90501-09022 · 90501-09025
35457CSeat (for locking regulator valve)35438-22020
35458Dreverse valve35458-22010 · 35458-30030
35458EPlunger (for reverse valve)35459-22010 · 90339-04002
35458FSeat (for reverse valve)35493-22010
35458GCompression spring (for reverse valve)90501-06026
35458HStraight key (for reverse valve)90282-03003
35461Downshift plug35408-30010 · 35408-30040
35461ACompression spring (for downshift plug)90501-10119
35461BDirect sales (for downshift plug)90250-03045
35462throttle valve35462-22011 · 35462-30020
35462ACompression spring (for throttle valve)90501-07051 · 90501-07067 · 90501-07680 · 90501-12011 · 90501-12045
35462DE-ring (for throttle valve)90523-06023
35463A1-2 gear lower shift valve35463-22010
354641-2 gear shift valve35464-12030
35464ACompression spring (for 1-2 gear shift valve)90501-06684 · 90501-09053
35464C1-2 gear upper shift valve35464-22020
35464EPlunger (for 1-2 gear shift valve)90339-05014
35465Intermediate shift valve plunger35465-22010
35467Intermediate shift valve35467-22010
35468CSecondary regulator valve35468-12020 · 35468-22010
35468DCompression spring (for secondary regulator valve)90501-15007 · 90501-19001
35468EStraight key (for secondary regulator valve)35493-22020
35468FPlunger (for secondary regulator valve)90339-05014
35471No. 1 valve body cover35471-22010
35472No. 2 valve body cover35472-22010
35473Transmission valve body cover35473-22010
35474No. 4 valve body cover35474-22010
35475No. 5 valve body cover35475-30020
35476AStraight screw plug (for third-speed coaster shift valve)90334-12001
35476BLocating pin (for third-speed coaster shift valve)90250-02012
35476CThree-speed slide valve35476-30010
35479Intermediate shift valve seat35479-22010
35487BNo. 4 one-way ball35487-30010
35487CCompression spring (for one-way balls)90504-05006
35491Reverse brake plug35491-22010
35491ANo. 1 accumulator control valve35491-30020 · 35491-35020
35491BCompression spring (for No. 1 accumulator control valve)90501-08077 · 90501-08083 · 90501-08096
35492AManual downshift timing valve35492-30010
35492BPlunger (for manual downshift timing valve)35494-30010
35492CValve seat (for manual downshift timing valve)35493-30040
35492EAccumulator control valve sleeve35492-30030 · 35492-35020
35493Shift valve spring seat35493-22010
35493AMain regulator valve plunger seat35493-30020
35493B1-2 gear shift valve plunger seat35493-30090
35493D3rd-4th gear shift valve plunger seat35493-30090
35493ESecond gear slide regulator valve plunger seat35493-30080 · 35493-30090
35493GLow gear coast regulator valve plunger seat35493-30080 · 35493-30090
35495BOne-way ball No. 135495-22020
354973rd-4th gear shift valve35497-30020 · 35497-30040
35497ACompression spring (for 3-4 gear shift valve)90501-09053 · 90501-10060 · 90501-11010
35497CPlunger (for 3-4 gear shift valve)90334-13001 · 90339-05014
35497ENeedle roller (for 3-4 gear shift valve)90361-02051
354983rd-4th gear slide shift valve35498-30010
354993rd-4th gear shift valve plunger35499-30030
35499ADirect sales (for 3-4 gear shift valve)90250-02012
35521throttle cam35521-20010 · 35521-22070 · 35521-30010 · 35521-35010
35521ASpring (for throttle cam return)90508-11007 · 90508-12331
35521BGasket (for throttle cam assembly)90201-06472
35521CBolt (for throttle cam assembly)90105-06018
35522Throttle valve cam pin35522-22010
35599Manual locking spring cover35599-30010 · 35599-30020
35892overdrive brake pipe35892-28010 · 35892-30020
35893AThrottle valve pressure oil pipe35893-35010
35895Front clutch oil supply pipe35895-30021
35897ANo. 1 first and reverse brake pipe35897-35010
