Toyota HILUX 中央支架和行星太阳齿轮(ATM) — Figure 3508

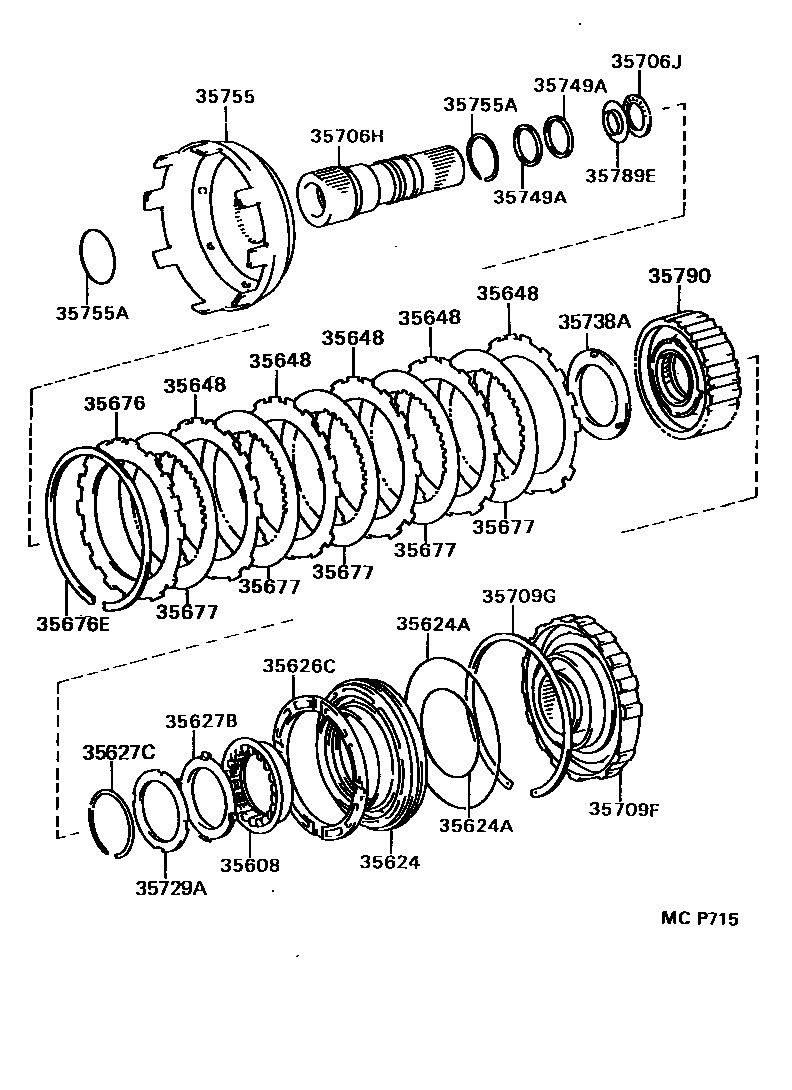

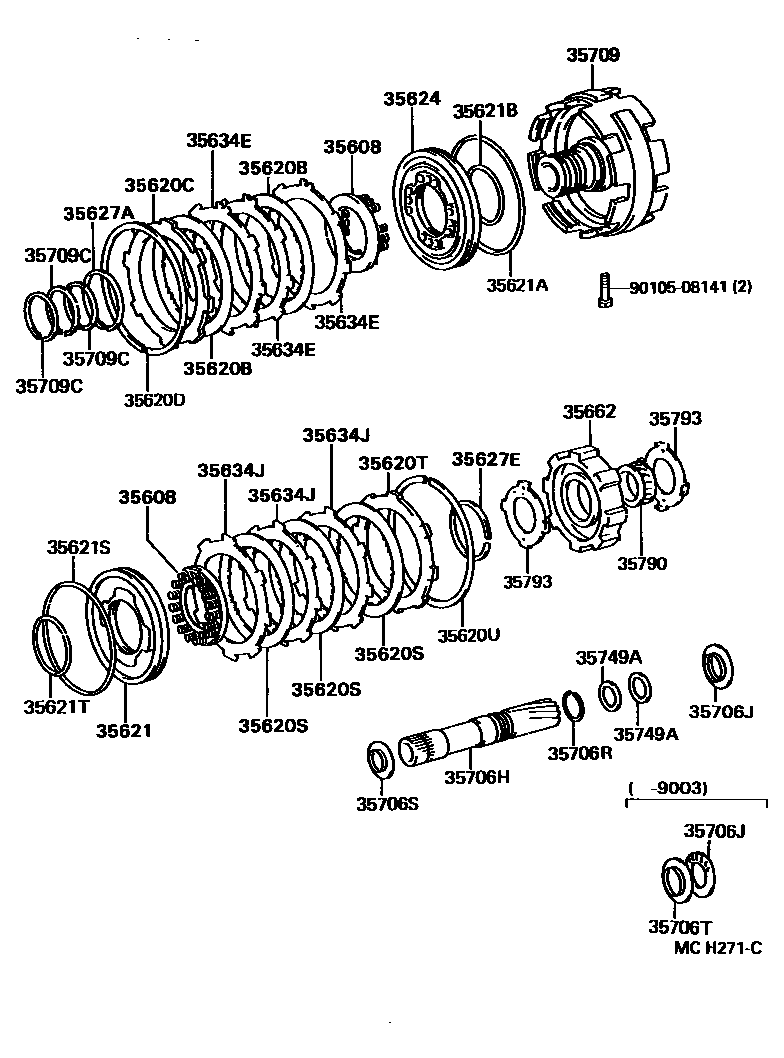

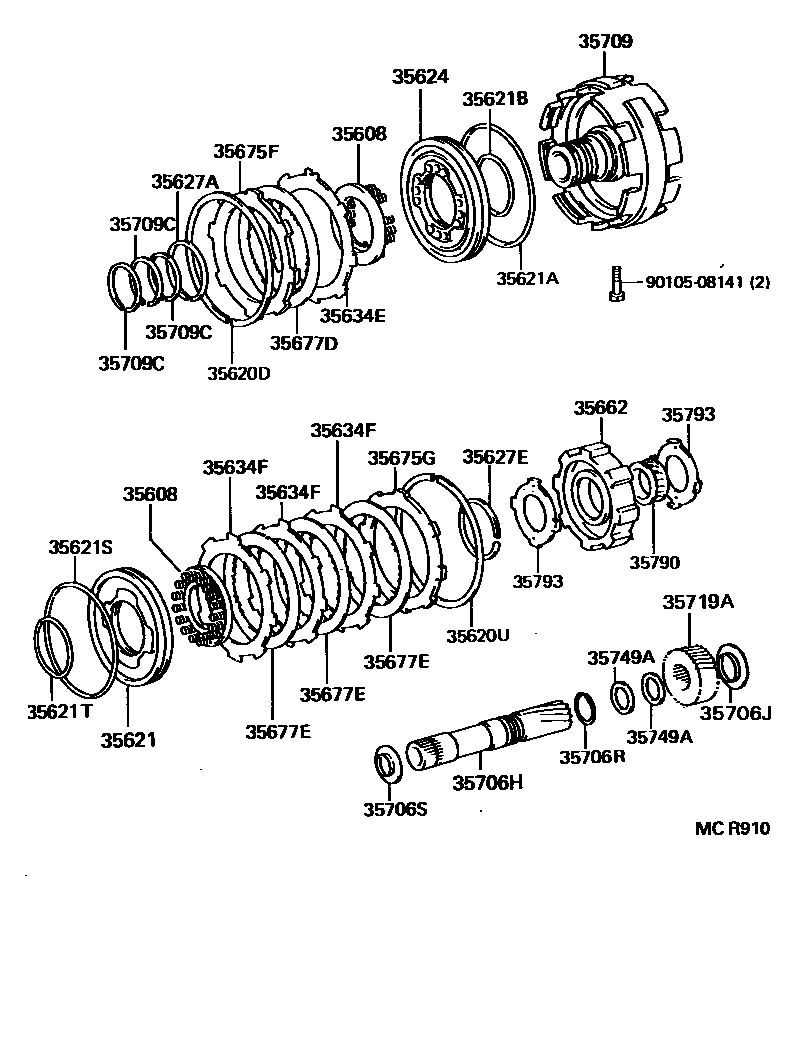

Toyota HILUX EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 3 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35608 | Second gear brake piston return spring sub-assembly | 35608-20010 · 35608-30010 · 35608-30020 |
| 35620B | Clutch disc (for brakes) | 35677-30100 |
| 35620C | Clutch flange (for brake) | 35675-22010 |
| 35620D | Ring (for brake) | 90521-99139 |
| 35620S | Clutch disc (for rear brake) | 35677-30020 |
| 35620T | Clutch flange (for rear brake) | 35675-22010 |
| 35620U | Ring (for rear wheel brake) | 90521-99139 |
| 35621 | Brake piston No. 1 | 35621-30010 |
| 35621A | Outer O-ring (for brake piston) | 90301-99007 · 90301-99192 |
| 35621B | Inner O-ring (for brake piston) | 90301-57188 |
| 35621S | Outer ring (for rear brake piston) | 90301-99007 · 90301-99192 |
| 35621T | Inner O-ring (for rear brake piston) | 90301-57188 |
| 35624 | Second gear brake piston | 35624-22010 · 35624-30010 |
| 35624A | O-ring (for second gear brake piston) | 90301-85001 · 90301-99038 |
| 35626C | Second gear brake piston sleeve | 35626-30030 · 35626-35010 |
| 35627A | Shaft snap ring (for brake return spring seat) | 90520-52262 |
| 35627B | Second gear brake piston return spring seat | 35627-30010 |
| 35627C | Shaft snap ring (for second gear brake piston return spring seat) | 90520-54001 |
| 35627E | Shaft snap ring (for rear wheel brake return spring seat) | 90520-52262 |
| 35634E | Clutch disc (for brakes) | 35634-22060 |
| 35634F | Clutch disc (for rear brake) | 35634-22060 |
| 35634J | Clutch plate No. 3 | 35634-22060 |
| 35648 | Clutch disc (for second gear brake) | 35647-30020 · 35647-30030 · 35647-30050 |
| 35662 | brake hub | 35662-30010 |
| 35675F | Clutch flange (for brake) | 35675-22010 |
| 35675G | Brake flange (for rear wheel brake) | 35675-22010 |
| 35676 | Brake flange (for second gear brake) | 35676-30020 |
| 35676E | Hole snap ring (for second gear brake) | 90521-99032 |
| 35677 | Clutch disc (for second gear brake) | 35667-30020 |
| 35677D | Clutch disc (for rear brake) | 35677-30100 |
| 35677E | Clutch disc (for rear brake) | 35677-30020 |
| 35706H | Planetary gear train sun gear sub-assembly | 35706-30040 · 35706-30050 · 35706-30061 · 35706-30070 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-21001 · 90374-23012 · 90374-24003 · 90374-30006 |
| 35706R | Shaft snap ring (for planetary gear train sun gear) | 90520-34001 |
| 35706S | Front thrust bearing race (for planetary gear train sun gear) | 35789-22030 |
| 35706T | Rear thrust bearing race (for planetary gear train sun gear) | 35789-22010 |
| 35709 | Middle bracket sub-assembly | 35709-26011 · 35709-28010 |
| 35709C | Oil protection ring (for intermediate bracket) | 35617-16010 |
| 35709F | Second gear brake drum sub-assembly | 35709-30061 · 35709-50010 |
| 35709G | Hole snap ring (for second gear brake drum) | 90521-99044 |
| 35719A | Rear planetary gear train sun gear | 35719-30050 |
| 35729A | No. 4 planetary gear carrier thrust washer | 35729-30010 |
| 35738A | No. 1 one-way clutch thrust washer | 35738-30040 |
| 35749A | Sun gear shaft oil ring | 35749-22010 · 35749-30010 |
| 35755 | sun gear input drum | 35755-30010 · 35755-50010 |
| 35755A | Shaft snap ring (for sun gear input drum) | 90520-46002 · 90520-49001 |
| 35789E | Thrust bearing race (for planetary gear train sun gear) | 35789-30150 |
| 35790 | One-way clutch assembly | 35790-30030 · 35790-30060 · 35790-50010 · 35791-30020 |
| 35793 | One way clutch retaining ring | 35793-22011 |
