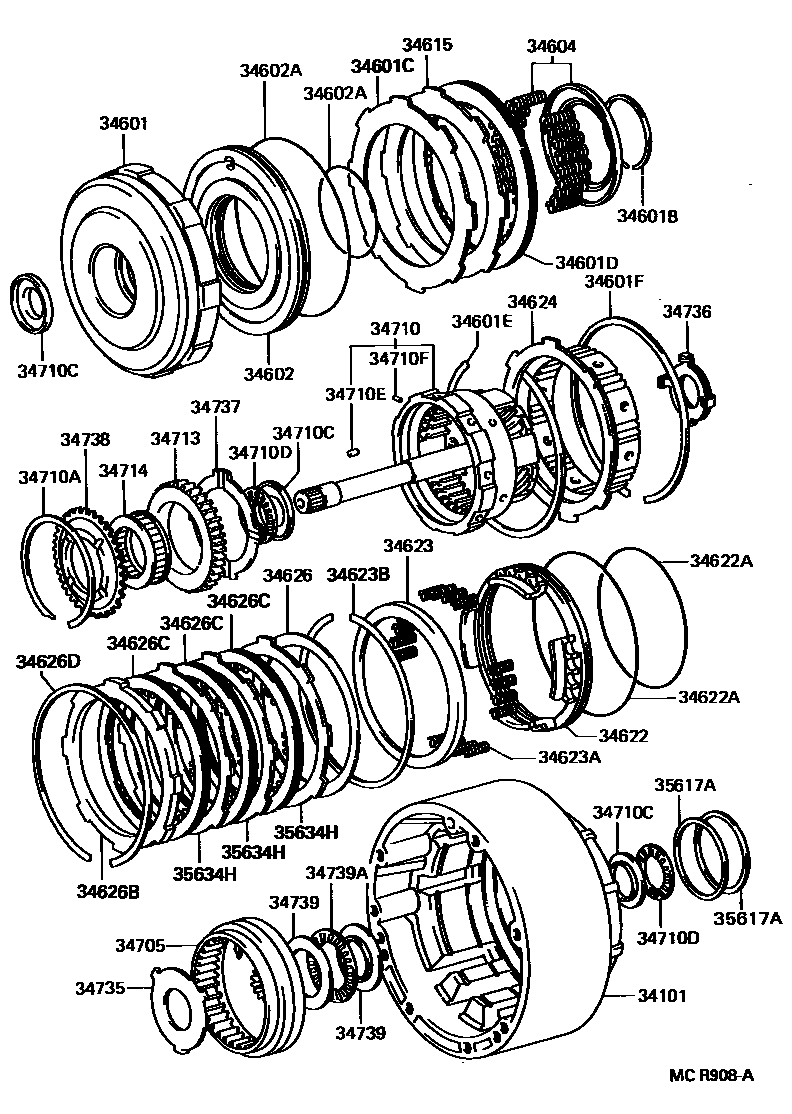

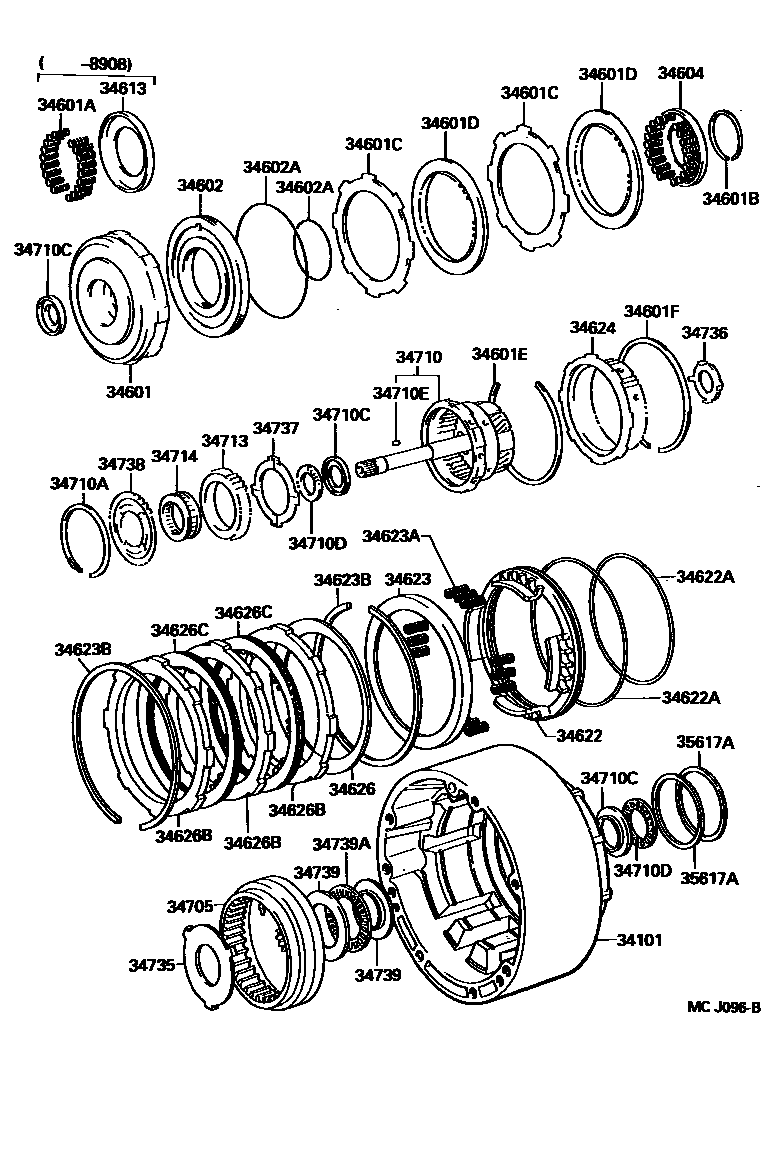

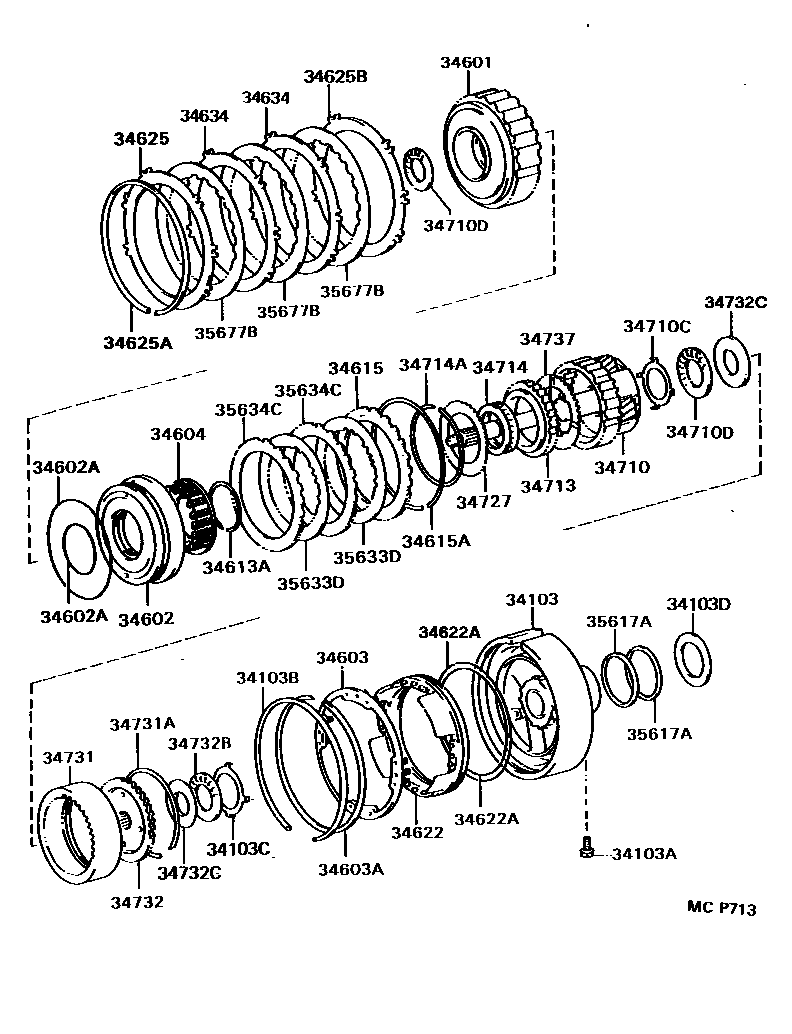

Toyota HILUX 超速档齿轮(ATM) — Figure 3506
Toyota HILUX EPC diagram 3506, 超速档齿轮(ATM), with 3 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34101 | Overspeed gear housing sub-assembly | 34101-30062 |
| 34103 | Overdrive bracket sub-assembly | 34103-30011 · 34103-50010 |
| 34103A | Bolt (for overdrive bracket) | 90105-08065 · 90105-08281 |
| 34103B | Hole snap ring (for overdrive bracket) | 90521-99033 |
| 34103C | Thrust bearing race (for front overdrive bracket) | 35789-22060 |
| 34103D | Thrust bearing race (for rear overdrive bracket) | 35789-30090 |
| 34601 | Overspeed direct gear clutch drum sub-assembly | 34601-30022 · 34601-35010 · 34601-60020 |
| 34601A | Compression spring (for overdrive direct clutch) | 90501-11023 |
| 34601B | Shaft snap ring (for overdrive direct gear clutch) | 90520-52262 |
| 34601C | Clutch disc (for overdrive) | 35634-22040 · 35634-30070 |
| 34601D | Clutch disc (for overdrive) | 35677-24010 · 35677-30160 |
| 34601E | No. 1 hole snap ring (for overdrive gear) | 90521-99146 |
| 34601F | No. 2 hole snap ring (for overdrive gear) | 90521-99001 |
| 34602 | Overspeed direct gear clutch piston sub-assembly | 34602-30011 · 34602-30020 · 34602-50010 |
| 34602A | O-ring (for overspeed direct clutch piston) | 90301-57188 · 90301-65005 · 90301-99016 · 90301-99036 |
| 34603 | Overdrive brake return spring sub-assembly | 34603-30010 · 34603-50010 |
| 34603A | Hole snap ring (for overdrive brake return spring) | 90521-99031 |
| 34604 | Overdrive clutch return spring sub-assembly | 34604-22010 · 34604-30010 |
| 34613 | Overdrive direct gear clutch return spring seat | 34613-30010 |
| 34613A | Shaft snap ring (for overdrive direct gear clutch return spring) | 90520-58001 |
| 34615 | Overdrive clutch flange | 34615-30010 · 34615-30020 · 34615-30030 · 34615-30040 · 34615-30050 · 34615-30060 · 34615-30070 |
| 34615A | Hole snap ring (for overdrive clutch flange) | 90521-99001 |
| 34622 | overdrive brake piston | 34622-30040 · 34622-30070 · 34622-35010 · 34622-35020 · 34622-60020 |
| 34622A | O-ring (for overdrive brake piston) | 90301-99008 · 90301-99009 · 90301-99035 · 90301-99037 · 90301-99063 · 90301-99064 |
| 34623 | Overdrive brake return spring seat | 34623-30020 |
| 34623A | Compression spring (for overdrive brake return spring seat) | 90501-10671 · 90501-11023 |
| 34623B | Hole snap ring (for overdrive brake return spring seat) | 90521-99004 |
| 34624 | overdrive brake hub | 34624-26010 · 34624-32010 |
| 34625 | No. 1 overdrive brake flange | 34625-30040 · 34625-30050 · 34625-30060 · 34625-30070 · 34625-30080 · 34625-30090 · 34625-30100 · 34625-30120 · 34625-30130 · 34625-30140 · 34625-30150 · 34625-30160 · 34625-30170 · 34625-30180 |
| 34625A | Hole snap ring (for overdrive brake flange) | 90521-99027 |
| 34625B | No. 2 overdrive brake flange | 34625-30030 · 34625-30110 |
| 34626 | overdrive brake cushion | 34626-30050 |
| 34626B | Rear clutch flange (for overdrive) | 34625-26010 |
| 34626C | Clutch disc (for overdrive) | 35677-30040 |
| 34626D | Hole snap ring (for overdrive) | 90521-99004 |
| 34634 | overdrive brake pads | 34634-30020 · 34634-30021 |
| 34705 | Overdrive planetary ring gear sub-assembly | 34705-30021 |
| 34710 | Overdrive planetary gear assembly | 34710-14011 · 34710-30022 · 34710-30030 · 34710-60020 |
| 34710A | Hole snap ring (for overdrive planetary gear) | 90521-99003 |
| 34710C | Thrust bearing race (for overdrive planetary gear) | 34739-30031 · 34739-30041 · 35789-22010 · 35789-30050 |
| 34710D | Thrust needle roller bearing (for overdrive planetary gear) | 90374-23012 · 90374-24001 · 90374-25005 · 90374-28008 |
| 34710E | Straight screw plug (for overdrive planetary gear) | 90334-03001 |
| 34710F | Direct sales (for overdrive planetary gears) | 90250-03024 |
| 34713 | One-way clutch outer race (for overdrive) | 34713-30020 · 34713-32010 |
| 34714 | One-way clutch (for overdrive) | 35791-30030 · 35791-30040 · 35791-50010 |
| 34714A | Hole snap ring (for one-way clutch) | 90521-99028 |
| 34727 | Block (for overdrive) | 34727-32010 |
| 34731 | Overdrive planetary ring gear | 34731-30030 · 34731-50010 |
| 34731A | Hole snap ring (for overdrive planetary ring gear) | 90521-99024 |
| 34732 | Overdrive planetary gear flange | 34732-22010 · 34732-50010 |
| 34732B | Thrust bearing (for overdrive planetary gear flange) | 90374-33002 |
| 34732C | Thrust bearing race (for overdrive planetary ring gear) | 35789-30060 |
| 34735 | No. 1 overdrive planetary gear thrust washer | 34735-30020 |
| 34736 | No. 2 overdrive planetary gear thrust washer | 34736-30010 |
| 34737 | No. 3 overdrive planetary gear thrust washer | 34737-30020 · 34737-30030 · 34737-50010 |
| 34738 | No. 4 overdrive planetary gear thrust washer | 34738-30020 |
| 34739 | Thrust bearing race (for overdrive) | 34739-30020 · 35789-22030 |
| 34739A | Thrust needle roller bearing (for overdrive) | 90374-28014 |
| 35617A | Clutch drum oil guard (for overdrive) | 35617-16010 · 35617-30020 |
| 35633D | Clutch disc (for overdrive direct clutch) | 35633-14010 · 35633-30040 |
| 35634C | Clutch disc (for overdrive direct gear clutch) | 34616-30010 · 34616-50010 |
| 35634H | Clutch disc (for overdrive) | 35634-30080 |
| 35677B | Clutch disc (for overdrive brake) | 34633-30010 |
