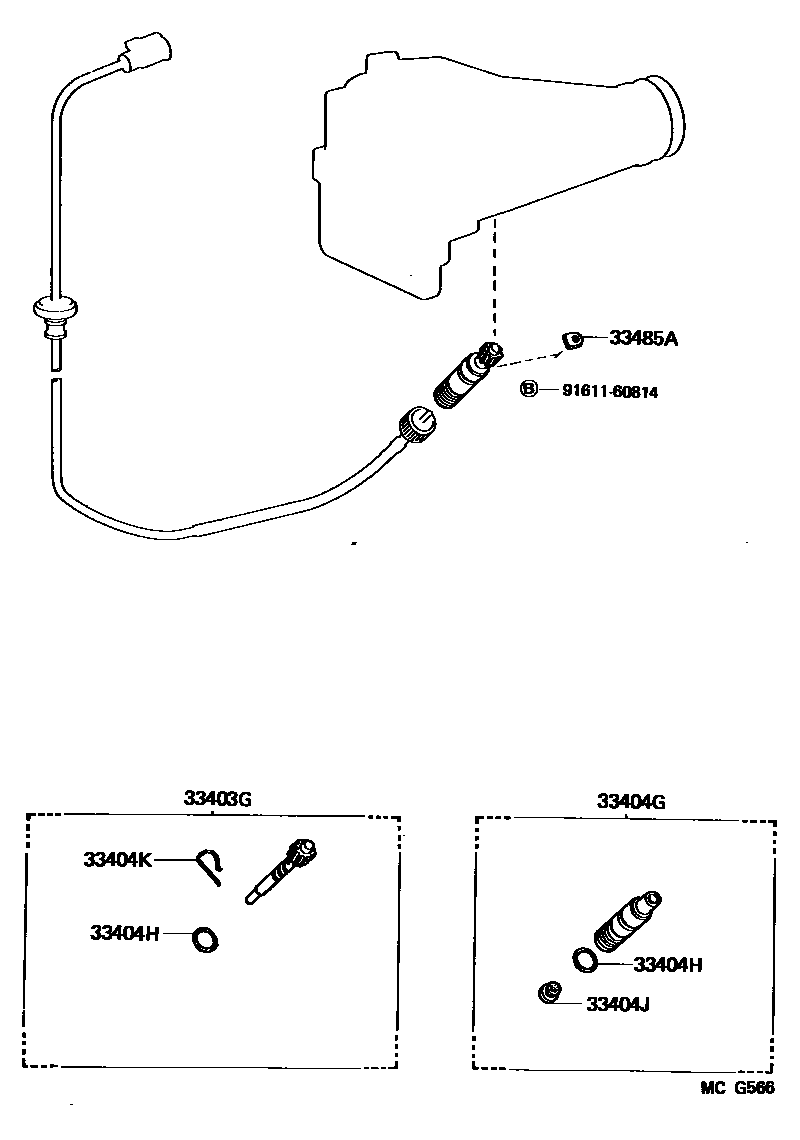

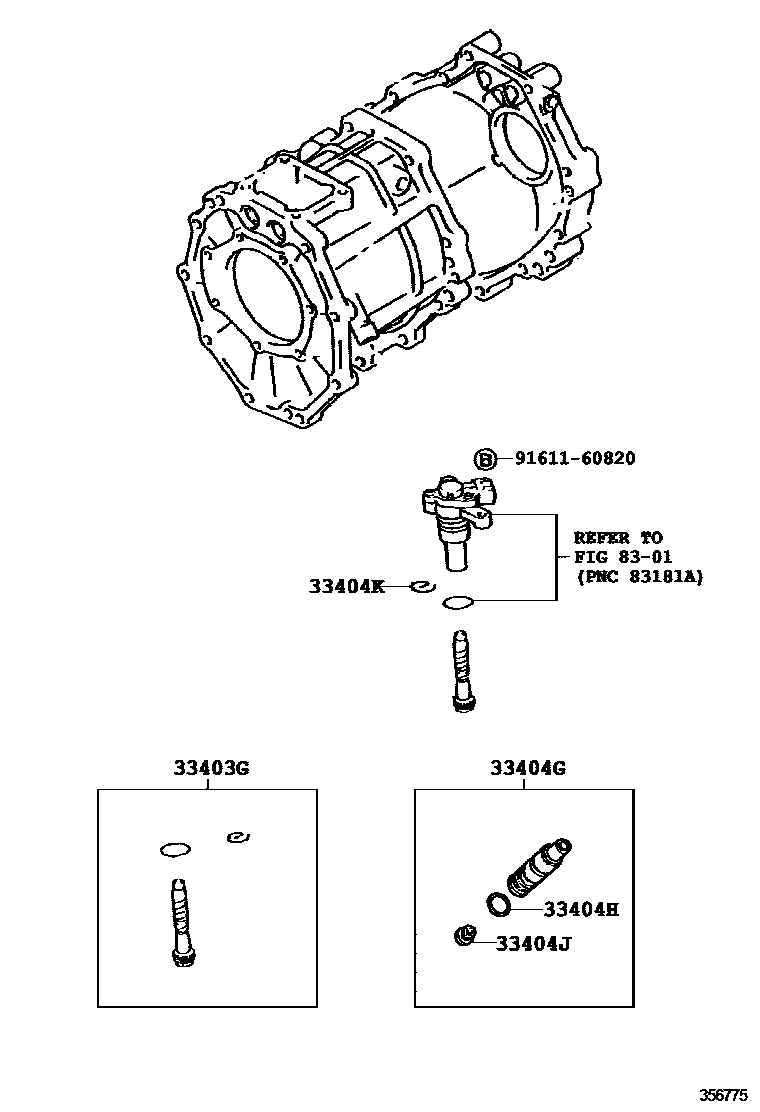

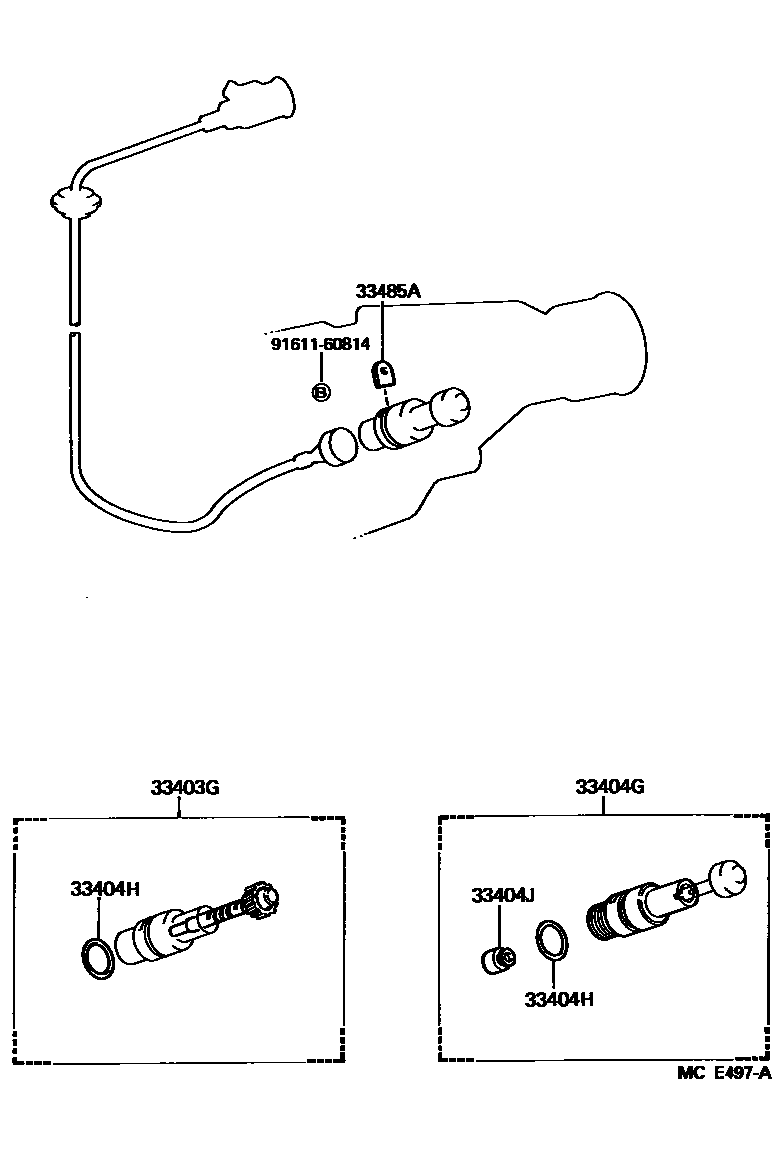

Toyota HILUX 速度表从动齿轮(ATM) — Figure 3505
Toyota HILUX EPC diagram 3505, 速度表从动齿轮(ATM), with 5 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403G | Speedometer driven gear sub-assembly (ATM) | 33403-29115 · 33403-29135 · 33403-29145 · 33403-29325 · 33403-39205 · 33403-39315 · 33403-39345 · 33403-39425 · 33403-69135 · 33482-29055 · 33482-29205 · 33482-39045 · 33482-39385 |
| 33404G | Speedometer shaft sleeve sub-assembly (ATM) | 33404-22010 · 33404-30040 · 33404-35010 |
| 33404H | O-ring (for automatic transmission speedometer shaft sleeve) | 90301-18004 · 90301-18018 · 96711-24030 |
| 33404J | Oil seal (for automatic transmission speedometer shaft sleeve) | 90310-09001 |
| 33404K | Clamp (for automatic transmission speedometer shaft sleeve) | 90468-12005 |
| 33485A | Speedometer sleeve locking plate (ATM) | 33485-30020 |
