Toyota HILUX 换档拨叉和换档杆轴(MTM) — Figure 3307

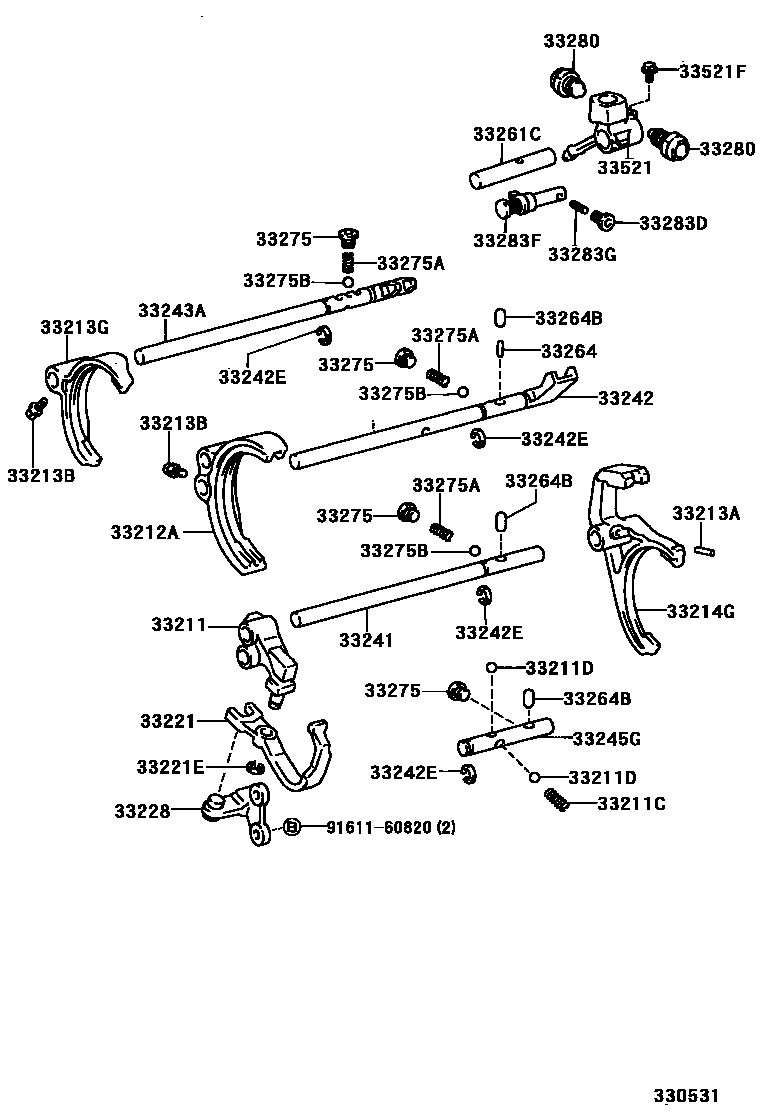

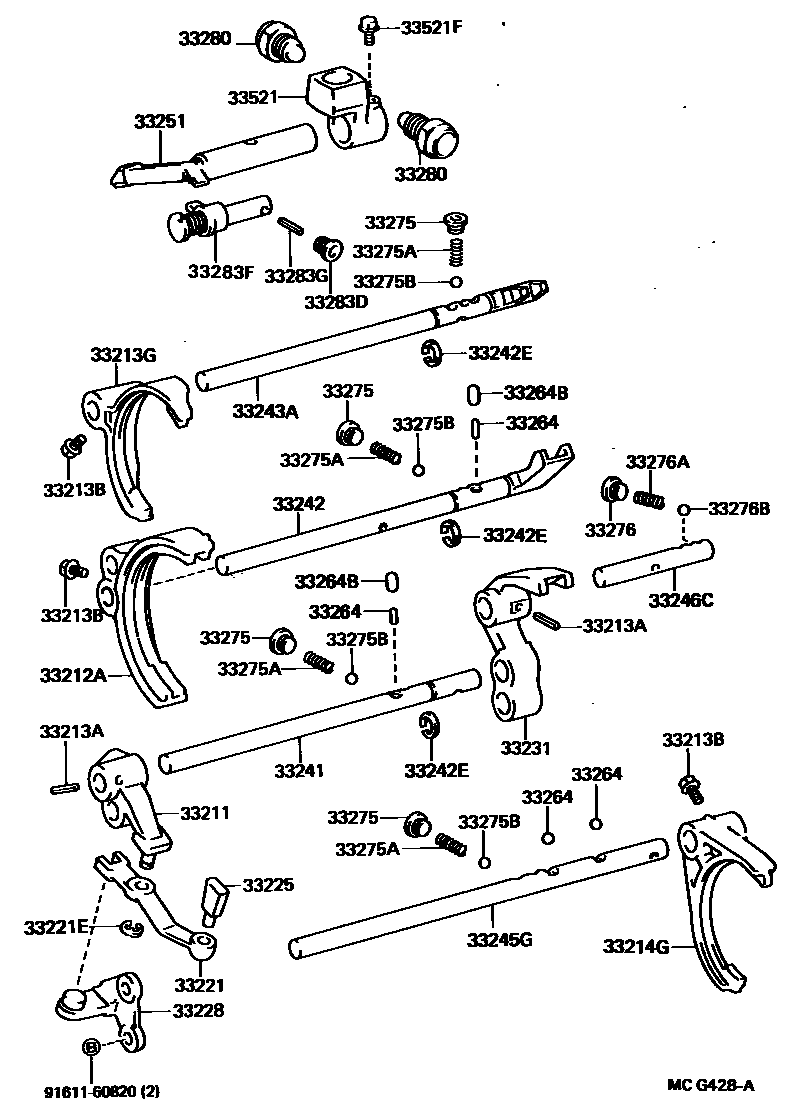

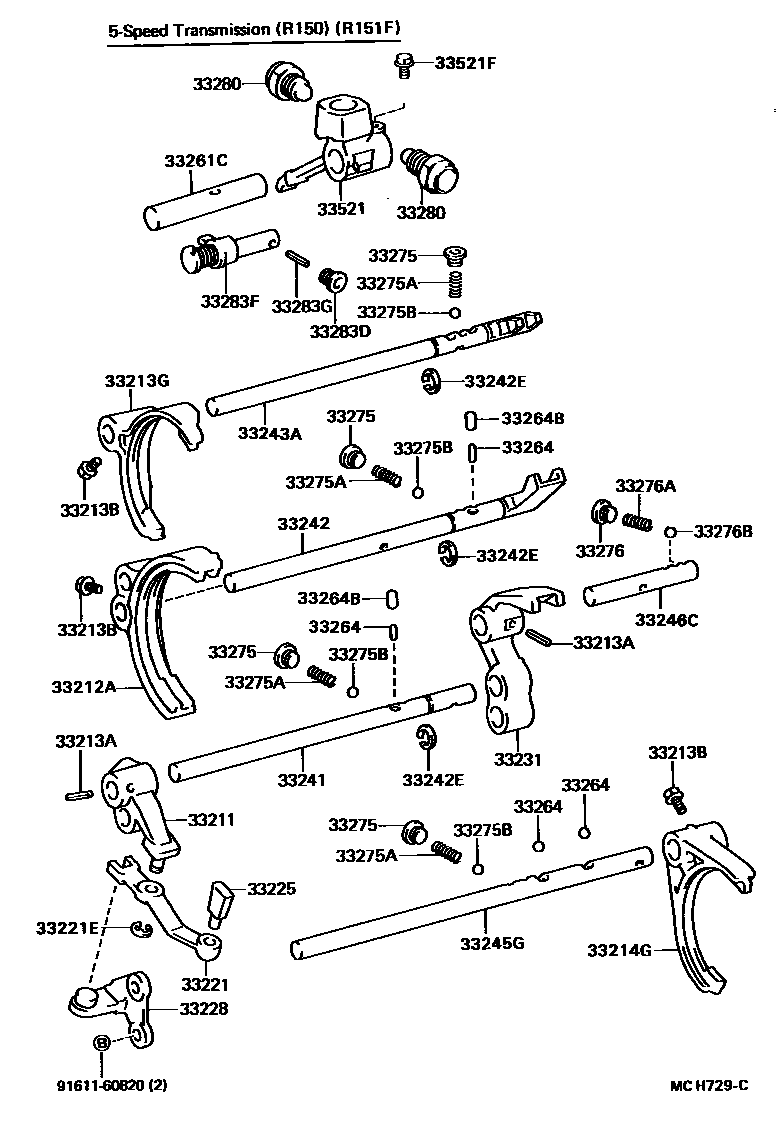

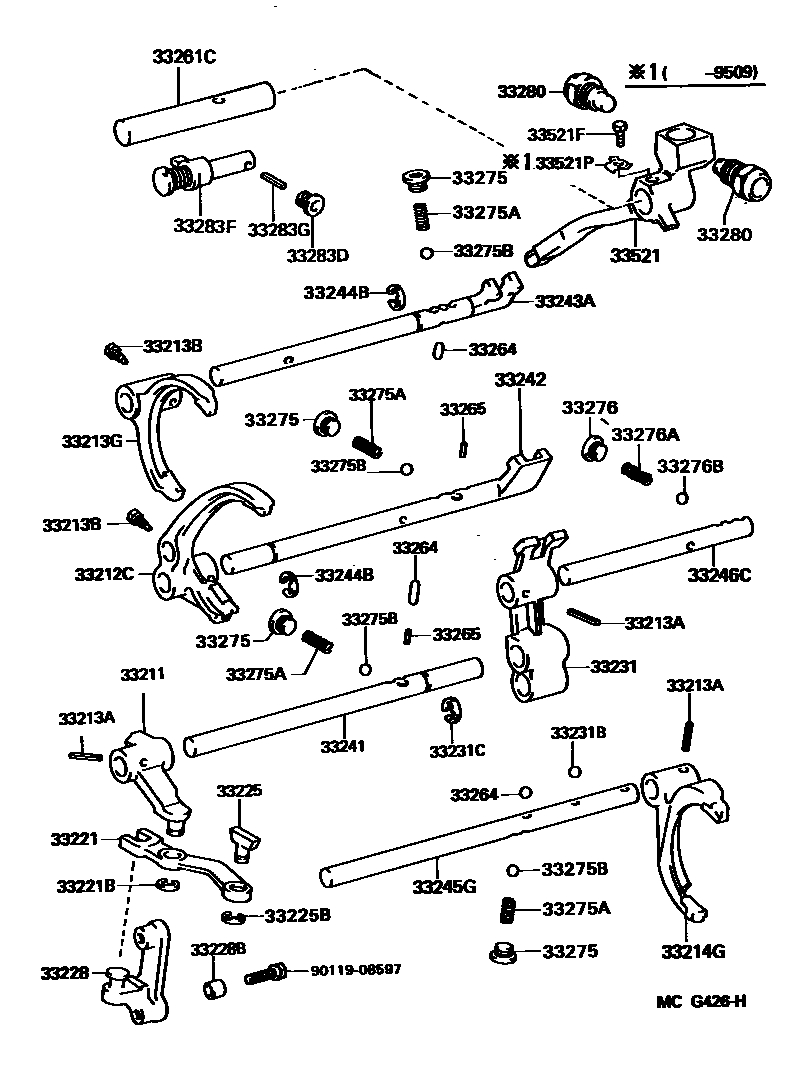

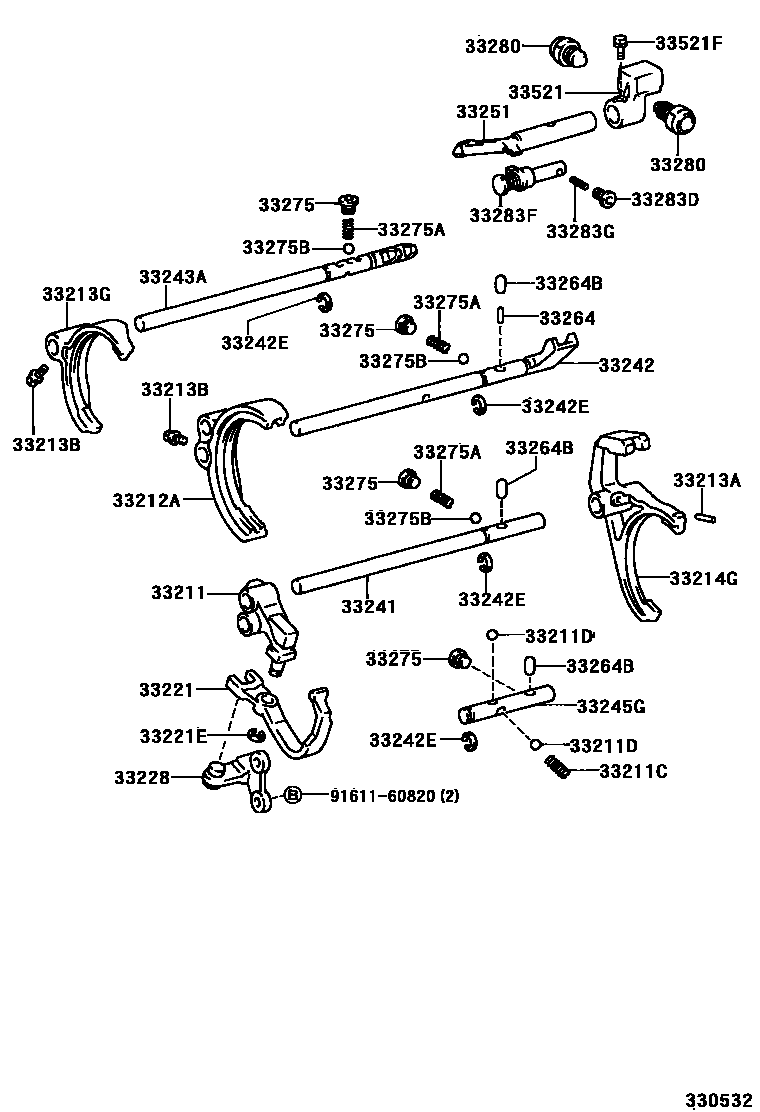

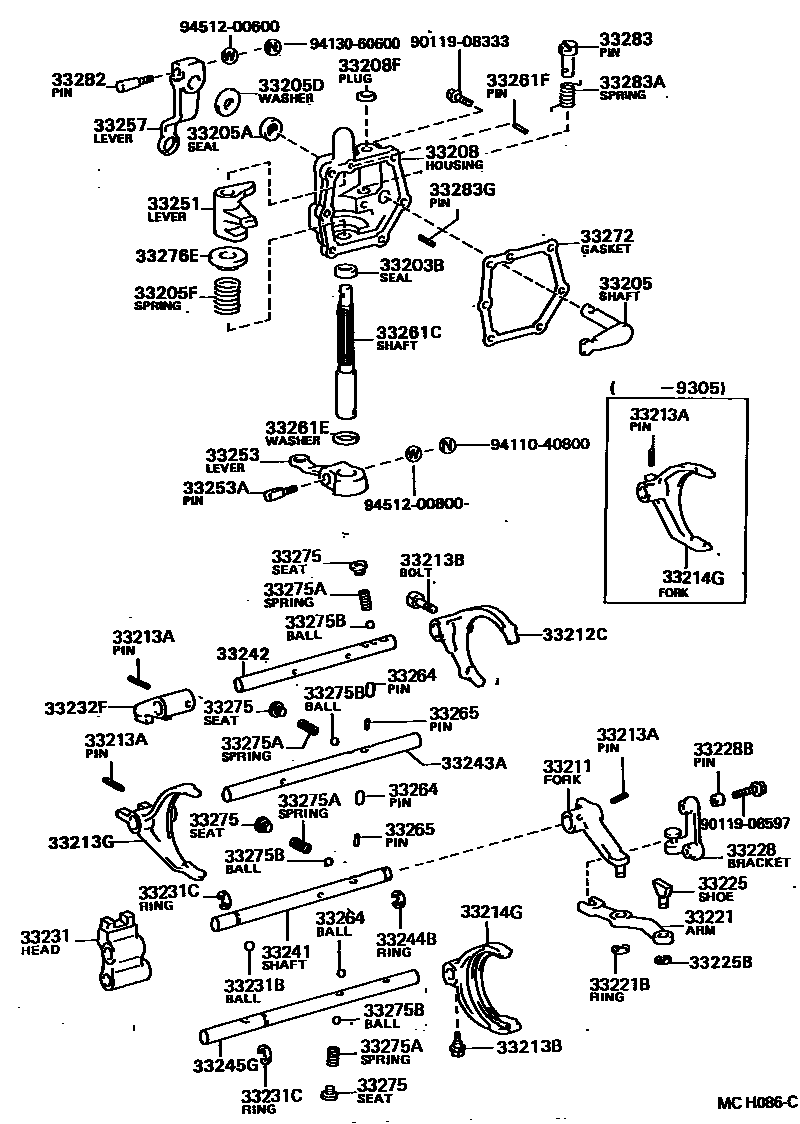

Toyota HILUX EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 6 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33203B | Oil seal (for shift lever shaft) | 90311-18002 |
| 33205 | Selector lever shaft sub-assembly | 33262-28020 |
| 33205A | Oil seal (for No. 2 shift lever shaft) | 90313-13001 |
| 33205D | Washer (used to secure the outer shift lever oil seal) | 90201-13029 · 94612-11300 |
| 33205F | Compression spring (for gear selector return) | 90501-18044 |
| 33208 | Shift lever shaft cover sub-assembly | 33271-35030 |
| 33208F | Sealing plug (for shift lever shaft cover) | 96411-41200 |
| 33211 | Reverse Shift Fork | 33211-28010 · 33211-35030 · 33211-35050 |
| 33211C | Compression spring (for reverse shift fork return) | 90501-12166 |
| 33211D | Steel ball (for reverse shift fork) | 90360-10003 |
| 33212A | No. 1 shift fork | 33212-35032 |
| 33212C | No. 1 shift fork | 33212-26030 · 33212-35023 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 · 90254-05016 |
| 33213B | Bolt (for securing shift fork) | 90105-06052 · 90105-06077 · 90105-06143 |
| 33213G | No. 2 shift fork | 33213-28011 · 33213-35032 · 33213-35033 · 33213-35040 · 33220-26010 |
| 33214G | No. 3 shift fork | 33214-26020 · 33214-28010 · 33214-35020 · 33214-35030 · 33214-35040 · 33230-35010 |
| 33221 | Reverse shift arm | 33221-28010 · 33221-35030 · 33221-35050 |
| 33221B | E-ring (for reverse shift arm) | 96160-01000 |
| 33221E | Ring (for reverse shift arm end shaft) | 96160-01000 |
| 33225 | shift arm shoe | 33225-35030 · 33225-35040 |
| 33225B | E-ring (for shift arm shoe) | 96160-00800 |
| 33228 | Reverse shift arm bracket | 33228-28010 · 33228-35010 · 33228-35030 |
| 33228B | Ring pin (for reverse shift arm bracket) | 90253-11001 |
| 33231 | Reverse gear shift guide block | 33231-28010 · 33231-28020 · 33231-35040 · 33231-35060 · 33231-35061 · 33231-35070 |
| 33231B | Reverse gear shift positioning steel ball | 90360-10003 |
| 33231C | Ring (for reverse shift guide block) | 90520-12003 · 90520-12006 |
| 33232F | No. 1 transmission guide block | 33232-28010 · 33232-28020 |
| 33241 | Reverse shift fork shaft | 33244-28011 · 33244-35021 · 33244-35040 · 33244-35050 · 33244-35060 |
| 33242 | No. 1 shift fork shaft | 33242-26020 · 33242-35022 · 33242-35030 · 33242-35031 · 33242-35040 · 33242-35050 · 33242-60050 · 33242-60051 |
| 33242E | Shaft snap ring (for shift fork shaft) | 90520-12003 |
| 33243A | No. 2 shift fork shaft | 33243-35042 · 33243-35051 · 33243-35070 · 33243-35071 · 33243-35080 |
| 33244B | Shaft snap ring (for shift fork shaft) | 90520-12003 · 90520-12006 |
| 33245G | No. 4 shift fork shaft | 33245-26010 · 33245-28011 · 33245-35040 · 33245-35050 · 33245-35070 · 33245-35080 · 33245-35090 |
| 33246C | No. 5 shift fork shaft | 33246-35020 · 33246-35030 |
| 33251 | shift lever | 33251-28011 · 33251-28012 · 33251-28030 · 33251-35100 · 33251-35101 · 33251-35150 |
| 33253 | No. 1 outer shift lever | 33253-35070 |
| 33253A | Shift lever lock pin (for outer shift lever) | 33281-16020 |
| 33257 | External gear selector | 33257-35070 |
| 33261C | shift lever shaft | 33261-35080 · 33261-35090 · 33261-35100 · 33261-35120 · 33261-35130 |
| 33261E | Washer (for shift lever shaft) | 94612-11800 |
| 33261F | Direct sales (for shift lever shaft) | 90250-05020 |
| 33264 | No. 1 shift interlock pin or steel ball | 90250-05029 · 90360-10003 · 90361-10002 · 90361-10003 |
| 33264B | Roller No. 1 (for shift interlock) | 90361-10003 |
| 33265 | No. 2 shift interlock pin | 90250-05020 |
| 33272 | Shift lever shaft cover gasket | 33272-28010 |
| 33275 | No. 1 shift lock steel ball spring seat | 90341-12008 · 90341-12014 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-14061 · 90501-14062 · 90501-14096 · 90501-14123 · 90501-14132 · 90501-16143 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33276 | No. 2 shift lock steel ball spring seat | 90341-12008 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-10061 |
| 33276B | No. 2 shift lock steel ball | 90360-10003 |
| 33276E | No. 1 gear selector spring seat | 33276-28011 |
| 33280 | Reverse gear positioning pin assembly | 33280-35020 · 33280-35021 · 33280-35030 · 33280-35031 · 33280-35060 · 33280-35062 · 33280-35070 |
| 33282 | No. 2 shift lever lock pin | 33282-35010 |
| 33283 | No. 1 reverse gear positioning pin | 33283-27010 · 33283-28011 |
| 33283A | Compression spring (for reverse gear pin) | 90504-10007 · 90504-10008 |
| 33283D | Screw plug (for reverse gear positioning pin) | 90341-12008 · 90341-12014 |
| 33283F | Reverse gear positioning pin | 33280-35040 · 33280-35050 · 33280-35100 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-04015 · 90254-05001 |
| 33521 | shift lever housing | 33521-35090 · 33521-35130 · 33521-35131 · 33521-35150 · 33521-35240 · 33521-35280 · 33521-35290 |
| 33521F | Pin or bolt (for shifter housing) | 90105-08079 · 90113-08001 · 90254-05016 |
| 33521P | Lock washer (for shift lever housing) | 90215-09003 |
