Toyota HILUX Extended shell (MTM) — Figure 3303

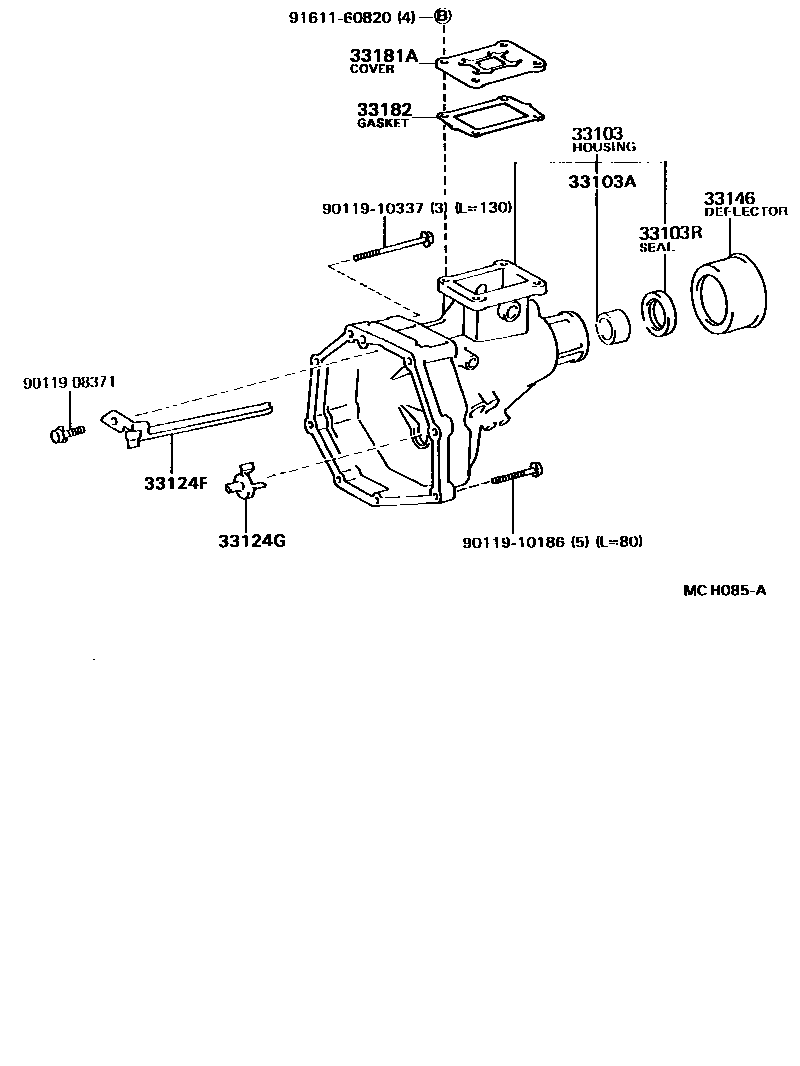

Toyota HILUX EPC diagram 3303, Extended shell (MTM), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33103 | Extended shell sub-assembly (MTM) | 33103-35151 |
| 33103A | Bushing (for manual transmission extension housing) | 90999-73120 |
| 33103R | Oil seal (for manual transmission extension housing) | 90311-38032 |
| 33124F | No. 1 oil collection pipe (for extension housing) | 33124-35010 |
| 33124G | No. 2 oil collection pipe (for extension housing) | 33124-36010 |
| 33146 | Extension housing dust cover (MTM) | 33146-30010 · 33146-30020 |
| 33181A | Extended housing cover (MTM) | 33181-35010 |
| 33182 | Extended cover gasket (MTM) | 33182-35010 |
