Toyota HILUX 离合器总泵 — Figure 3103

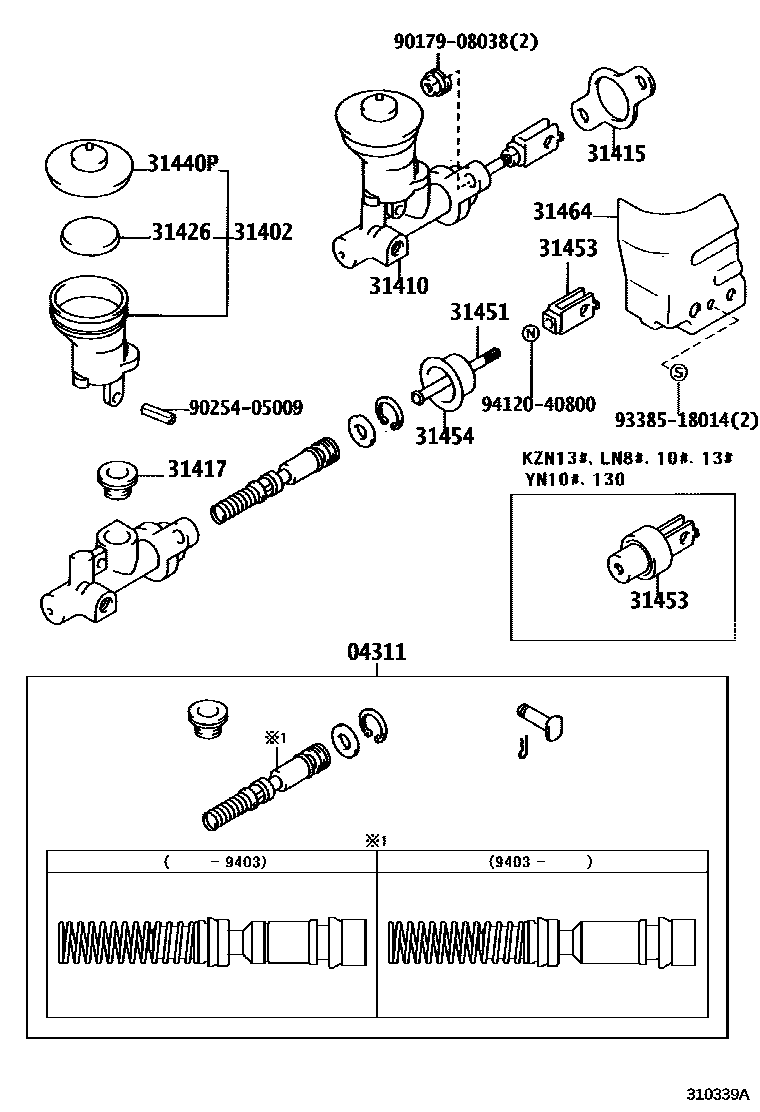

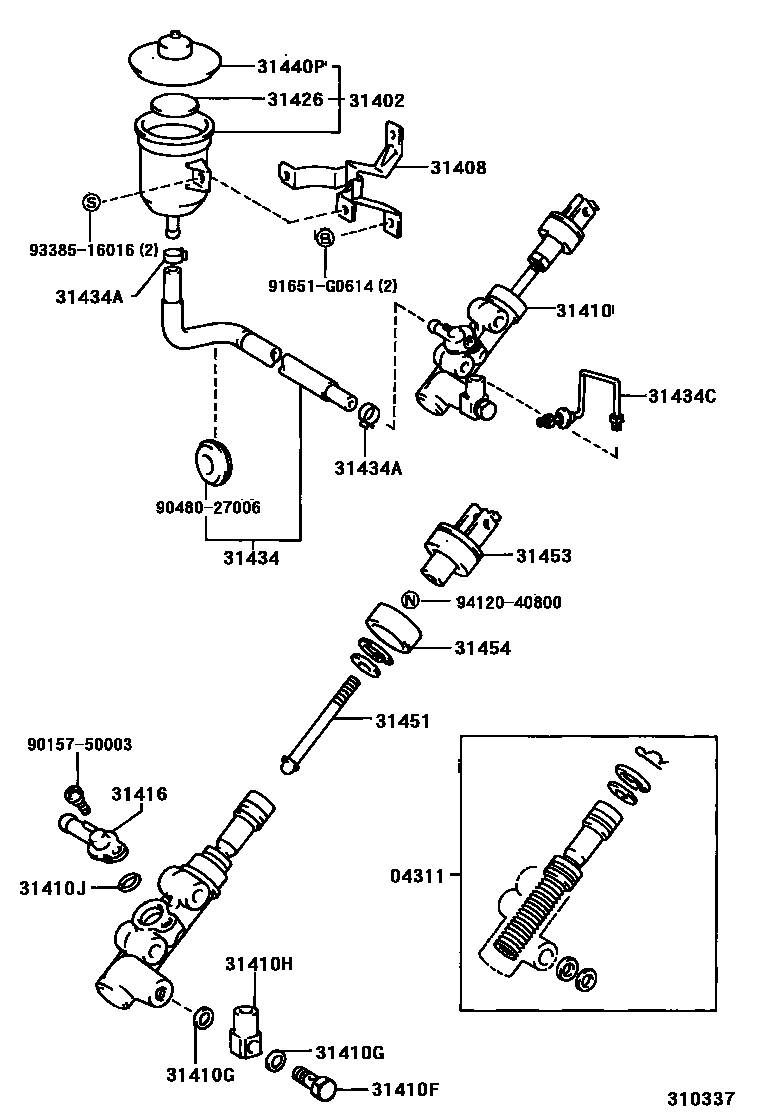

Toyota HILUX EPC diagram 3103, 离合器总泵, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12060 · 04311-12080 · 04311-22040 · 04311-35070 · 04311-35080 · 04311-60150 |
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-10011 · 31402-35030 · 31402-35060 · 31402-35070 · 31402-35080 · 31402-35090 · 31402-35110 |
| 31408 | Clutch reservoir tank fixing frame sub-assembly | 31408-35010 |
| 31410 | Clutch master cylinder assembly | 31410-35250 · 31410-35260 · 31410-35270 · 31410-35271 · 31410-35340 · 31410-35420 · 31420-35060 |
| 31410F | Connector bolt (for clutch master cylinder) | 90401-10046 · 90401-10056 |
| 31410G | Gasket (for clutch master cylinder connector) | 90430-10074 |
| 31410H | Connector (for clutch master cylinder) | 90405-10165 |
| 31410J | O-ring (for clutch master cylinder joint) | 90301-14001 |
| 31415 | Clutch master cylinder gasket | 31415-10010 |
| 31416 | Clutch master cylinder oil inlet joint | 31416-35010 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31434 | Clutch reservoir connecting pipe | 31434-35020 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 96132-30800 |
| 31434C | Clutch reservoir connecting pipe | 31434-35010 |
| 31440P | Clutch master cylinder fluid reservoir filler cap assembly | 47230-20040 |
| 31451 | Clutch master cylinder push rod | 31451-35070 · 31451-35080 · 31451-36040 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-28020 · 31404-35011 · 31404-35020 · 31404-35021 · 31453-35010 |
| 31454 | Clutch master cylinder dust boot | 31454-14010 · 31454-16010 · 31454-24010 |
| 31464 | Clutch master cylinder insulation pad | 31464-35020 |
