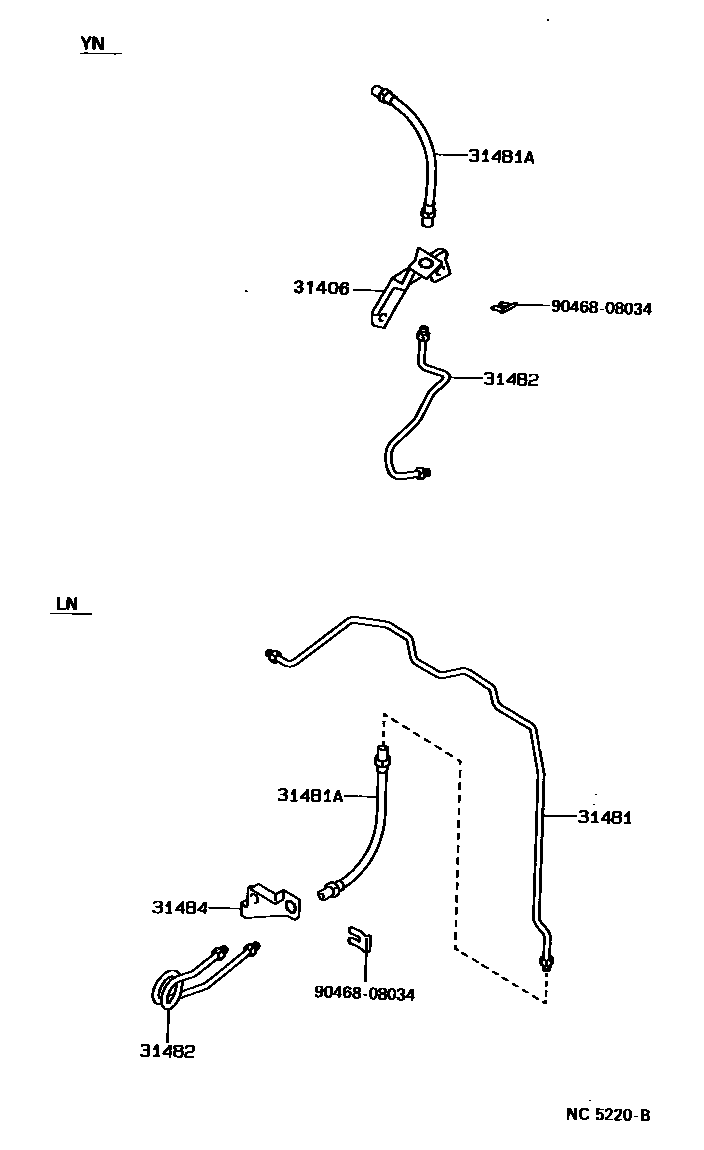

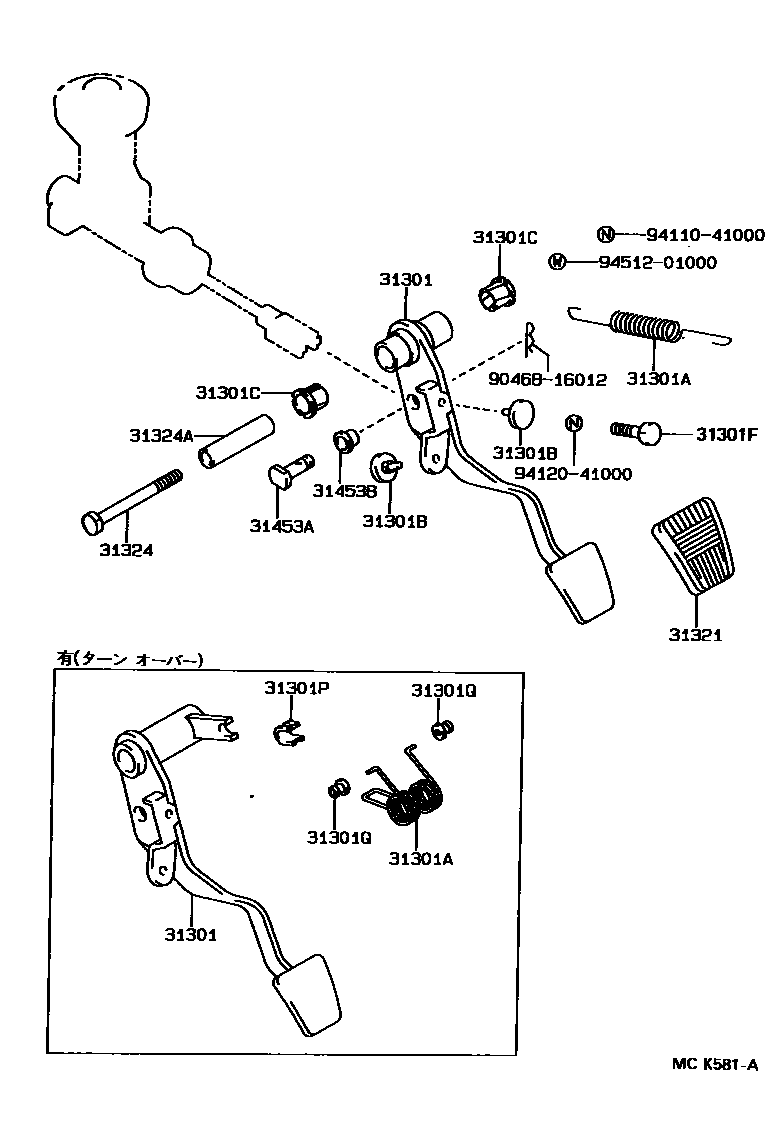

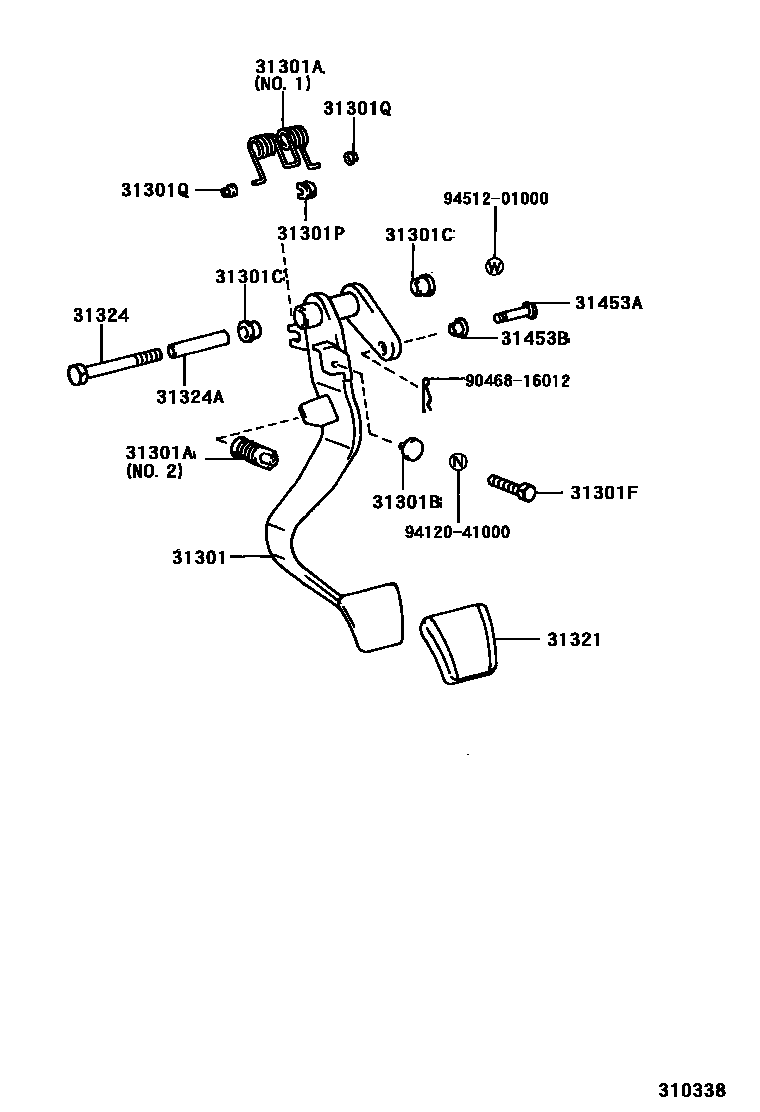

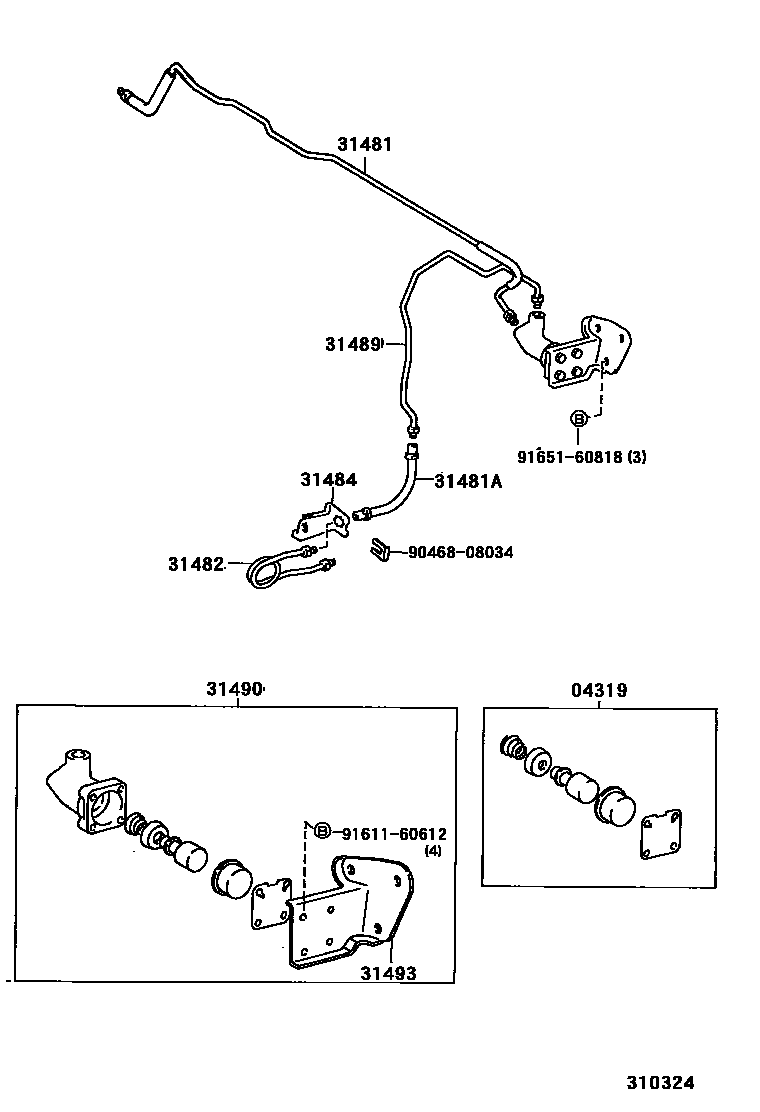

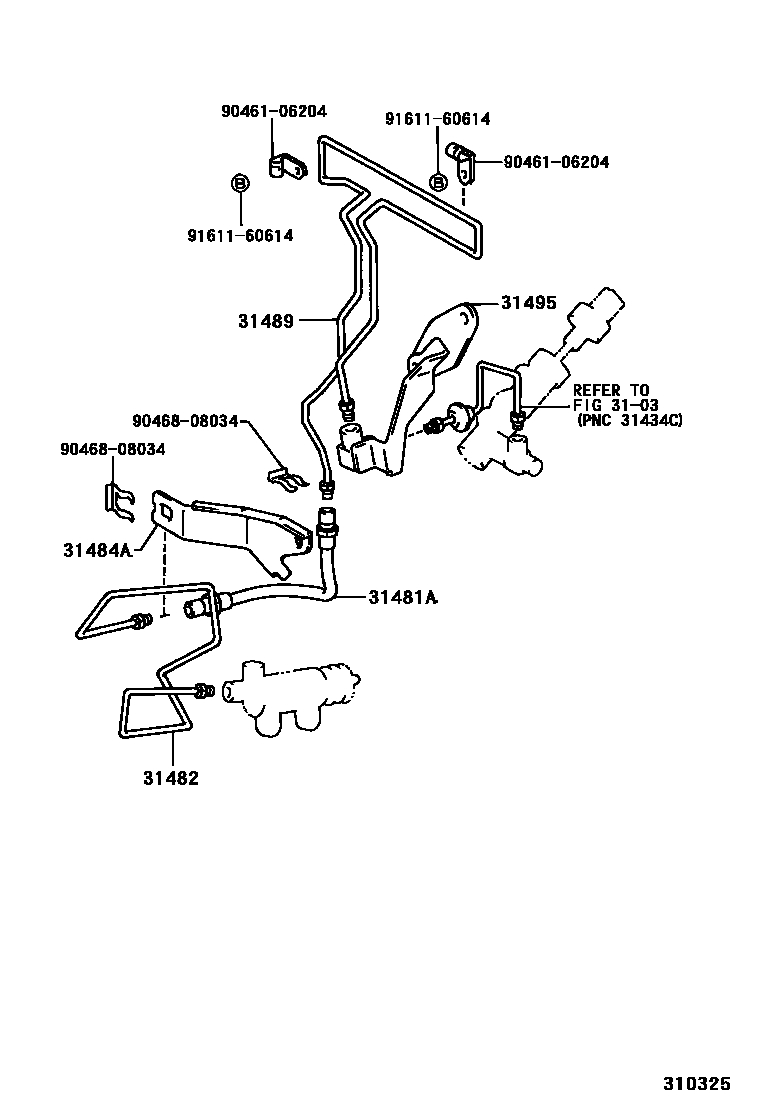

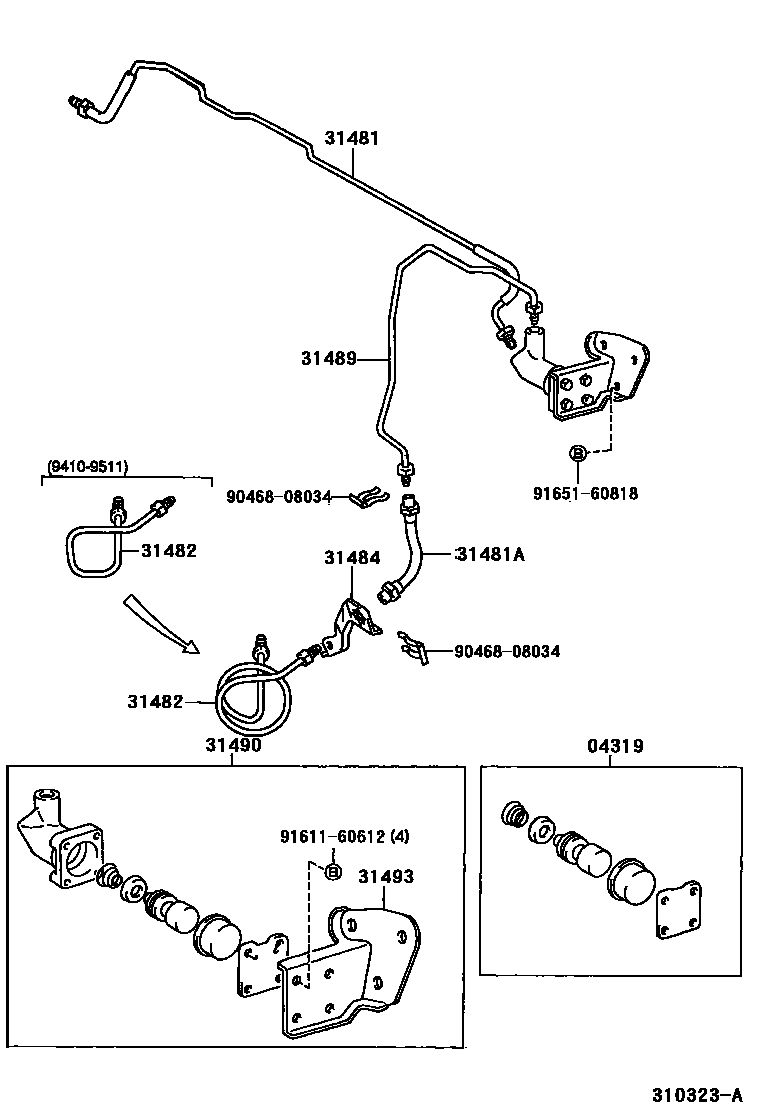

Toyota HILUX 离合器踏板和挠性软管 — Figure 3102
Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 6 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04319 | Clutch accumulator cover assembly | 04319-27010 · 04319-27020 |
| 31301 | Clutch pedal sub-assembly | 31301-35120 · 31310-35030 · 31310-35040 |
| 31301A | Spring (for clutch pedal) | 90501-20097 · 90507-14030 · 90508-35035 · 90508-45003 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06008 · 90541-06032 · 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13007 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-04002 · 90389-05010 |
| 31301Q | Bushing (for clutch pedal spring) | 90386-04009 · 90386-05007 |
| 31321 | clutch pedal pad | 31321-14020 |
| 31324 | clutch pedal shaft | 91112-51075 · 91121-51060 · 91121-51090 |
| 31324A | clutch pedal collar | 90387-10003 · 90387-10114 · 90387-10121 |
| 31406 | Flexible hose bracket sub-assembly | 31406-35010 · 31406-35011 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 47148-34010 · 90249-08018 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-35290 · 31481-35360 |
| 31481A | No. 1 clutch hose | 96812-50250 · 96812-50260 · 96814-50195 · 96814-50200 · 96814-50260 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-35150 · 31482-35260 · 31482-35261 · 31482-35290 · 31482-35310 · 31482-35330 · 31482-35350 |
| 31484 | Flexible hose bracket (for clutch) | 31484-35121 · 31484-35180 · 31484-35210 · 31484-35211 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-35200 |
| 31489 | Pipe connector to flexible hose pipe | 31489-35010 · 31489-35030 · 31489-35040 |
| 31490 | Clutch pressure accumulator assembly | 31490-35010 · 31490-35011 |
| 31493 | clutch accumulator bracket | 31493-35010 |
| 31495 | clutch pipe joint | 31495-35020 |
