Toyota HILUX carburetor assembly — Figure 2102

Toyota HILUX EPC diagram 2102, carburetor assembly, with 1 images and 5 PNC and OE references.

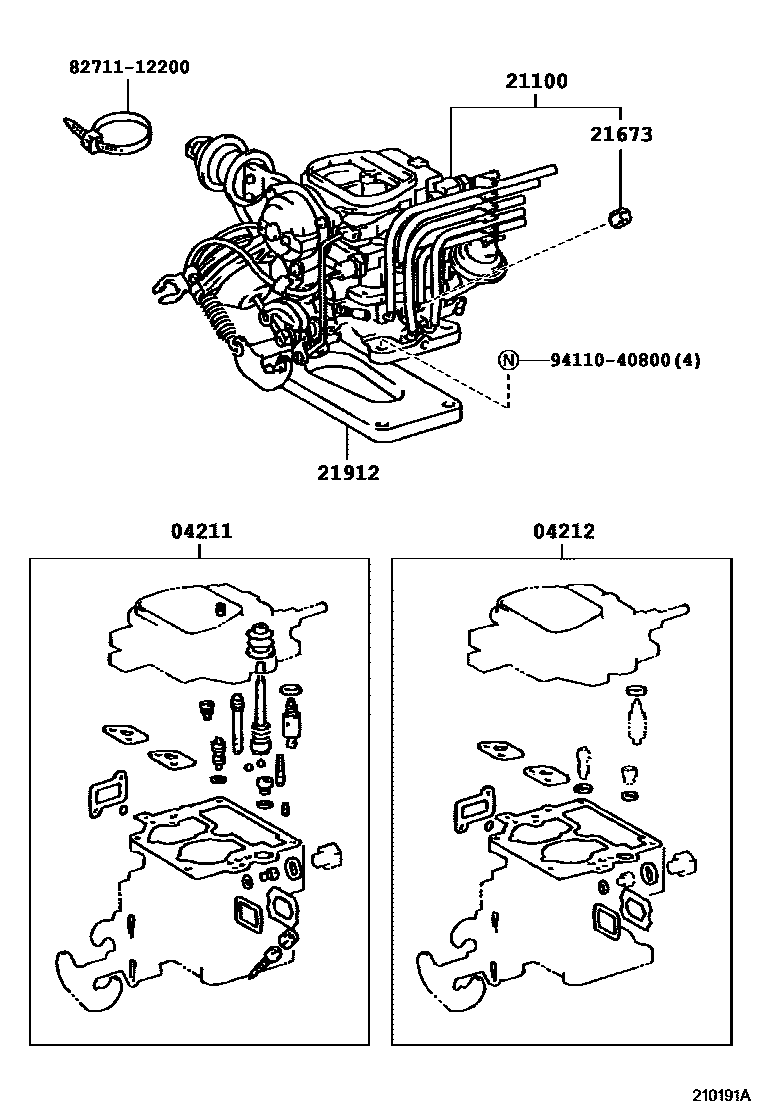

Toyota HILUX carburetor assembly EPC diagram — 210191A
carburetor assembly — 210191A (198809 – 199408)

PNC and OE references

PNCPart nameOE numbers
04211carburetor components04211-72170
04212carburetor gasket assembly04212-73071
21100carburetor assembly21100-72250
21673Idle speed limit cap21673-71030
21912Carburetor insulation pad21912-71020 · 21912-71021
