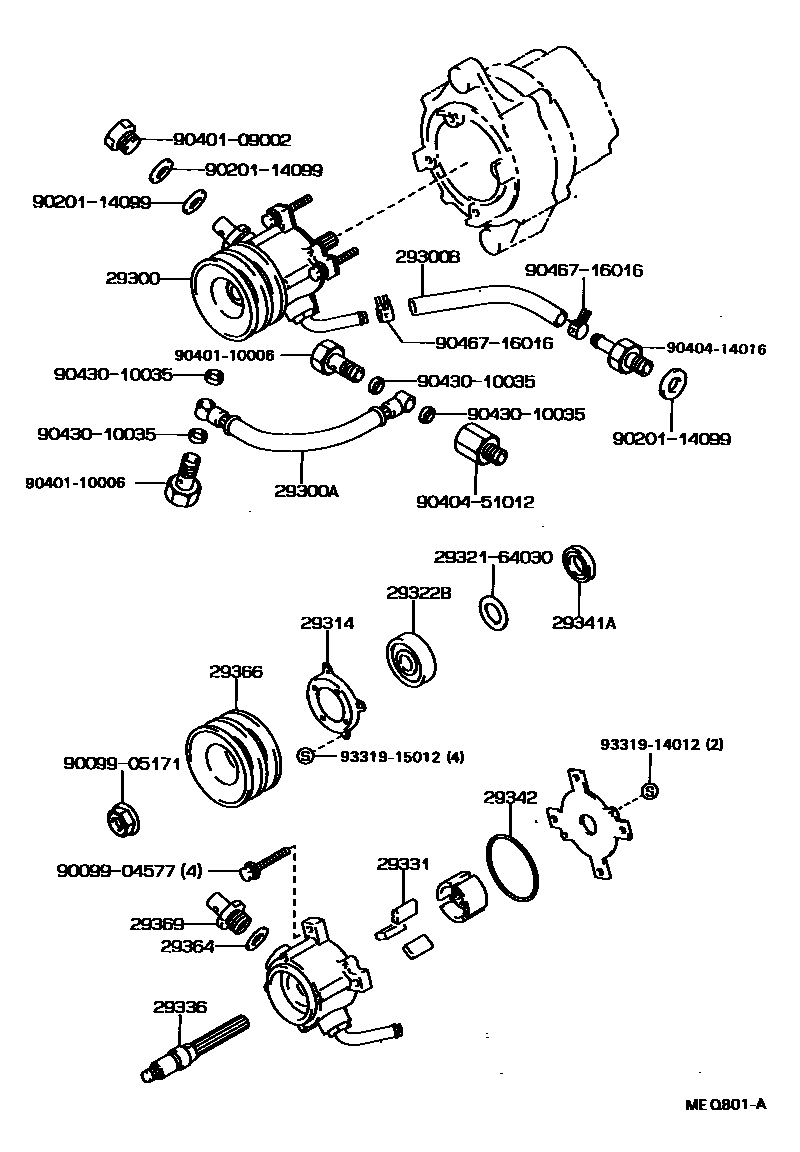

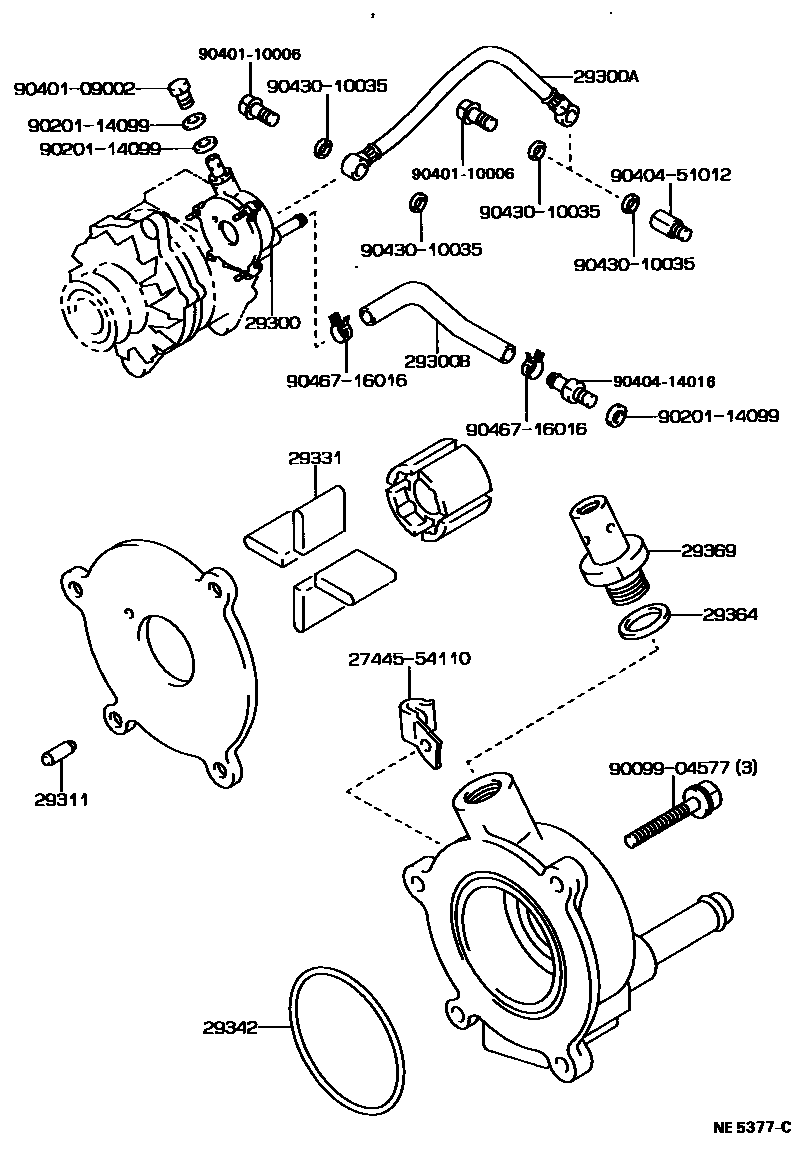

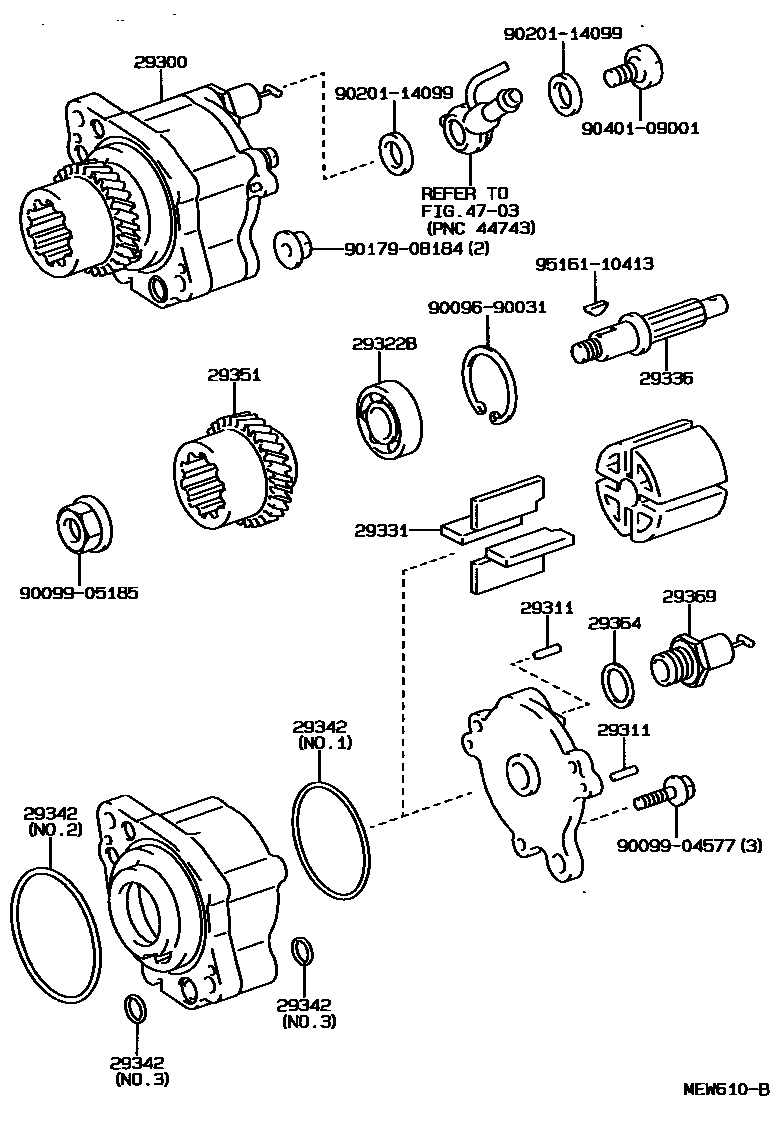

Toyota HILUX 真空泵 — Figure 1905
Toyota HILUX EPC diagram 1905, 真空泵, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-54050 · 29300-54090 · 29300-54091 · 29300-54110 · 29300-54140 · 29300-67020 |
| 29300A | Vacuum pump oil inlet hose | 90923-02077 · 90923-02096 · 90923-02110 · 90923-02114 · 90923-02118 · 90923-02119 |
| 29300B | Vacuum pump oil hose | 29611-54030 · 29611-54050 |
| 29311 | No. 1 vacuum pump positioning pin | 29311-76010 |
| 29314 | retaining ring | 29314-64030 |
| 29322B | Vacuum pump bearings | 90099-10166 · 90099-10185 · 90099-10199 |
| 29331 | Vacuum pump A blade | 29331-56070 · 29331-64030 · 29331-67020 |
| 29336 | Vacuum pump shaft | 29336-58050 · 29336-64031 |
| 29341A | Oil seal | 29341-64030 |
| 29342 | Vacuum pump seals | 29342-58010 · 29342-64030 · 29342-67020 · 29342-68010 · 96740-02063 |
| 29351 | Vacuum pump gear | 29351-67020 |
| 29364 | vacuum pump gasket | 29364-66010 |
| 29366 | Vacuum pump pulley | 29366-54110 |
| 29369 | One-way valve sub-assembly | 29369-56070 · 29369-64030 |
