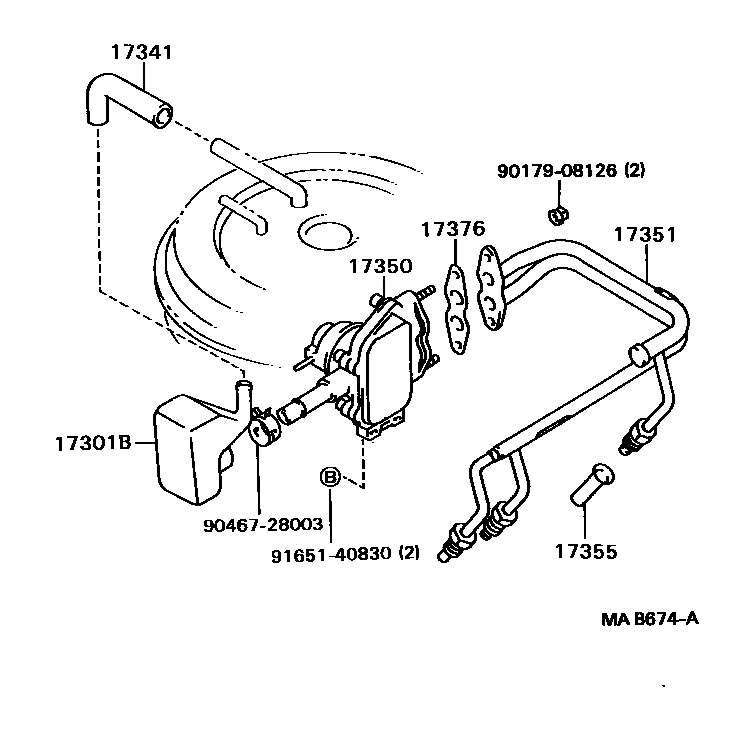

Toyota HILUX 歧管喷气系统 — Figure 1706
Toyota HILUX EPC diagram 1706, 歧管喷气系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17301B | Suction muffler sub-assembly | 17301-72010 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-72050 |
| 17350 | Reed valve assembly | 17350-72020 |
| 17351 | jet manifold | 17306-73011 |
| 17355 | jet nozzle | 17355-71010 |
| 17376 | Air tube gasket No. 1 | 17376-71010 · 17376-71011 |
