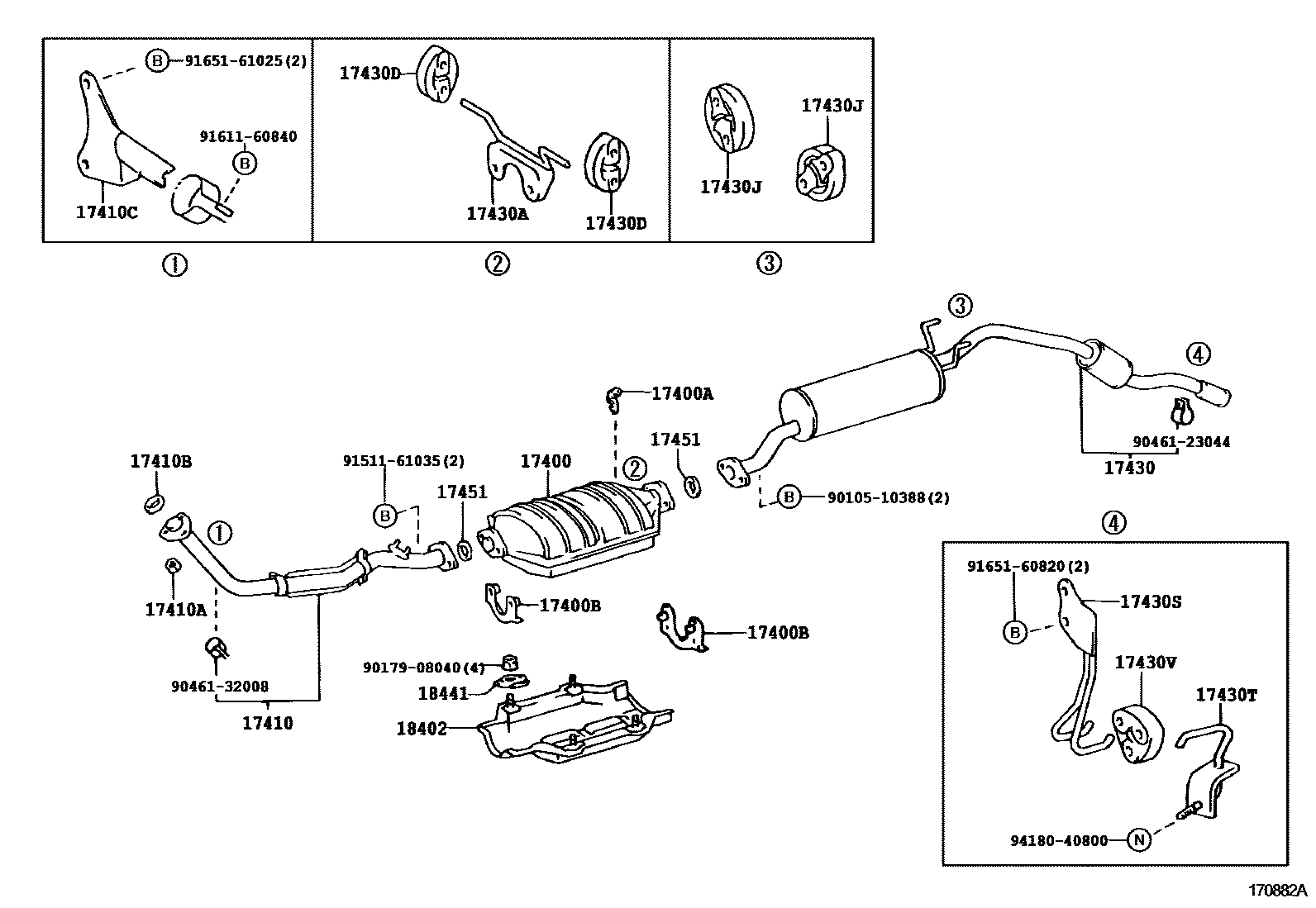

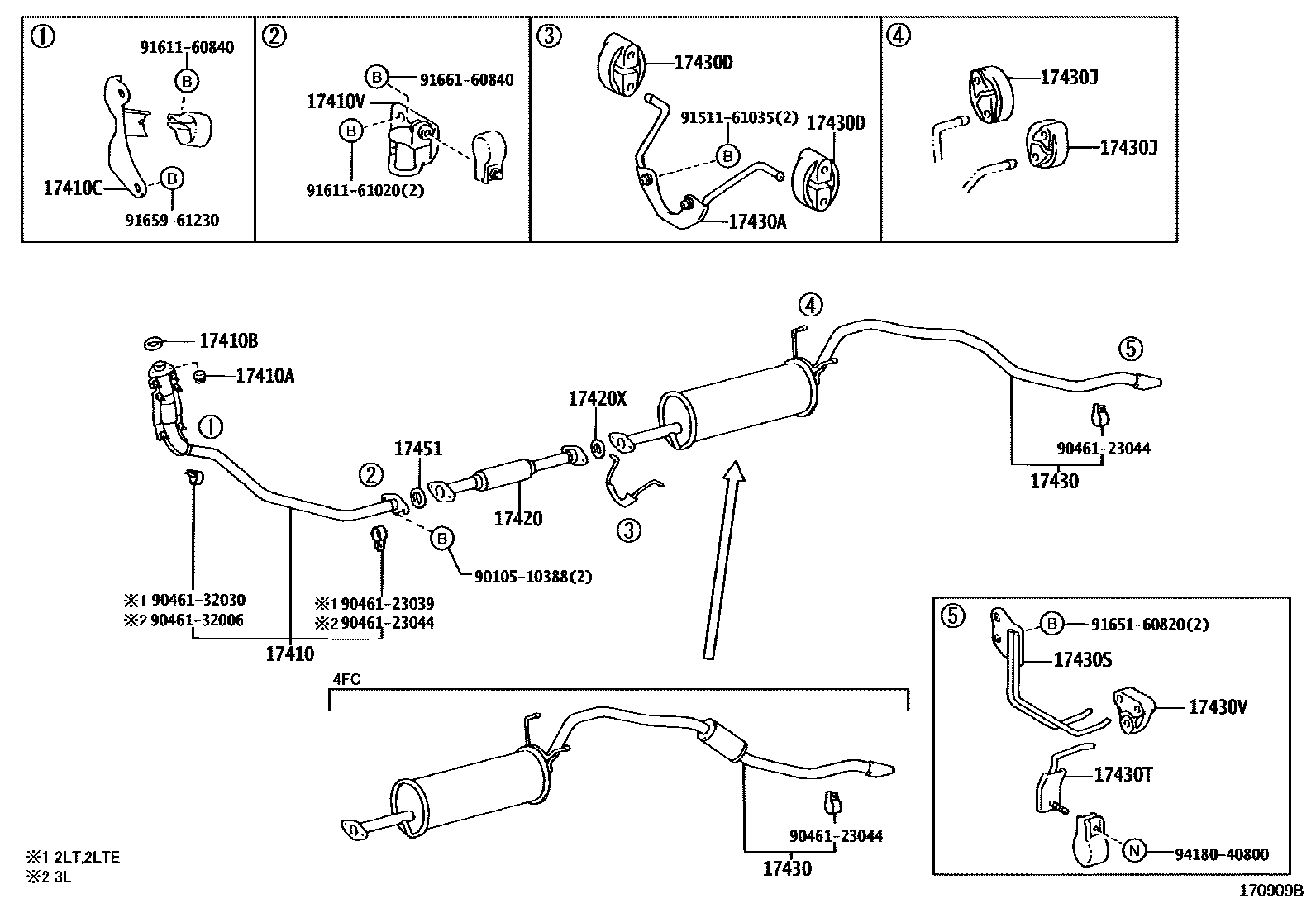

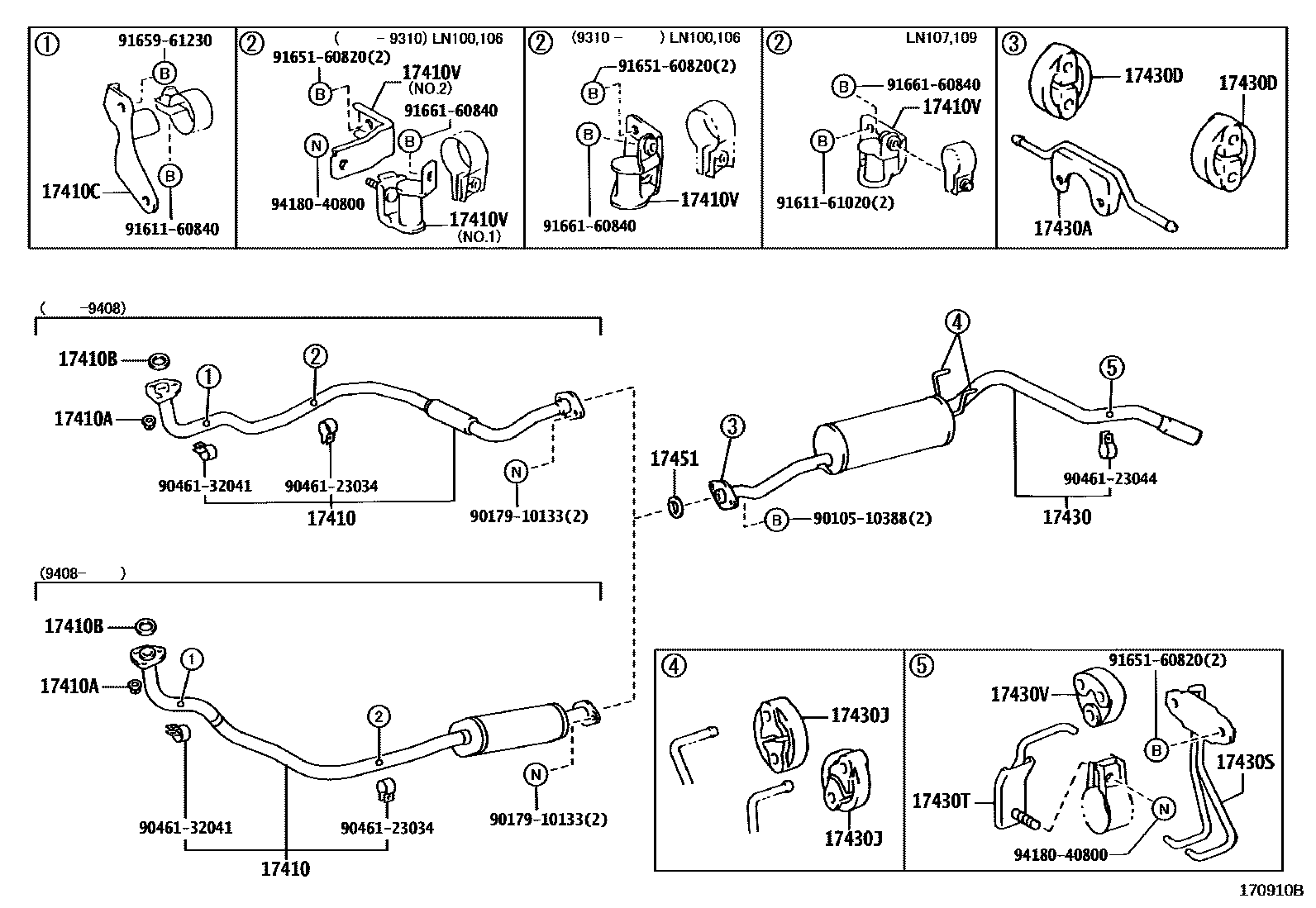

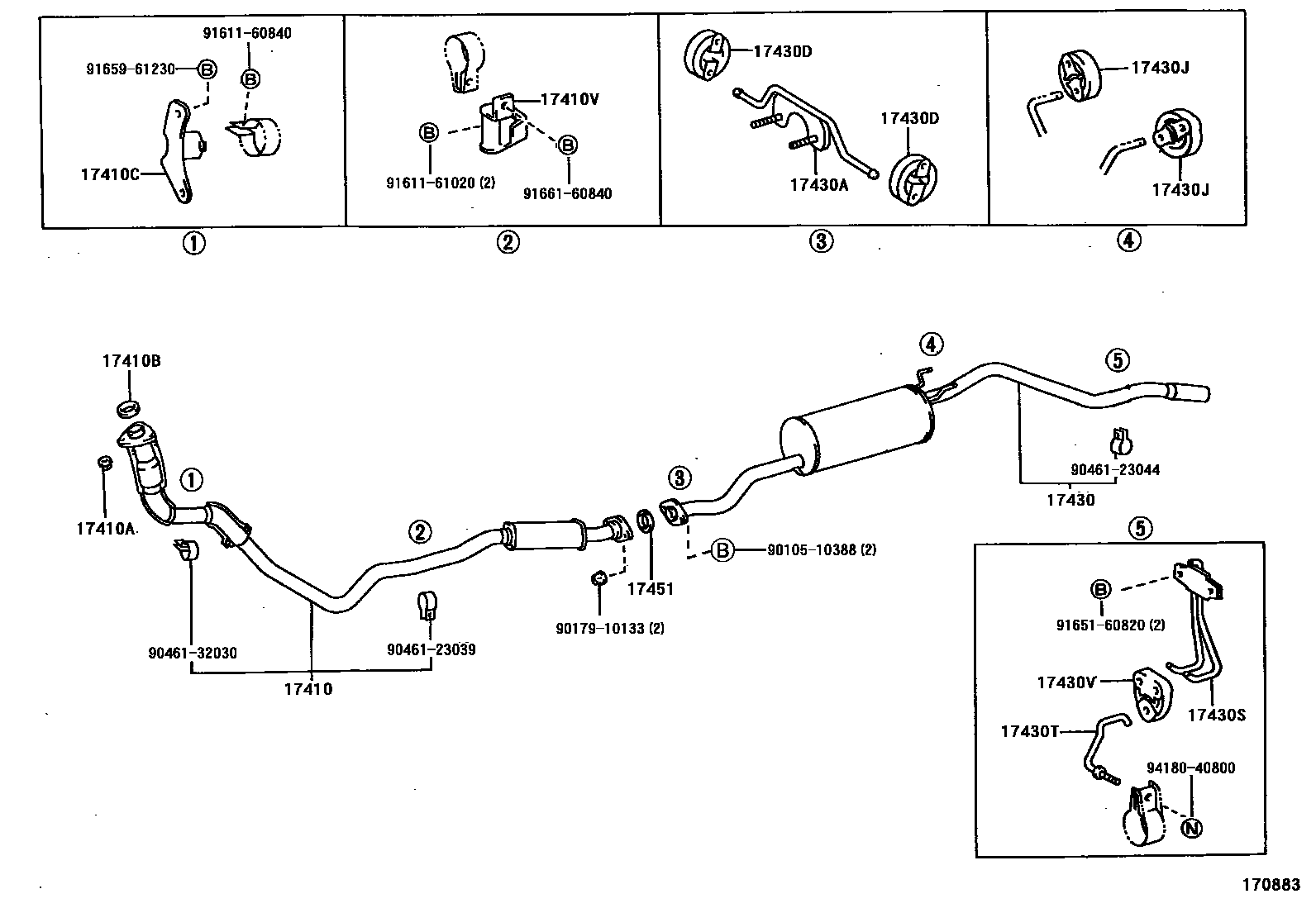

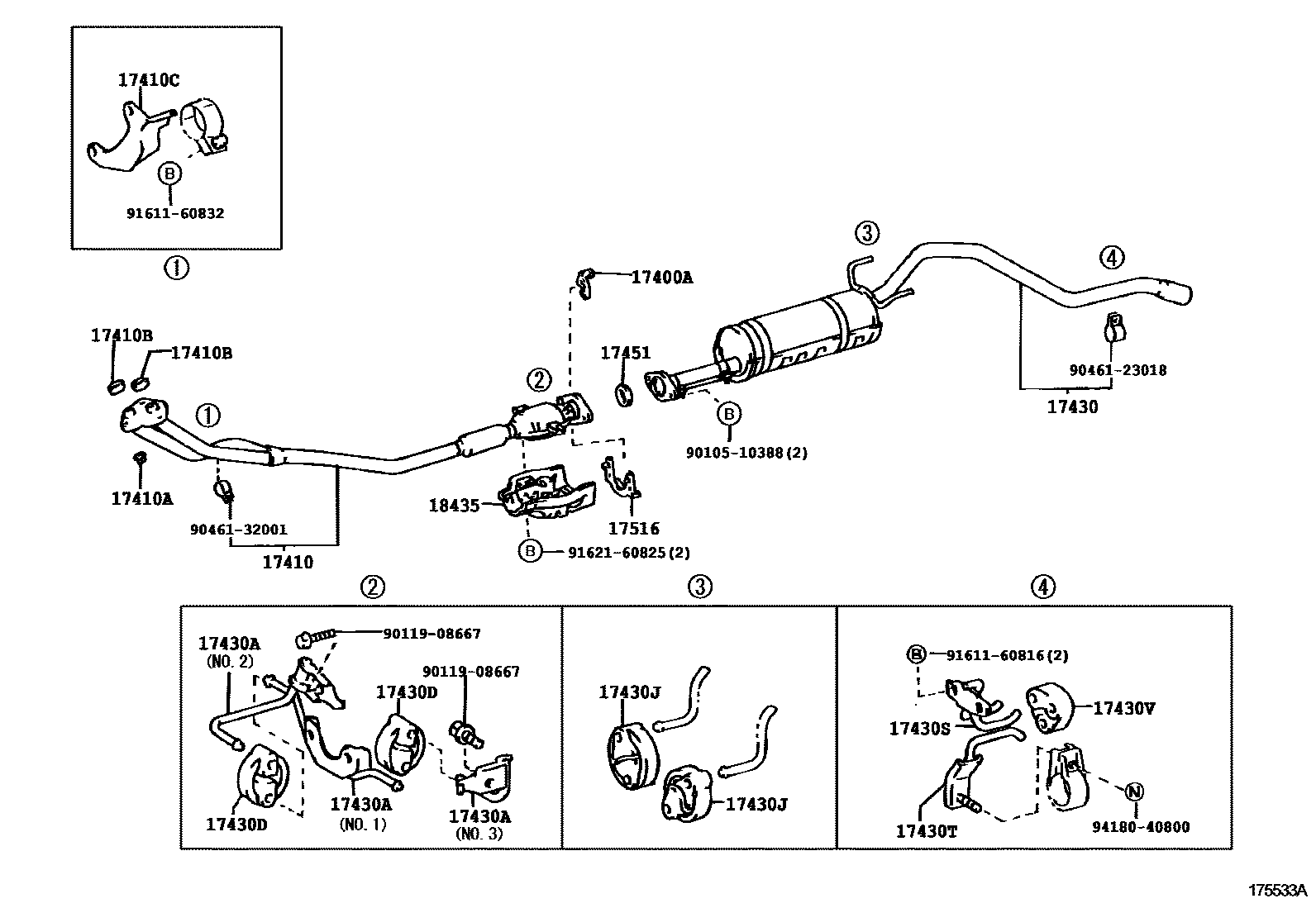

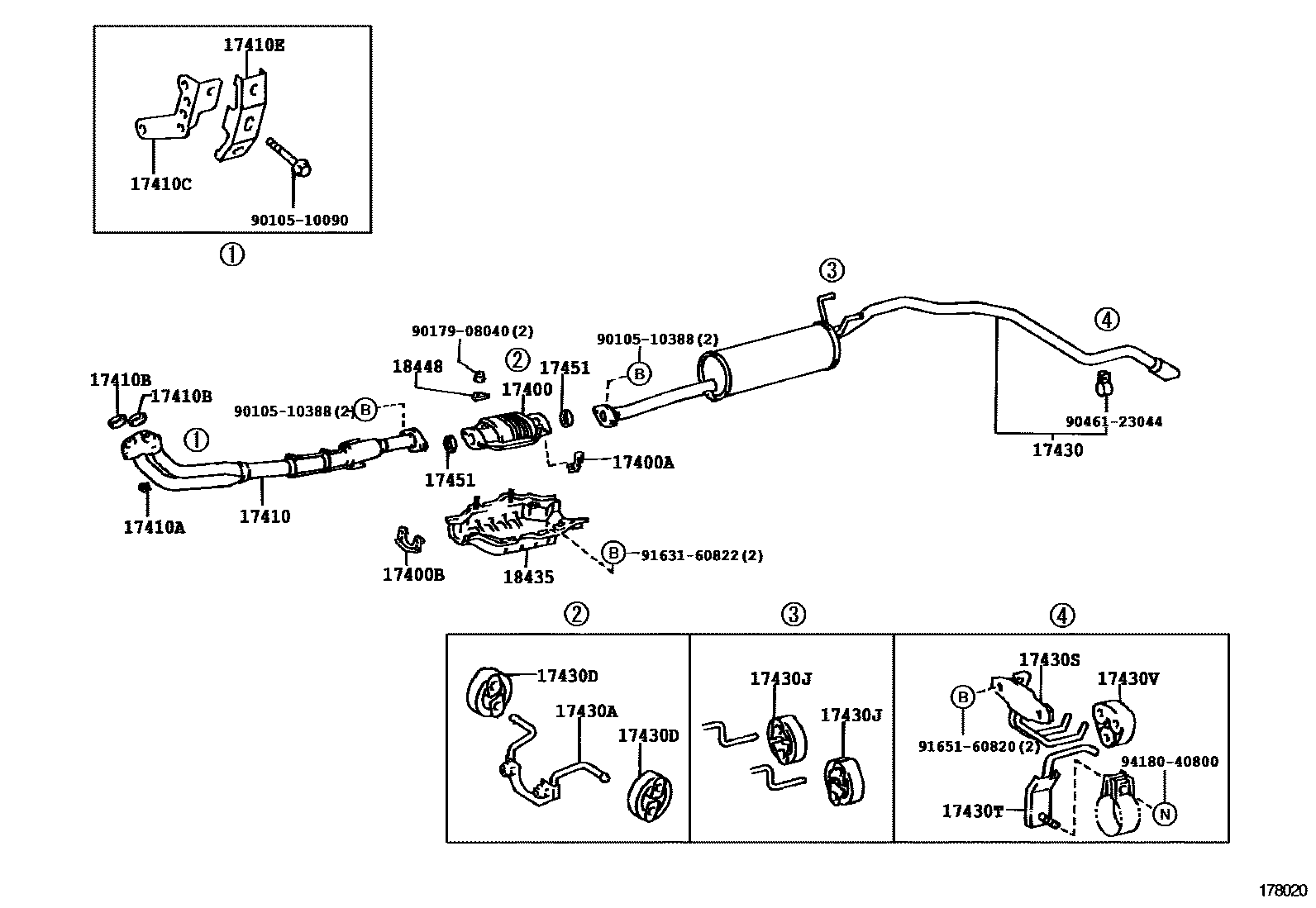

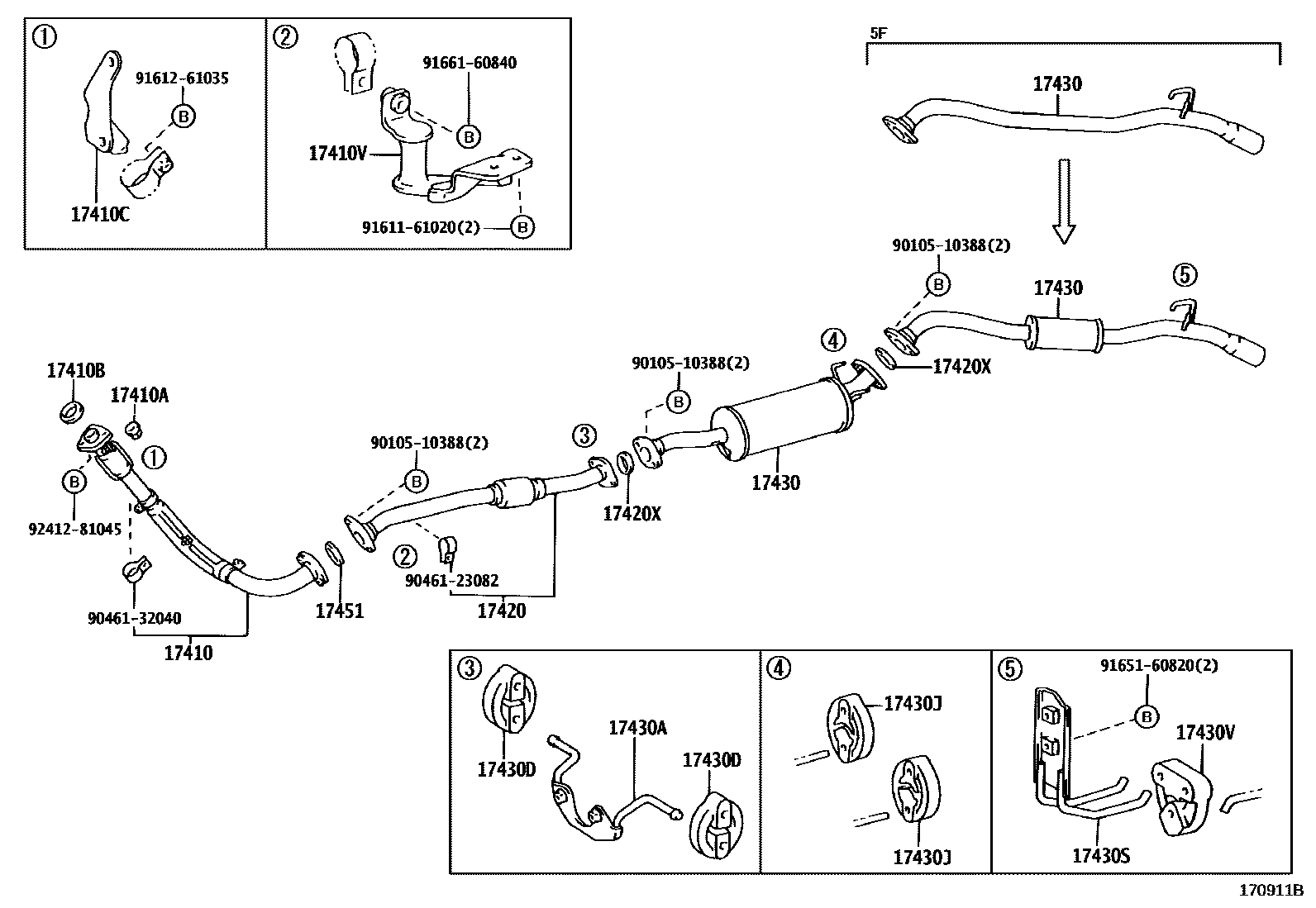

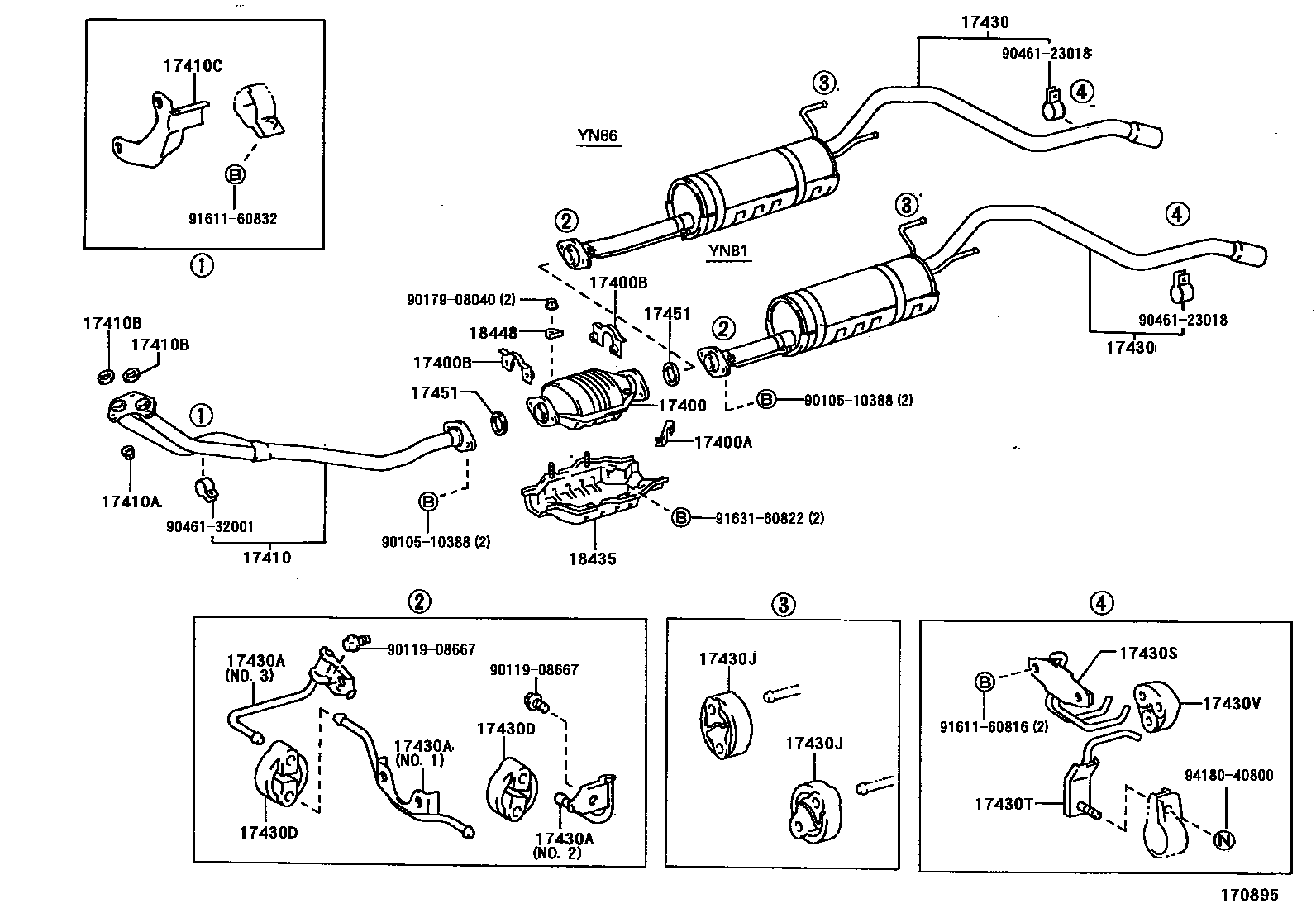

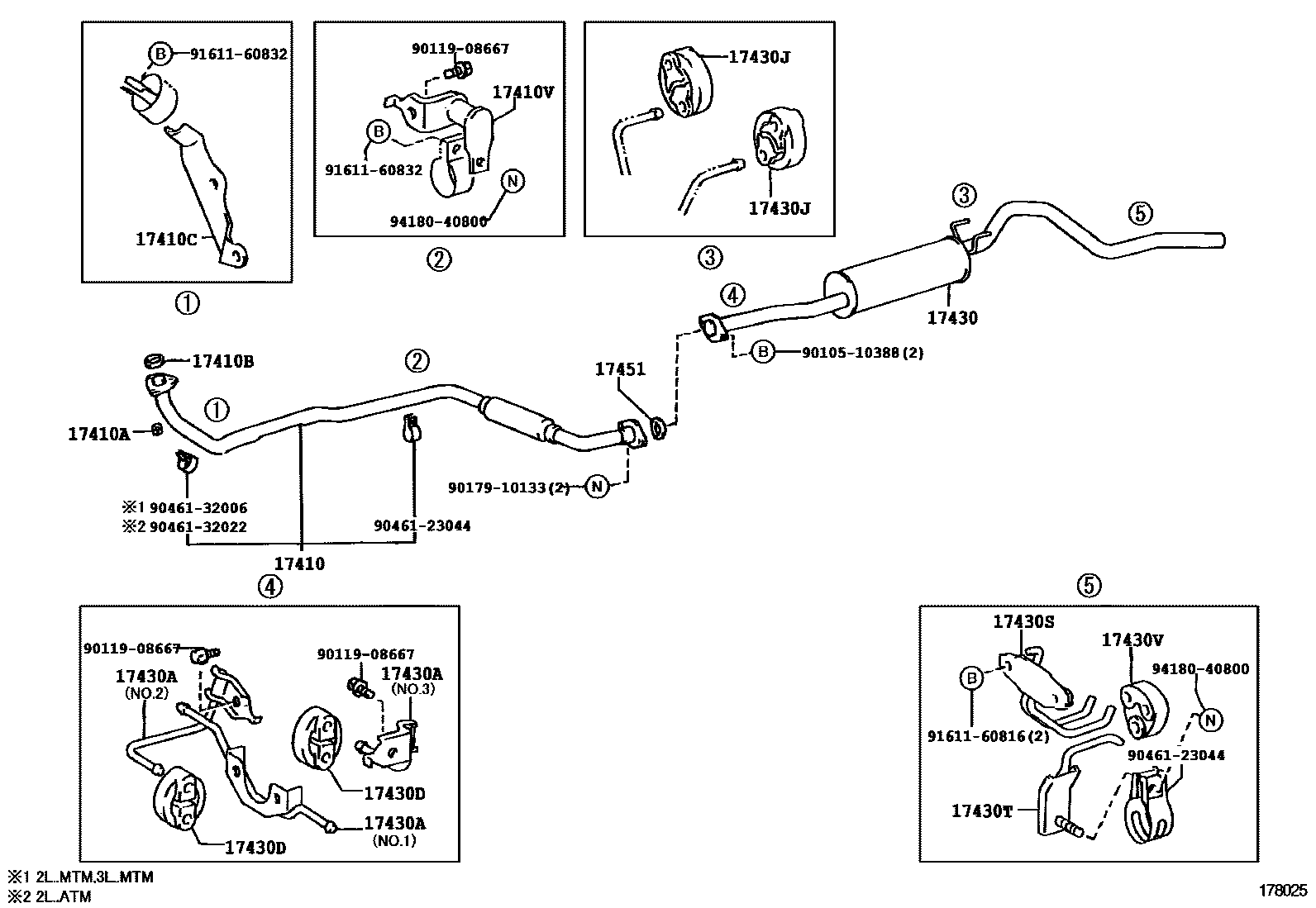

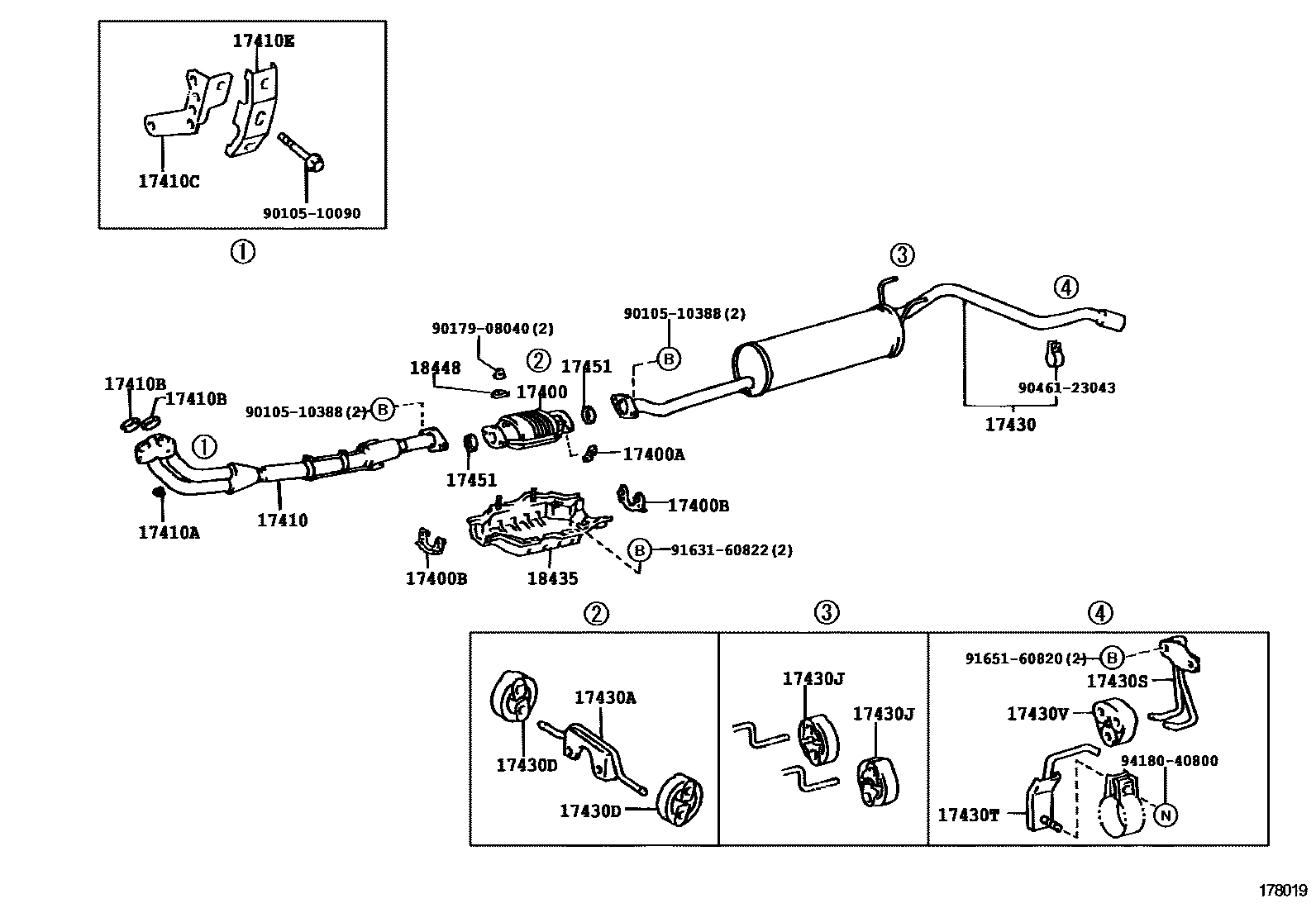

Toyota HILUX Exhaust Pipe — Figure 1702
Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 10 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-15060 · 18450-65060 · 18450-72050 · 18450-73030 · 18450-73160 |
| 17400A | Thermal sensor air inlet flange | 18491-18010 · 18491-28010 |
| 17400B | exhaust pipe fixings | 18495-35010 · 18495-35011 · 18495-35040 · 18495-35041 · 18495-35060 · 18495-35061 · 18495-38020 |
| 17410 | Front exhaust pipe assembly | 17410-35550 · 17410-35551 · 17410-35560 · 17410-35580 · 17410-35631 · 17410-35632 · 17410-35680 · 17410-54681 · 17410-54730 · 17410-54731 · 17410-54740 · 17410-54741 · 17410-54770 · 17410-5B080 · 17410-5B170 · 17410-5B171 · 17410-5B180 · 17410-5B190 · 17410-5B260 · 17410-65051 · 17410-65061 · 17410-72120 · 17410-72121 · 17410-73400 · 17410-73401 · 17410-73410 · 17410-73411 · 17410-73530 · 17410-73560 · 17410-73570 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06038 · 90917-06041 · 90917-06042 · 90917-06064 · 90917-06066 · 90917-06067 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-54300 · 17571-54330 · 17571-54340 · 17571-54360 · 17571-54430 · 17571-54440 · 17571-54450 · 17571-65030 · 17571-71050 · 17571-73040 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04030 |
| 17410V | Front exhaust pipe bracket (for rear) | 17562-54110 · 17562-54190 · 17562-54191 · 17562-54260 · 17562-54270 · 17562-54280 · 17572-54060 · 17572-54080 |
| 17420 | Central exhaust pipe assembly | 17420-35020 · 17420-54090 |
| 17420X | Center exhaust pipe liner | 90917-06045 · 90917-06047 · 90917-06059 |
| 17430 | Exhaust tailpipe assembly | 17430-3D080 · 17430-3D081 · 17430-3D090 · 17430-3D100 · 17430-3D101 · 17430-3D220 · 17430-3D250 · 17430-3D260 · 17430-3D270 · 17430-3D280 · 17430-3D350 · 17430-5B081 · 17430-5B160 · 17430-5B161 · 17430-5B220 · 17430-5B230 · 17430-5B240 · 17430-5B420 · 17430-5B500 · 17430-5B610 · 17430-5B611 · 17430-5B620 · 17430-5B630 · 17430-5B860 · 17430-72161 · 17430-72162 · 17430-72163 · 17430-72171 · 17430-72172 · 17430-72173 · 17430-73230 · 17430-73320 · 17430-73360 · 17430-73430 · 17430-73431 · 17440-54010 · 17440-54020 |
| 17430A | Exhaust tailpipe bracket (for front) | 17503-35060 · 17503-35120 · 17503-35140 · 17564-35150 · 17564-35180 · 17564-54030 · 17564-54031 · 17587-35010 · 17587-35020 · 17587-71020 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17563-35020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 17565-35010 · 17565-35130 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17505-35040 · 17575-35060 · 17575-35090 · 17575-54020 · 17575-71030 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17585-35040 · 17585-71010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17566-35010 · 17566-35030 · 17566-35060 |
| 17451 | Exhaust pipe gasket | 90917-06041 · 90917-06045 · 90917-06047 · 90917-06059 |
| 17516 | No. 2 exhaust pipe fixing piece | 18495-35060 · 18495-38020 |
| 18402 | Three-way catalytic converter lower heat insulation pad sub-assembly | 18402-35030 |
| 18435 | Three-way catalytic converter protection device | 18407-31020 · 18407-35010 · 18407-35020 |
| 18441 | Three-way catalytic converter upper heat insulation pad bracket | 18441-35010 |
| 18448 | Three-way catalytic converter protection device central bracket | 18439-35010 · 18448-35020 |
