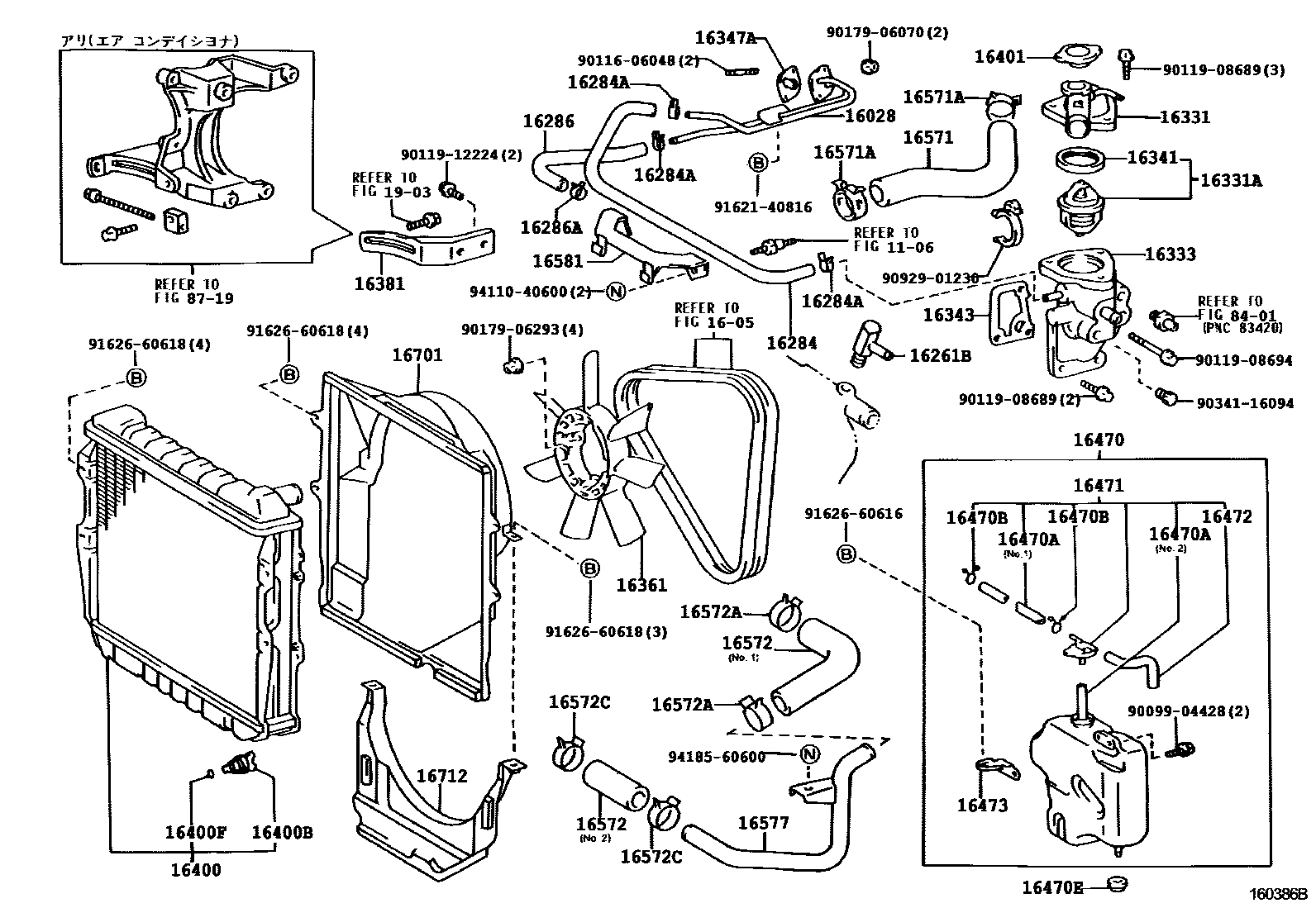

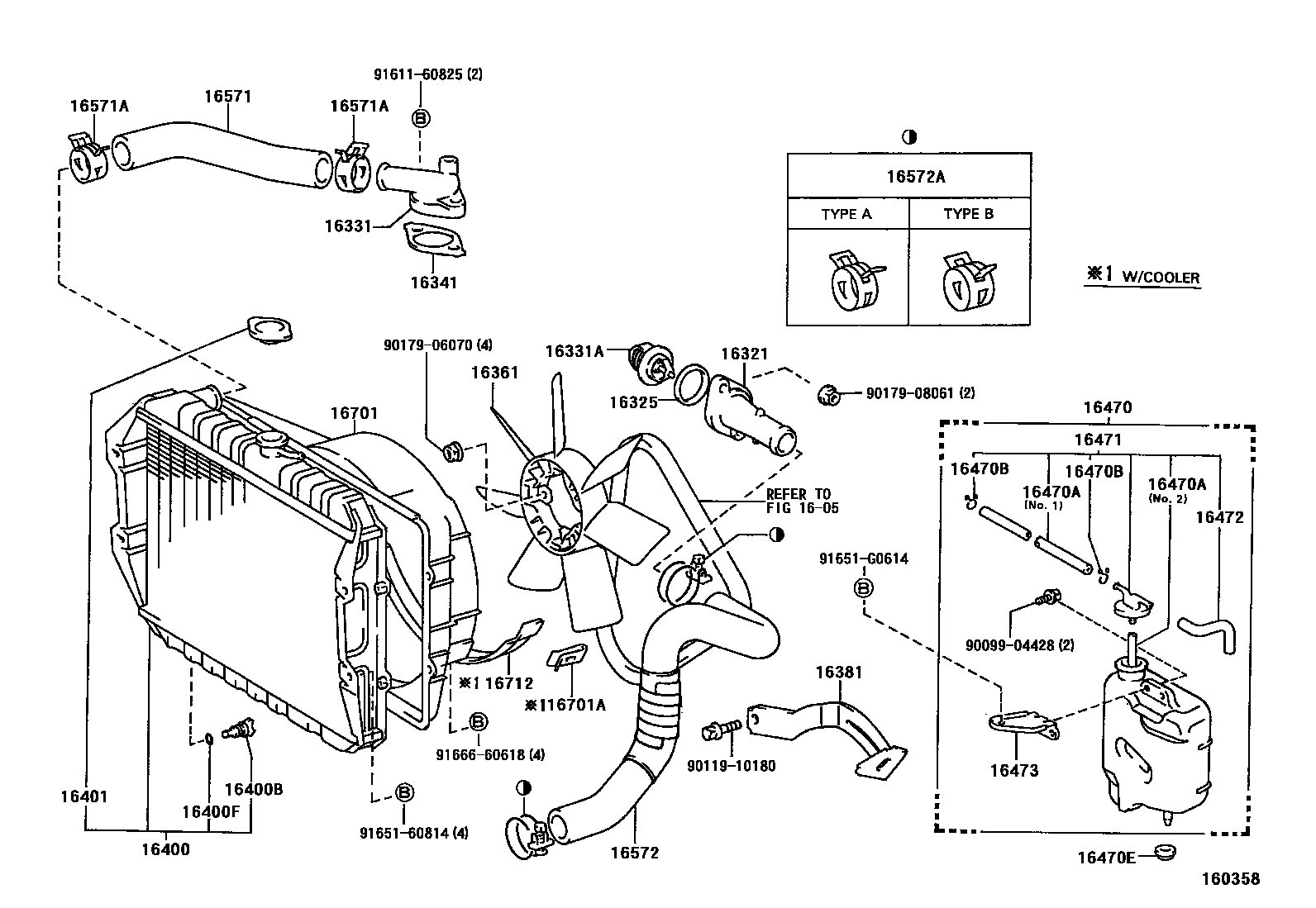

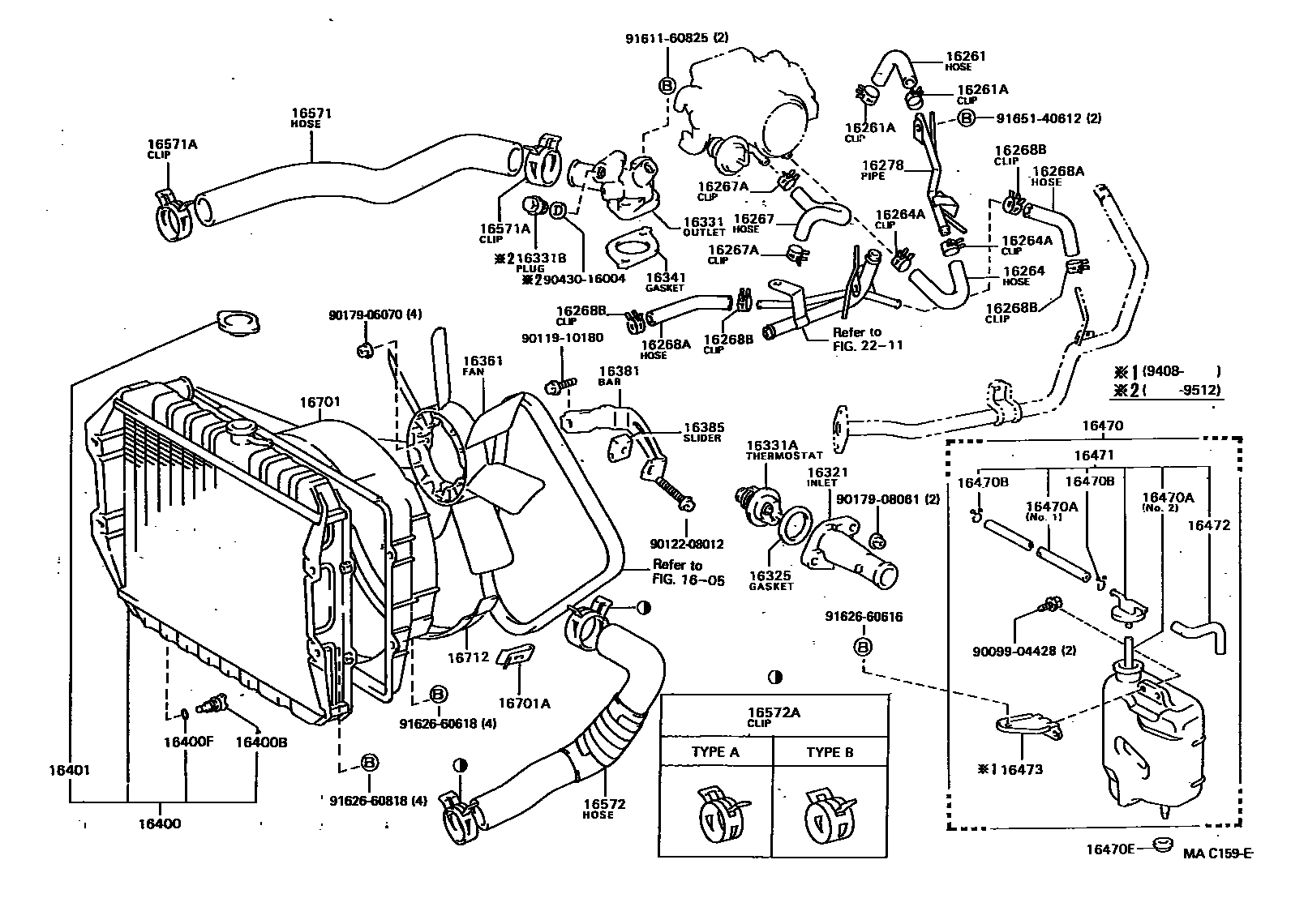

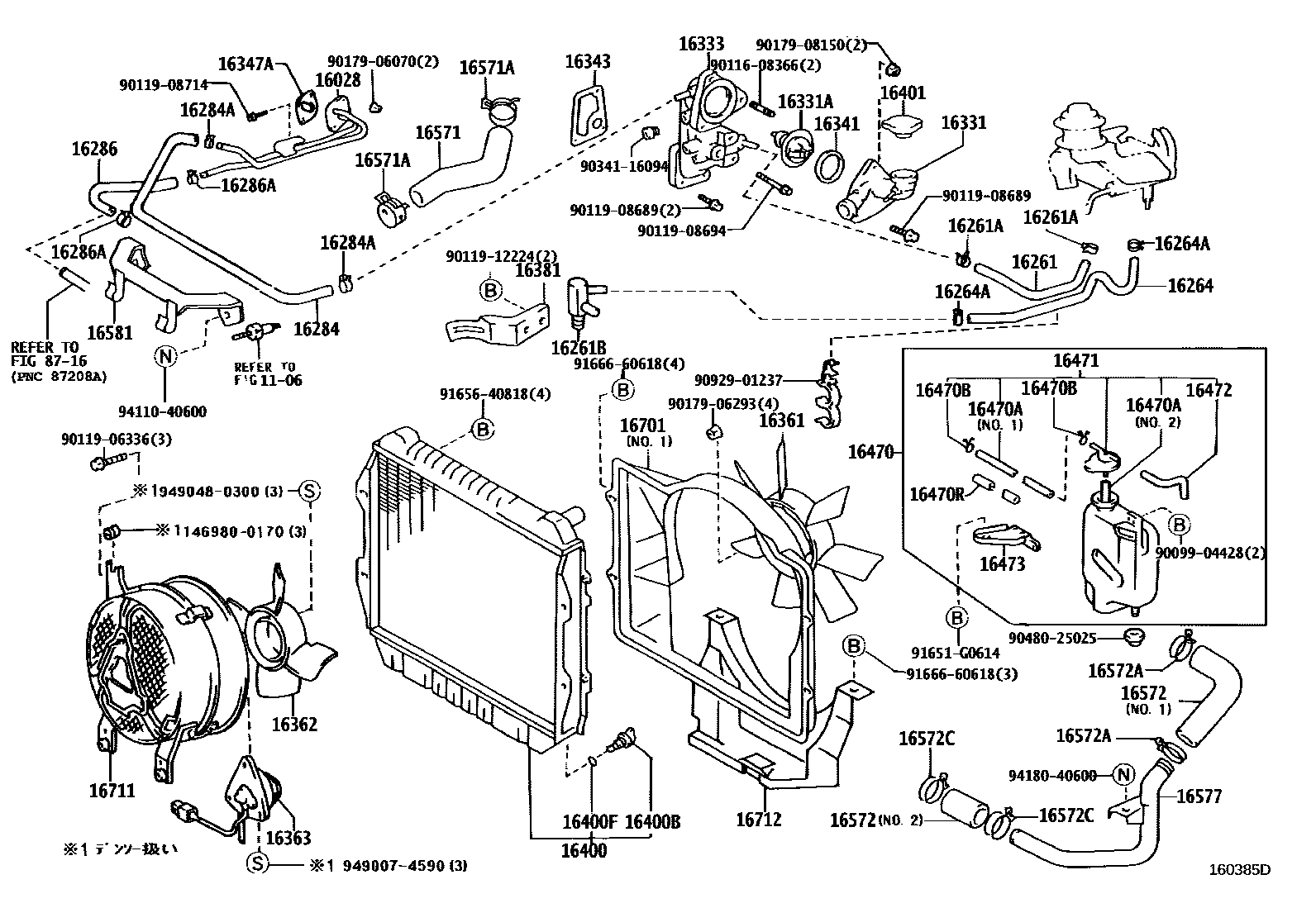

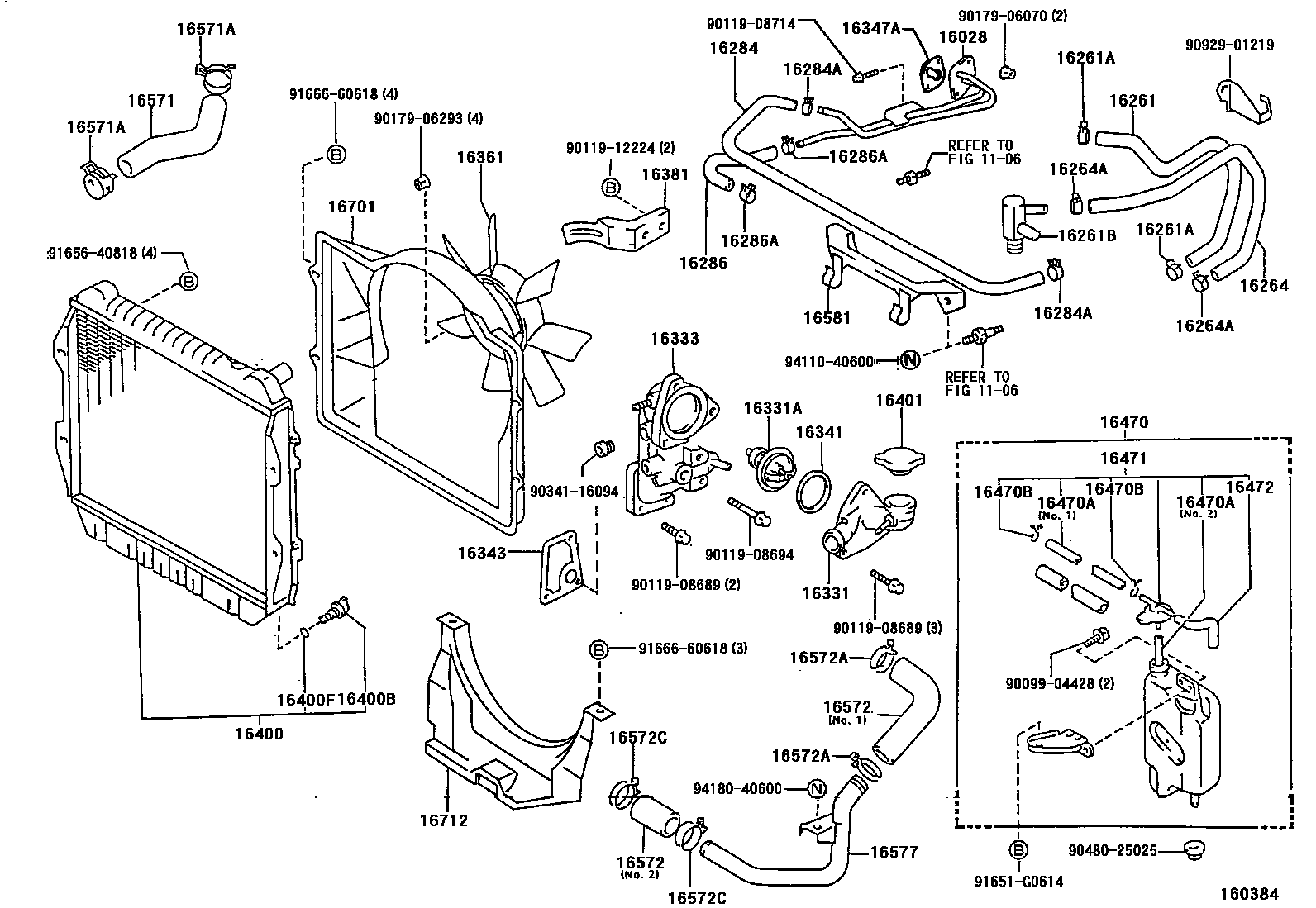

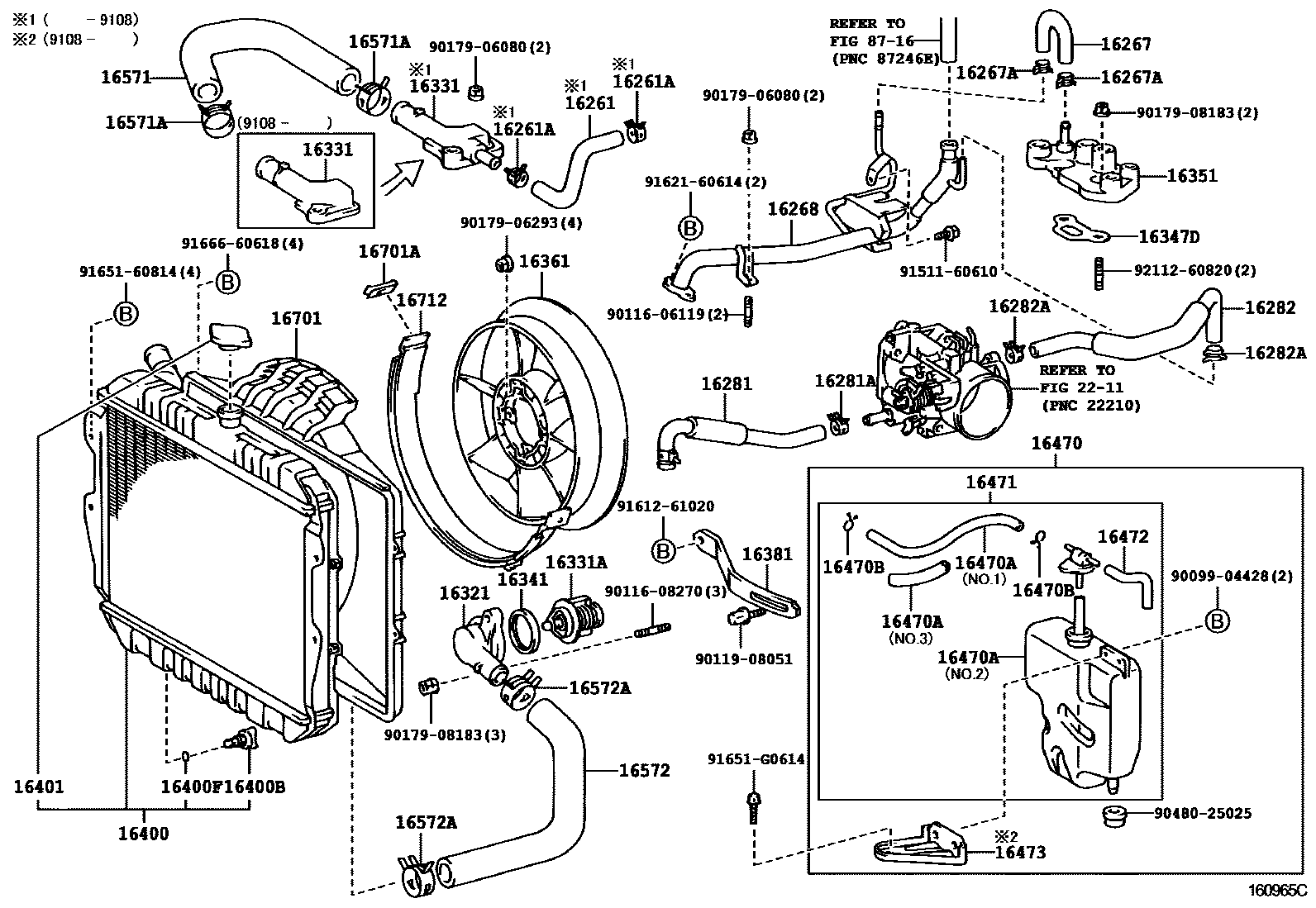

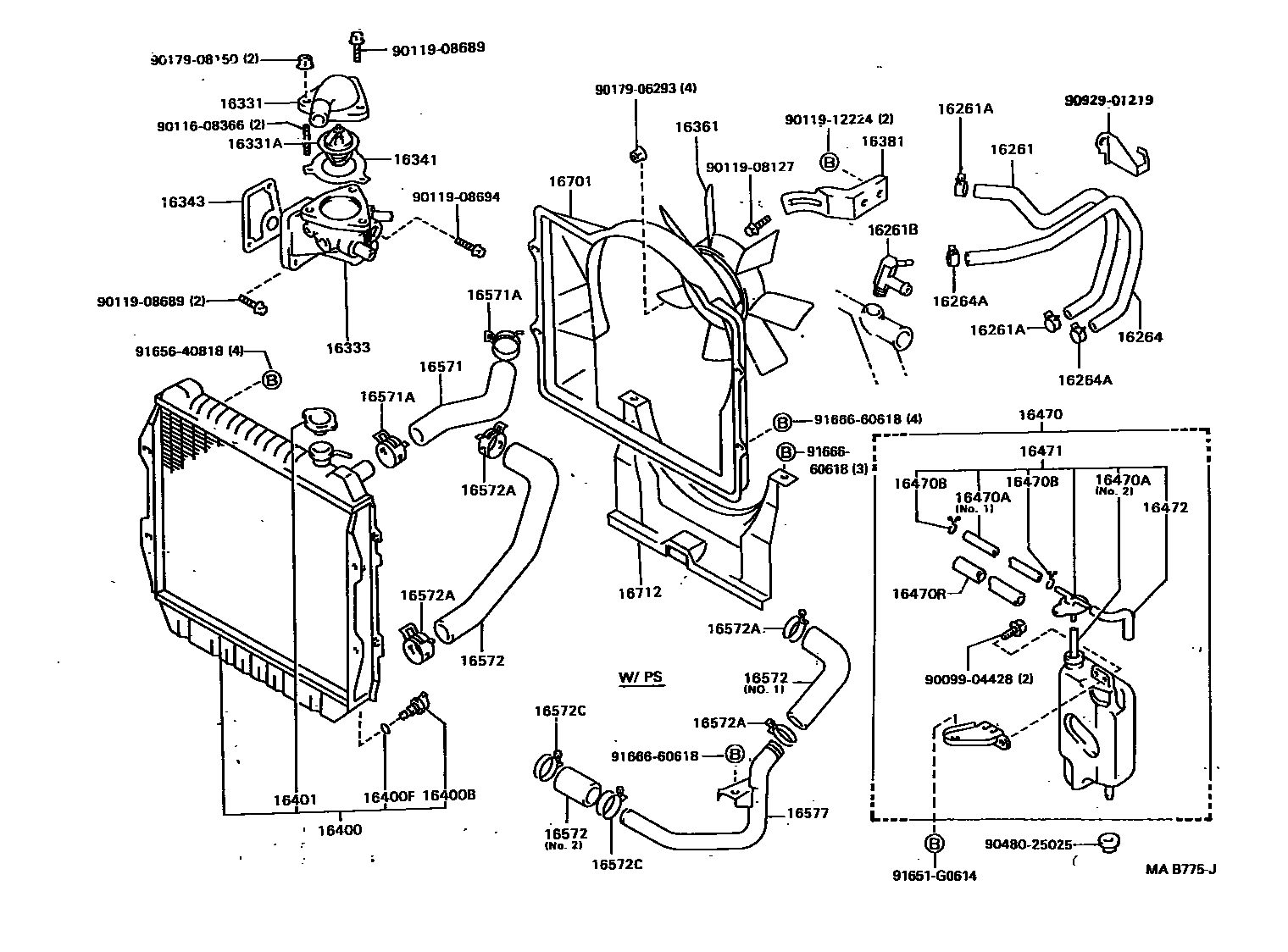

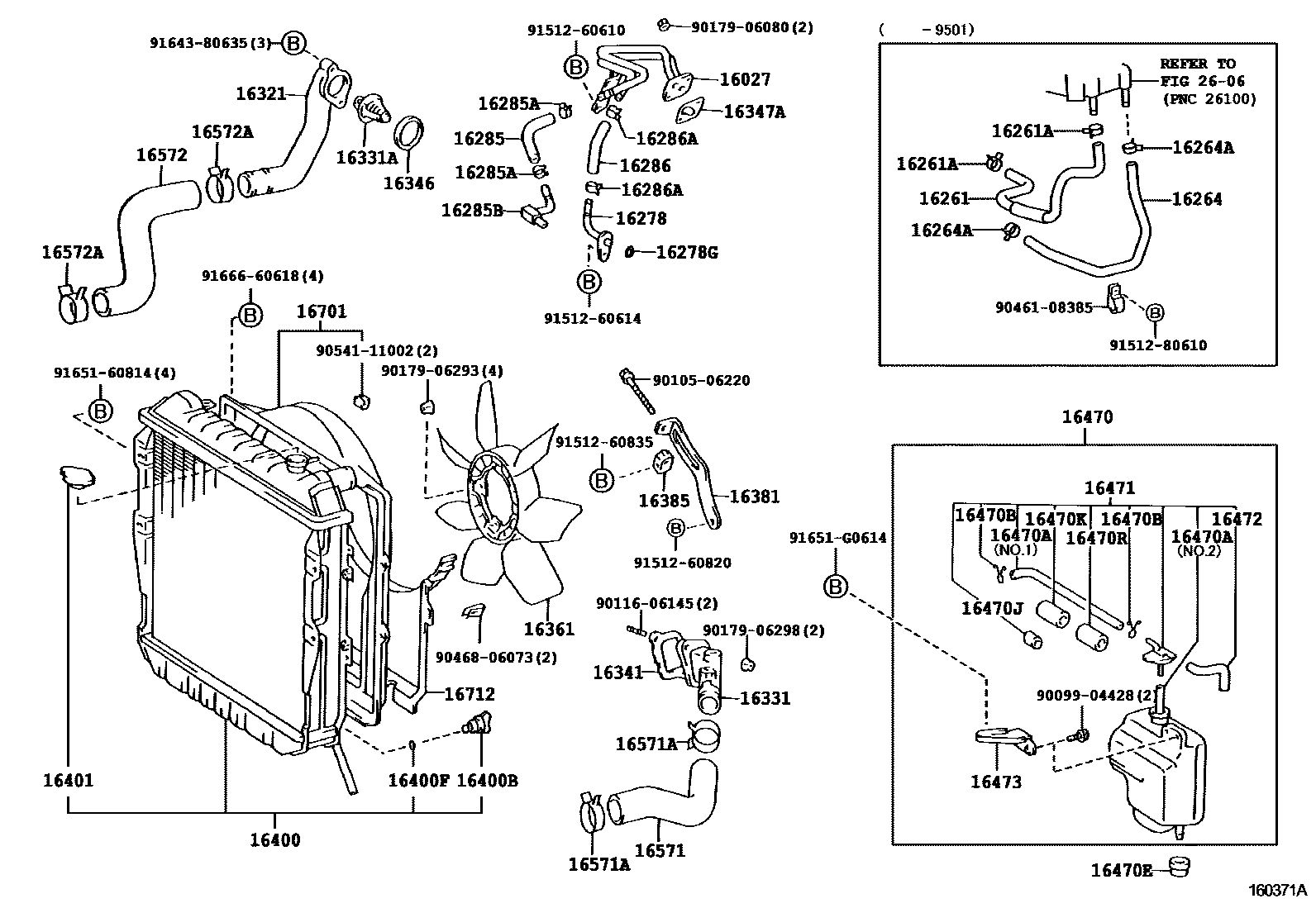

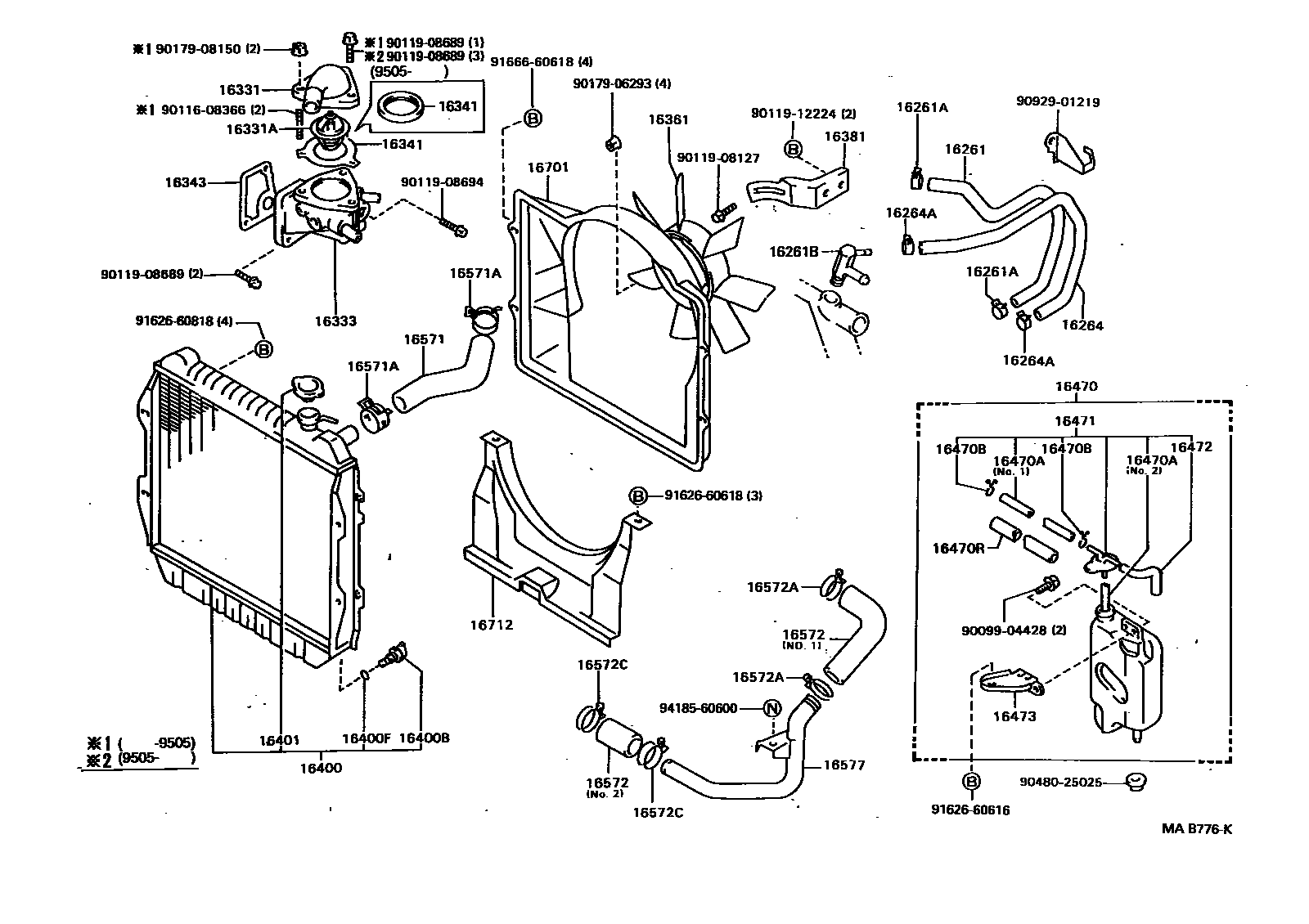

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603
Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 9 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-67010 |
| 16028 | No. 2 turbine water pipe sub-assembly | 16028-54020 · 16028-54030 |
| 16261 | HOSE, WATER BY-PASS | 16261-54080 · 16261-54110 · 16261-65011 · 16261-67050 · 99556-10110 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13001 · 90467-15004 · 90467-15022 · 90467-23003 |
| 16261B | Connector (for water bypass hose) | 87251-89113 · 90404-54037 · 90404-54040 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-54070 · 16264-54130 · 16264-67010 · 16264-73021 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 · 90467-15004 · 90467-15022 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-65011 · 16267-73010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-13001 · 96135-41300 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-65011 |
| 16268A | Hoses (for water bypass pipes) | 99556-10110 |
| 16268B | Hose clamp or clip (for water bypass pipe) | 90467-13001 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-67010 · 16278-73011 |
| 16278G | O-ring (for No. 2 water bypass pipe) | 96761-24010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-65010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96135-41300 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-65010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96135-41300 |
| 16284 | Turbine Water Hose No. 1 | 16284-54020 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-15004 · 90467-15022 |
| 16285 | Turbine Water Hose No. 2 | 16285-67010 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90467-15022 |
| 16285B | Connector (for turbine water hose No. 2) | 90405-10044 |
| 16286 | No. 3 turbine water hose | 16285-67010 · 16286-54020 |
| 16286A | Clamp (for No. 3 turbine water hose) | 90467-15004 · 90467-15022 |
| 16321 | water inlet | 16321-65010 · 16321-65030 · 16321-67010 · 16321-67011 · 16321-71010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63010 · 16325-63011 |
| 16331 | Water outlet | 16331-54090 · 16331-54100 · 16331-54101 · 16331-54180 · 16331-65011 · 16331-65020 · 16331-67020 · 16331-71010 · 16331-73010 · 16331-73011 |
| 16331A | thermostat | 16340-54010 · 90916-03046 · 90916-03069 · 90916-03072 · 90916-03079 · 90916-03097 · 90916-03099 |
| 16331B | Screw plug (for water outlet) | 90341-16008 |
| 16333 | Water outlet shell | 16303-54030 · 16303-54050 · 16333-54111 · 16333-54112 · 16333-54113 · 16333-54131 · 16333-54132 · 16333-54170 · 16333-54171 · 16333-54270 |
| 16341 | GASKET, WATER OUTLET | 16341-35010 · 16341-54030 · 16341-54040 · 16341-65010 · 16341-67020 · 16341-71010 · 16341-71011 · 16341-73010 |
| 16343 | Outlet shell gasket | 16343-54030 · 16343-54040 |
| 16346 | thermostat gasket | 16346-67010 |
| 16347A | Liners (for turbine water pipes) | 16347-28010 · 16347-42020 · 16347-58010 · 16347-67010 |
| 16347D | water bypass liner | 16258-65020 |
| 16351 | water bypass outlet | 16351-65010 · 16351-65030 · 16351-65040 · 16351-65050 |
| 16361 | Fan | 16361-38010 · 16361-54020 · 16361-54040 · 16361-54070 · 16361-65010 · 16361-65020 · 16361-67020 |
| 16362 | Fan No. 2 | 88453-12030 · 88453-28010 |
| 16363 | cooling fan motor | 88550-89101 |
| 16381 | Fan belt adjustment lever | 16381-54060 · 16381-54120 · 16381-65010 · 16381-67020 · 16381-71010 · 16381-73011 |
| 16385 | Fan belt adjustment slider | 16385-67010 · 16385-71010 |
| 16400 | Radiator assembly | 16400-54610 · 16400-54620 · 16400-54640 · 16400-54730 · 16400-54731 · 16400-5B010 · 16400-5B020 · 16400-5B040 · 16400-5B370 · 16400-5B480 · 16400-5B510 · 16400-65041 · 16400-65061 · 16400-65100 · 16400-65120 · 16400-67060 · 16400-67070 · 16400-67071 · 16400-67080 · 16400-71071 · 16400-71081 · 16400-73200 · 16400-73380 · 16400-73430 |
| 16400B | Radiator drain switch screw plug | 90910-09054 · 90910-09099 |
| 16400F | Seal (for radiator drain switch) | 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-63010 |
| 16470 | Radiator reservoir assembly | 16470-35100 · 16470-54120 · 16470-54180 · 16470-54200 · 16470-54240 · 16470-54250 · 16470-54310 · 16470-65010 · 16470-65020 · 16470-72030 |
| 16470A | Hoses or tubes (for radiator reservoir) | 85338-70070 · 90099-04428 · 90445-12043 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470E | Radiator reservoir hose gasket | 90480-25025 |
| 16470J | No. 3 hose (for radiator reservoir) | 16474-54240 |
| 16470K | No. 4 hose (for radiator reservoir) | 88714-89105 |
| 16470R | No. 2 hose (for radiator reservoir) | 16483-55020 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-35040 · 16405-54180 · 16405-54190 · 16405-54280 · 16405-71010 |
| 16472 | Breather hose | 85338-71030 |
| 16473 | Bracket (for radiator reservoir) | 16473-35100 · 16473-35110 · 16473-54240 |
| 16571 | Radiator water inlet hose | 16571-54270 · 16571-54310 · 16571-54440 · 16571-65011 · 16571-67050 · 16571-71030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-37003 · 90467-41003 · 90467-41006 |
| 16572 | Radiator outlet hose | 16572-54250 · 16572-54270 · 16572-54390 · 16572-65010 · 16572-67050 · 16572-71031 · 16573-54080 · 16573-54081 · 16573-54100 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-37002 · 90467-37003 · 90467-37005 · 90467-38001 · 90467-41001 · 90467-41006 |
| 16572C | Hose clamp or clip (for radiator outlet No. 2) | 90467-37002 · 90467-37005 |
| 16577 | Radiator pipe No. 7 | 16577-54120 · 16577-54121 · 16577-54150 · 16577-54180 |
| 16581 | Hose clamp (for water hose) | 16581-54020 |
| 16701 | Fan cover sub-assembly | 16701-67030 · 16711-54260 · 16711-54270 · 16711-54290 · 16711-54410 · 16711-54420 · 16711-54460 · 16711-65031 · 16711-71030 |
| 16701A | Clip (for fan cover) | 90468-06013 |
| 16711 | fan cover | 16711-54430 |
| 16712 | No. 2 fan cover | 16712-54050 · 16712-54180 · 16712-54190 · 16712-54200 · 16712-54280 · 16712-54290 · 16712-54310 · 16712-65010 · 16712-67020 |
