Toyota HILUX Oil Filter — Figure 1502

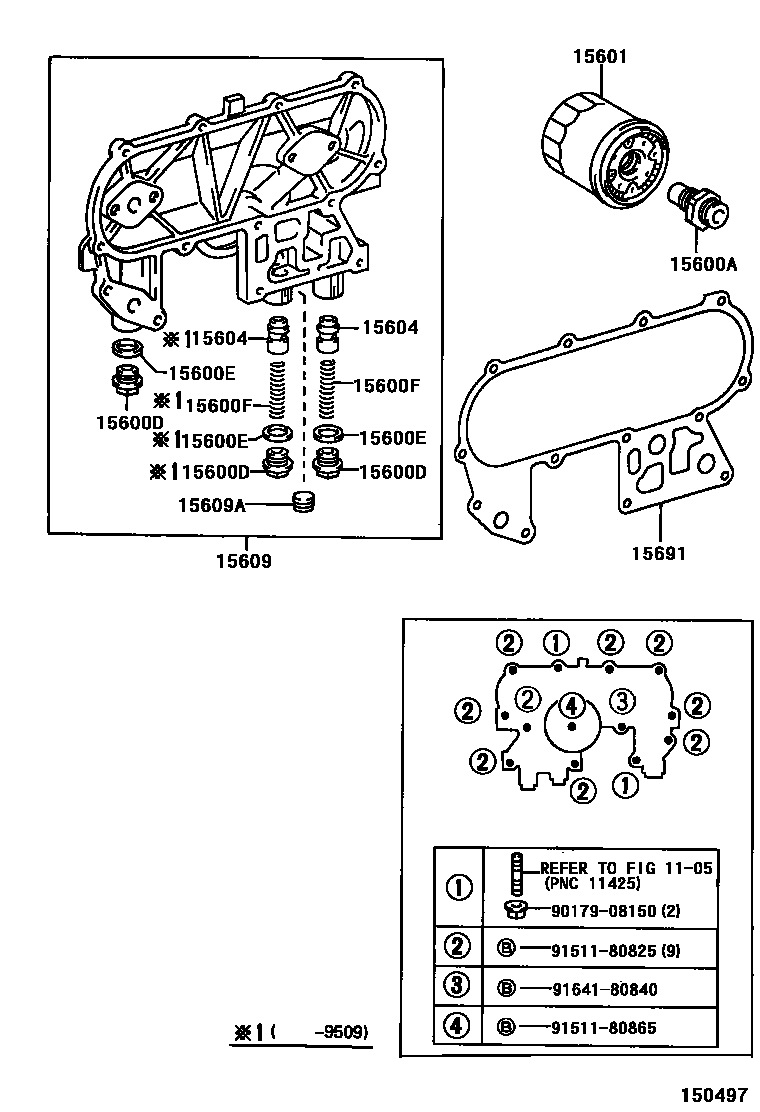

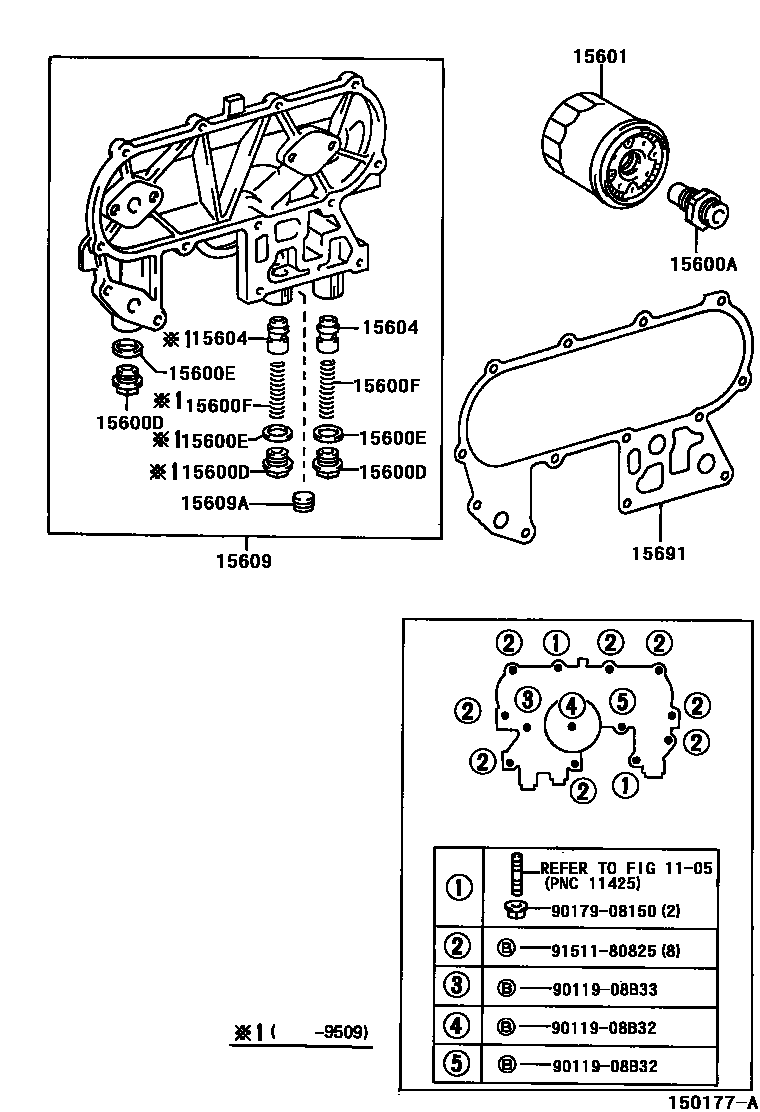

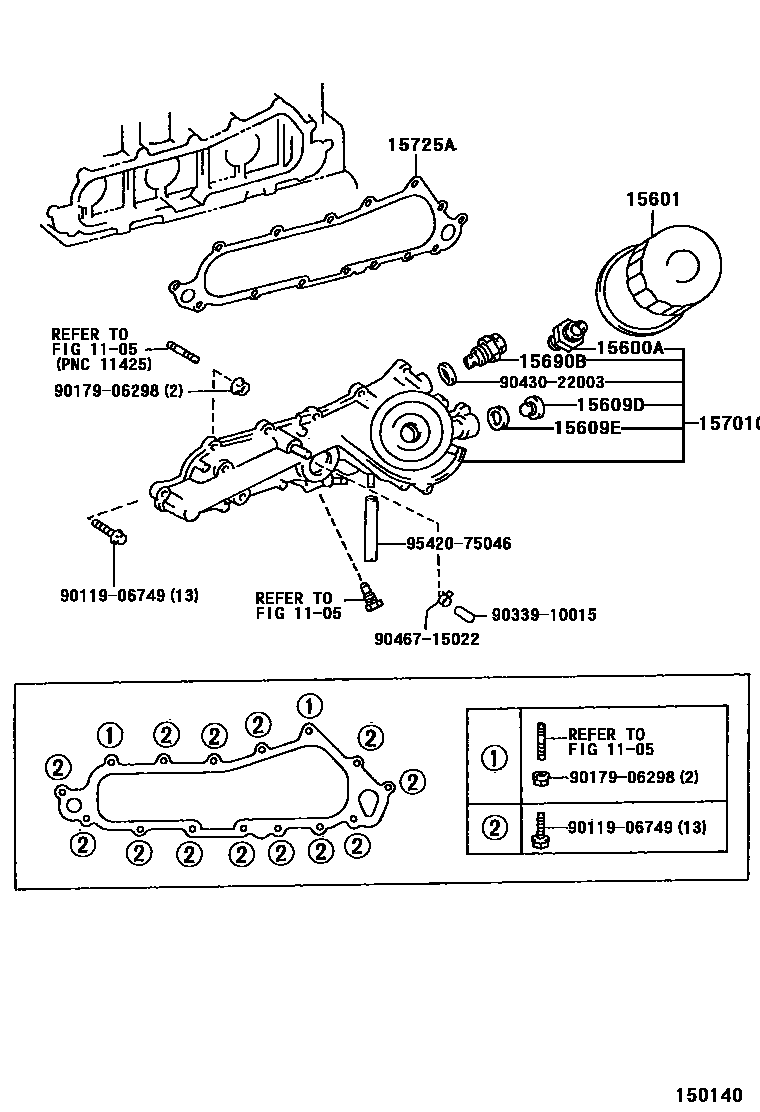

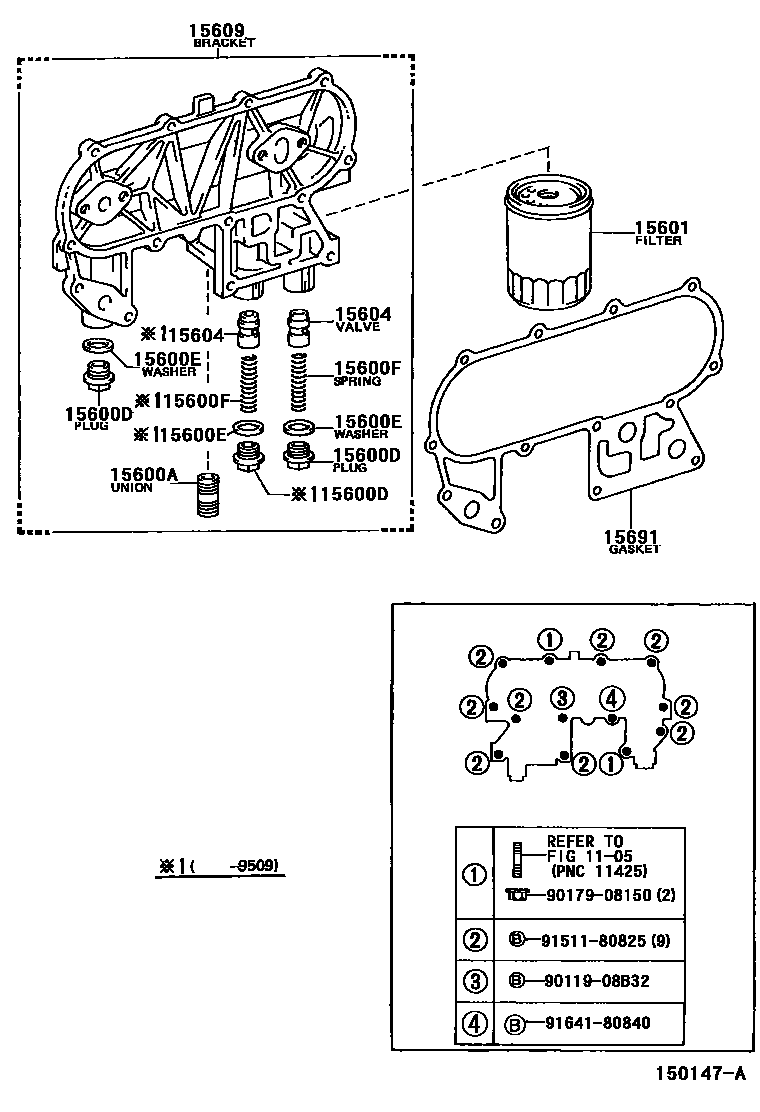

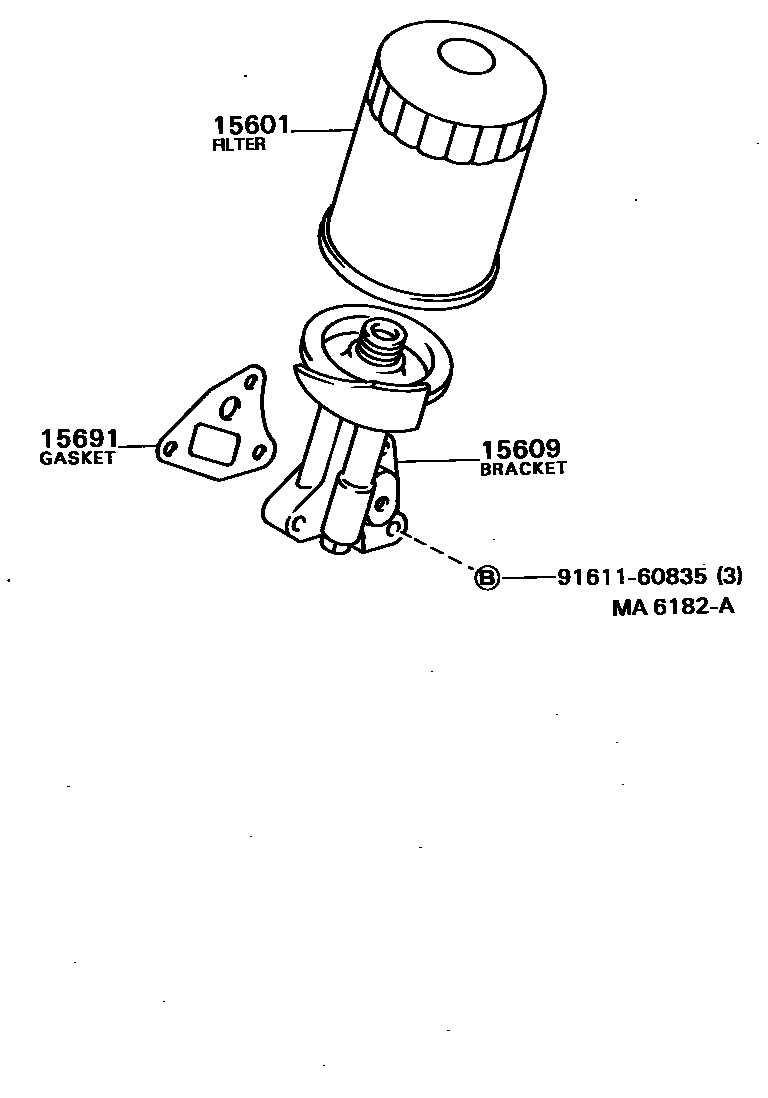

Toyota HILUX EPC diagram 1502, Oil Filter, with 7 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 15116-54010 · 15116-54020 · 15116-54021 · 90404-19011 · 90404-19013 |
| 15600D | Screw plug (for oil filter) | 90341-18015 |
| 15600E | Gasket (for oil filter) | 90430-18001 · 90430-18011 · 90430-18021 · 90430-18029 |
| 15600F | Compression spring (for oil filter) | 90501-16026 |
| 15601 | Oil filter sub-assembly | 15600-41010 · 15601-33021 · 90915-03002 · 90915-03006 · 90915-10002 · 90915-20001 · 90915-30002 |
| 15604 | Oil safety valve sub-assembly | 15131-54010 |
| 15609 | Oil filter bracket sub-assembly | 15609-54013 · 15609-54014 · 15609-54042 · 15609-54043 · 15609-54081 · 15609-54082 · 15609-54100 · 15609-54101 · 15609-71011 · 15671-73020 |
| 15609A | Tapered thread plug (for oil filter holder) | 90344-54003 · 90344-54004 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20002 |
| 15609E | Headed straight thread plug liner | 15134-67020 |
| 15690B | Oil cooler pressure reducing valve assembly | 15690-64010 |
| 15691 | oil filter gasket | 15691-71010 · 15691-71011 · 15692-54030 · 15692-54050 |
| 15701C | Oil cooler cover sub-assembly | 15701-67020 |
| 15725A | Oil cooler cover gasket | 15725-67010 |
