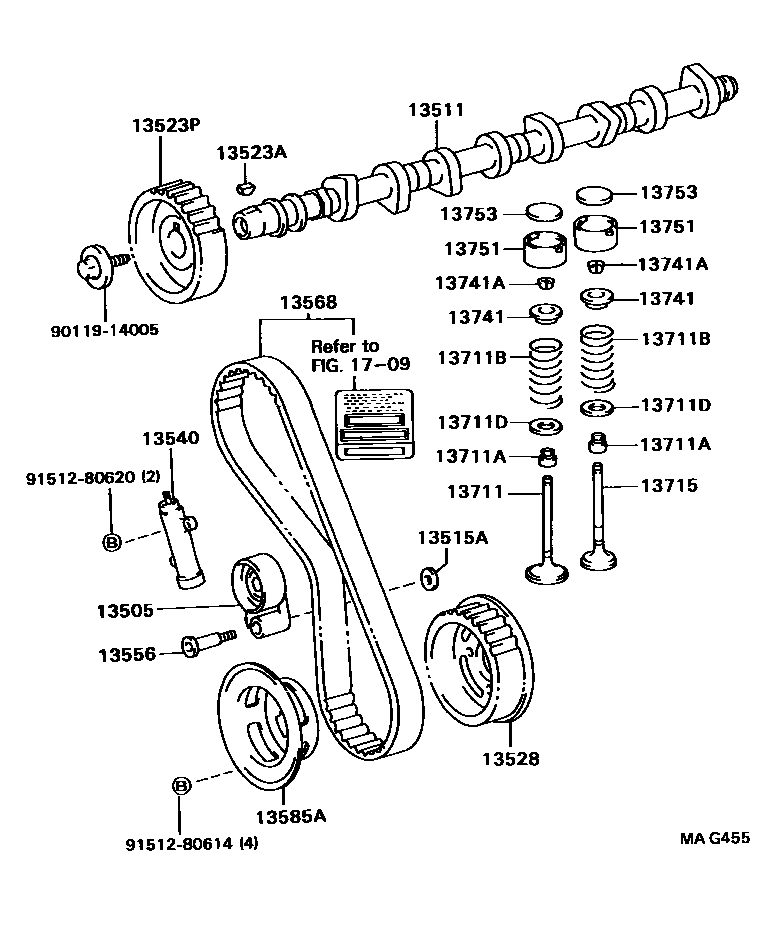

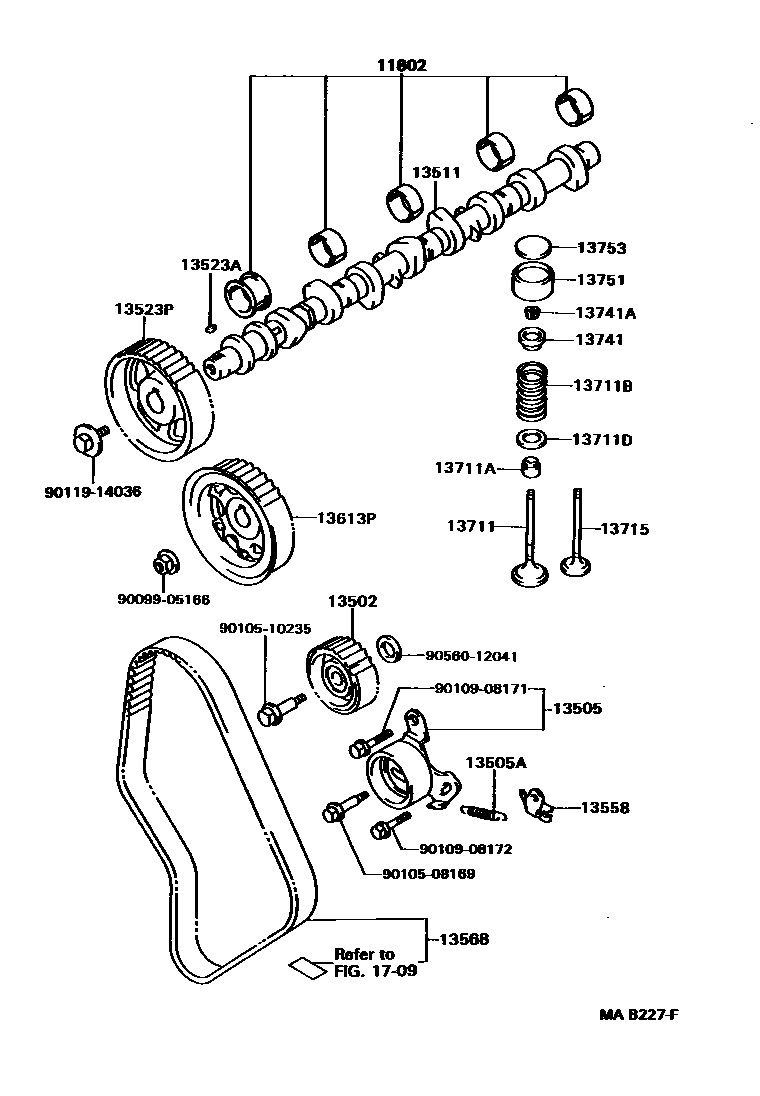

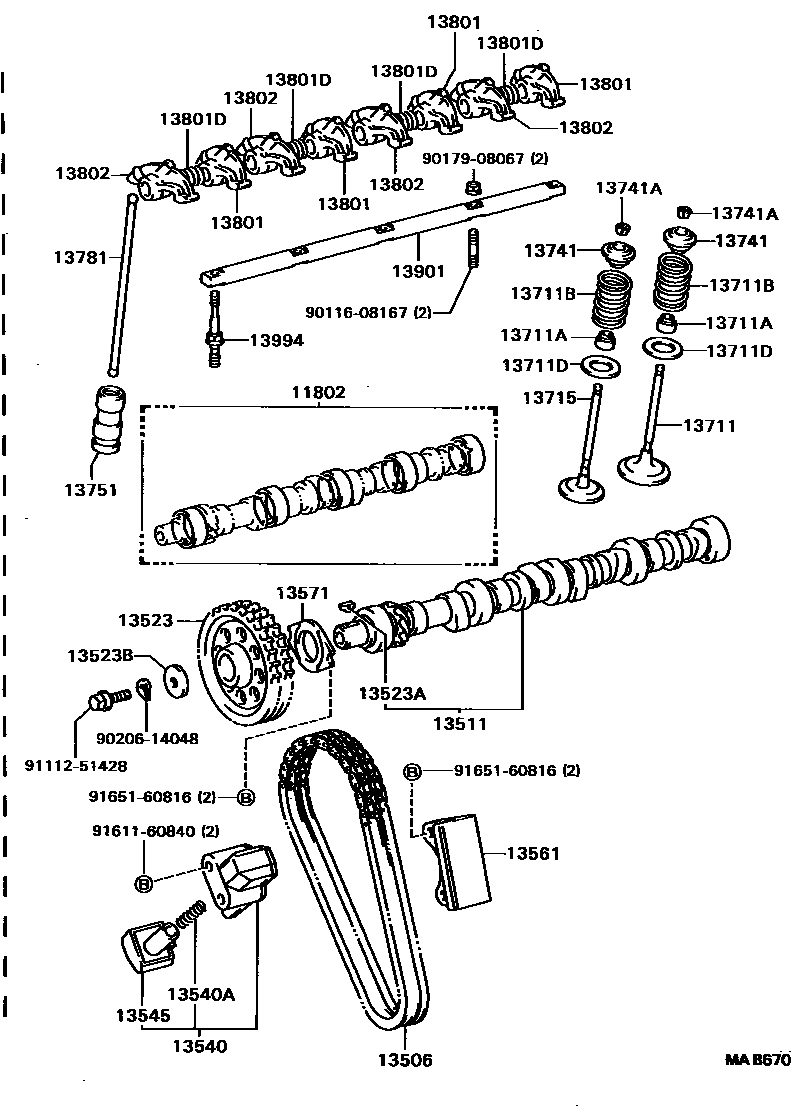

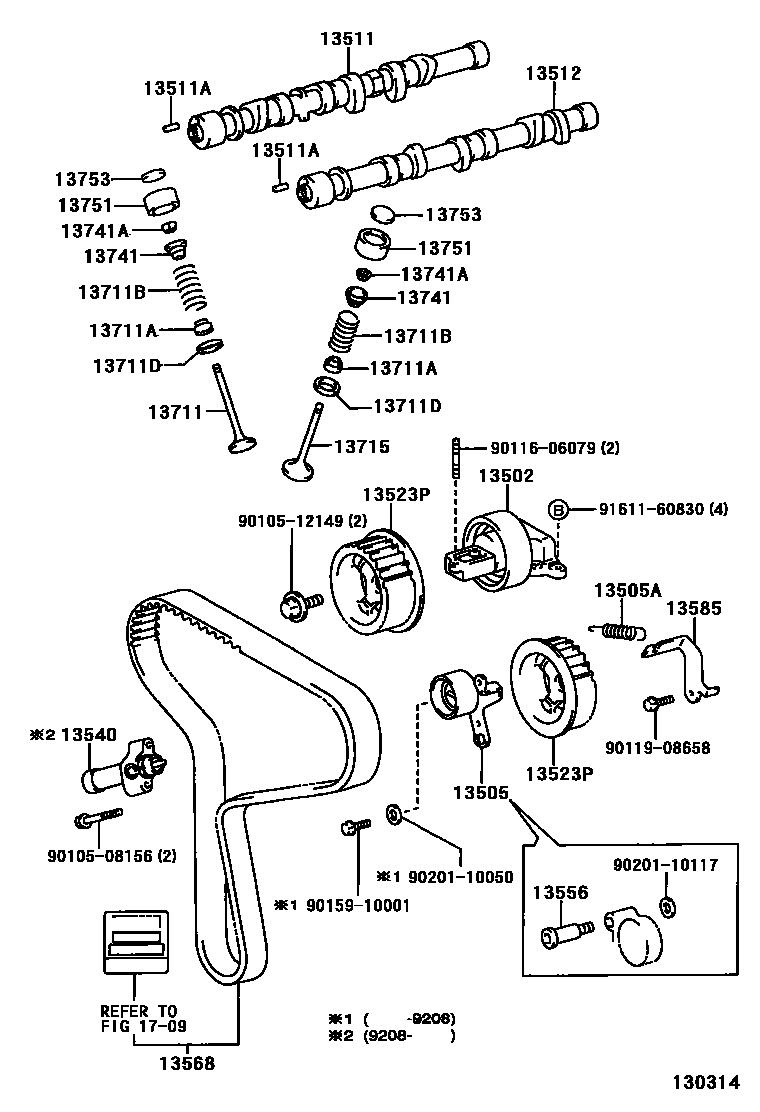

Toyota HILUX Camshaft & Valve — Figure 1302
Toyota HILUX EPC diagram 1302, Camshaft & Valve, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11802 | Camshaft bearing assembly | 11802-54020 · 11802-71010 · 11803-54020 · 11804-54020 |
| 13502 | No. 2 timing belt idler pulley sub-assembly | 13503-54030 · 13503-65010 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-54020 · 13505-54021 · 13505-65020 · 13505-65040 · 13505-67050 |
| 13505A | Tension spring (for idler pulley) | 90506-18060 · 90507-21001 |
| 13506 | Chain sub-assembly | 13506-25010 · 13506-73010 |
| 13511 | camshaft | 13501-54050 · 13501-54060 · 13501-54070 · 13501-65011 · 13501-67010 · 13511-73902 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13512 | Camshaft No. 2 | 13502-65011 |
| 13515A | Flat washer (for distributor drive gear) | 90201-10124 |
| 13523 | Camshaft timing gear or sprocket | 13522-33010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 · 90280-05005 · 90280-05010 |
| 13523B | Flat washer (for timing gear) | 90201-14293 |
| 13523P | Camshaft timing pulley | 13051-65010 · 13523-17010 · 13523-54040 |
| 13528 | Camshaft driving gear | 13528-67010 |
| 13540 | No. 1 chain tensioner assembly | 13540-25010 · 13540-65010 · 13540-67010 |
| 13540A | Compression spring (for chain tensioner) | 90501-10595 |
| 13545 | chain tensioner plunger | 13545-25010 |
| 13556 | Timing belt idler shaft | 13556-65010 · 13556-67010 |
| 13558 | Spring bracket (for idler pulley) | 13558-54020 |
| 13561 | No. 1 chain shock absorber | 13561-25010 |
| 13568 | timing belt | 13568-54070 · 13568-59065 · 13568-59066 · 13568-65010 · 13568-65011 · 13568-69055 · 13568-69075 · 13568-69085 |
| 13571 | Camshaft thrust plate | 13571-71010 |
| 13585 | Tension spring bracket | 13558-65010 |
| 13585A | No. 1 camshaft timing pulley flange | 13585-67010 |
| 13613P | Fuel injection pump drive pulley | 13603-54030 |
| 13711 | intake valve | 13711-17010 · 13711-54020 · 13711-65010 · 13711-71010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02053 · 90913-02073 · 90913-02078 · 90913-02080 · 90913-02091 · 90913-02094 · 90913-02098 · 90913-02110 · 90913-02117 |
| 13711B | Compression spring (for inner side) | 90501-46001 · 90501-47005 · 90504-41001 · 90504-49001 |
| 13711D | Flat washer (for valve spring seat) | 90201-21002 · 90201-23003 |
| 13715 | exhaust valve | 13715-17010 · 13715-54040 · 13715-65010 · 13715-67020 · 13715-71010 |
| 13741 | Valve spring seat ring | 13741-54020 · 13741-63010 · 13741-65010 |
| 13741A | Valve spring seat lock plate | 90913-03014 |
| 13751 | valve lifter | 13750-71010 · 13750-71020 · 13751-54010 · 13751-64011 |
| 13753 | valve adjustment gasket | 13753-54010 · 13753-54060 · 13753-54110 · 13753-54160 · 13753-54210 · 13753-54260 · 13753-54310 · 13753-54360 · 13753-54410 · 13753-54420 · 13753-54430 · 13753-54440 · 13753-54450 · 13753-54460 · 13753-54470 · 13753-54480 · 13753-54490 · 13753-65580 · 13753-65600 · 13753-65620 · 13753-65640 · 13753-65660 · 13753-65680 · 13753-65700 · 13753-65720 · 13753-65740 · 13753-65760 · 13753-65780 · 13753-65800 · 13753-65820 · 13753-65840 · 13753-65860 · 13753-65880 · 13753-6B010 · 13753-6B030 · 13753-6B050 · 13753-6B070 · 13753-6B090 · 13753-6B110 · 13753-6B130 · 13753-6B150 · 13753-6B170 |
| 13781 | valve pushrod | 13781-71010 · 13781-73010 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-71010 |
| 13801D | Compression spring (for rocker arm) | 90501-16068 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13812-71010 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-71010 |
| 13994 | Rocker arm shaft studs | 13994-71010 |
