Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

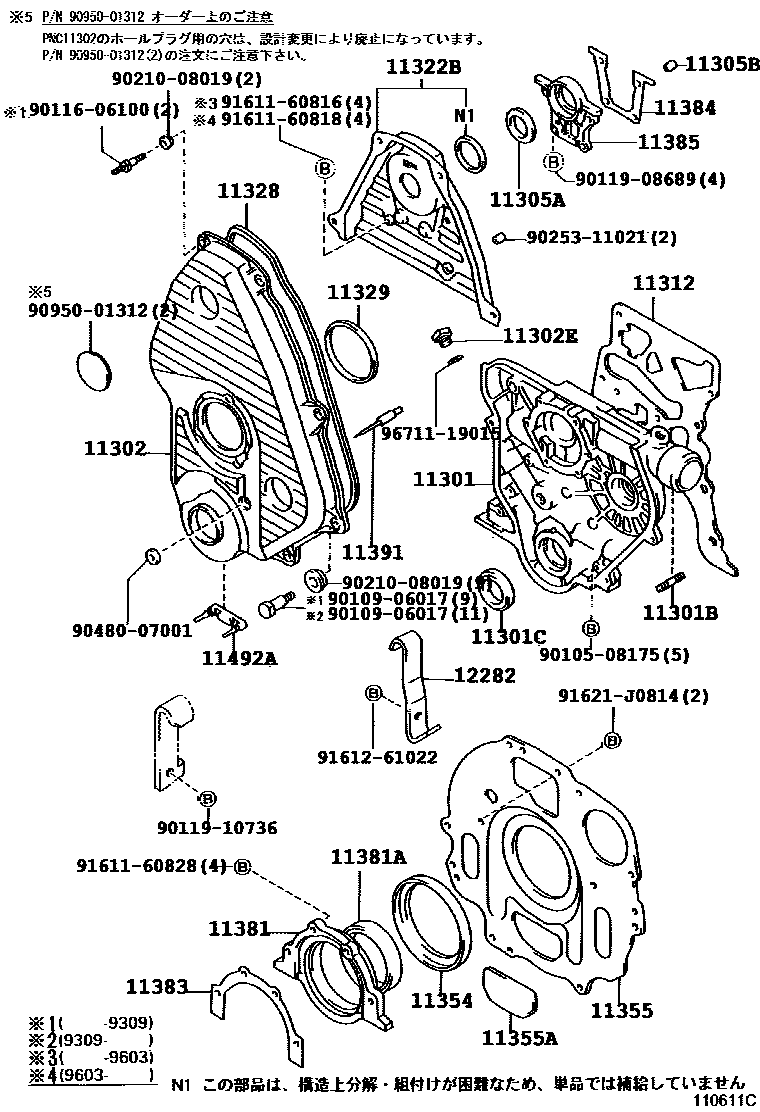

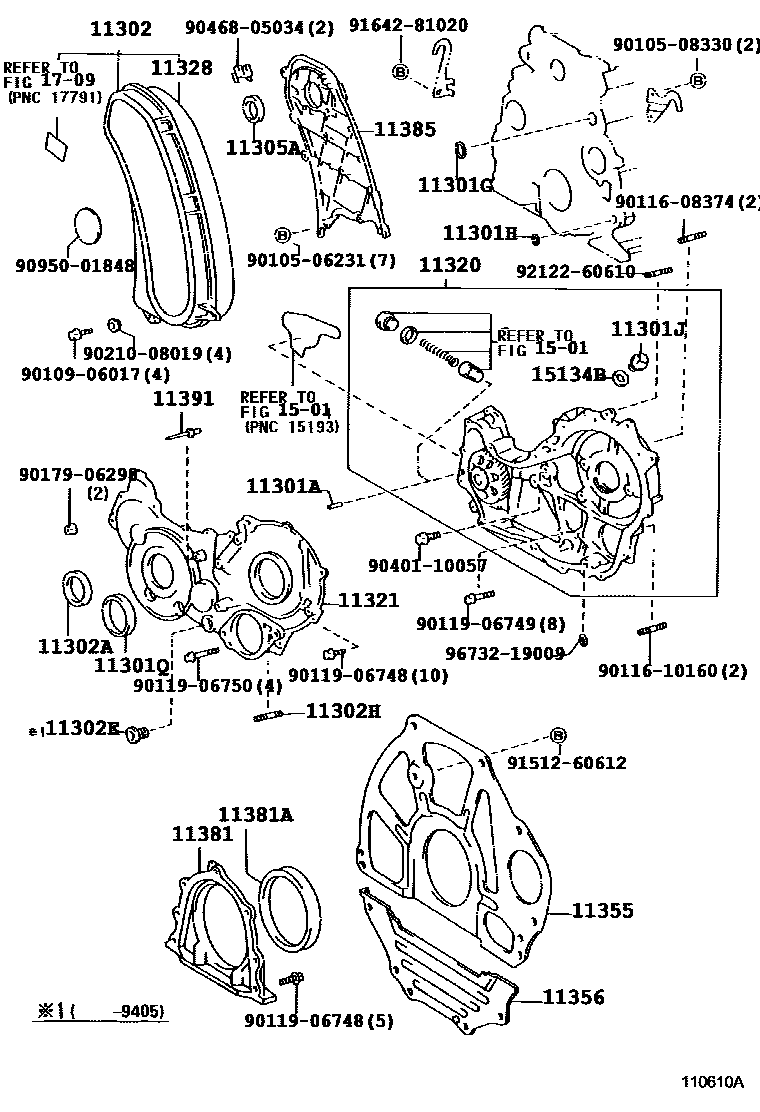

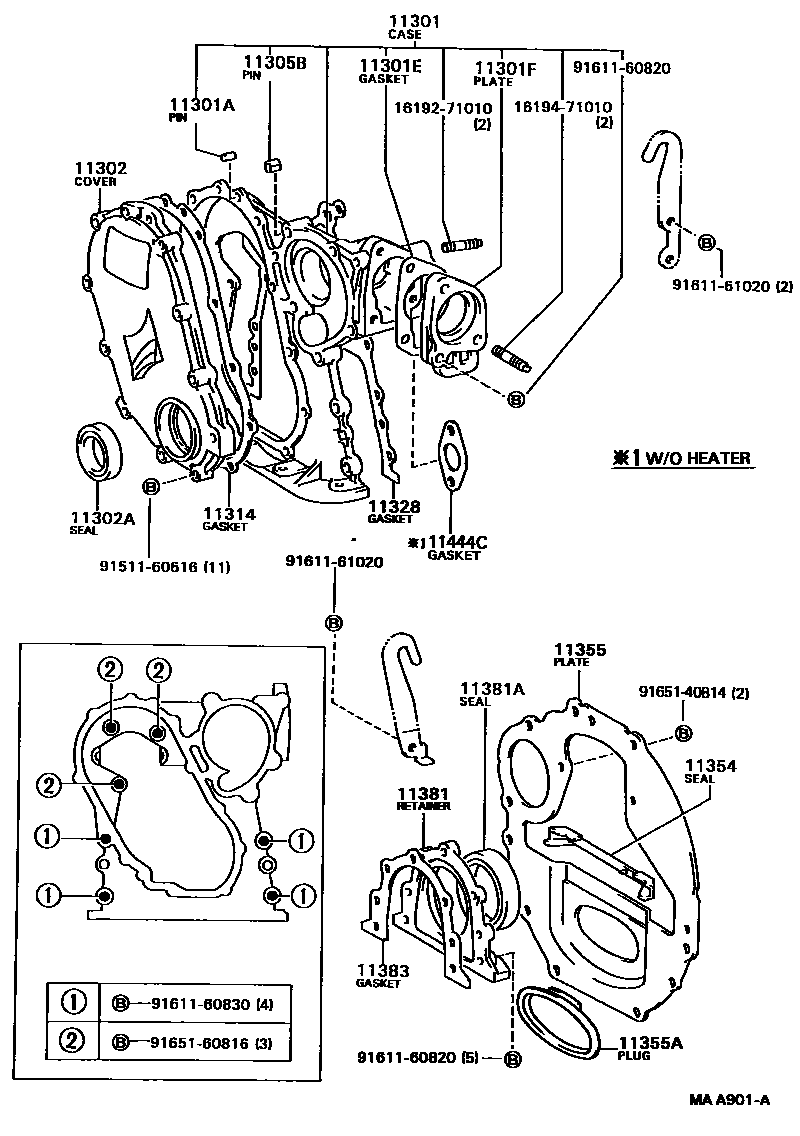

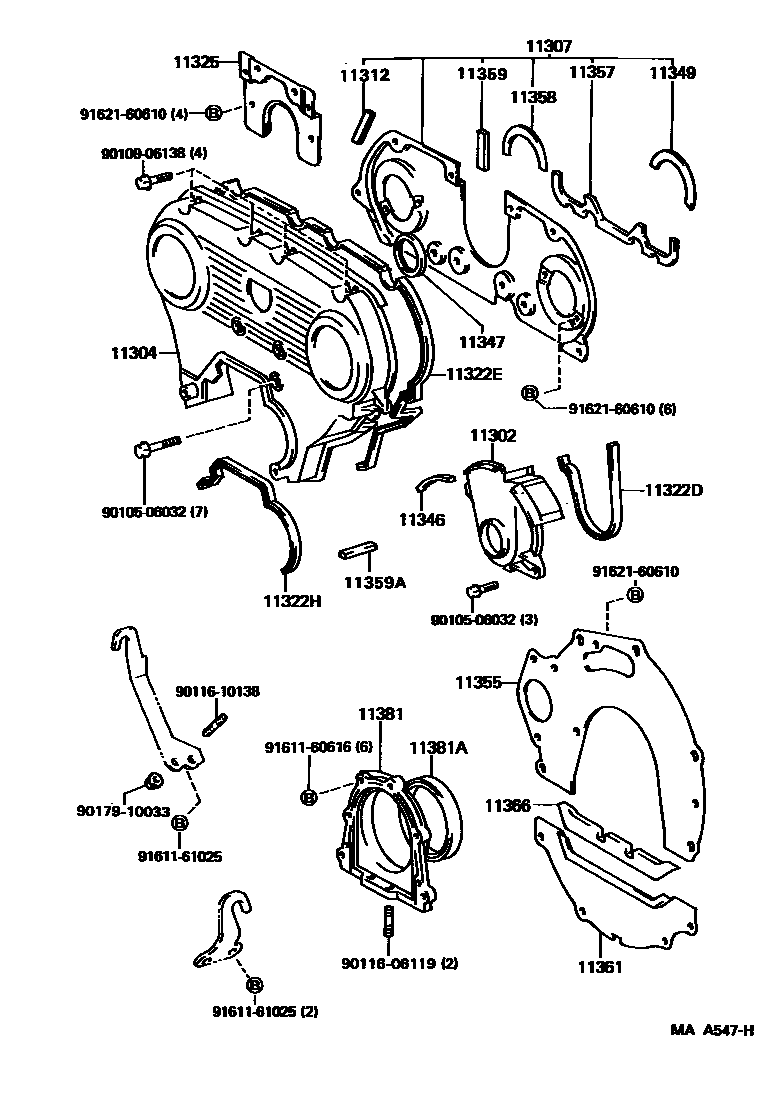

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11301-71010 · 11311-54050 · 11311-54051 · 11311-54052 |
| 11301A | Direct sales (for timing gearbox) | 90250-06001 · 90250-08120 |
| 11301B | Stud bolts (for timing gearbox) | 92132-60828 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-42012 · 90311-42026 · 90311-42030 · 90311-42031 |
| 11301E | thermostat duct gasket | 16119-71010 · 16119-71011 |
| 11301F | water pump thermostat guide plate | 16128-71010 |
| 11301G | O-ring (for upper timing gearbox) | 96721-24022 |
| 11301H | O-RING (FOR LOWER TIMING GEAR CASE) | 96721-24010 |
| 11301J | Headed straight thread plug (for timing gearbox) | 90341-18015 |
| 11301Q | Toyota part | 90311-58006 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-65010 · 11302-67010 · 11321-54020 · 11321-71010 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-42019 · 90311-50017 |
| 11302E | Straight screw plug (for timing gear cover) | 90341-18004 · 90341-22004 |
| 11302H | Studs (for timing gear cover) | 90116-08376 |
| 11304 | No. 2 timing chain or timing belt cover | 11303-65011 · 11303-65020 |
| 11305A | Oil seal (for No. 2 oil seal seat ring) | 90311-32001 · 90311-32017 · 90311-32019 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 16159-71010 · 90253-11021 |
| 11307 | No. 3 timing belt cover sub-assembly | 11304-65010 · 11304-65011 |
| 11312 | front panel gasket | 11312-54021 · 11312-65010 |
| 11314 | No. 2 timing chain cover gasket | 11329-71010 · 11329-71011 · 11329-73010 |
| 11320 | Timing gearbox assembly | 11320-67010 |
| 11321 | timing gearbox | 11321-67030 · 11321-67031 |
| 11322B | No. 2 timing belt cover | 11322-54020 · 11322-54030 |
| 11322D | No. 1 timing belt cover gasket | 11328-65011 |
| 11322E | No. 2 timing belt cover gasket | 11329-65010 · 11329-65020 |
| 11322H | No. 3 timing belt cover gasket | 11319-65010 · 11319-65020 |
| 11325 | No. 4 timing belt cover | 11325-65010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-54020 · 11328-54021 · 11328-67020 · 11328-71011 · 11328-71012 |
| 11329 | Timing gear rear cover gasket | 11329-54020 · 11329-54021 |
| 11346 | No. 4 timing belt cover gasket | 11346-65010 |
| 11347 | No. 5 timing belt cover gasket | 11347-65010 |
| 11349 | No. 9 timing belt cover gasket | 11349-65020 |
| 11354 | Flywheel housing dust seal | 11354-54010 · 11354-71010 |
| 11355 | rear end plate | 11355-54030 · 11355-54040 · 11355-54070 · 11355-54110 · 11355-65010 · 11355-65011 · 11355-67010 · 11355-71010 · 11355-71021 |
| 11355A | Hole plug (for rear end plate) | 90950-01263 · 90950-01307 · 90950-01686 |
| 11356 | No. 2 rear end plate | 11356-67010 |
| 11357 | No. 6 timing belt cover gasket | 11357-65010 |
| 11358 | No. 7 timing belt cover gasket | 11358-65010 |
| 11359 | No. 8 timing belt cover gasket | 11359-65010 |
| 11359A | No. 8 timing belt cover gasket | 11359-65010 |
| 11361 | Flywheel housing bottom cover | 11361-65010 · 11361-65011 |
| 11366 | Flywheel housing bottom cover dust seal | 11366-65010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-54020 · 11381-62010 · 11381-67020 · 11381-71010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-80003 · 90311-80009 · 90311-85004 · 90311-85006 · 90311-85007 · 90311-85008 · 90311-92004 · 90311-92006 · 90311-95008 |
| 11383 | Engine rear oil seal seat gasket | 11383-25010 · 11383-54020 · 11383-54030 · 11383-71010 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54020 · 11384-54030 |
| 11385 | Camshaft oil seal race | 11382-54020 · 11382-67010 |
| 11391 | Timing pointer | 11391-54020 · 11391-67010 |
| 11444C | Heater tube gasket | 17175-72010 · 17175-72011 |
| 11492A | coolant sealing plate | 11492-54010 |
| 12282 | ENGINE HANGER, NO.2 | 12282-54060 |
| 15134B | Oil pump pressure reducing valve gasket | 15134-67010 |
