Toyota HILUX Partial Engine Assembly — Figure 1101

Toyota HILUX EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

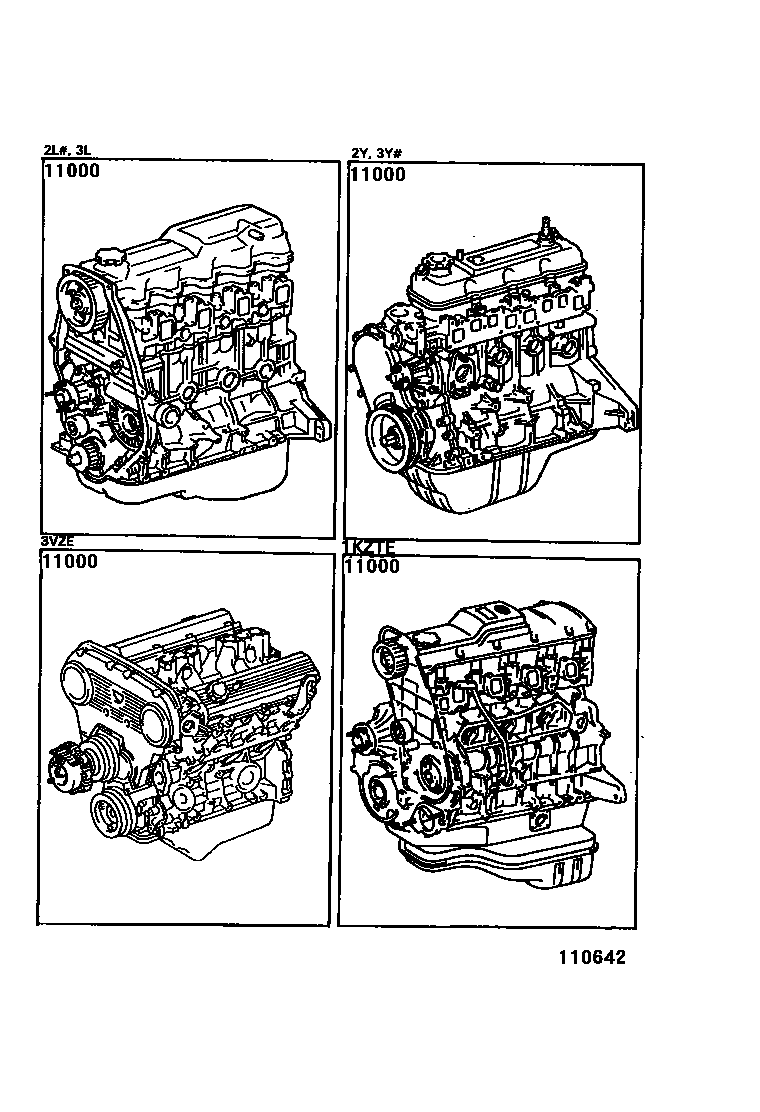

Toyota HILUX Partial Engine Assembly EPC diagram — 110642
Partial Engine Assembly — 110642 (198809 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-54730 · 19000-54750 · 19000-54880 · 19000-5B190 · 19000-5B290 · 19000-65051 · 19000-65052 · 19000-65080 · 19000-65081 · 19000-67060 · 19000-67061 · 19000-72300 · 19000-72301 · 19000-73620 · 19000-73621 · 19000-73640 · 19000-73641 · 19000-73642 · 19000-73820 · 19000-73821 · 19000-73830 · 19000-73831
