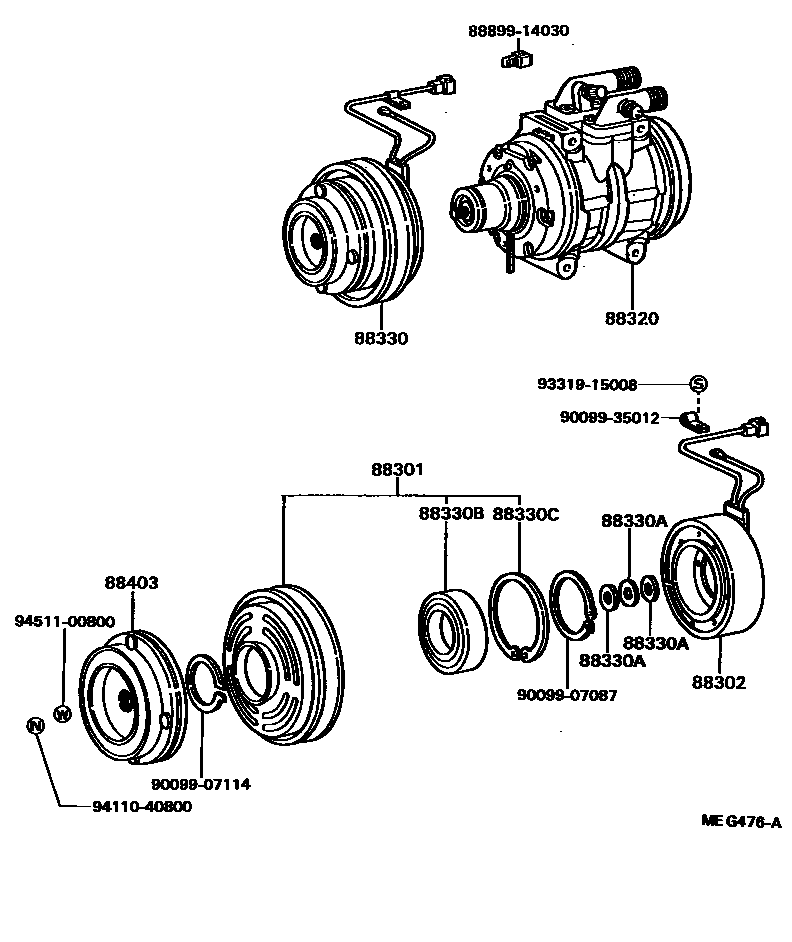

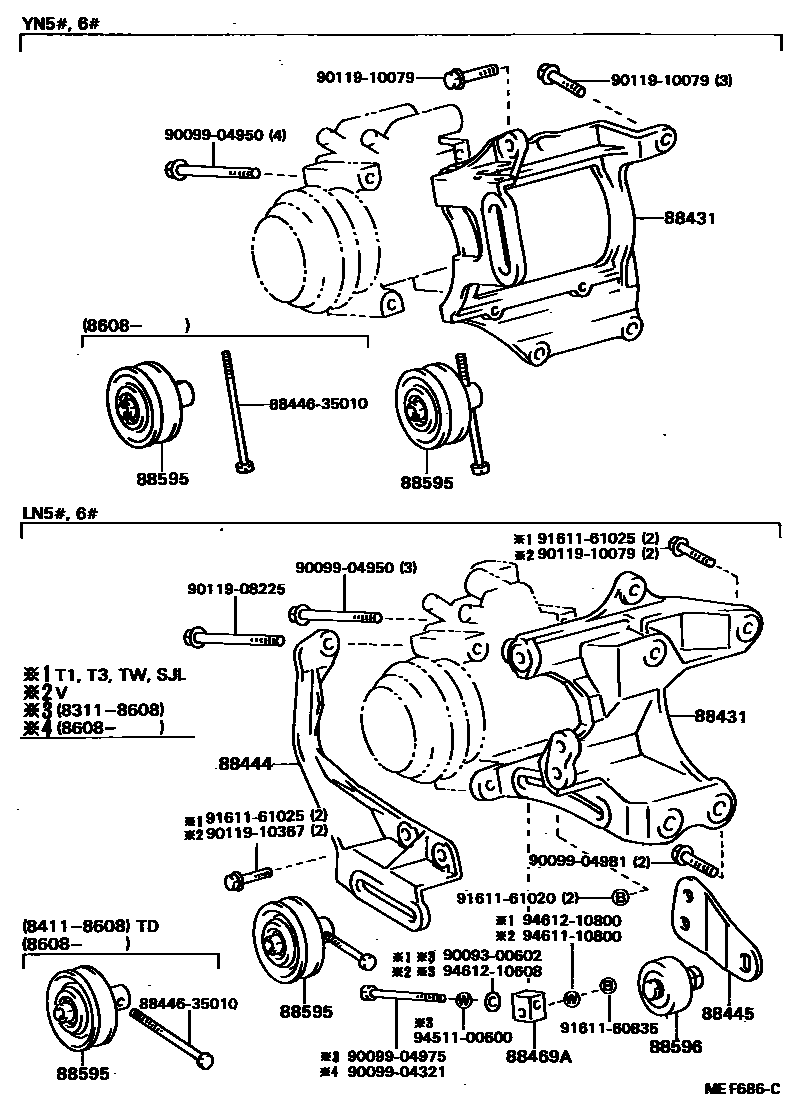

Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719
Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-22030 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-14050 |
| 88320 | Cooler Compressor Assembly | 88320-35110 · 88320-35140 · 88320-35180 · 88320-35190 · 88320-35200 |
| 88330 | Magnetic Clutch Assembly | 88410-22080 |
| 88330A | Washer (for electromagnetic clutch) | 90099-01108 · 90099-01350 · 90099-01351 |
| 88330B | Electromagnetic clutch bearing | 90099-10133 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07114 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 |
| 88431 | Compressor No. 1 mounting bracket | 88431-26170 · 88431-26180 · 88431-28050 · 88431-30490 |
| 88444 | Idler gear bracket | 88444-26060 |
| 88445 | Idler gear bracket | 88444-26070 |
| 88469A | Adjustment collar | 88469-30280 |
| 88595 | Cooler compressor idler pulley | 88440-25010 · 88440-28050 · 88440-35010 · 88440-35020 |
| 88596 | No. 2 idler gear assembly | 88440-26070 |
