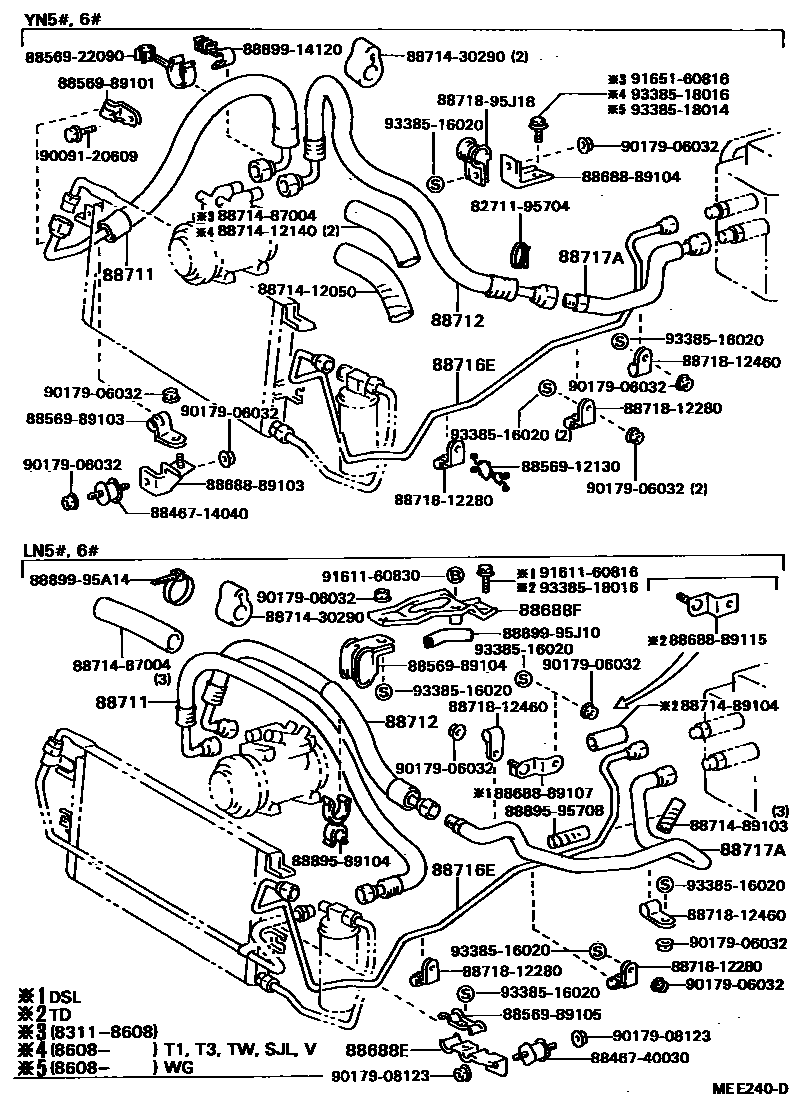

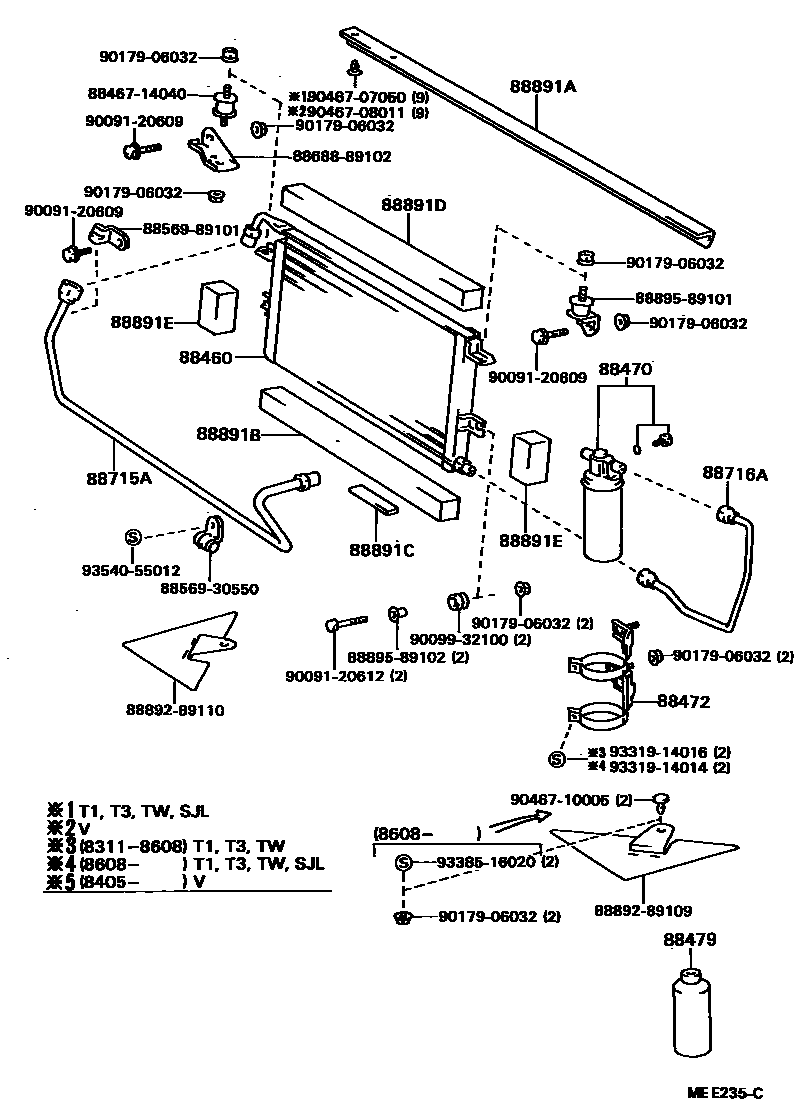

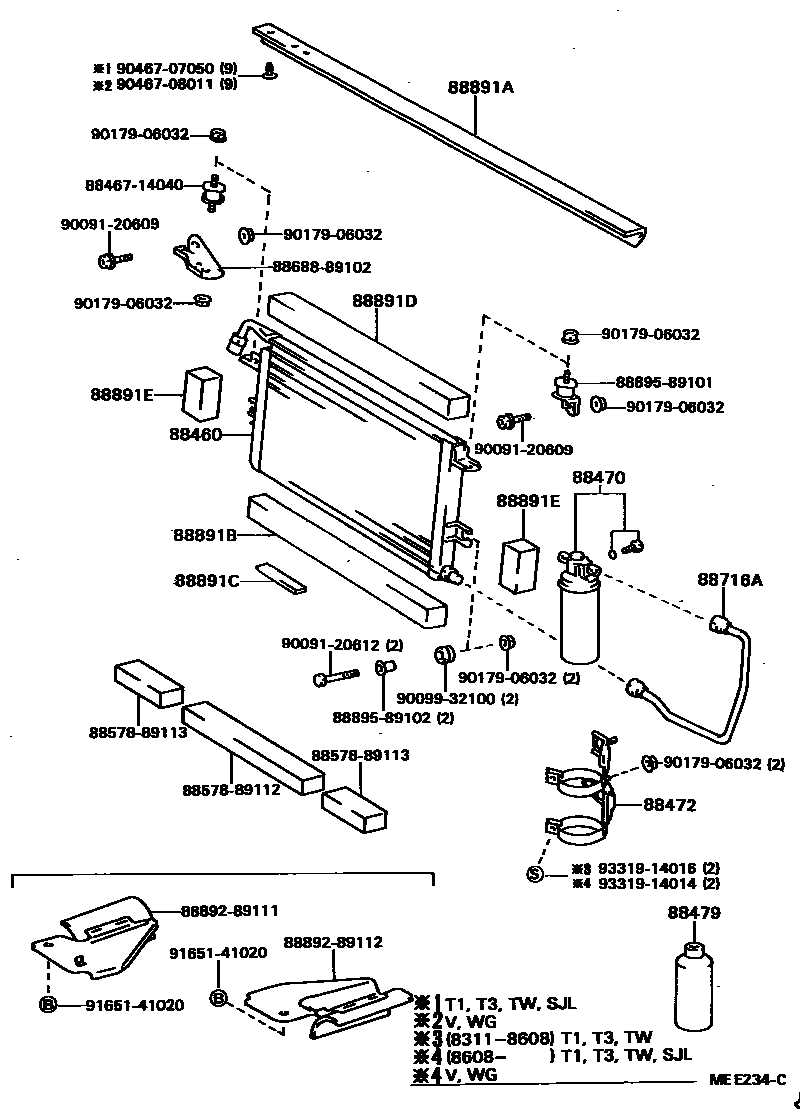

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-89109 · 88460-89110 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12050 · 88470-14010 |
| 88472 | No. 1 liquid storage tank bracket | 88472-89109 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-89106 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-89105 · 88688-89111 · 88688-89112 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-89116 · 88711-89118 · 88711-89119 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-89119 · 88712-89122 · 88712-89128 · 88712-89131 · 88712-89132 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-89103 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-89132 · 88716-89138 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-89135 · 88716-89142 · 88716-89144 · 88716-89150 |
| 88717A | Cooler refrigerant suction pipe A | 88717-89108 · 88717-89109 · 88717-89110 |
| 88891A | Seal A (for cooler) | 53381-89103 |
| 88891B | Seal B (for cooler) | 88578-89101 · 88578-89108 |
| 88891C | Seal C (for cooler) | 88578-89107 |
| 88891D | Seal D (for cooler) | 88578-89101 · 88893-89114 |
| 88891E | Seal E (for cooler) | 88578-89103 |
