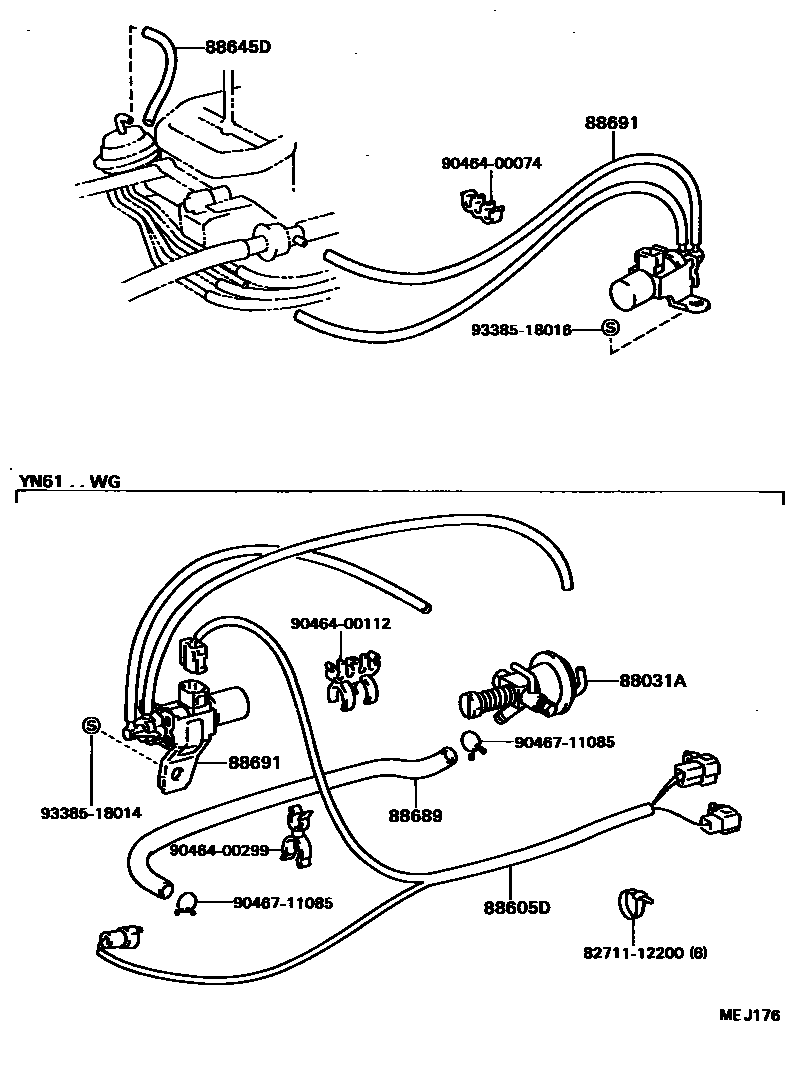

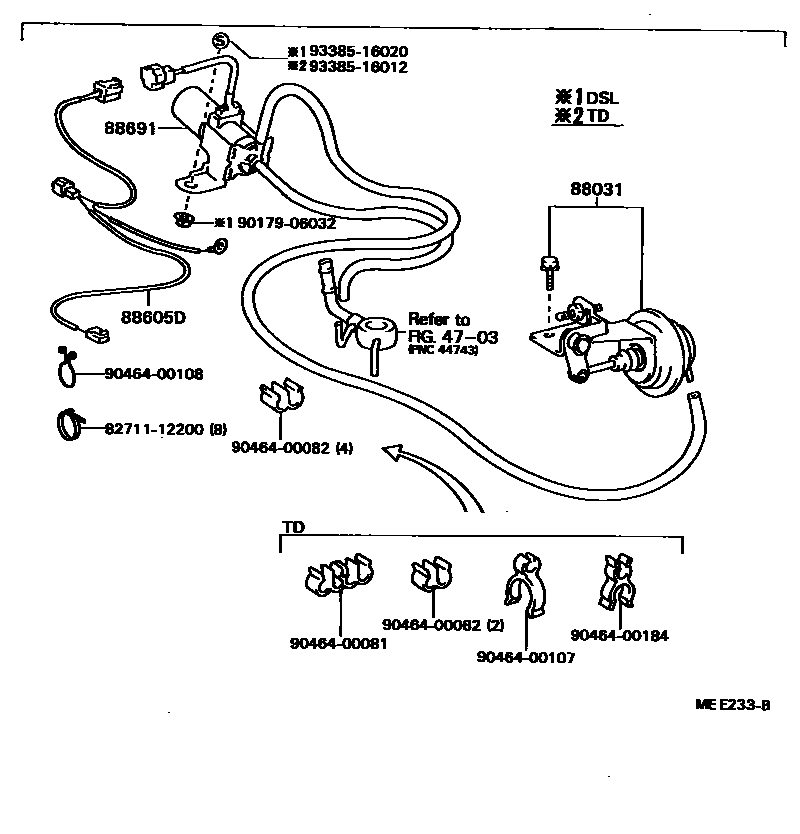

Toyota HILUX 暖风和空调系统 - 真空管 — Figure 8717
Toyota HILUX EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-12150 · 88031-35040 |
| 88031A | Idle speed lift actuator diaphragm sub-assembly | 88606-28010 |
| 88605D | Air conditioning wiring harness | 88648-89114 · 88648-89117 · 88648-89123 |
| 88689 | Damper control diaphragm vacuum hose | 17341-73020 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-87028 · 88690-89118 · 88690-89124 |
