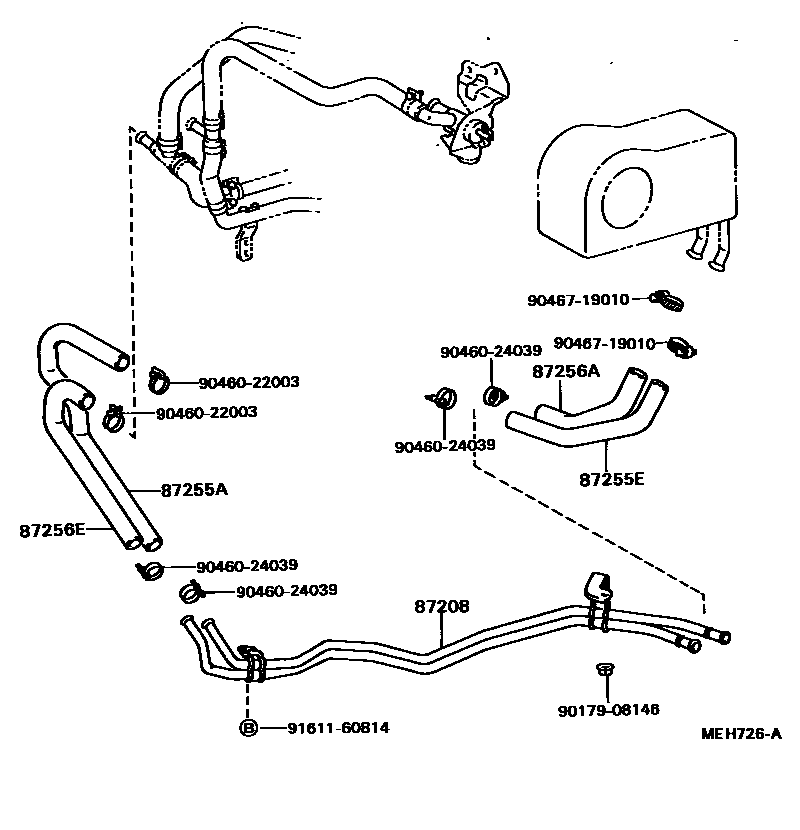

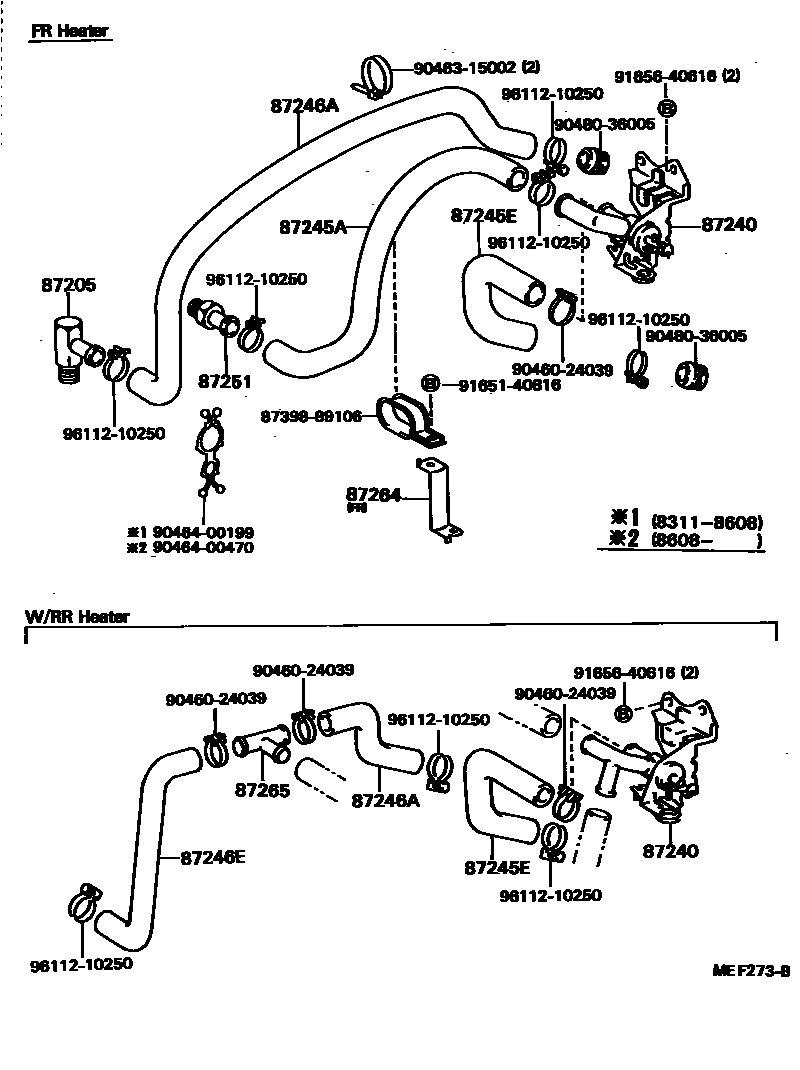

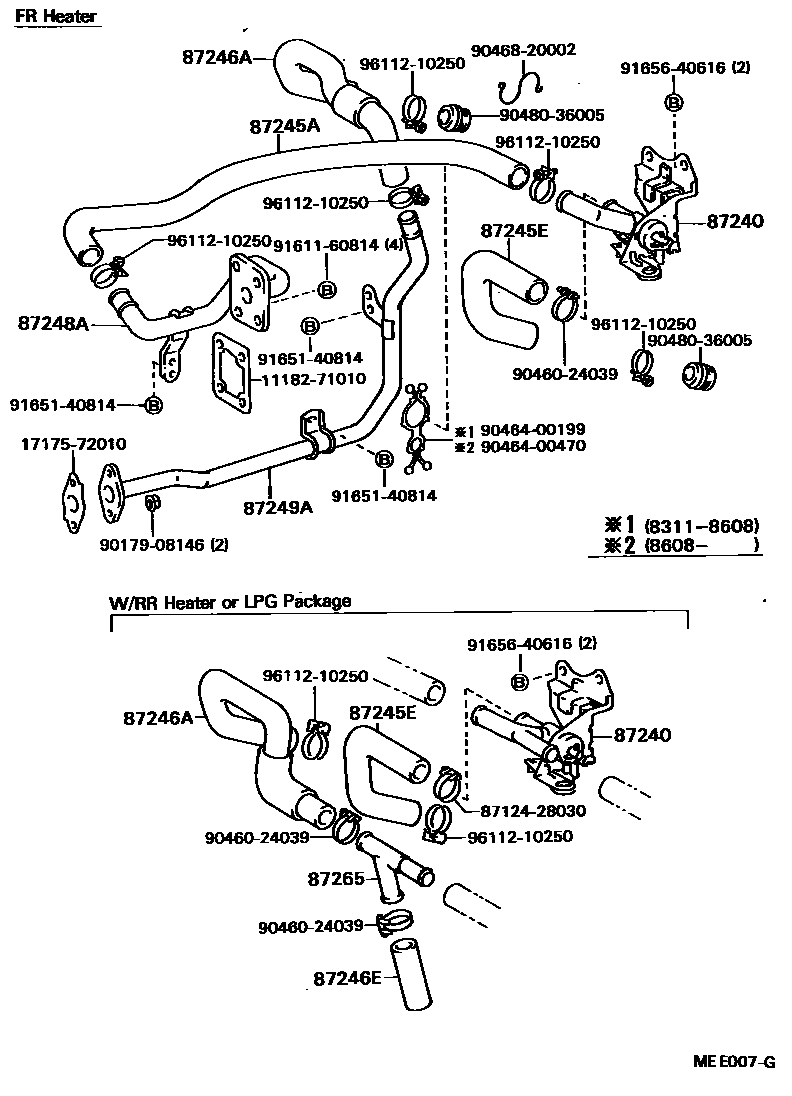

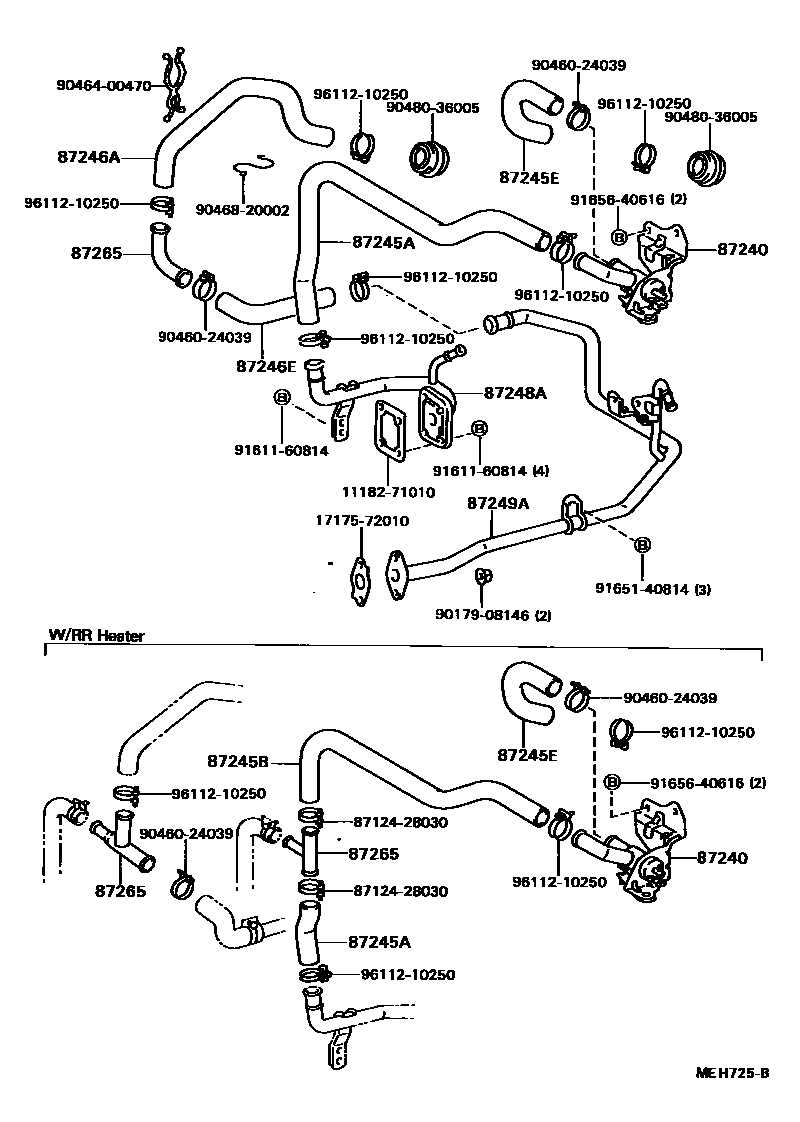

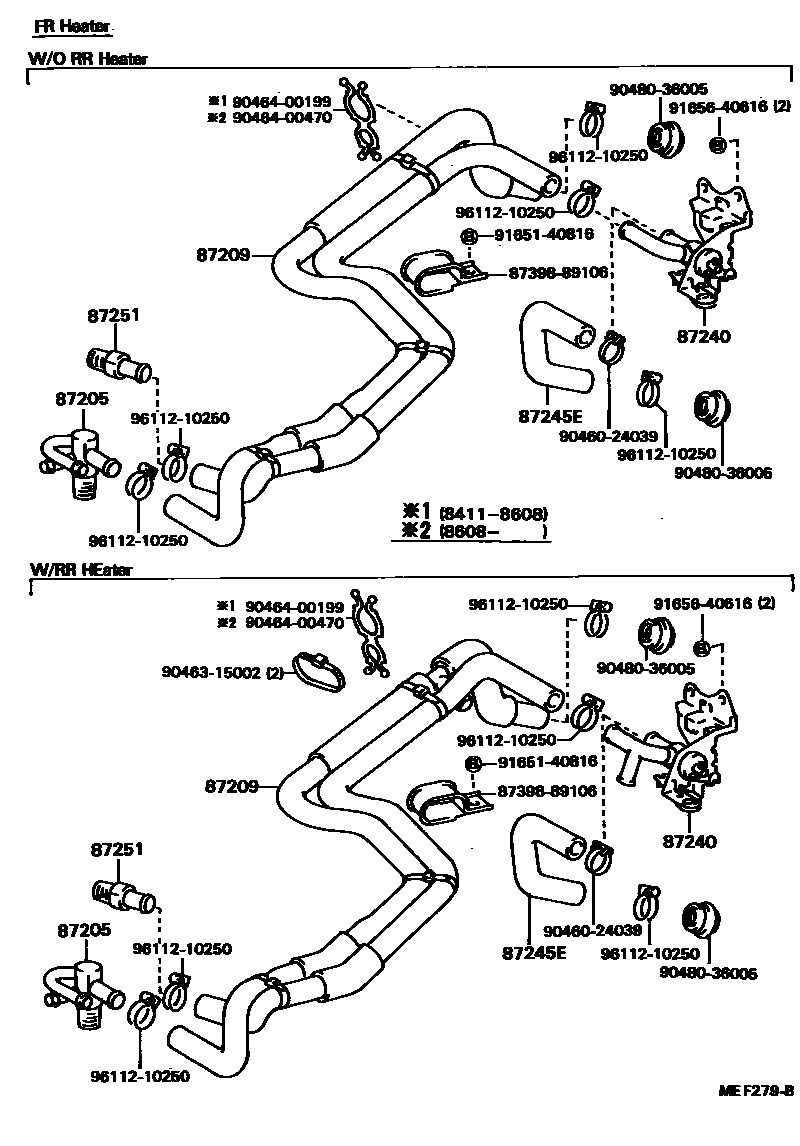

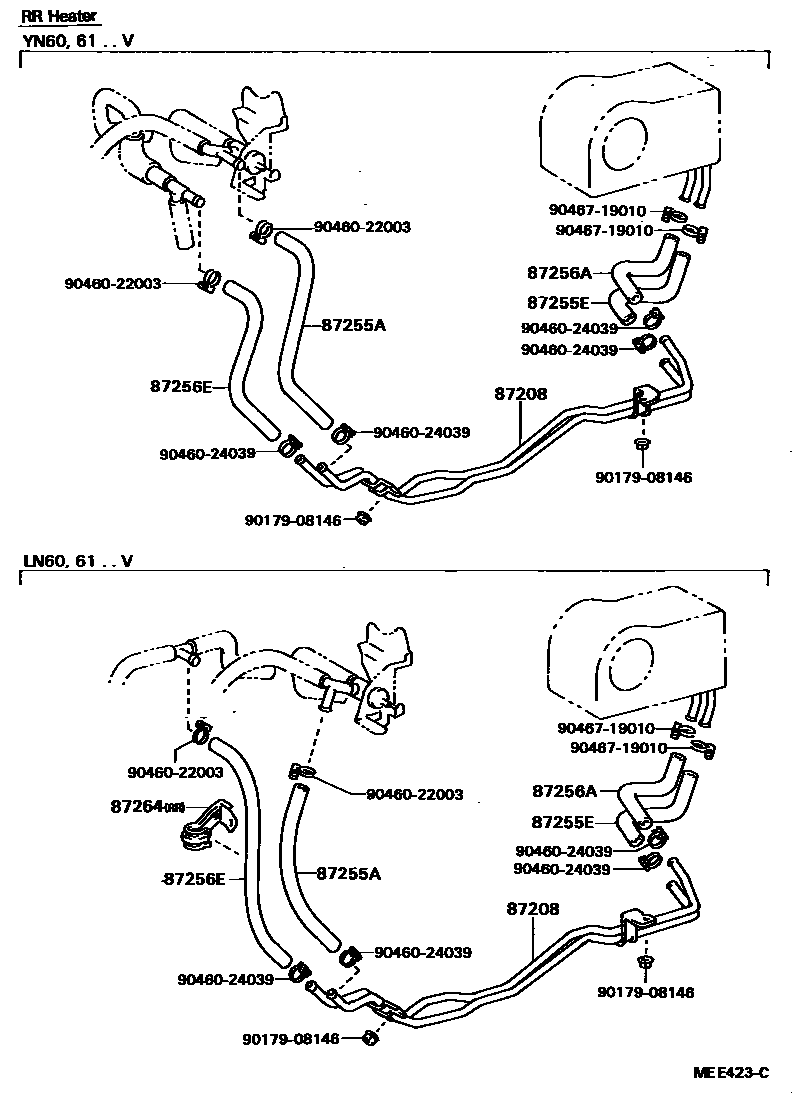

Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716
Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87205 | Front heater hose feedthrough connector or water inlet valve connector | 87251-30230 · 90404-54029 |
| 87208 | Heater water pipe sub-assembly | 87248-89119 · 87248-89120 · 87248-89127 |
| 87209 | Water hose sub-assembly | 87209-89118 · 87209-89119 |
| 87240 | Heater water valve assembly | 87240-89115 · 87240-89119 · 87240-89120 |
| 87245A | Heater water inlet hose A | 87245-89149 · 87245-89194 · 87245-89198 · 99552-31000 |
| 87245B | Heater water inlet hose B | 87245-89199 |
| 87245E | Heater water inlet hose E | 87245-89146 |
| 87246A | Heater outlet hose A | 87245-89153 · 87245-89158 · 87245-89159 · 87245-89161 · 87245-89195 · 87245-89212 |
| 87246E | Heater outlet hose E | 87245-89160 · 87245-89180 · 87245-89196 · 99556-30055 · 99556-30100 |
| 87248A | Heater water inlet pipe A | 87208-89110 · 87208-89128 |
| 87249A | Heater outlet pipe A | 87208-89112 · 87208-89126 · 87208-89129 |
| 87251 | Water hose penetration joint | 87251-30200 |
| 87255A | Rear heater water inlet hose A (from engine) | 87245-89169 · 87245-89175 · 87245-89200 |
| 87255E | Rear heater water inlet hose E (to heating device) | 87245-89164 · 87245-89202 |
| 87256A | Rear heater water outlet hose A (self-heating device) | 87245-89165 · 87245-89203 |
| 87256E | Rear heater water outlet hose E (to engine) | 87245-89171 · 87245-89176 · 87245-89201 |
| 87264 | Heater water hose bracket | 87263-89108 · 87263-89112 |
| 87265 | Heater water hose connector | 87265-89101 · 87265-89102 · 87265-89103 · 87265-89104 |
