Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715

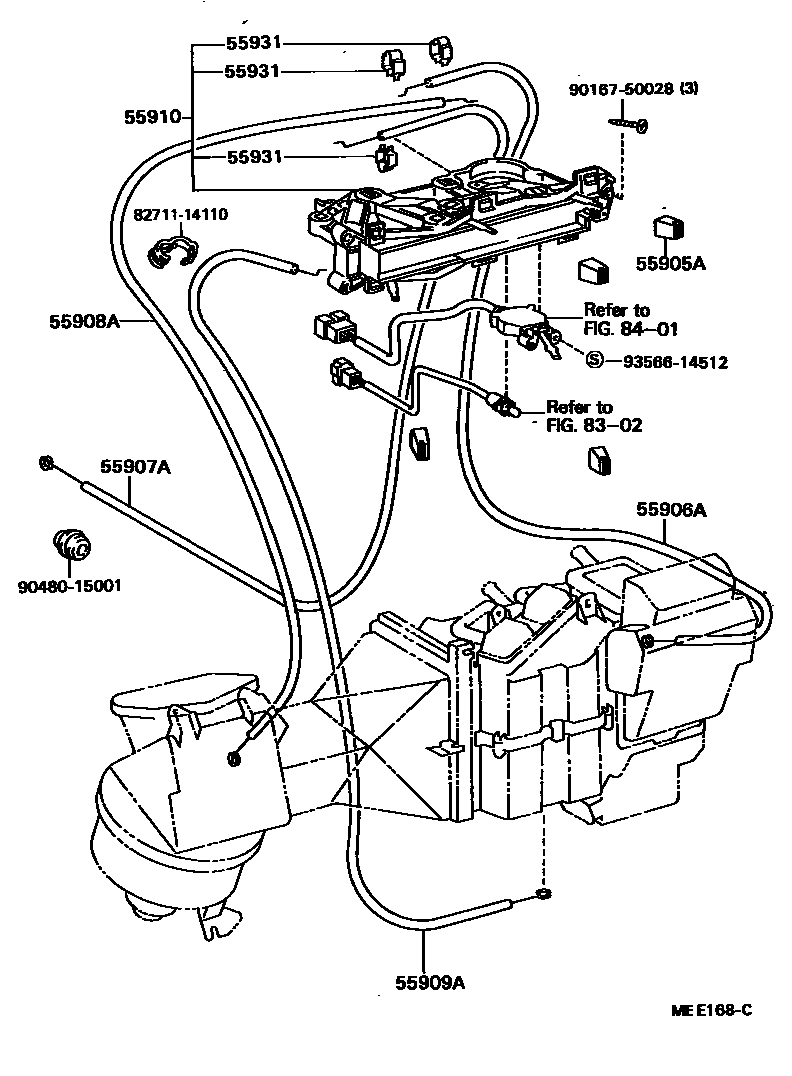

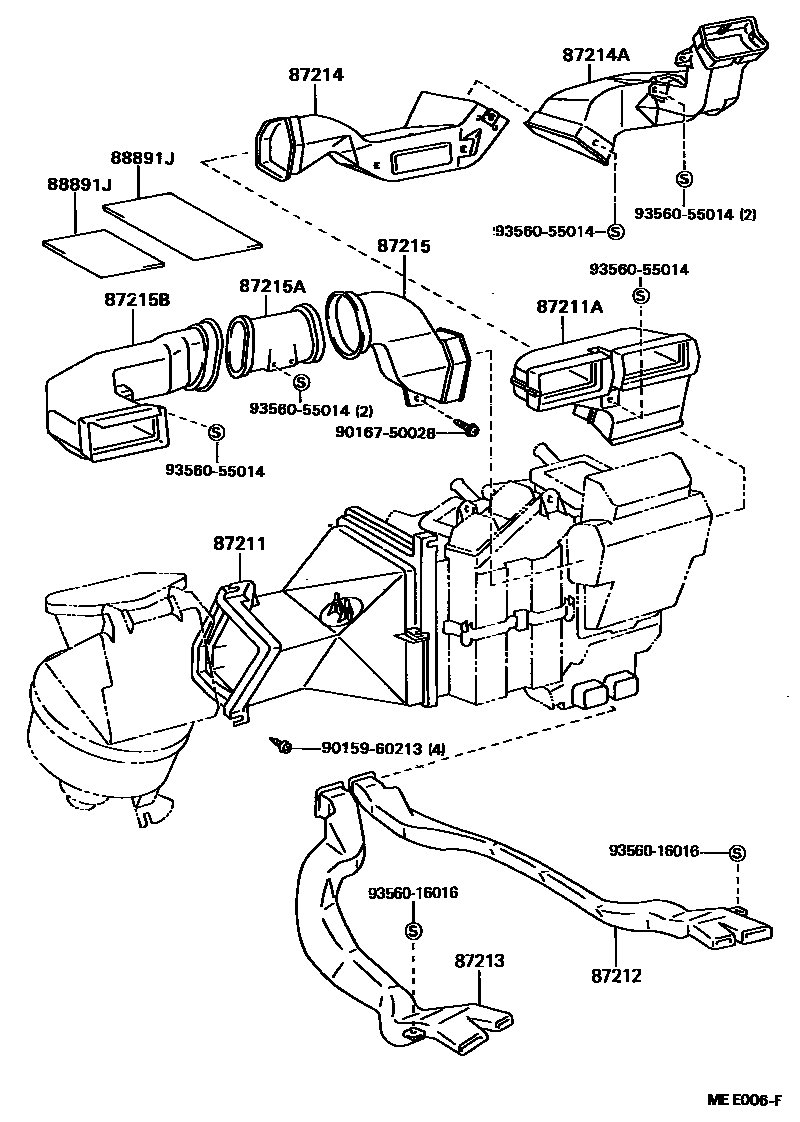

Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55905A | Heater control button | 55905-89110 · 55905-89115 |
| 55906A | Defroster damper control cable sub-assembly | 55906-89110 |
| 55907A | Water valve control cable sub-assembly | 55907-89115 |
| 55908A | Intake air valve control cable sub-assembly | 55908-89105 |
| 55909A | Air mix damper control cable sub-assembly | 55909-89110 · 55909-89113 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-89120 · 55910-89135 |
| 55931 | Heater control harness clip | 55933-10010 |
| 87211 | No. 1 air duct | 87211-89105 |
| 87211A | Duct No. 2 | 55835-89105 · 55835-89107 |
| 87212 | No. 1 rear air duct | 87212-89101 |
| 87213 | No. 2 rear air duct | 87213-89101 · 87213-89102 |
| 87214 | Air duct No. 1 on the right | 55843-89105 · 55843-89110 |
| 87214A | Air duct No. 2 on the right | 55844-89105 · 55844-89108 |
| 87215 | Air duct No. 1 on the left | 55845-89105 |
| 87215A | Air duct No. 2 on the left | 55846-89105 |
| 87215B | Air duct No. 3 on the left | 55847-89105 · 55847-89110 |
| 88891J | Seals | 88578-89105 · 88578-89106 |
